Description
The Atlas® 6MR is a free standing 6,000 lb. capacity portable scissor lift. The 6MR is the perfect lift for body shops and wheel service specialists that need extra lifting height. This portable lift easily raises a 6,000 LB. car or truck to a comfortable working height. The unique platform design of the 6MR allows access to some areas on the underside of the car not easily accessible with other portable mid-rise lifts.

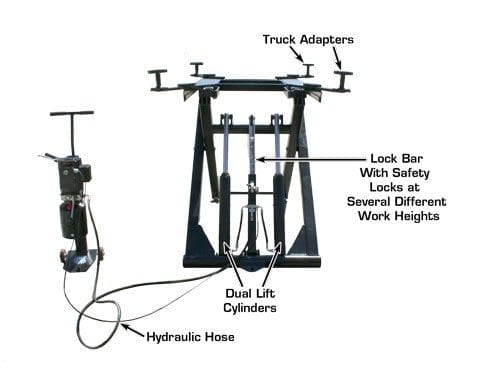

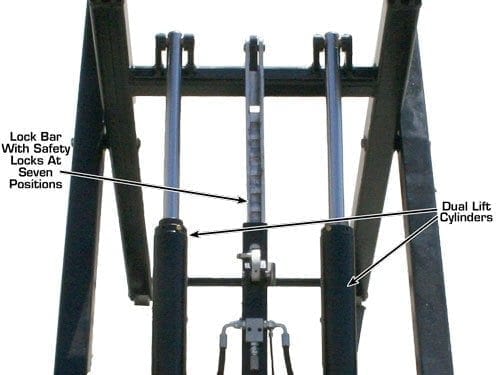

The dual power cylinders and the solid safety lock bar, with several different lock positions, make the Atlas® 6MR one of the most popular mid-rise lifts sold in the USA and Canada.

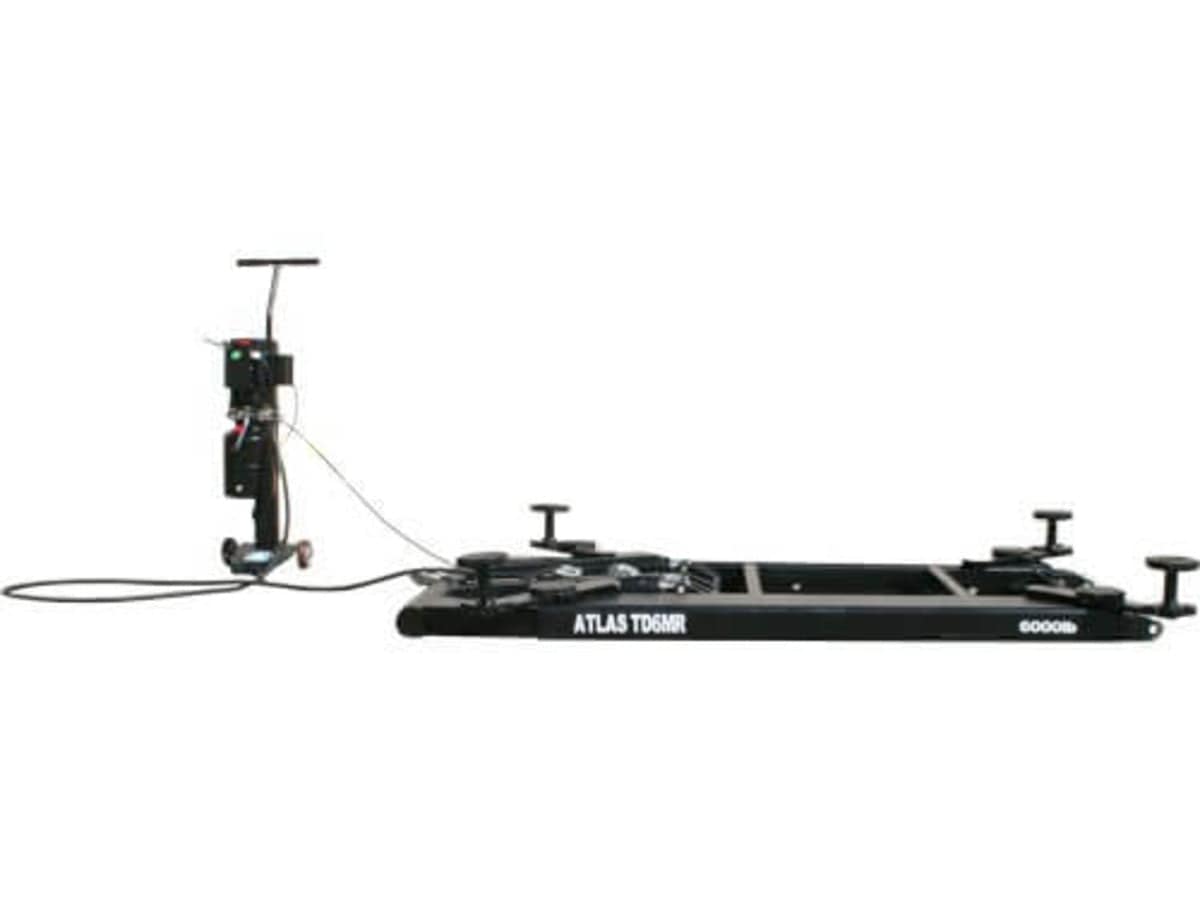

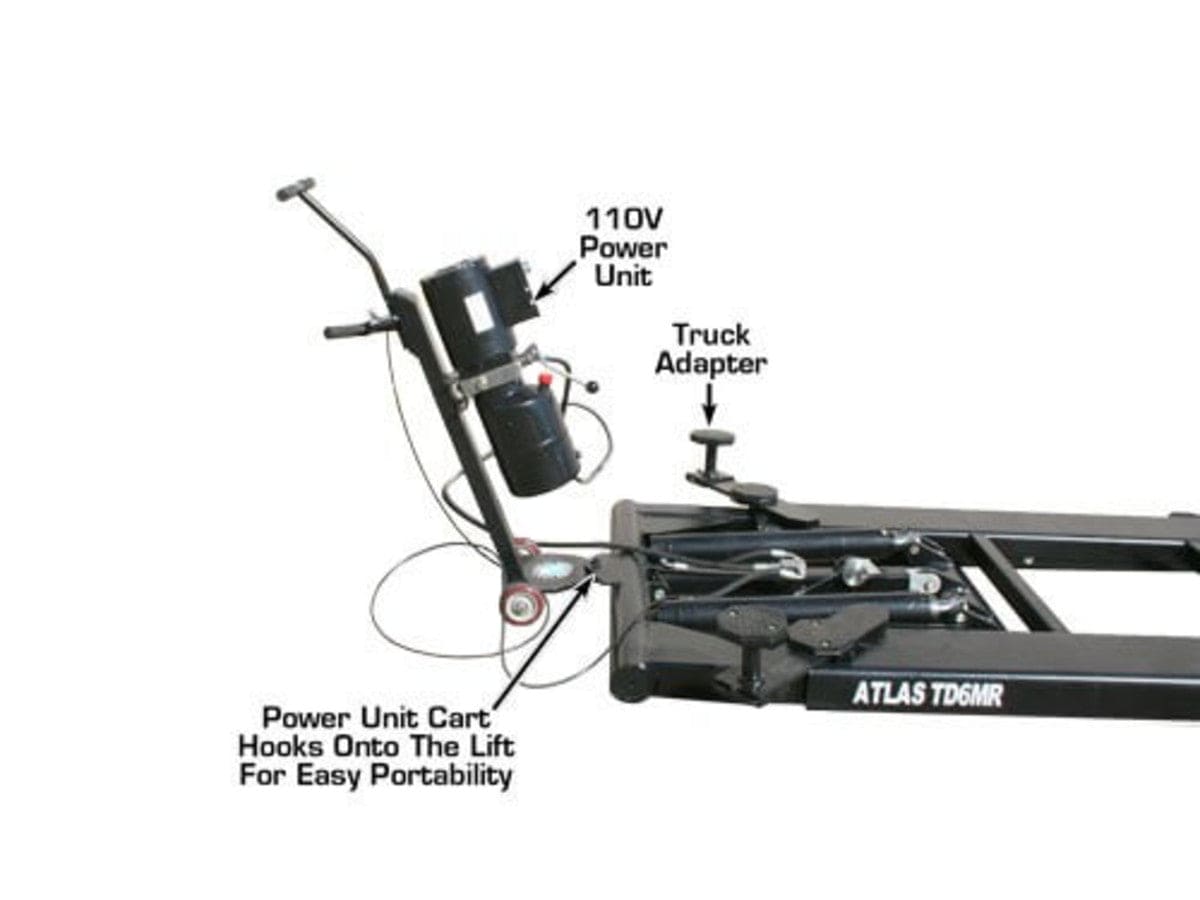

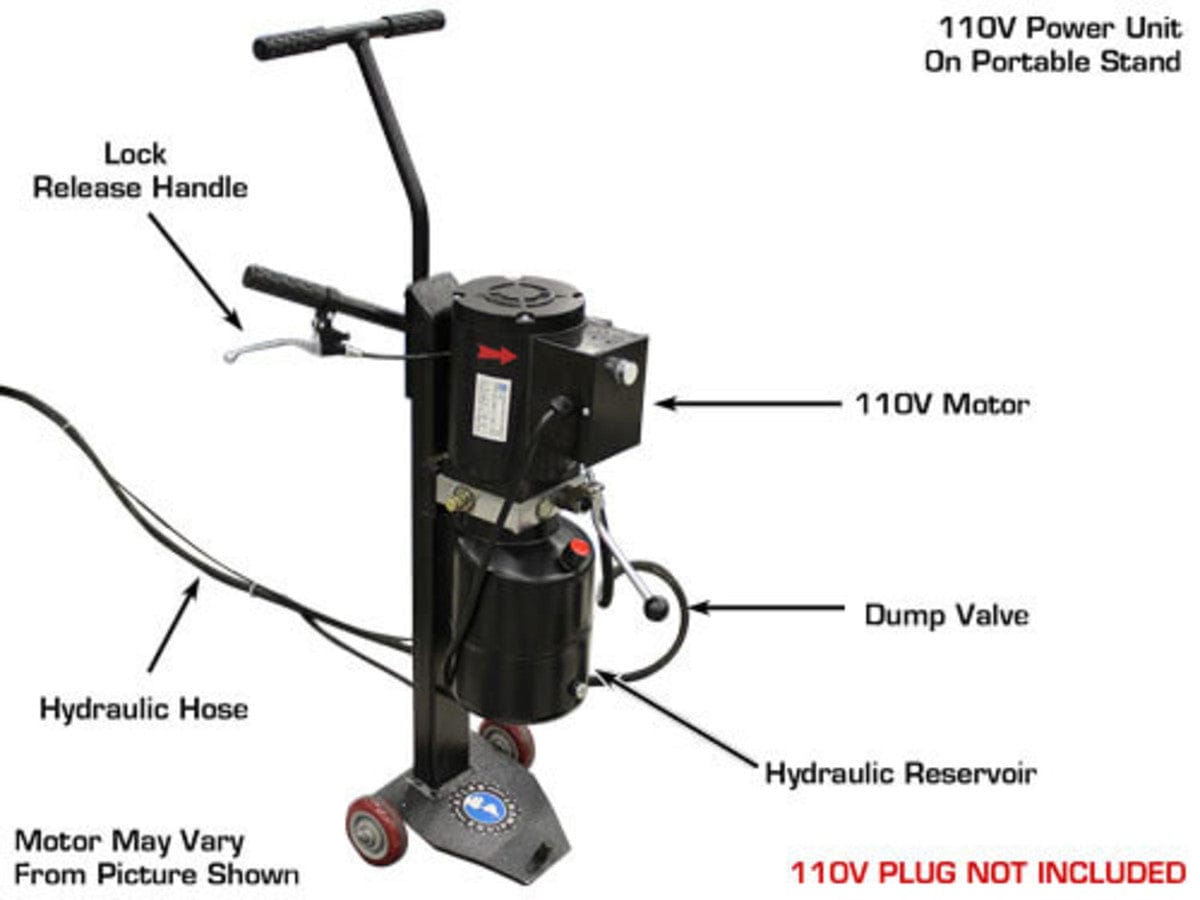

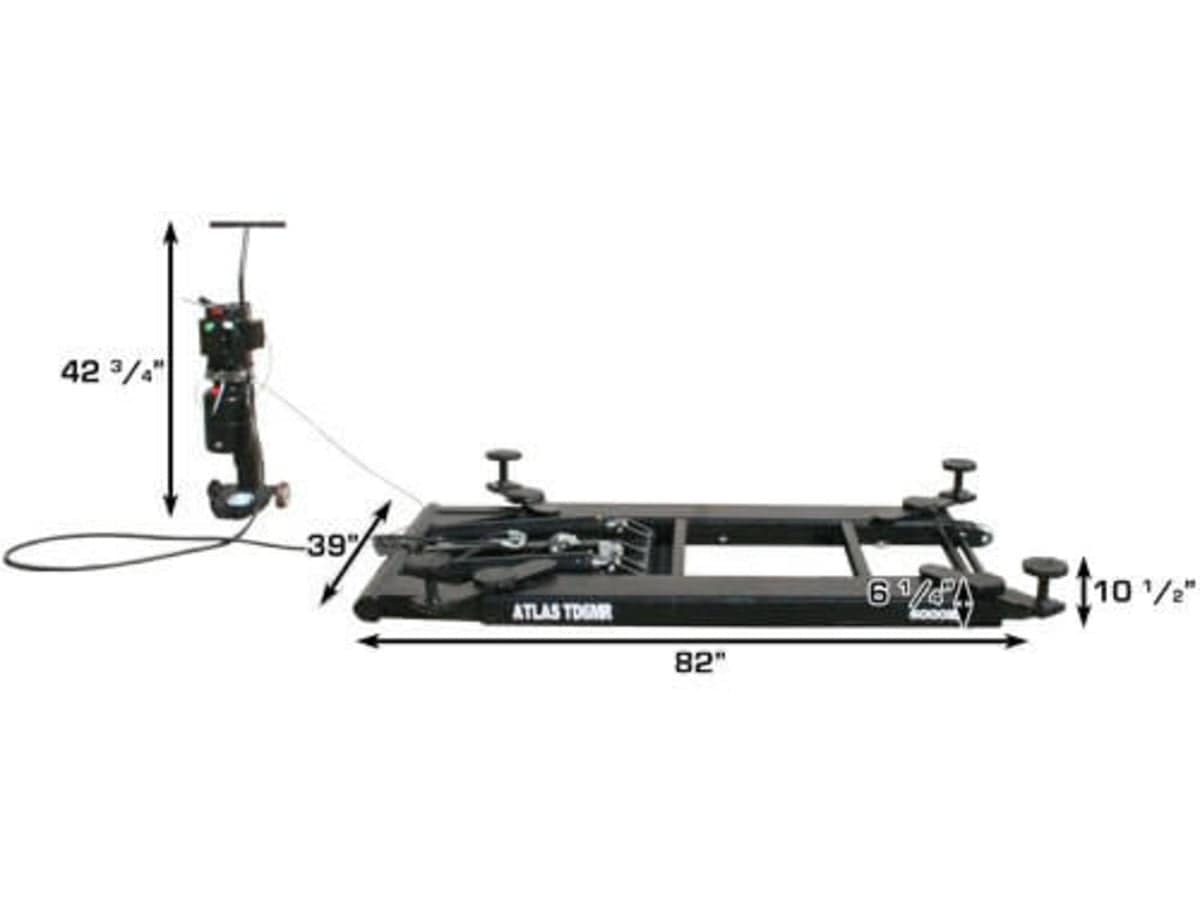

Our Atlas® 6MR has been thoroughly tested to meet Industry standards. The Atlas® 6MR mid-rise lift is powered by a 110 volt power unit that is mounted on a movable cart. The power unit can be remotely located around the lift for maximum efficiency. This cart is also used to move the 6MR on a smooth surface. The lift can easily be rolled from an inside work bay to an outside concrete apron work area.

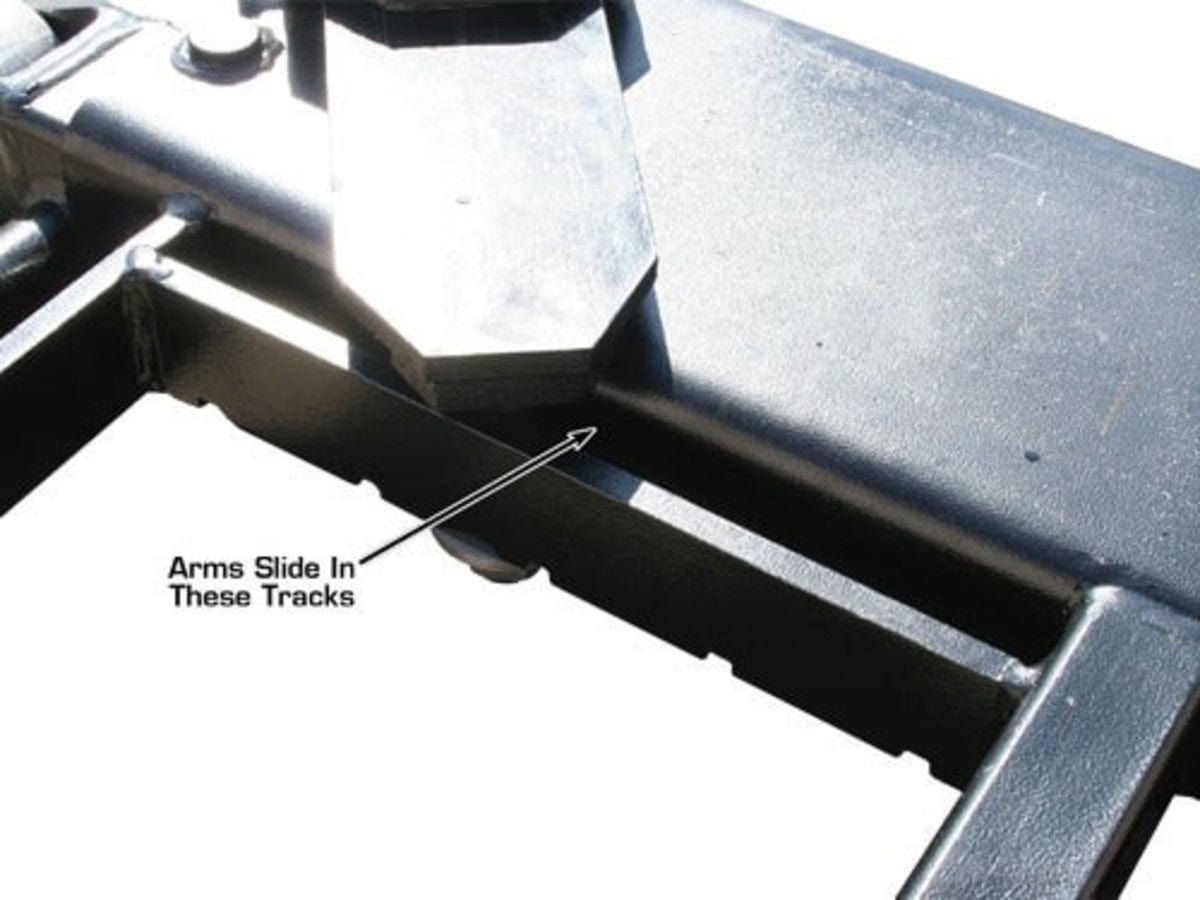

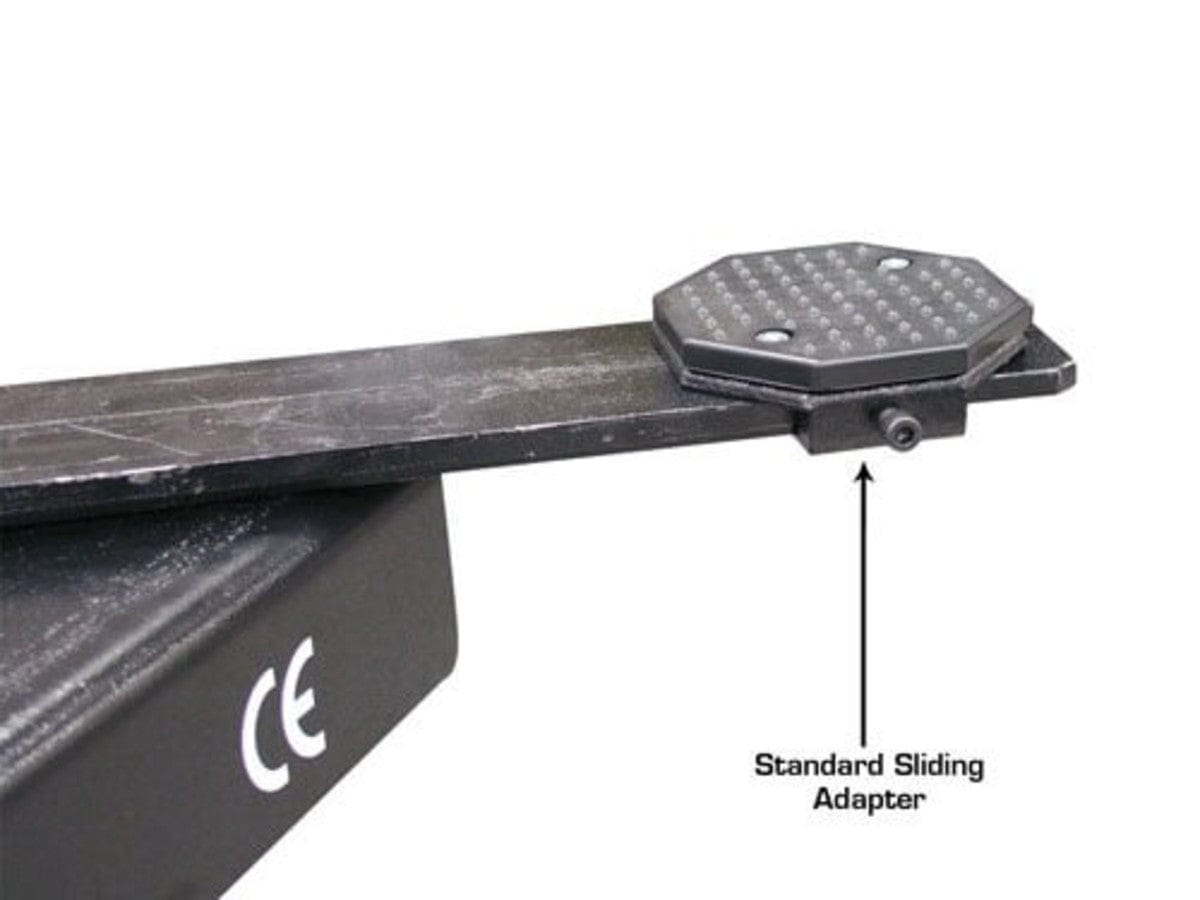

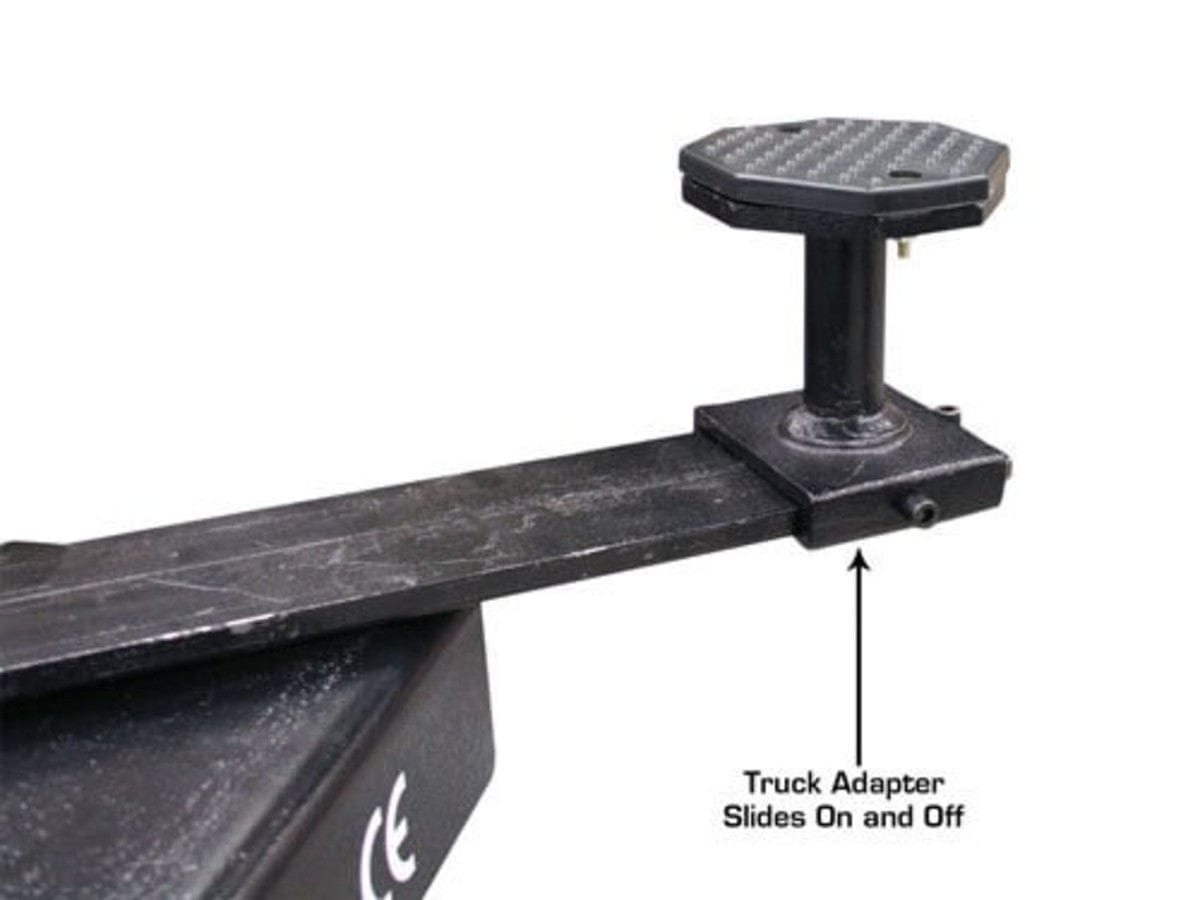

The Atlas® 6MR is a complete mid-rise lift that includes one set (4) of truck adapters and another set of sliding car adapters. The arms can be adjusted to an infinite amount of positions in order to accommodate unique lifting points found on certain vehicles.

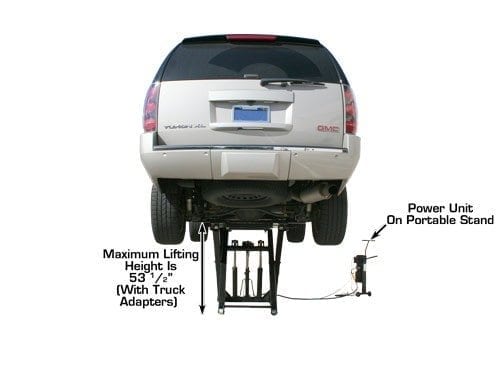

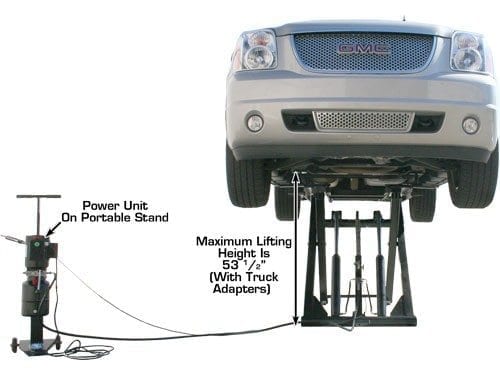

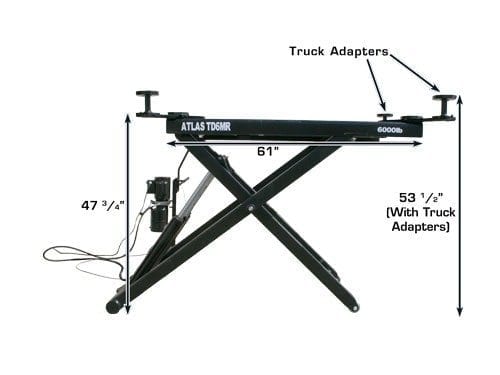

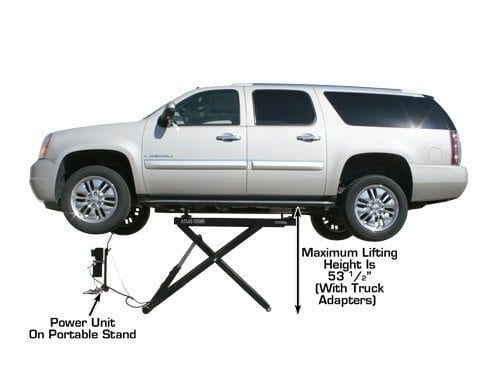

The large “foot print” of the Atlas® 6MR creates a steady platform for the raised vehicle with a lifting height of over 53” which remains rock solid at all safety lock positions.

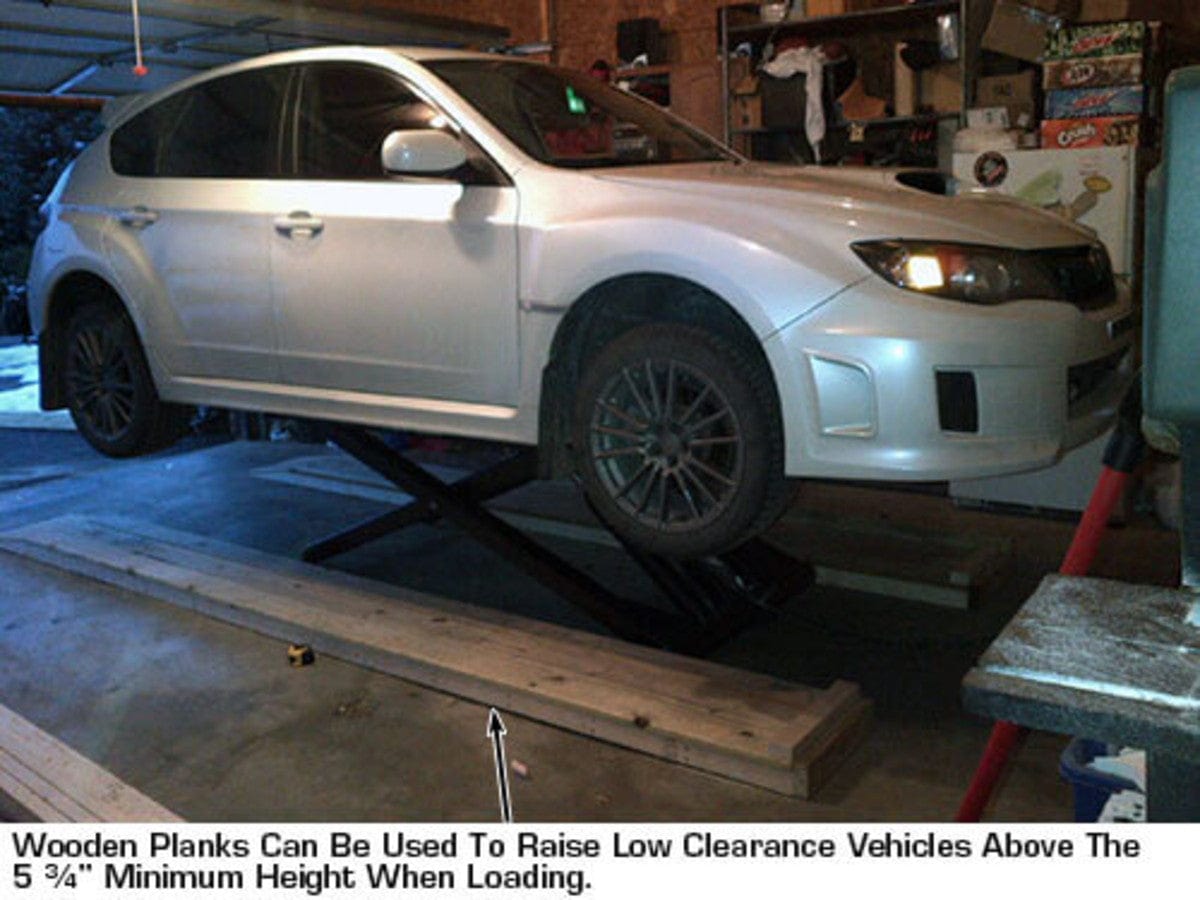

Due to the horizontal cylinder configuration of the Atlas® 6MR it is important to allow some space (2-6 inches) between the lifting surface of the lift and the vehicle’s lifting points.
- 6,000 LB. capacity
- Commercial grade
- Powder Coated
- Single point Manual Lock Release
- Free Standing, Portable Design
- Dual Hydraulic Cylinders
- 7 locking positions

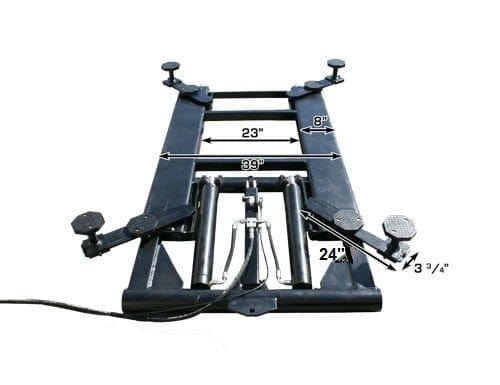

- NOW FEATURING LONGER ARMS (24″ EACH)
- Truck Adapters Included
- Separate motor stand included

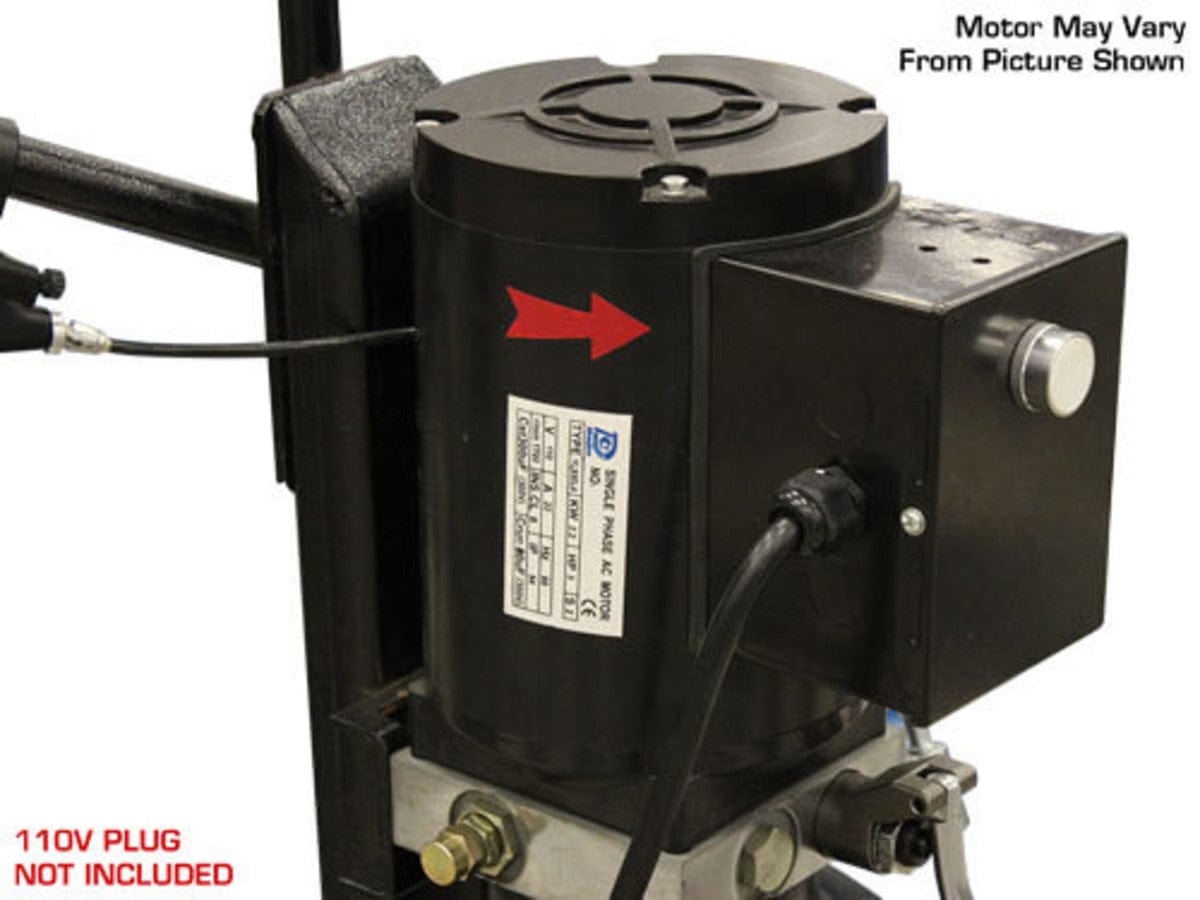

- 110volt Electric Operation (PLUG NOT INCLUDED)

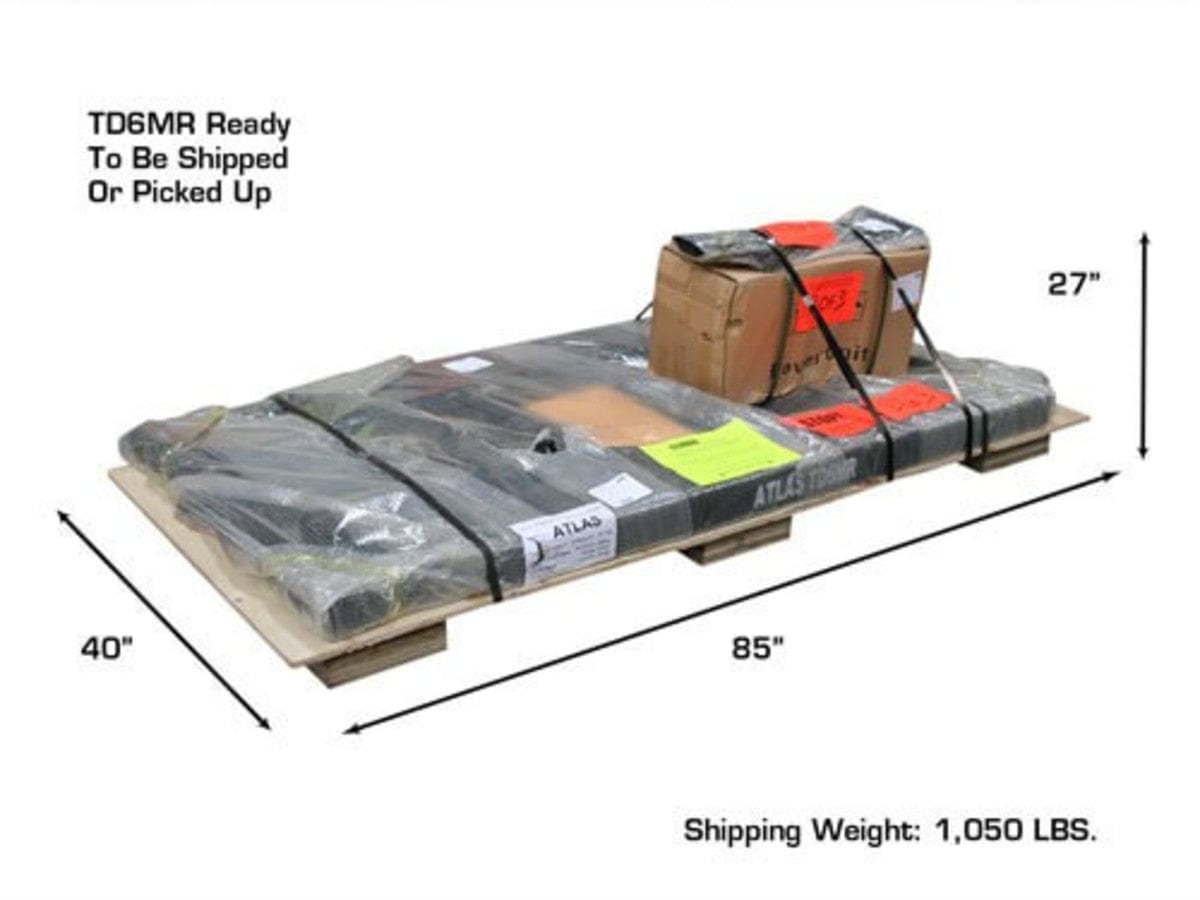

- Shipping Weight: 1,050 lbs.
- 2 yr Structural – 2 yr Hydraulic Warranty – Parts Only
******FREIGHT PRE PAID PART NUMBER
- ********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
