Description

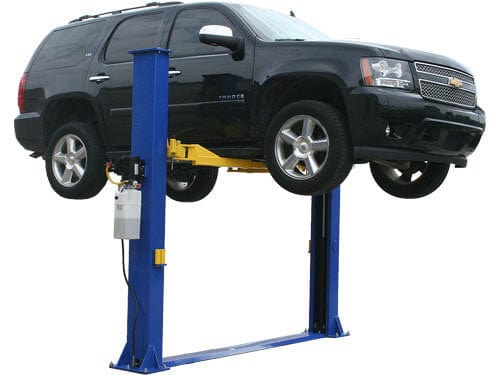

Maximize your shop space without sacrificing lifting power. The Atlas® 9KBPX is a commercial-grade 9,000 lb. capacity baseplate 2-post car lift engineered specifically for low-ceiling garages and service bays.

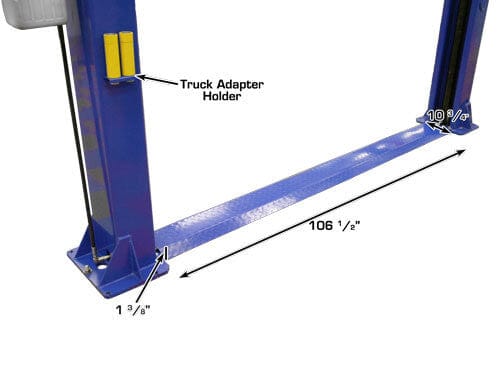

By routing hydraulic hoses and equalization cables along the floor under a durable steel plate—rather than overhead—the 9KBPX gives you maximum vertical lifting clearance without needing 12-foot ceilings. Built with dual hydraulic cylinders, heavy-duty steel columns, and versatile 2-stage arms, this lift safely handles everything from compact cars to full-size trucks.
Key Features & Benefits
-
Low Ceiling Friendly: Baseplate design passes cables across the floor, making it ideal for standard 10-foot or 11-foot garage ceilings.
-
9,000 lbs. Commercial Lifting Capacity: Safely raises passenger cars, SUVs, and light-duty trucks.
-
Dual Direct-Drive Cylinders: Direct-drive hydraulic system eliminates pulleys and chains for smoother, lower-maintenance operation.
-
Dual-Point Lock Release: Reliable safety lock system holds the lift securely at multiple working heights.
-

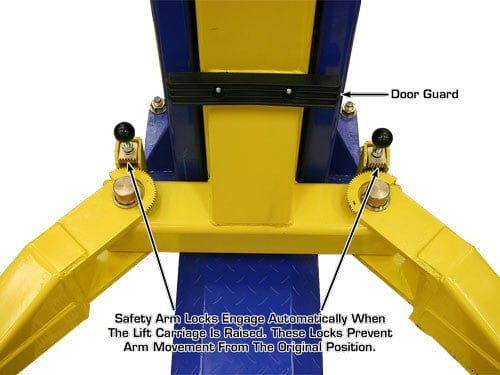

Padded Door Protection: Built-in rubber door guards prevent accidental damage when opening vehicle doors while loaded.
-

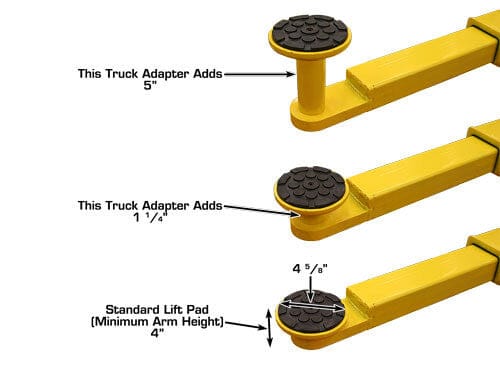

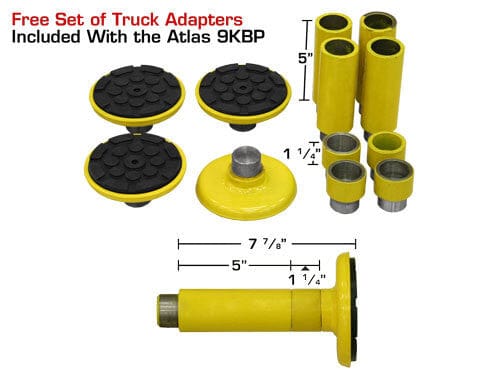

Complete Adapter Set Included: Comes equipped with truck adapter extensions and rubber pad mounts out of the box.
Technical Specifications
| Feature | Specification |
| Model | Atlas® 9KBPX |
| Capacity | 9,000 lbs. (4,082 kg) |

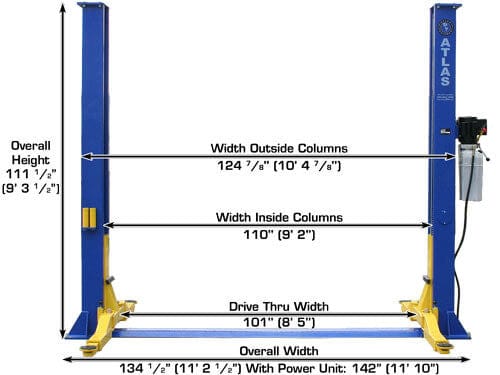

| Overall Height | 111 7/8" (9' 3.8") |
| Overall Width | 134 5/8" (with power unit) |
| Max Lifting Height | 74 1/2" (without adapters) |
| Drive-Thru Clearance | 100" |

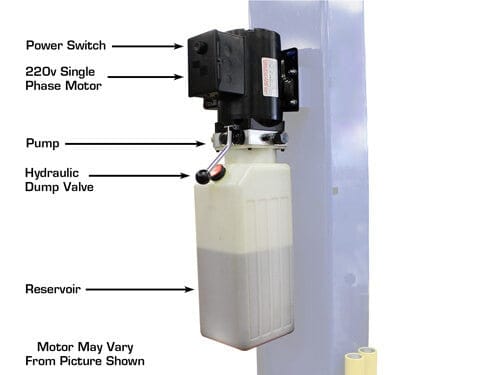

| Motor / Electrical | 220V, 1-Phase (20A breaker recommended) |

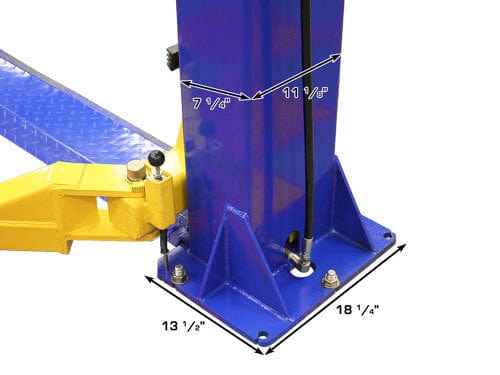

| Column Steel Thickness | Heavy-Duty 5mm Steel |
Product FAQs
Q: What minimum ceiling height do I need for the Atlas 9KBPX?
A: The overall column height is 9' 3.8" (111 7/8"). We recommend a minimum ceiling height of 10 feet to comfortably lift standard vehicles.
Q: What floor/concrete requirements are required for installation?

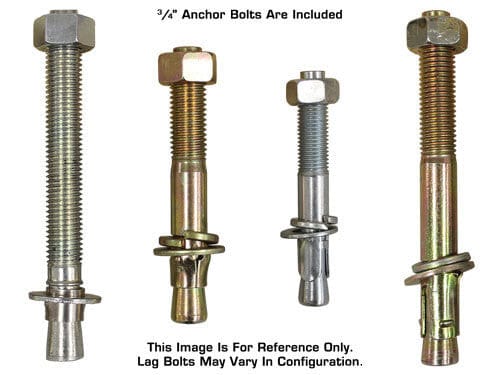

A: Installation requires a minimum of 4 inches of 3,000 PSI concrete on a flat level floor to safely anchor the columns.
Q: Is the Atlas 9KBPX symmetric or asymmetric?

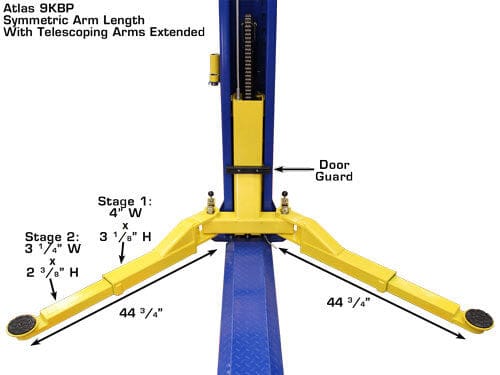

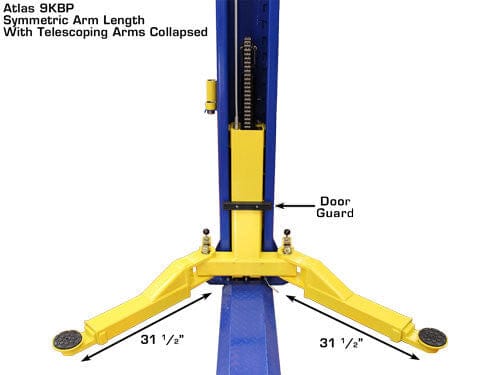

A: The Atlas 9KBPX features a symmetric arm design, allowing you to balance vehicle weight evenly between the two posts.
****** FREIGHT PRE PAID PART NUMBER

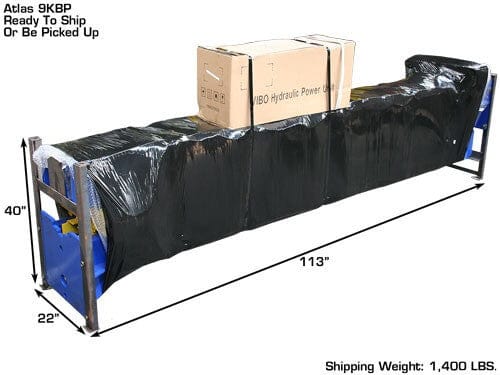

********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
