ATLAS ALI Certified APEX9 + RJ6 Rolling Bridge Jacks Combo ATEAPEX9-COMBO1-FPD


Price:
Sale price$8,299.00

Description

  • Combo package includes ALI Certified APEX9 & two RJ6 Rolling Jacks

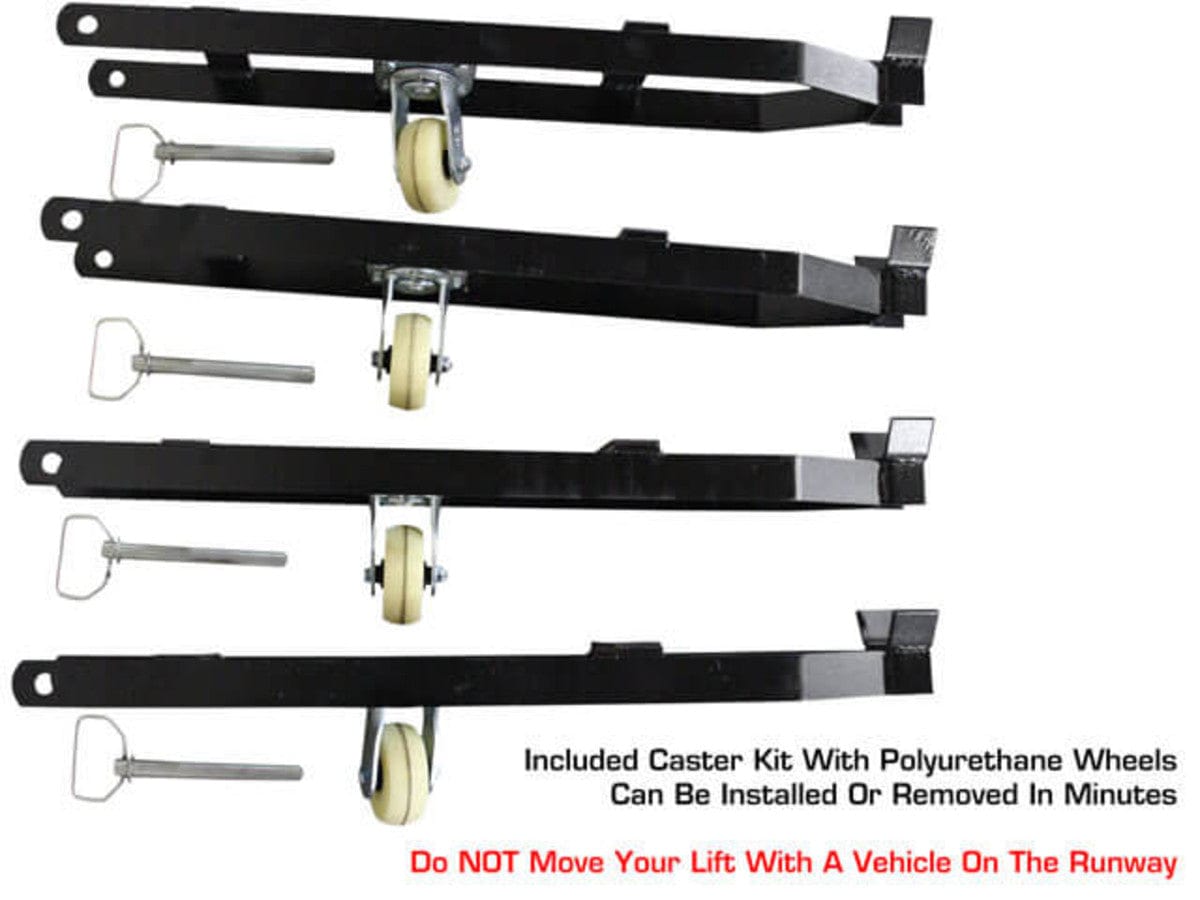

  • Caster Kit With Polyurethane Wheels Available
  • Steel Approach Ramps Included

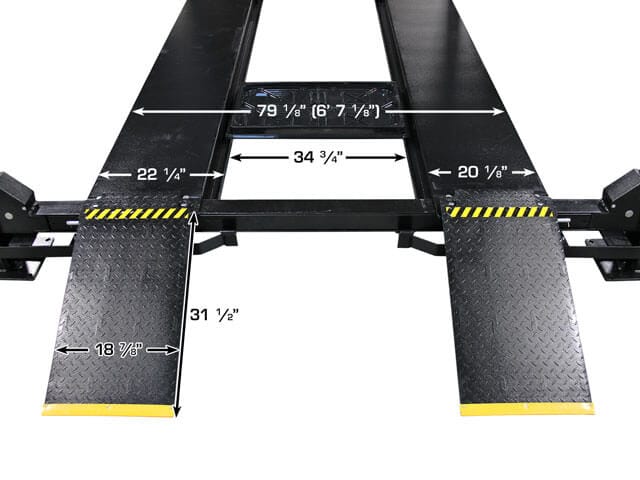

  • Steel Jack Tray Included
  • 4 Plastic Drip Trays Included
  • Wheel Stops Included

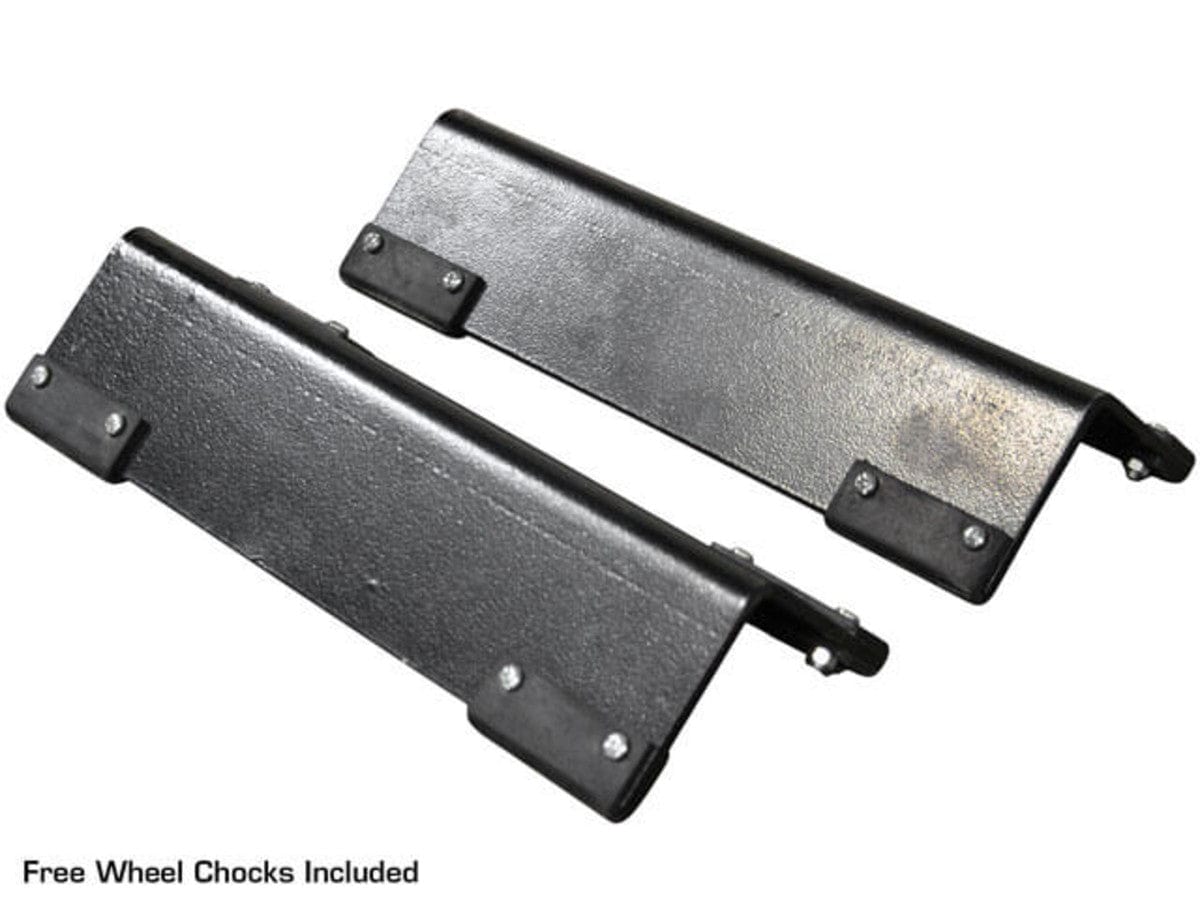

  • Wheel Chocks Included
  • Truck Adapter set for Each Jack Included
  • This part number FREIGHT PREPAID

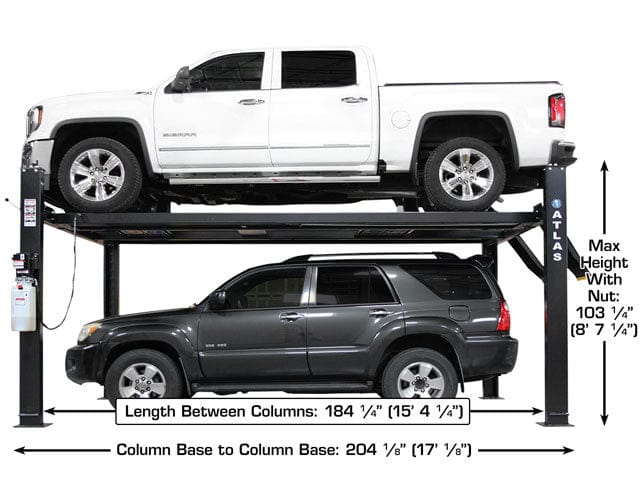

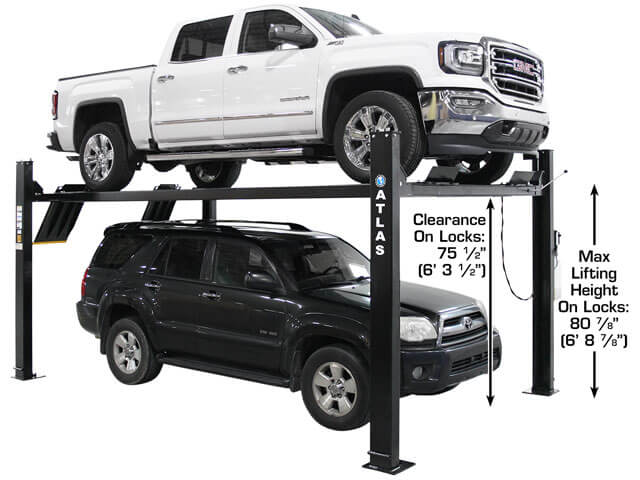

The Atlas® APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars® to a Dually can be parked both below and on the runways.

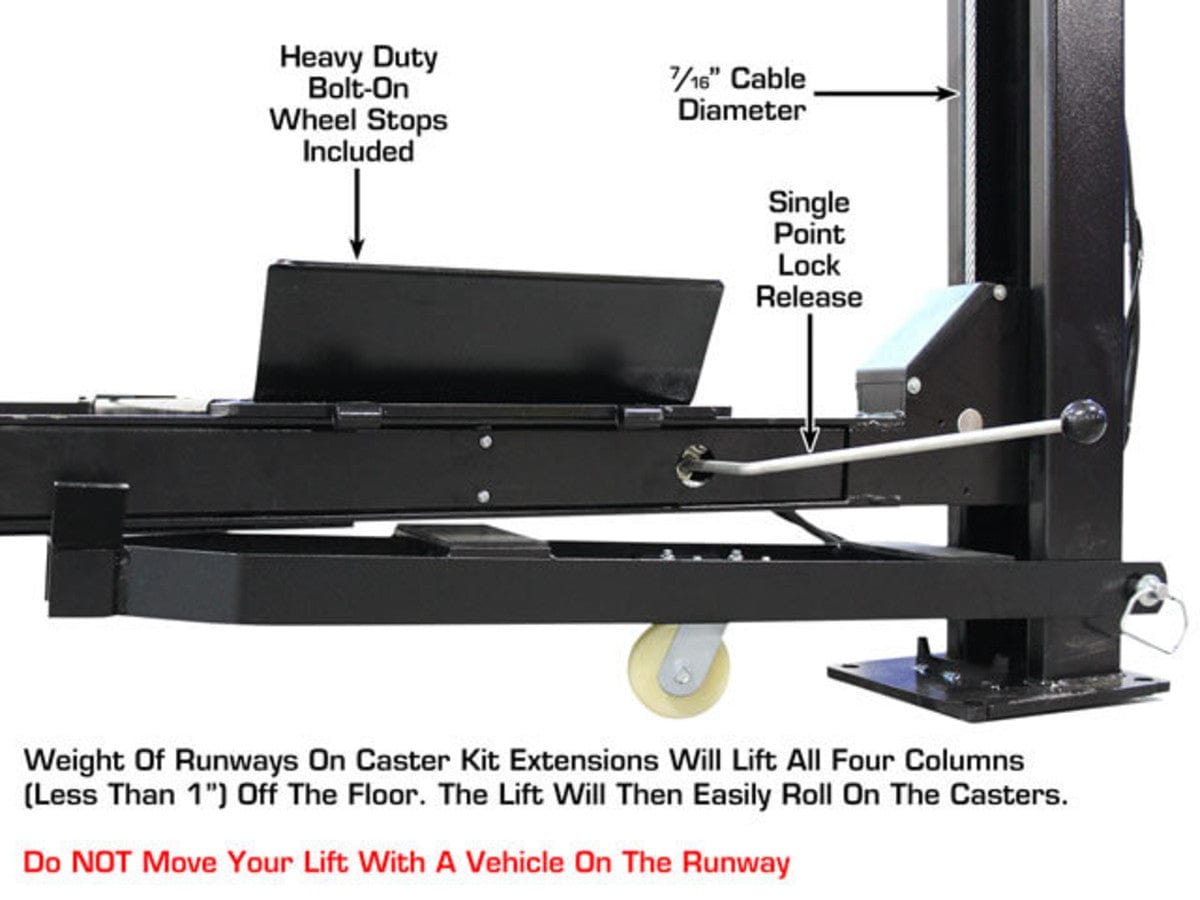

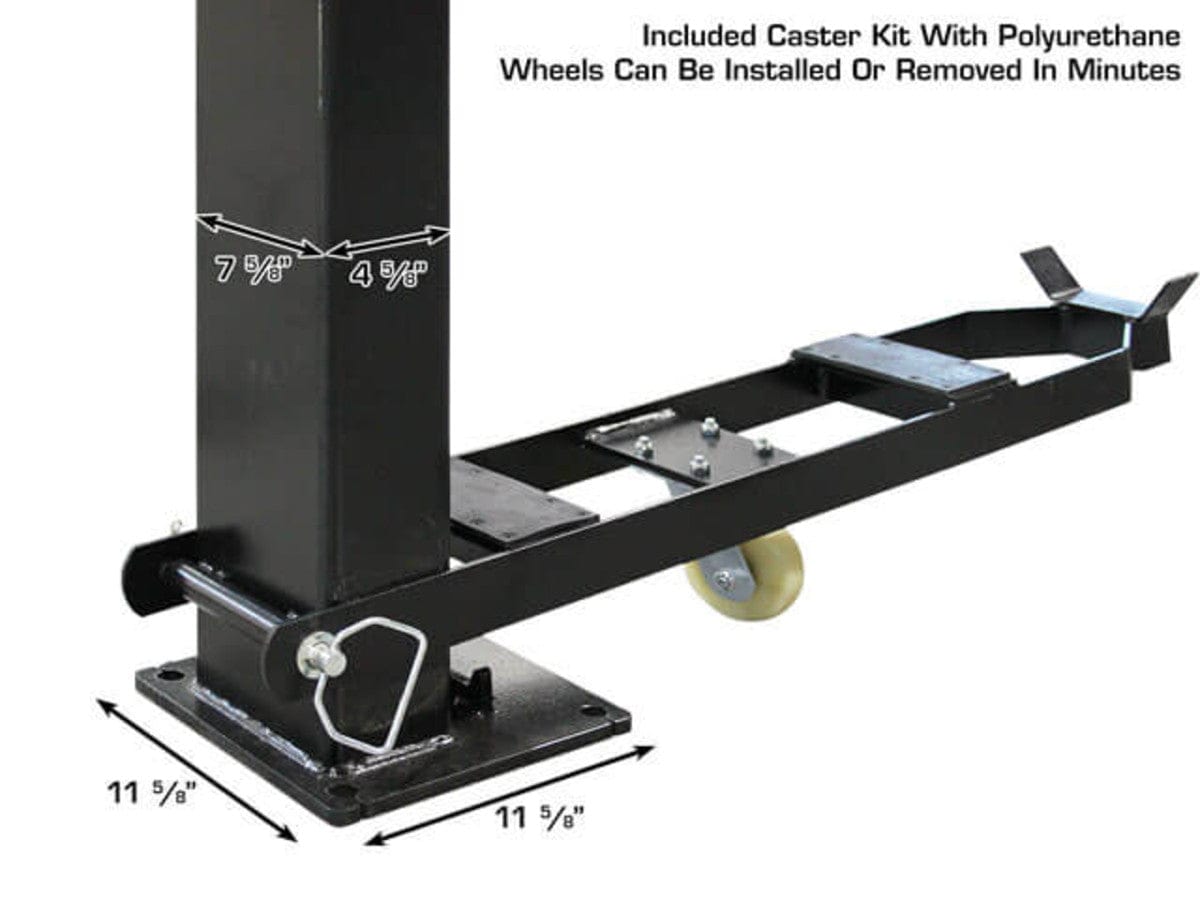

The Atlas® APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas® Garage PRO9000 lift including free plastic drip trays and a free steel jack tray. Also available for purchase with this lift is a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside.

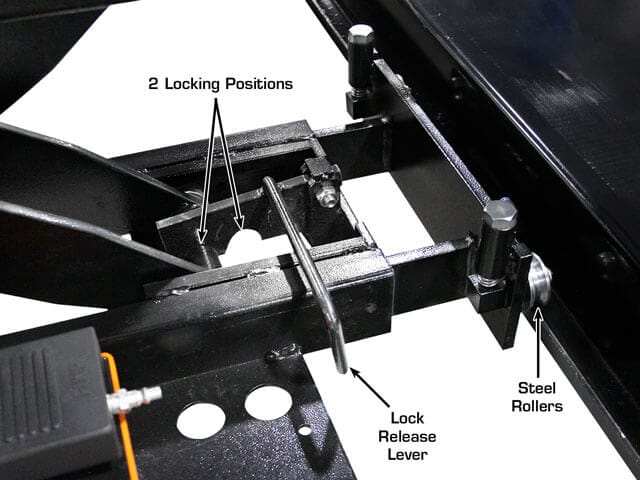

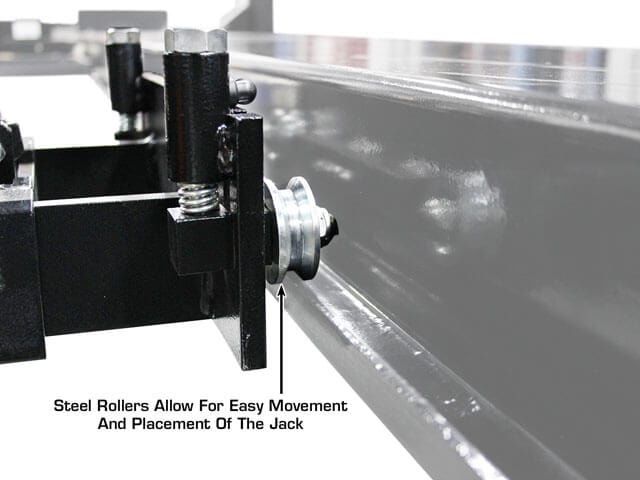

This combo package also includes two of the the popular Atlas® RJ6 rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.



Atlas® APEX9 Specifications:

  • Capacity: 9000 lbs
  • Lifting Height, Top of Runway: 86" (7' 2")
  • Clearance Under Runways: 81 1/4" (6' 9 1/4")

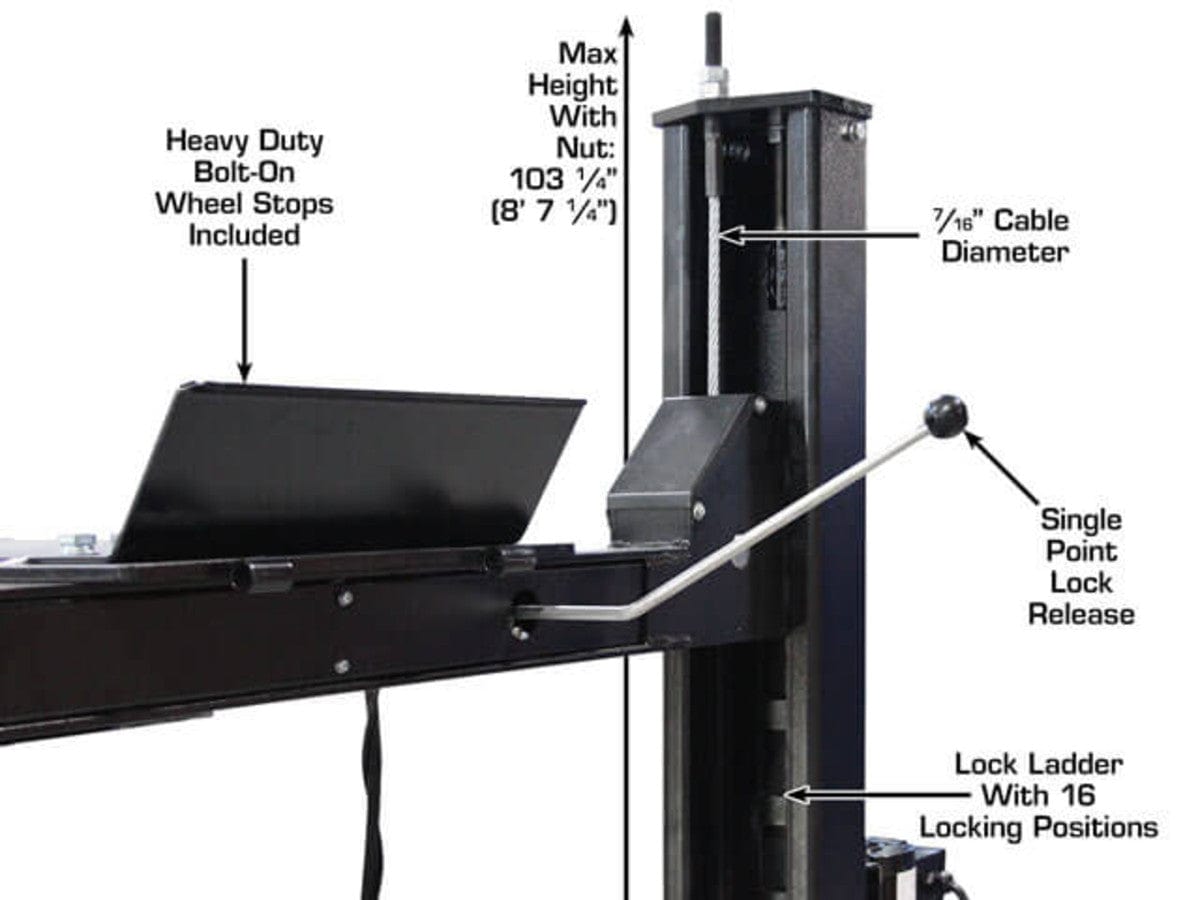

  • Height of Columns: 99" (8' 3")

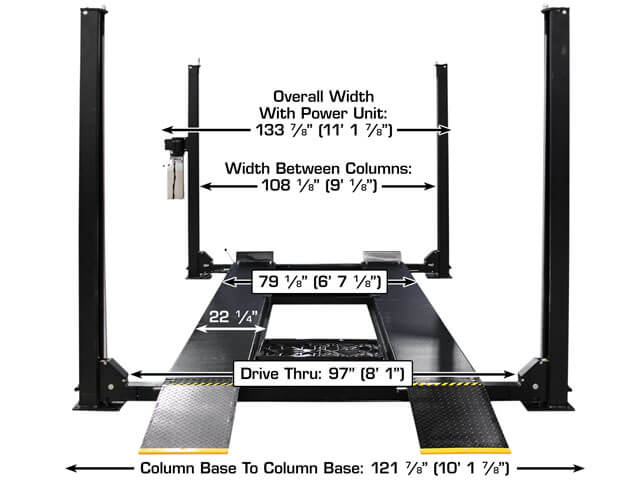

  • Overall Width: 121 7/8" (10' 1 7/8") w/ motor 133 7/8" (11' 1 7/8")
  • Overall Length w/ Ramps: 227 1/2" (18' 11 1/2")
  • Runway Length: 196 1/2" (16' 4 1/2")

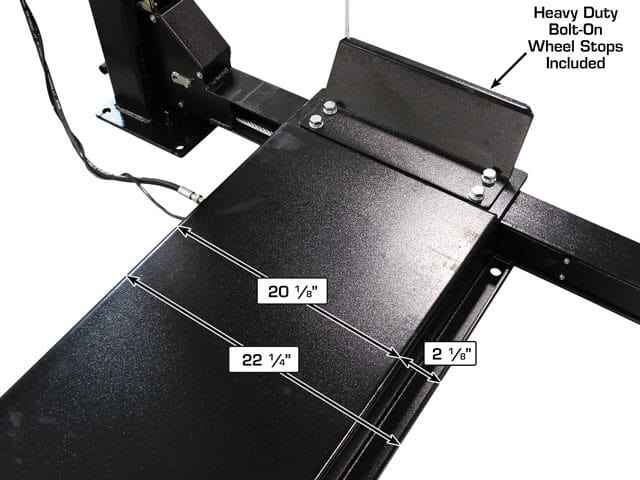

  • Runway Width: 20 1/8"
  • Runway Thickness: 4 3/4"
  • Width Between Runways: 38 7/8" w/ Rail 34 3/4"
  • Outside Runway to Outside Runway: 79" (6' 7")

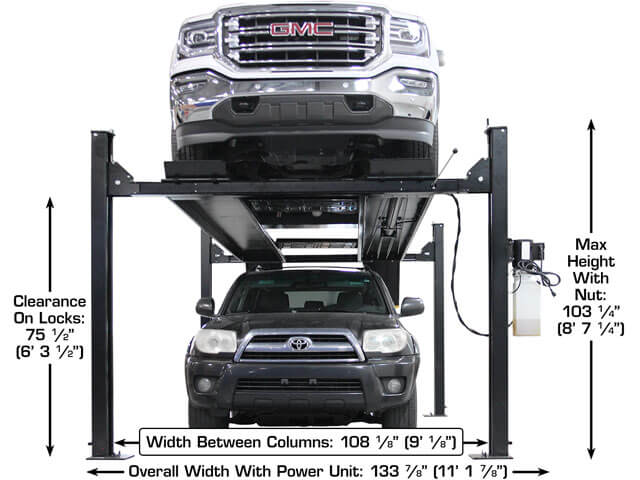

  • Clearance Between Columns: 108 1/8" (9' 1/8")

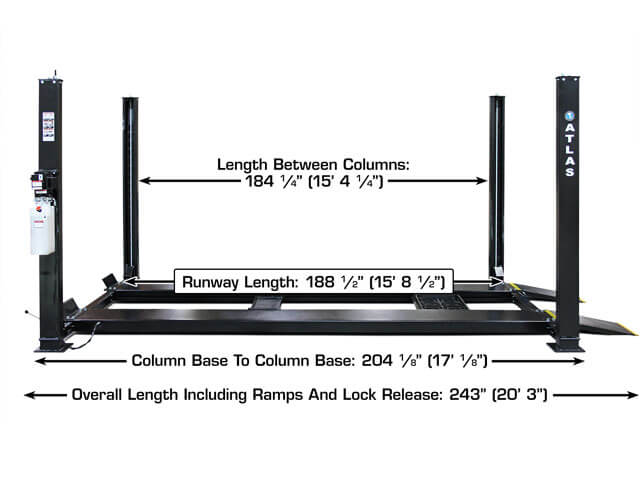

  • Length Between Columns: 184 1/4" (15' 4 1/4")
  • Drive Thru: 98 5/8" (8' 2 5/8")

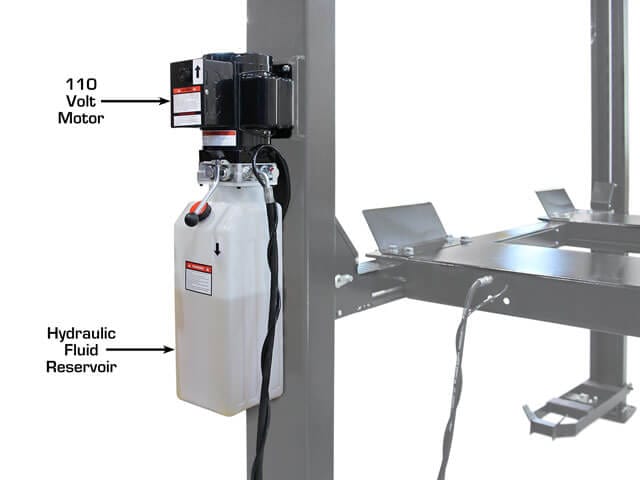

  • Motor/Electrical Requirement: 110volt, 30 amp breaker required
  • Oil Requirement: 3-5 Gallons AW32 or AW46 (NOT INCLUDED)

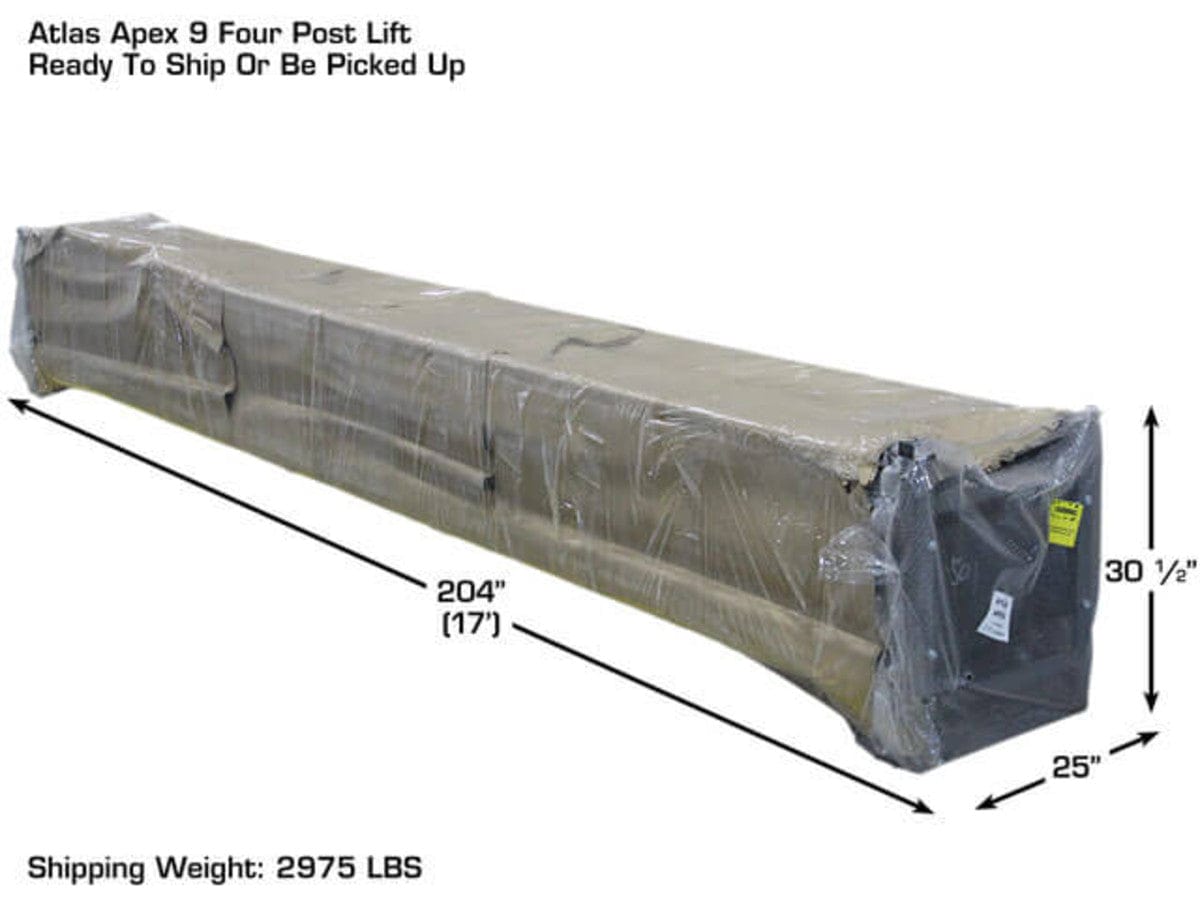

  • Shipping Weight: 2975 lbs.

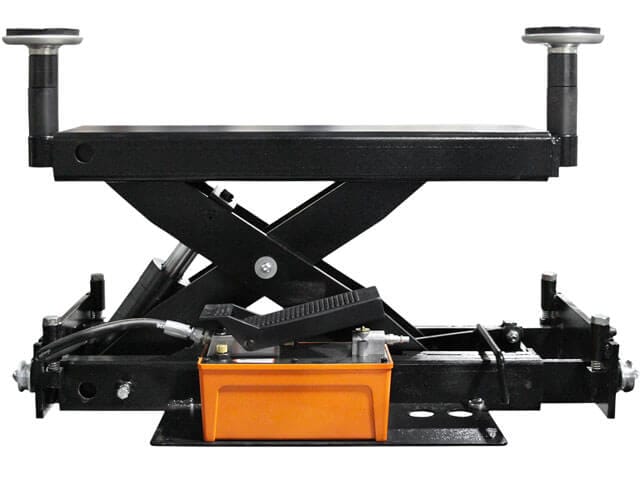

Atlas® RJ6BK Specifications:

  • Capacity: 6,000 lbs

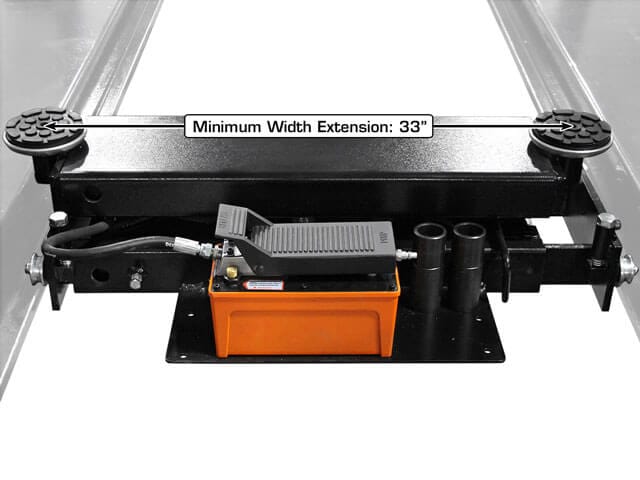

  • Minimum Width: 35"

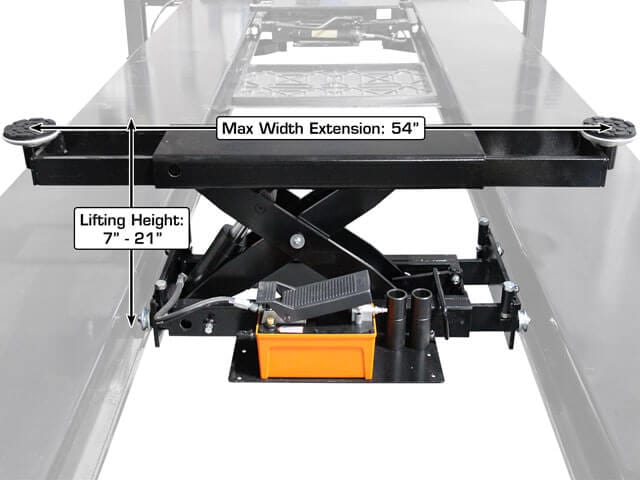

  • Maximum Width: 55"
  • Distance Between Runway Capability: 32" - 52"

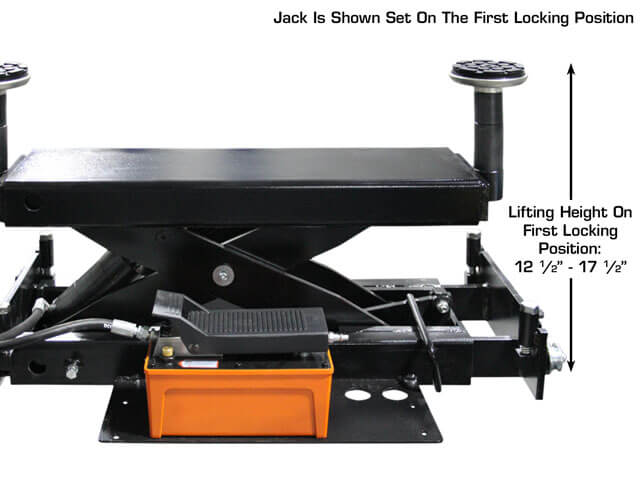

  • Minimum Lifting Height: 8 1/4"
  • Maximum Lifting Height (w/ Adapters): 21"
  • Air Requirement: 70-115 PSI

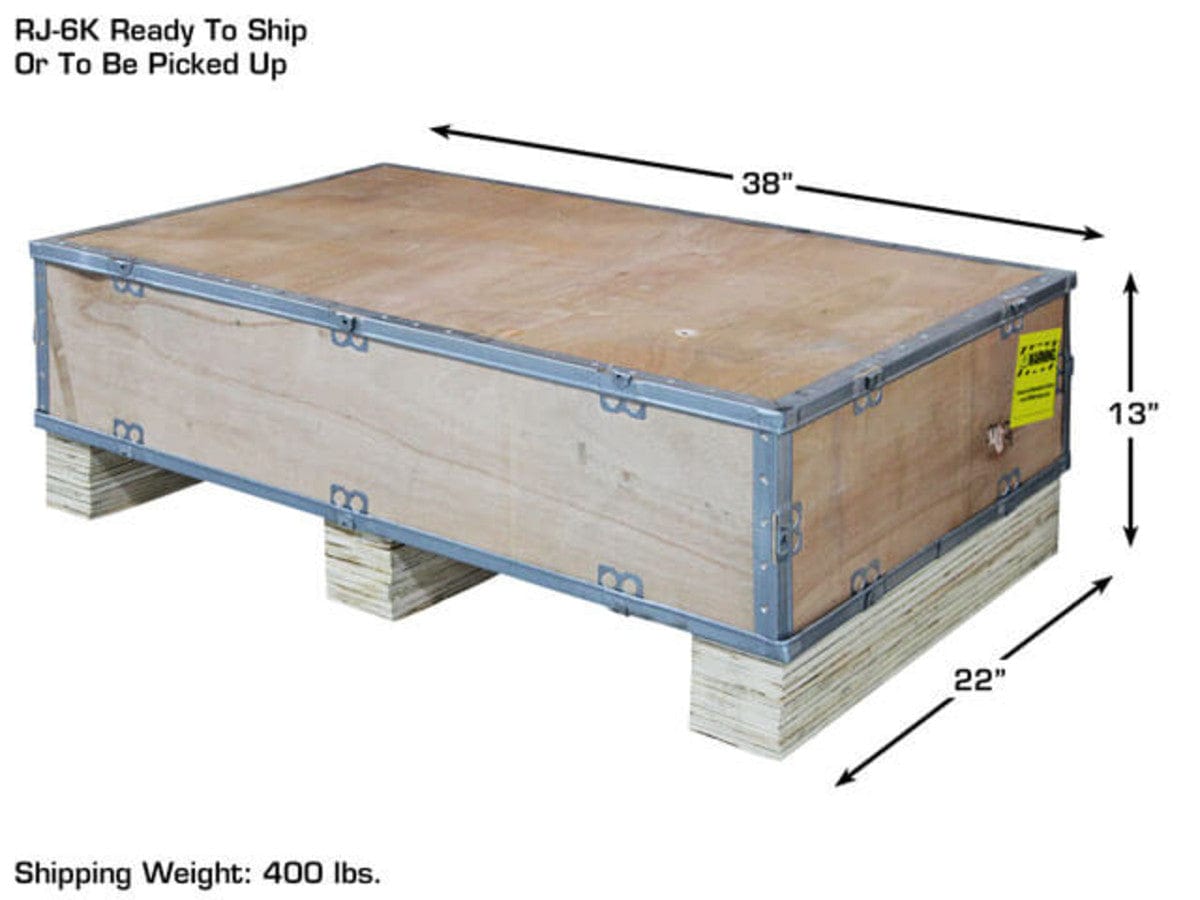

  • Shipping Weight: 350 lbs

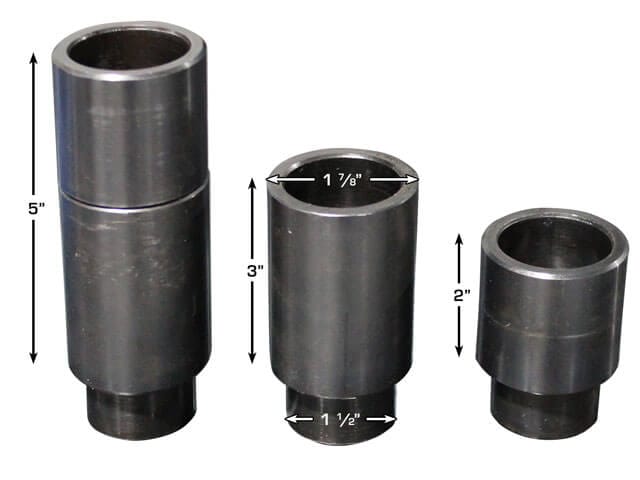

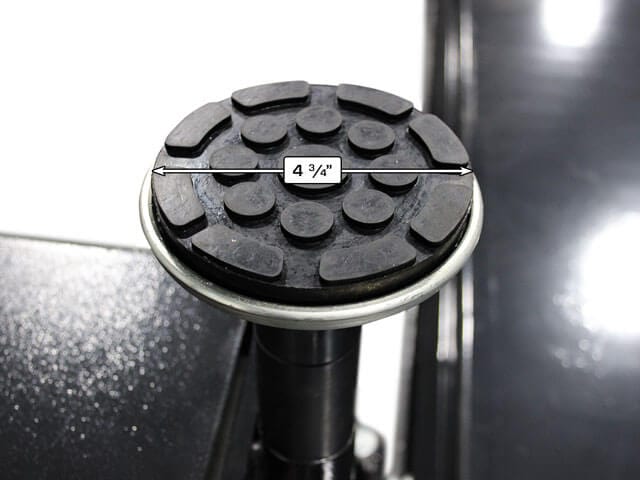

  • Adapter Heights: 2 Each 2", 3"
  • Arm Hole/Adapter Peg Size: 1 1/2"
  • ********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
