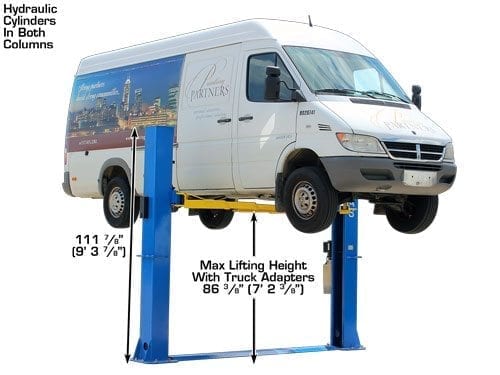

Front view of the Atlas BP10000X 10,000 lb. baseplate lift

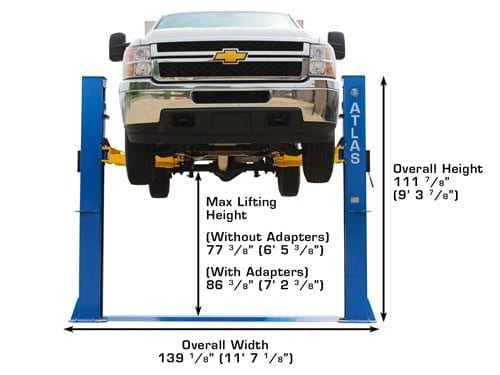

Pickup truck raised on an Atlas BP10000X two-post vehicle lift

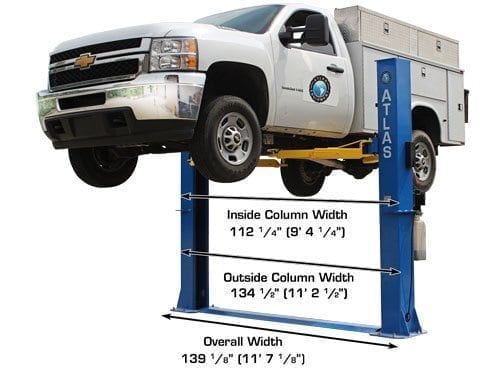

Atlas BP10000X baseplate lift installed in a low-ceiling garage
Open-top design of the Atlas BP10000X baseplate two-post lift
Dual chain-drive hydraulic cylinders on the Atlas BP10000X lift

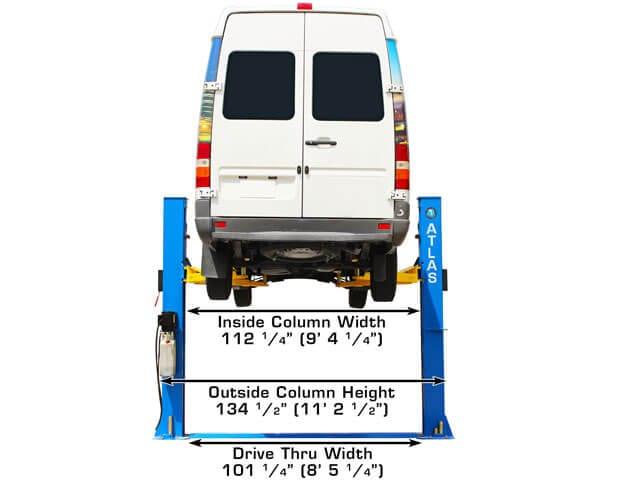

atlas bp10000x overall width

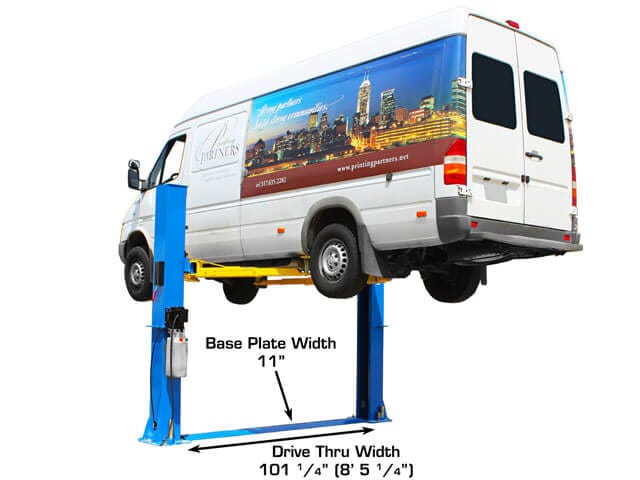

Floor baseplate and equalization cover on the Atlas BP10000X lift

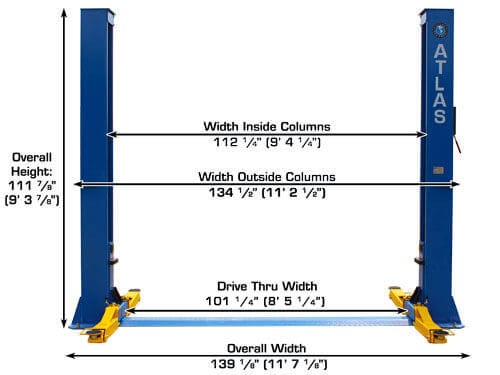

atlas bp10000x overall dimensions

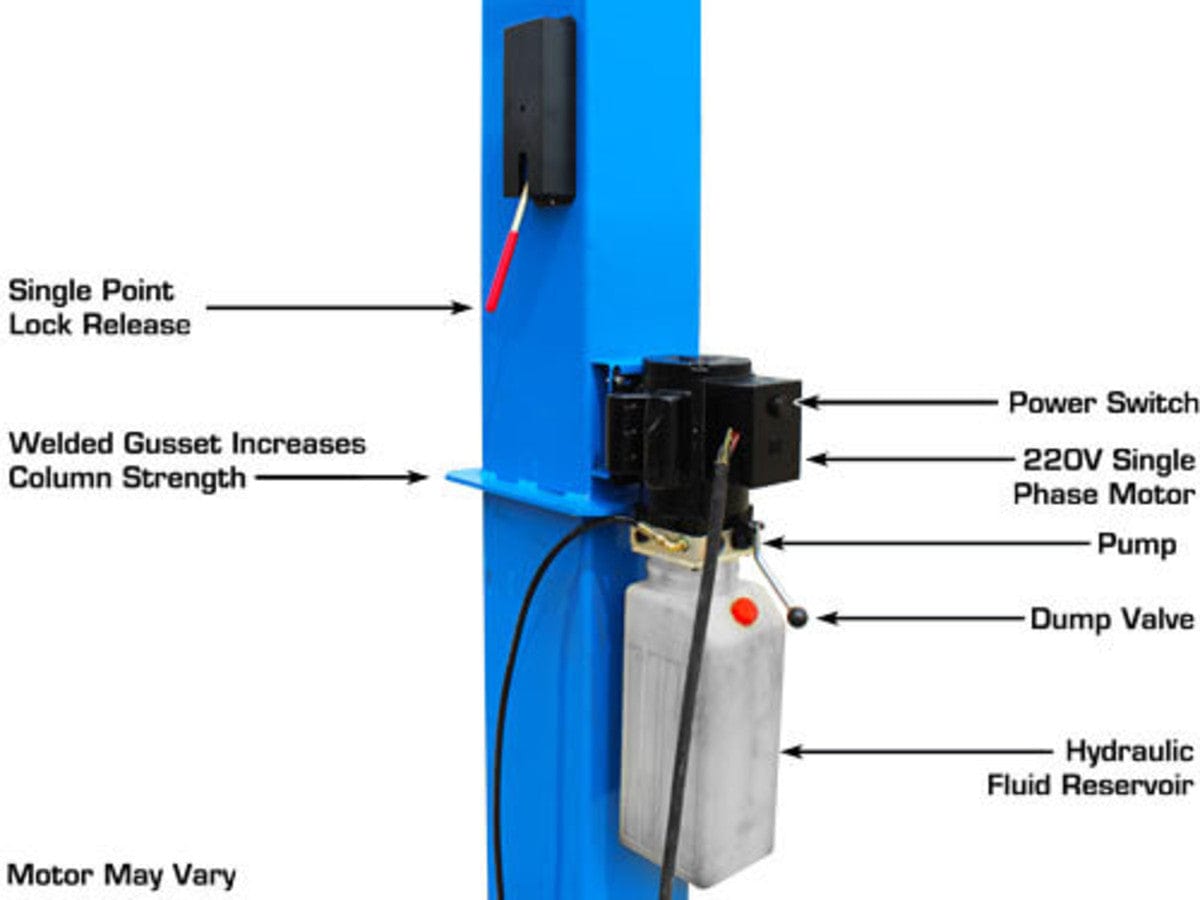

Single-point safety lock release on the Atlas BP10000X lift
atlas bp10000x under truck view using truck adapters

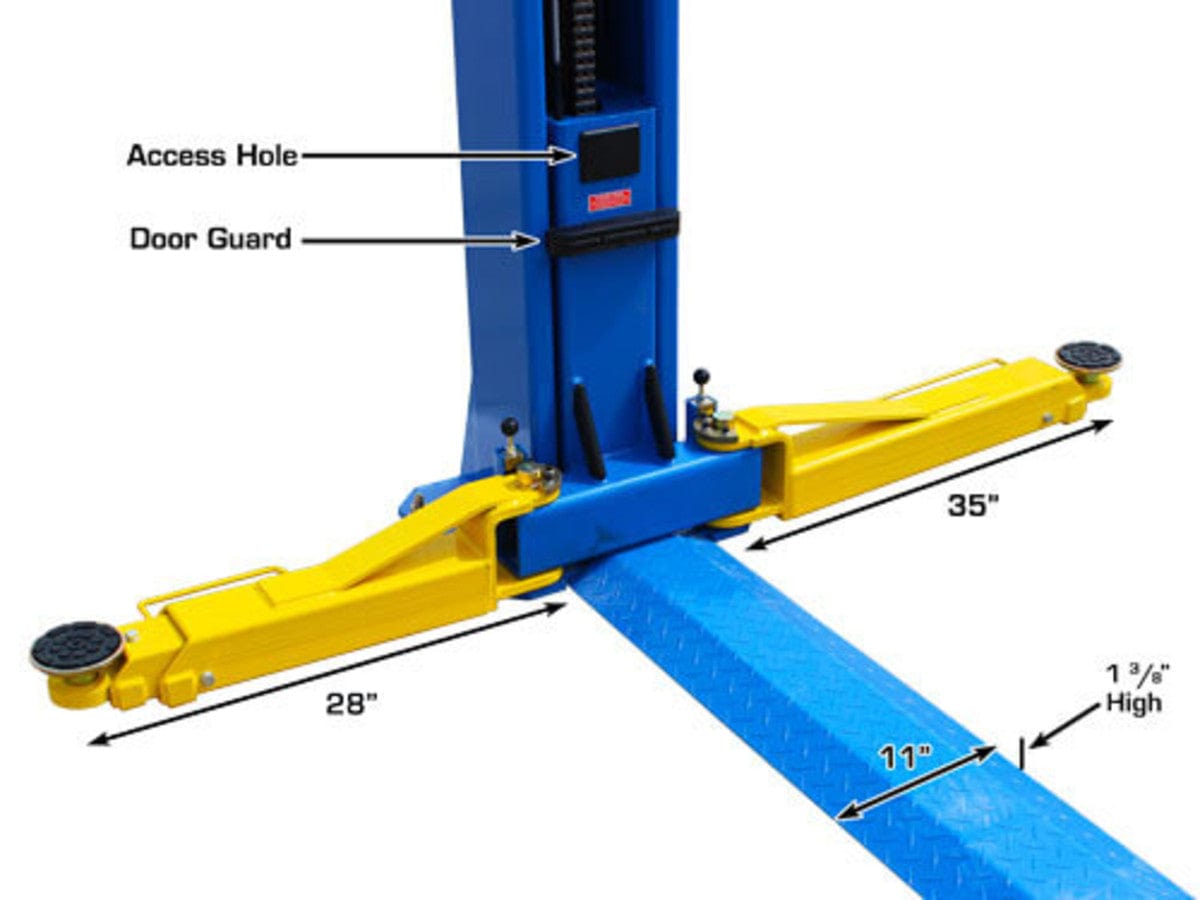

atlas bp10000x baseplate and inner post view

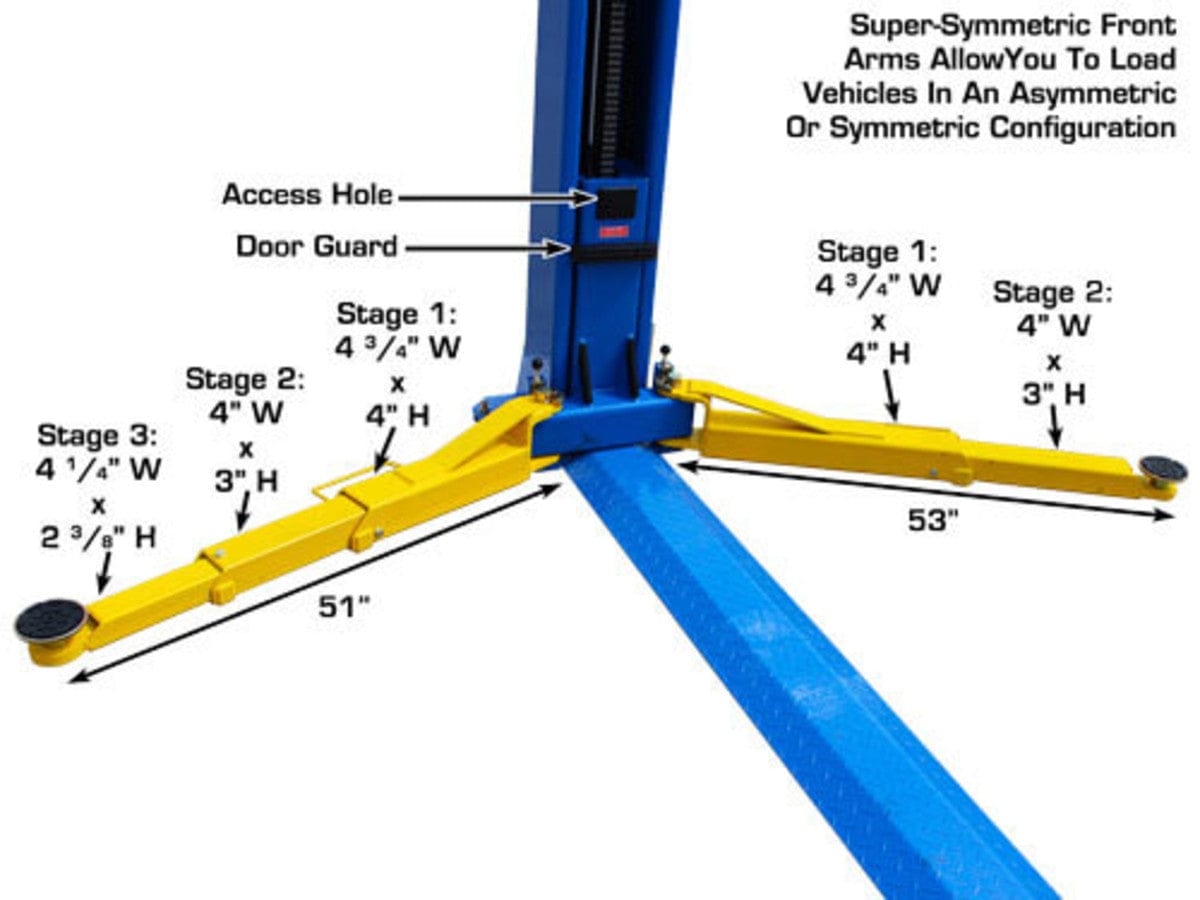

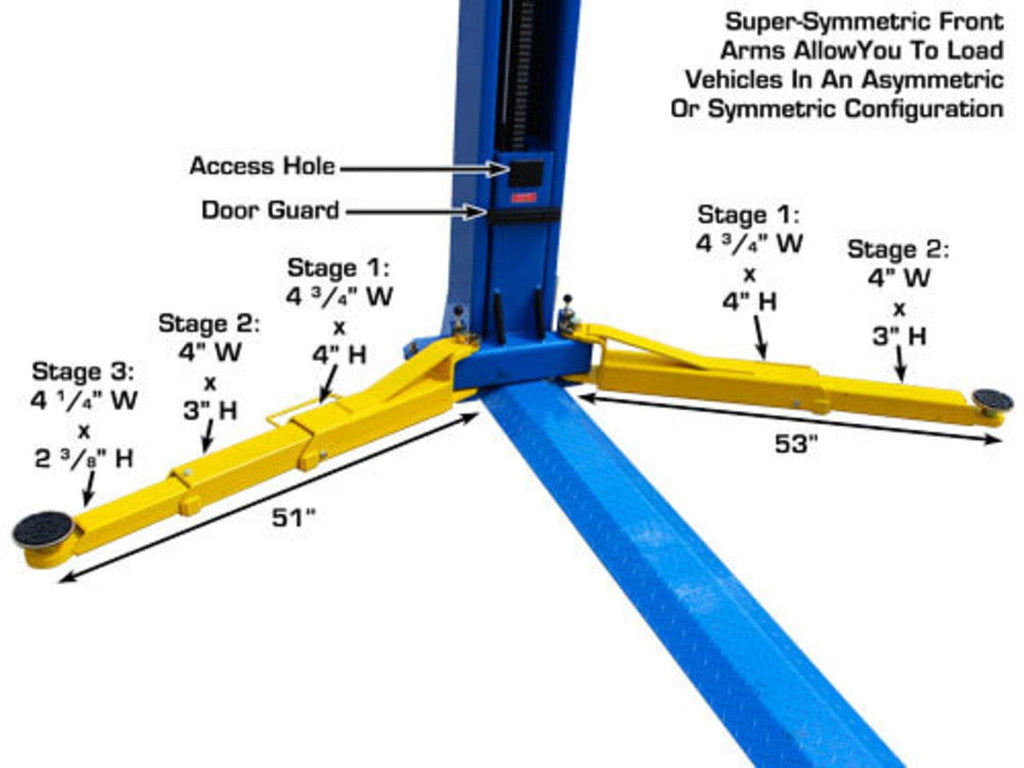

Super-symmetric lifting arms on the Atlas BP10000X two-post lift

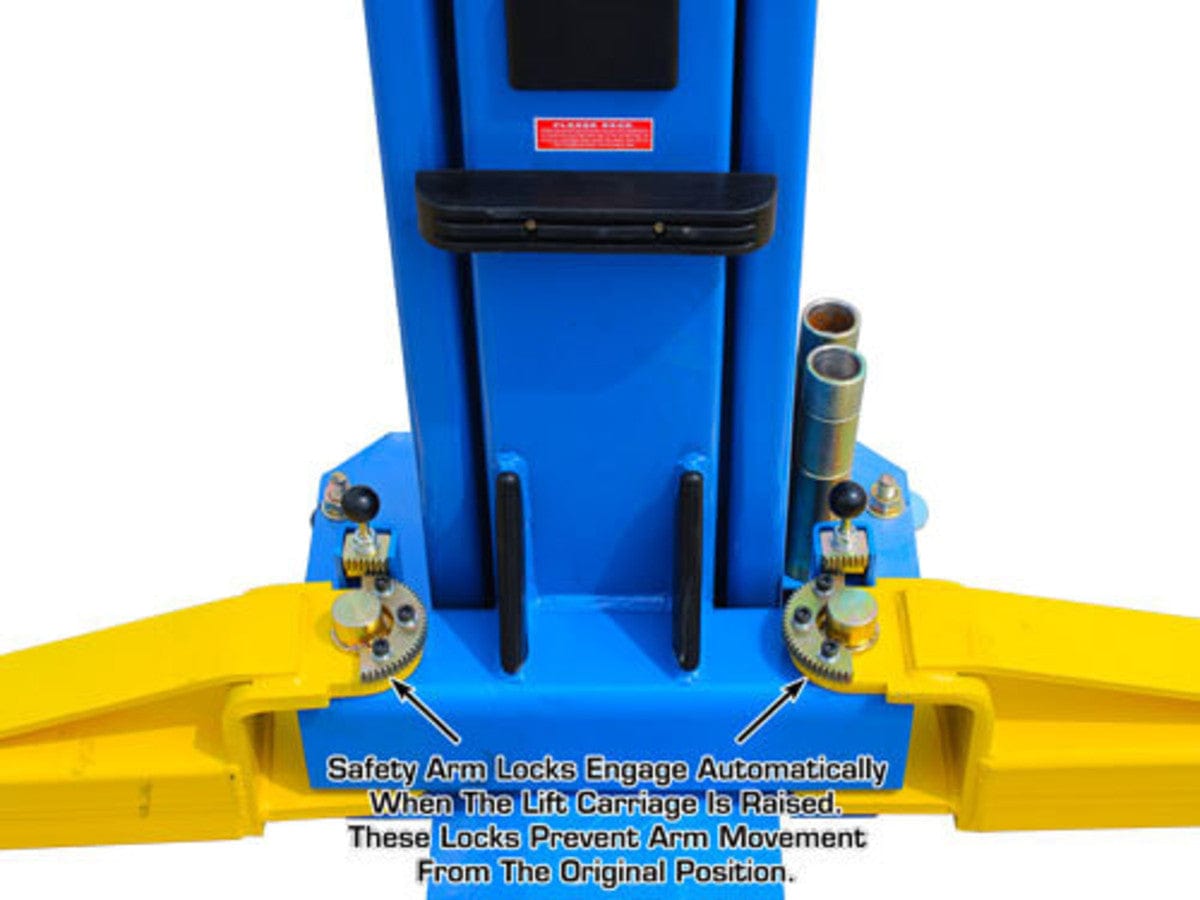

atlas bp10000x auto engaging arms locks

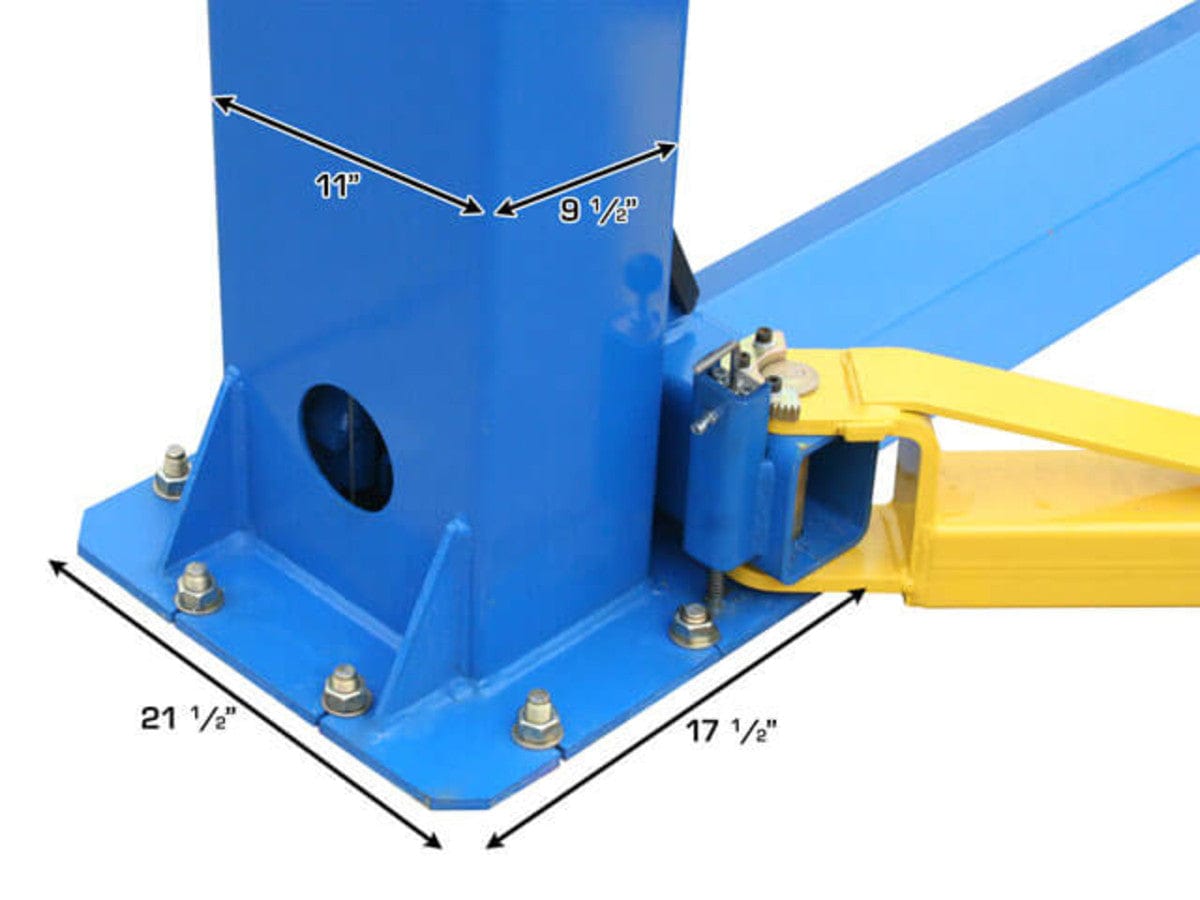

Reinforced column support gussets on the Atlas BP10000X lift

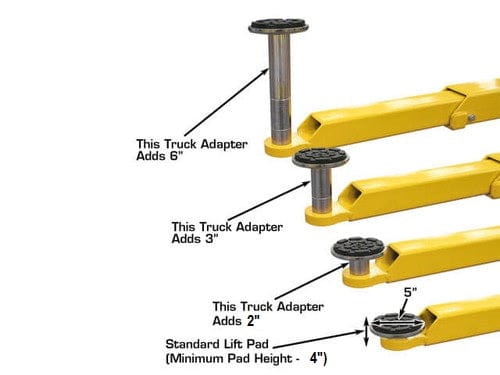

atlas bp10000x arm height with adapters

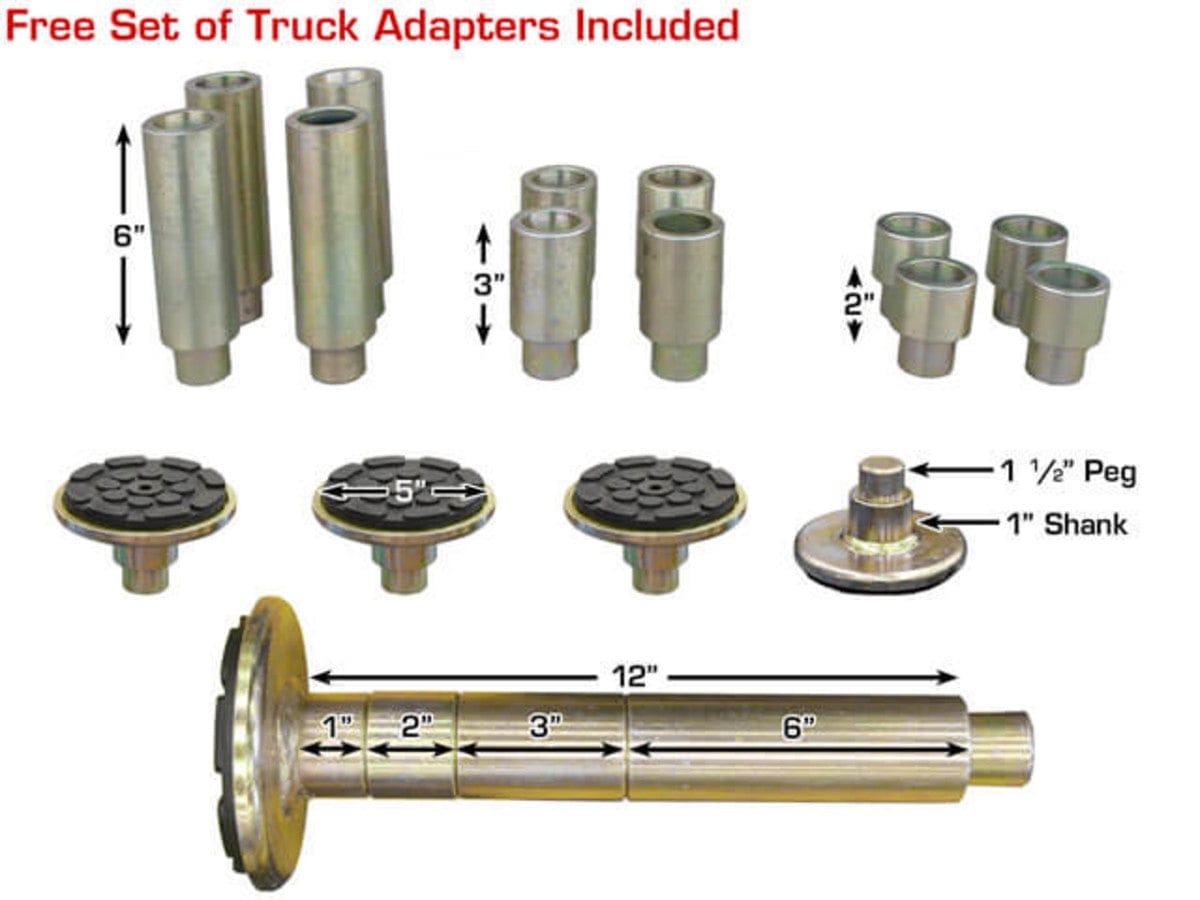

Twelve-piece truck adapter set included with the Atlas BP10000X lift

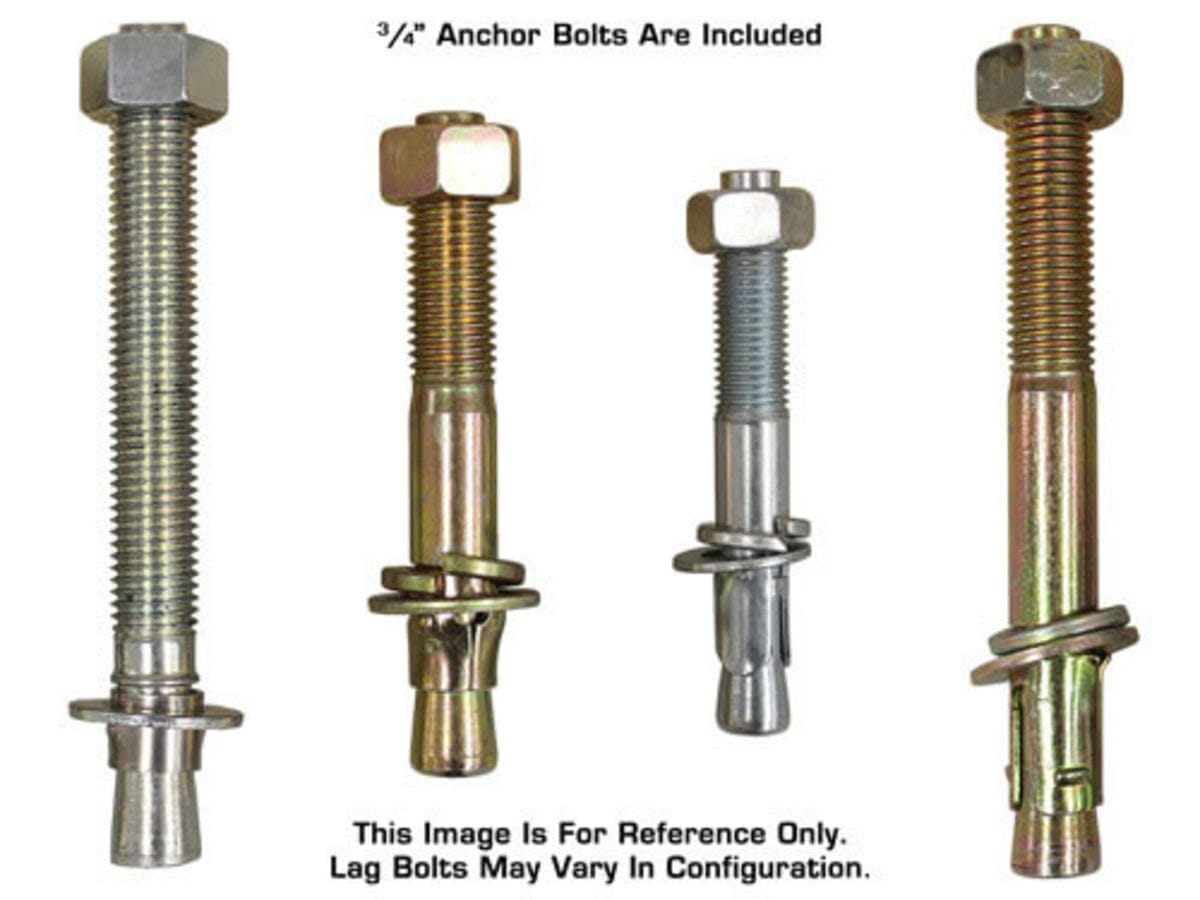

atlas bp10000x 2 post base plate lift anchor bolts
atlas bp10000x shipping weight and dimensions
Roll over image to zoom in Click on image to zoom
Atlas BP10000X 10,000 lb. commercial baseplate two-post vehicle liftFront view of the Atlas BP10000X 10,000 lb. baseplate liftPickup truck raised on an Atlas BP10000X two-post vehicle liftAtlas BP10000X baseplate lift installed in a low-ceiling garageOpen-top design of the Atlas BP10000X baseplate two-post liftDual chain-drive hydraulic cylinders on the Atlas BP10000X liftatlas bp10000x overall widthFloor baseplate and equalization cover on the Atlas BP10000X liftatlas bp10000x overall dimensionsSingle-point safety lock release on the Atlas BP10000X liftatlas bp10000x under truck view using truck adaptersatlas bp10000x baseplate and inner post viewSuper-symmetric lifting arms on the Atlas BP10000X two-post liftatlas bp10000x auto engaging arms locksReinforced column support gussets on the Atlas BP10000X liftatlas bp10000x arm height with adaptersTwelve-piece truck adapter set included with the Atlas BP10000X liftatlas bp10000x 2 post base plate lift anchor boltsatlas bp10000x shipping weight and dimensions
ATLAS AUTOMOTIVE EQUIPMENT

Atlas BP10000X 10,000 lb. Baseplate Two-Post Vehicle Lift ATEATTD-BP10000X-FPD

Price:
$4,299.00
Financing options available at checkout
Business Financing Powered By Approve
Expert Technical Support Expert Technical Support
Fast Shipping Fast Shipping
Professional Grade Kit Professional Grade Kit

Secure Checkout With

Secure Checkout

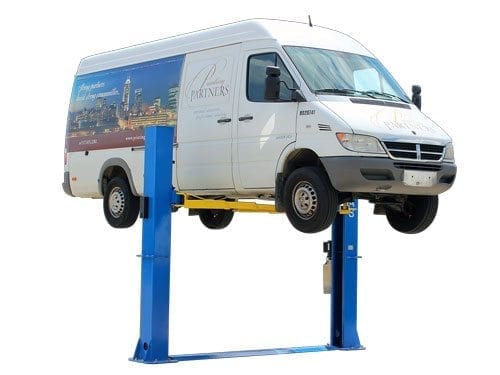

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

  • 10,000 lb. Capacity
  • Commercial Grade
  • Baseplate, Open-Top Style Lift

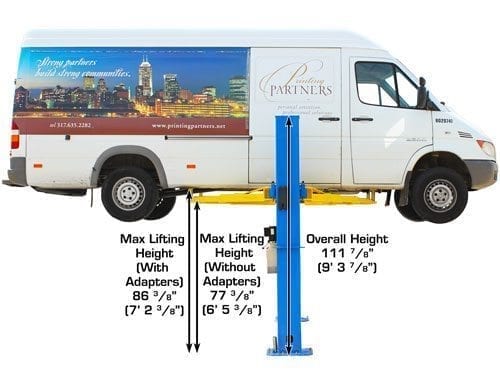

  • Overall Height: 111 7/8″ (9′ 3 7/8″)
  • Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
  • Super-Symmetric Arms

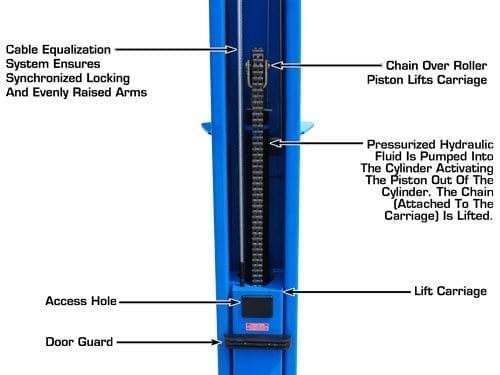

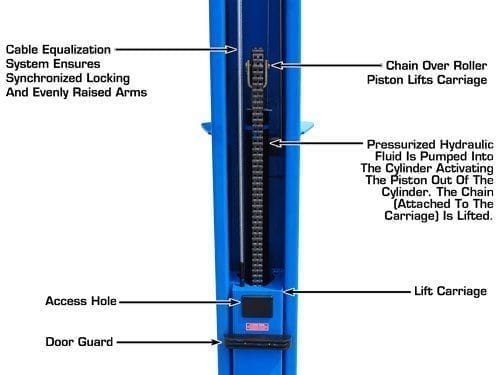

  • Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
  • Welded Support Gussets Increase Column Strength.
  • Automatic Arm Restraints
  • Powder Coat Finish

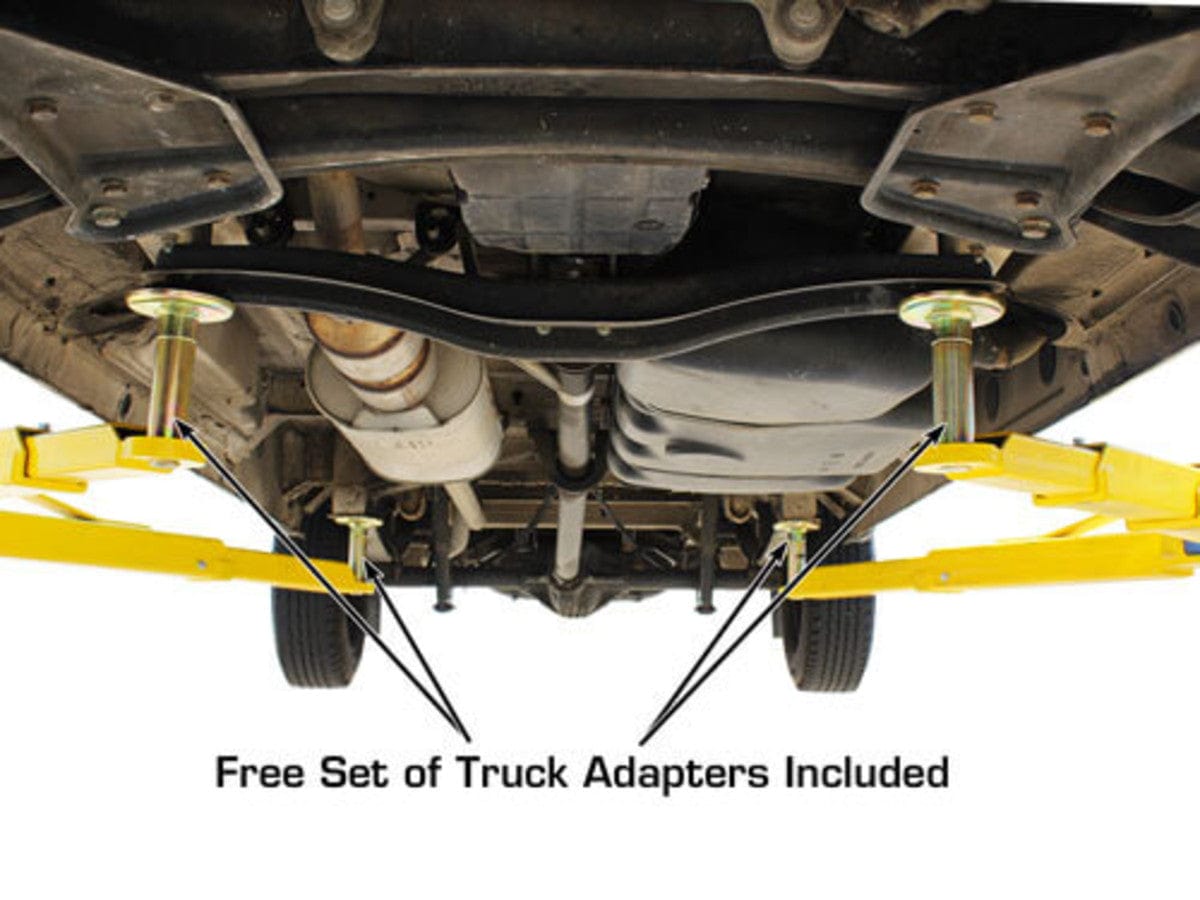

  • Free 12 Piece Truck Adapter Set

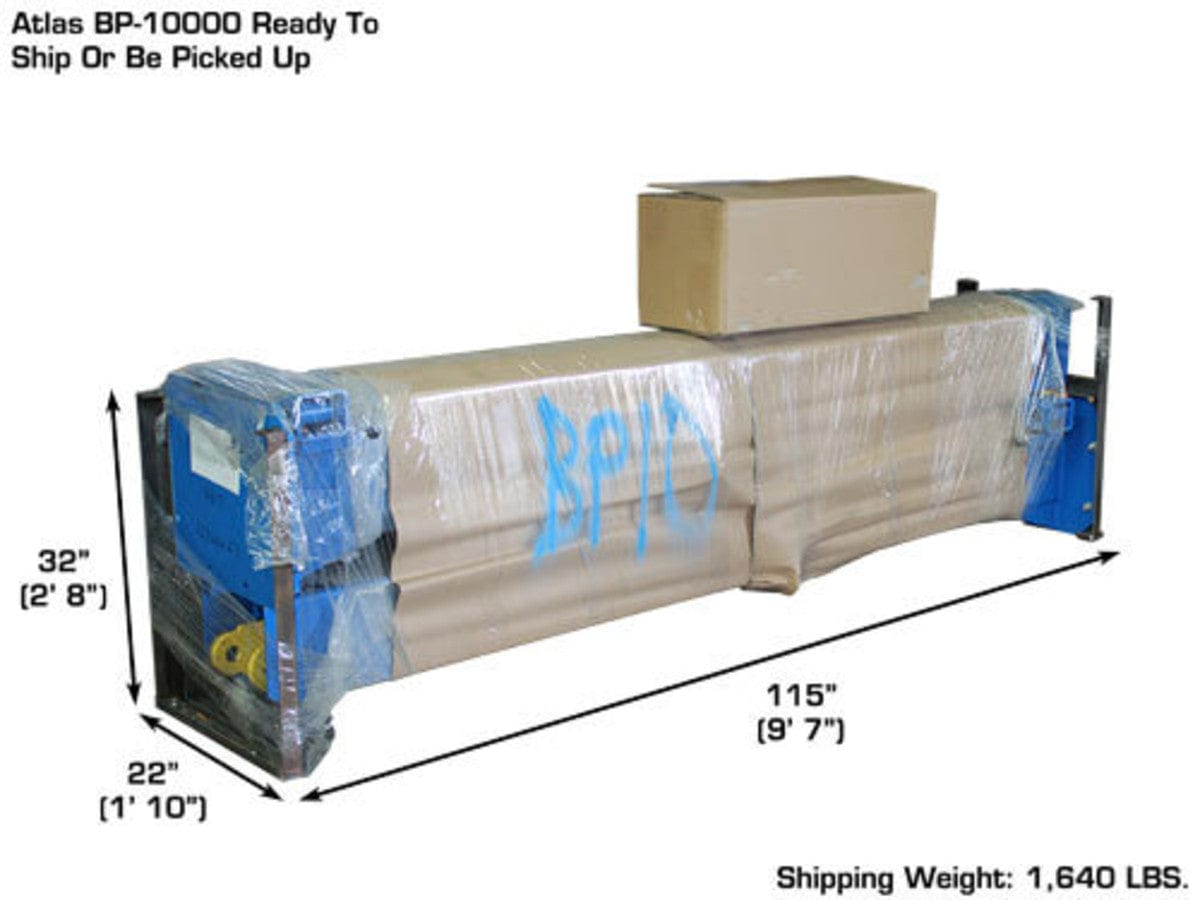

  • Shipping Weight: 1,640 LBS.
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

******FREIGHT PRE PAID PART NUMBER

  • ********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
