ATLAS PRO8000 4 Post Lift + RJ35 Sliding Jacks Combo ATEXH-PRO8-COMBO-FPD

Features and Benefits:

• Combo package includes Garage Pro8000 & two RJ35 Bridge Jacks

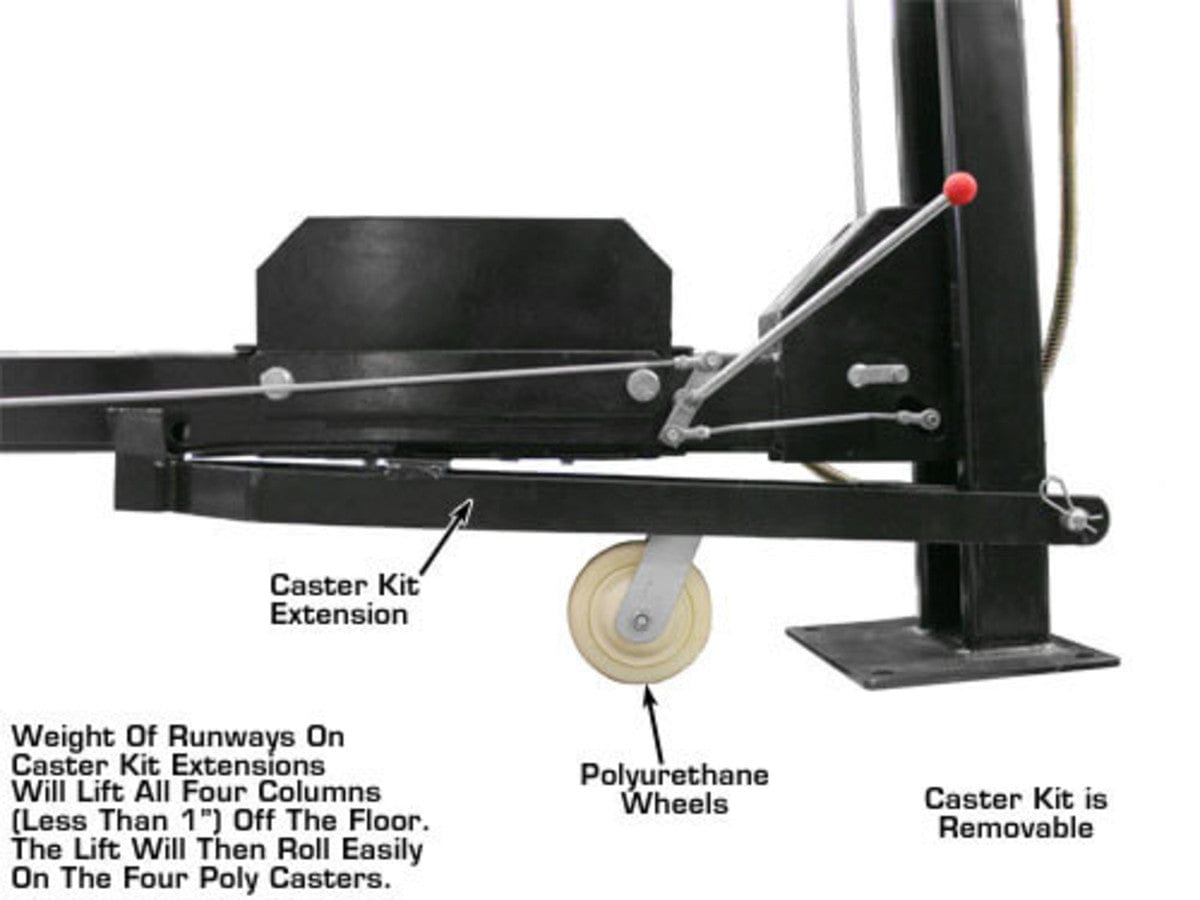

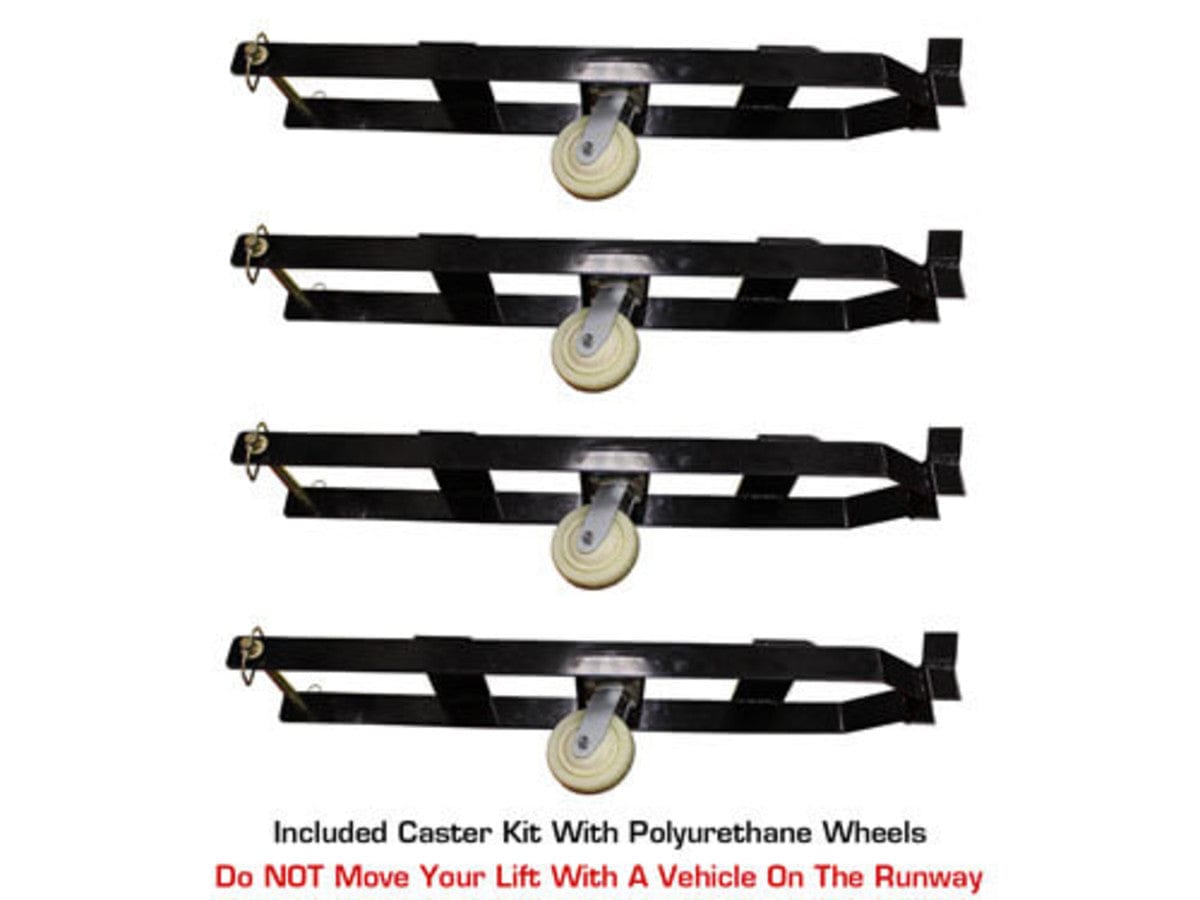

• Caster Kit With Polyurethane Wheels Included

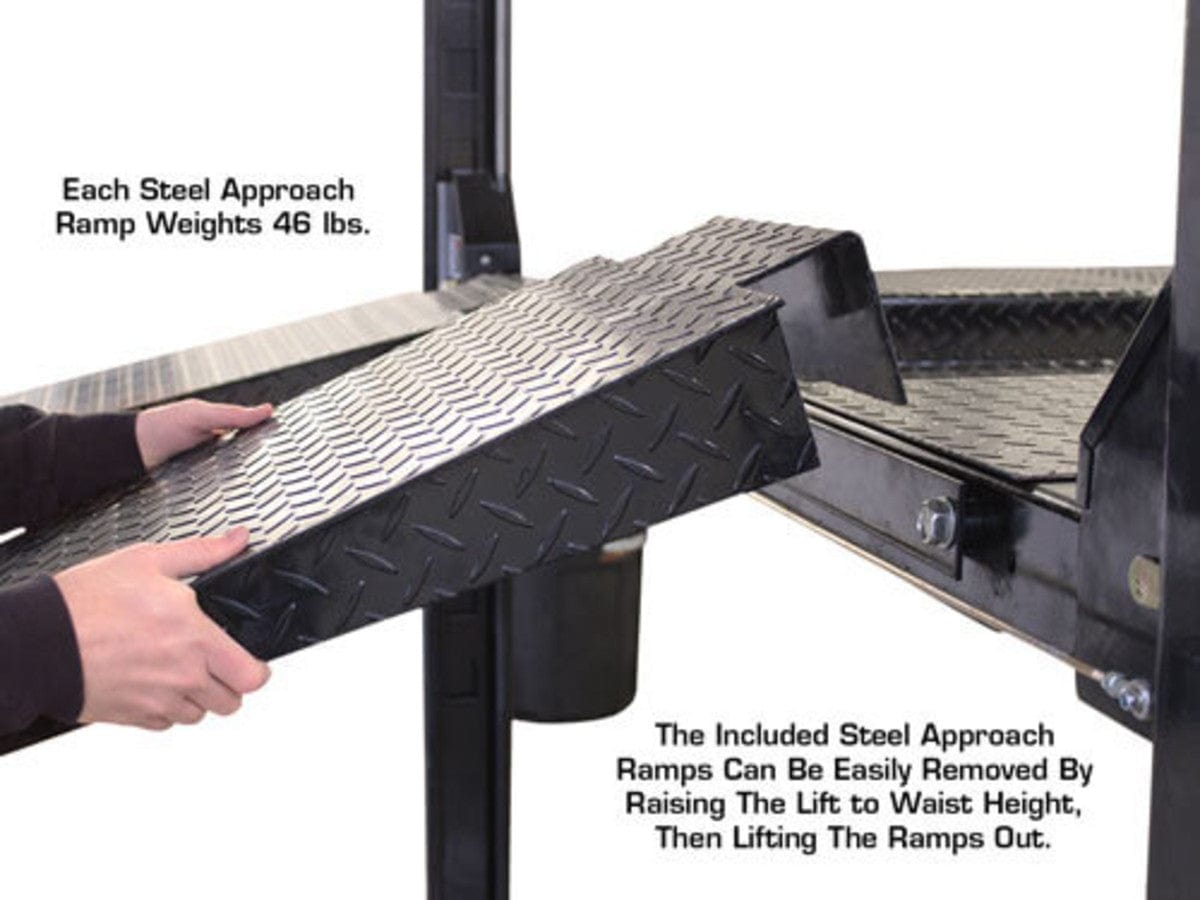

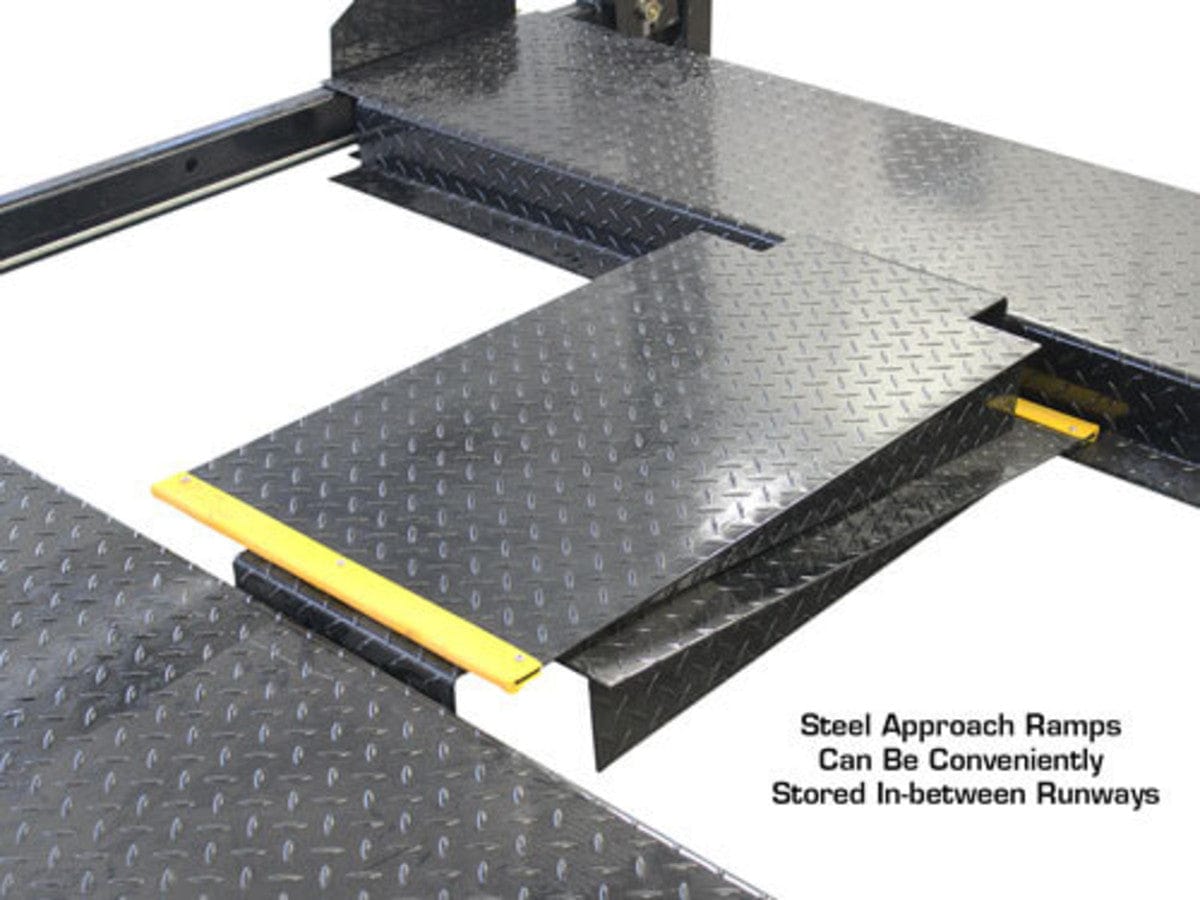

• Steel Approach Ramps Included
• Steel Jack Tray Included

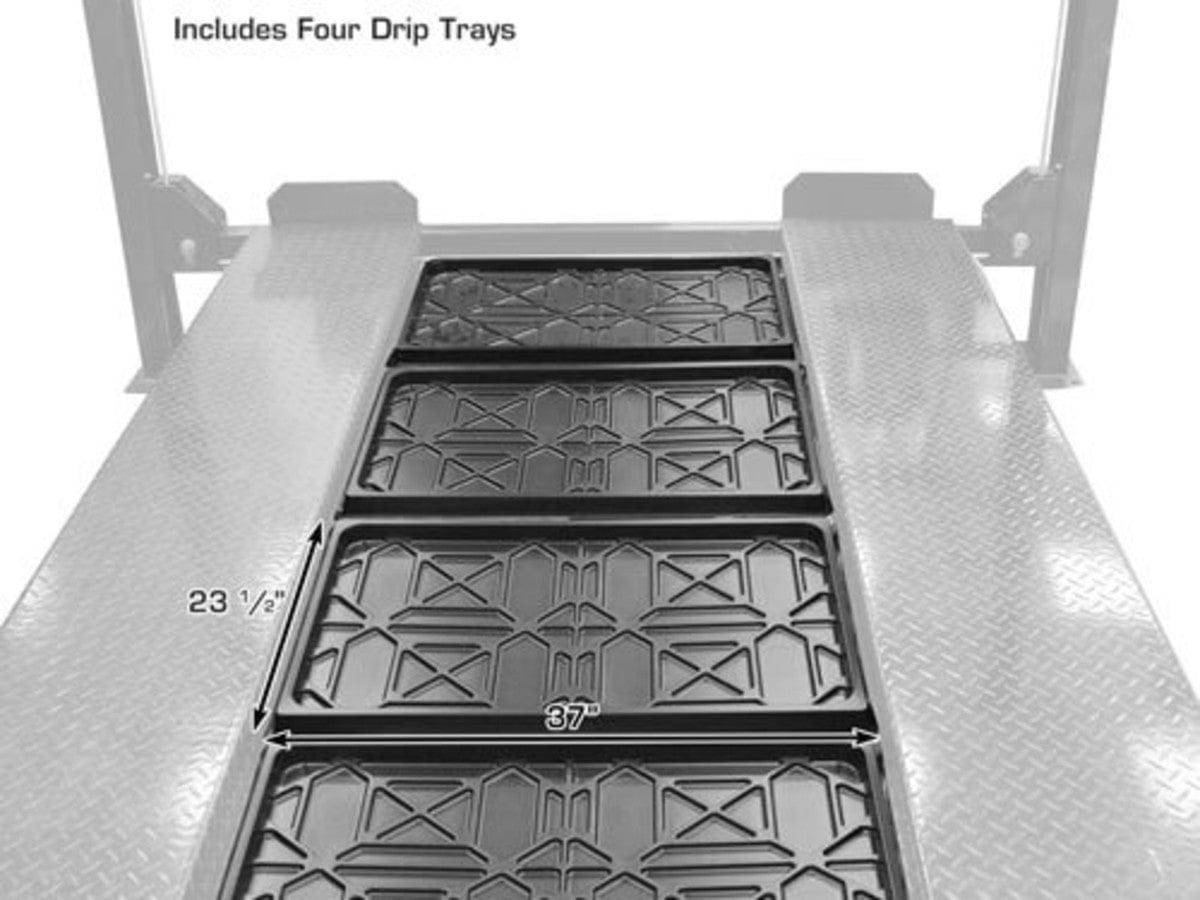

• 4 Plastic Drip Trays Included
• Wheel Stops Included

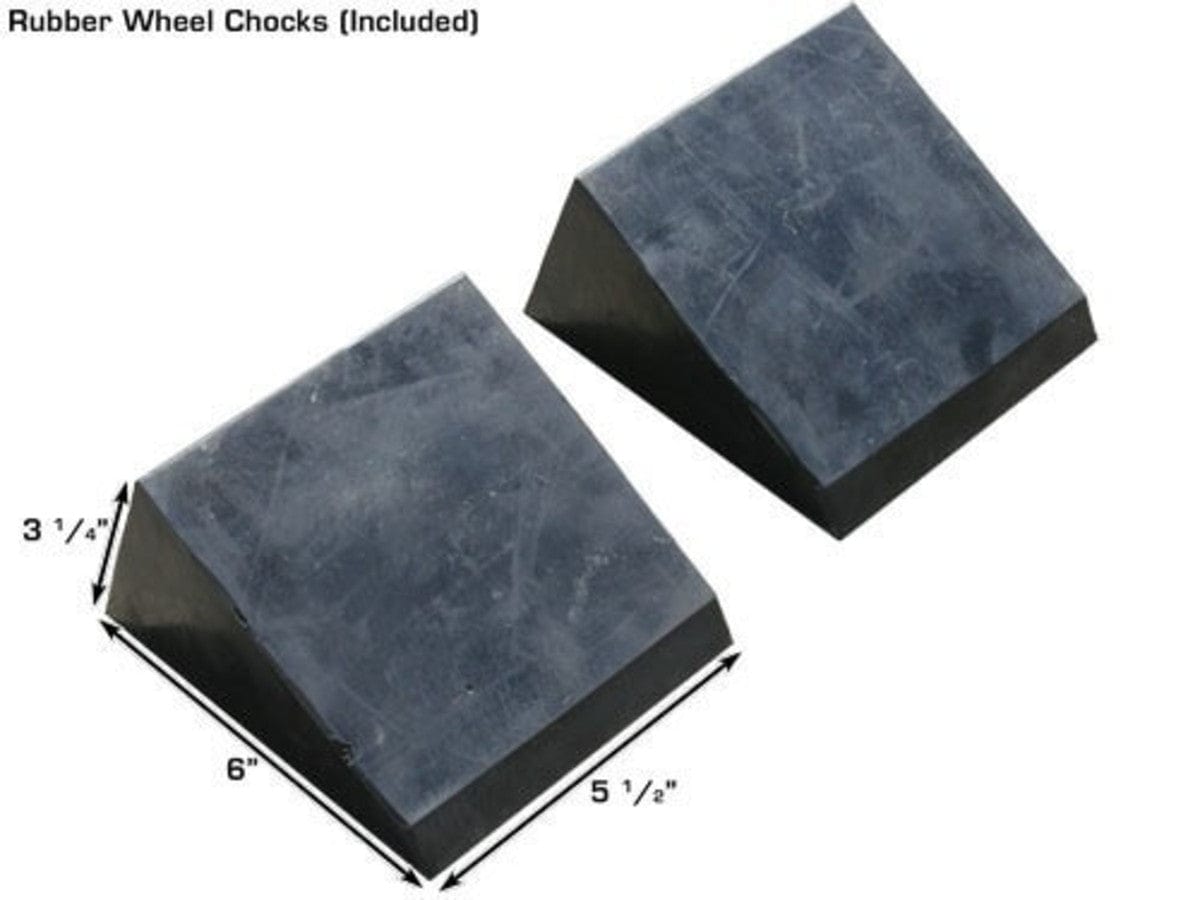

• 2 Rubber Wheel Chocks Included

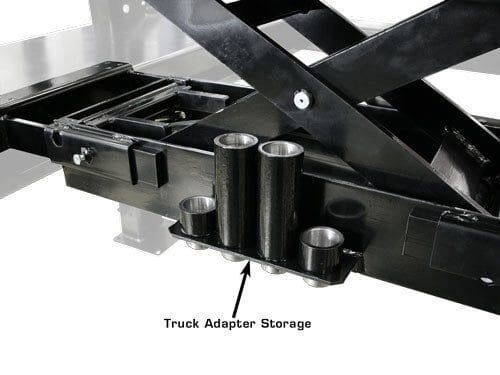

• Truck Adapter set for Each Jack Included
• This part number FREIGHT PREPAID

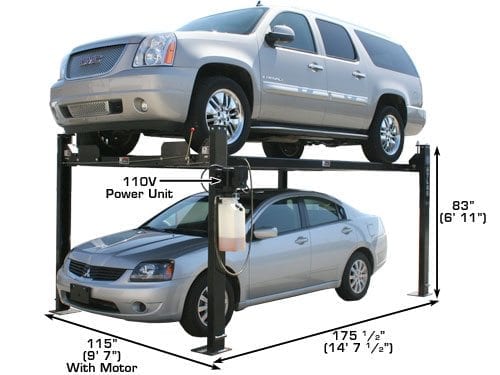

The Atlas® Garage PRO8000 is our most popular 4-post hobbyist lift. Perfect for the customer with too many cars and not enough space. The Garage PRO8000 allows the user to easily double their space by stacking most passenger cars.

The Atlas® Garage PRO series of 4-post lifts (8,000 lb. capacity) are designed and built for use by homeowners or restoration shops. These lifts are not designed for use in commercial repair shops where they would be raised and lowered several times per day. If you have questions about which lift would best work in your application please contact a salesperson.

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Atlas® Garage PRO8000 Specifications

• Capacity 8,000 lb.

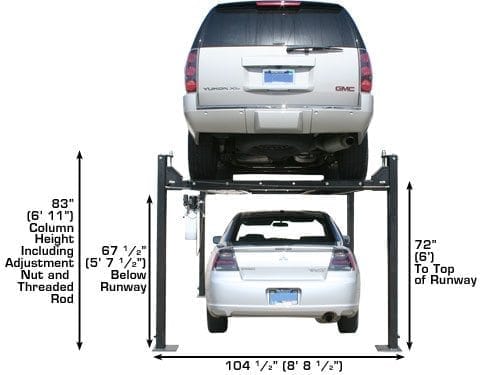

• Lifting Height To Top Of Runway 72" (6')
• Clearance Under Runways 67 (5' 7")

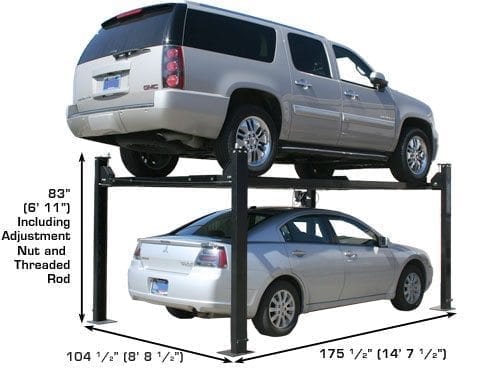

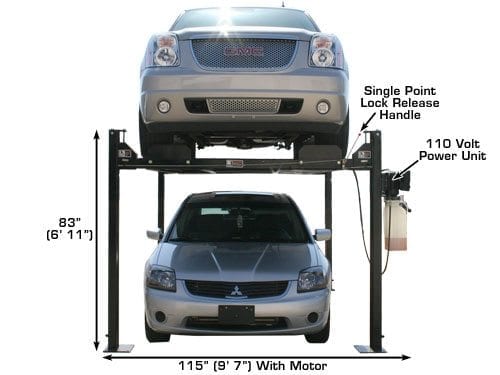

• Height Of Columns 83" (6' 11")
• Overall Width (Without Motor) 104 1/2" (8' 8 1/2")
• Overall Width (With Motor) 115" (9' 7")

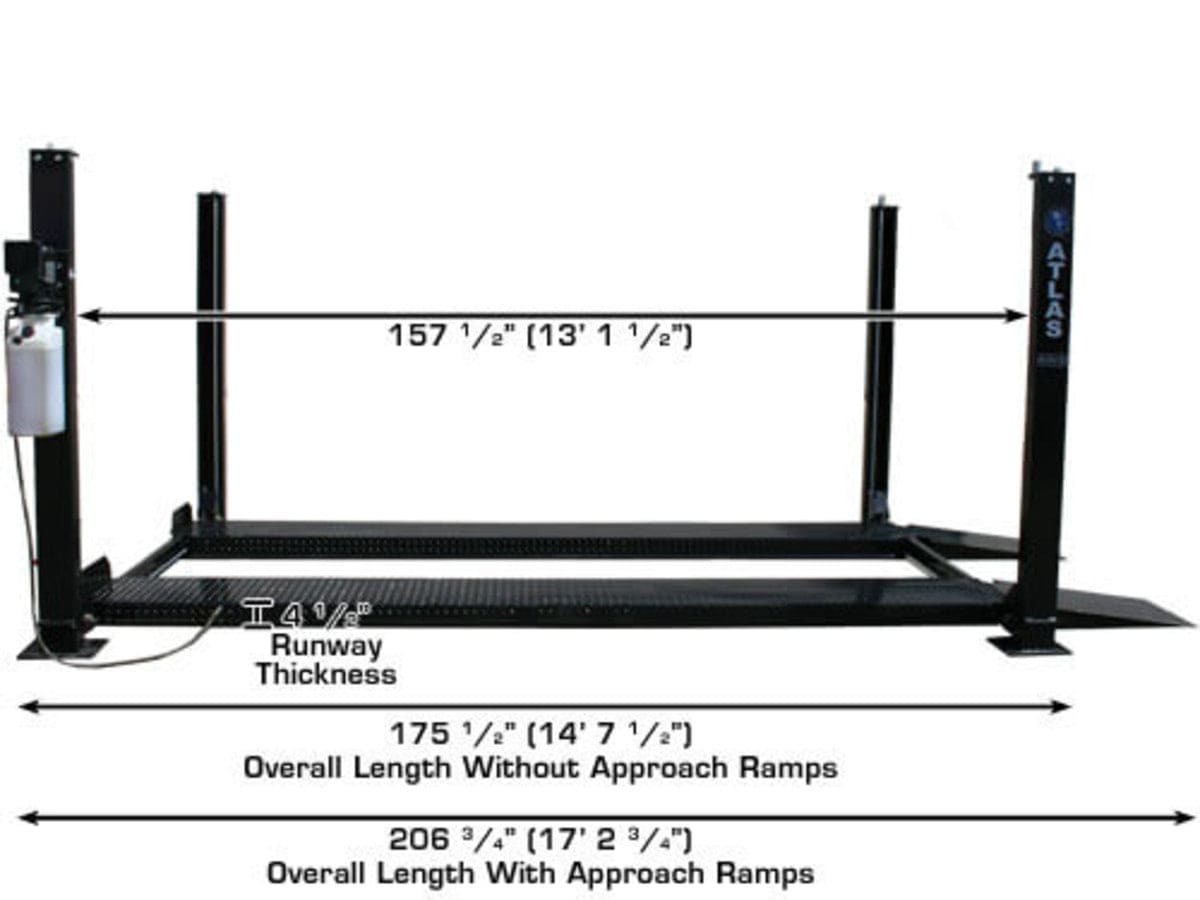

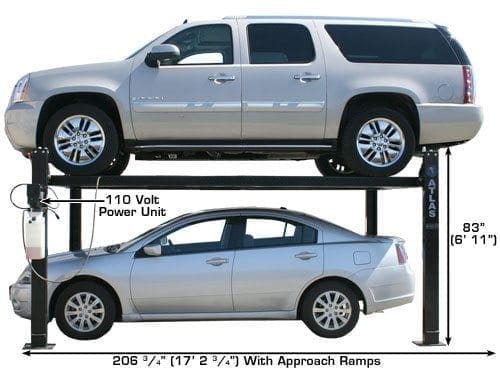

• Overall Length With Approach Ramp 206 3/4" (17' 2 3/4")
• Approach Ramp 37" (3' 1")
• Runway Width 21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
• Runway Length 165 3/4" (13' 9 3/4")
• Runway Thickness 4 1/2"

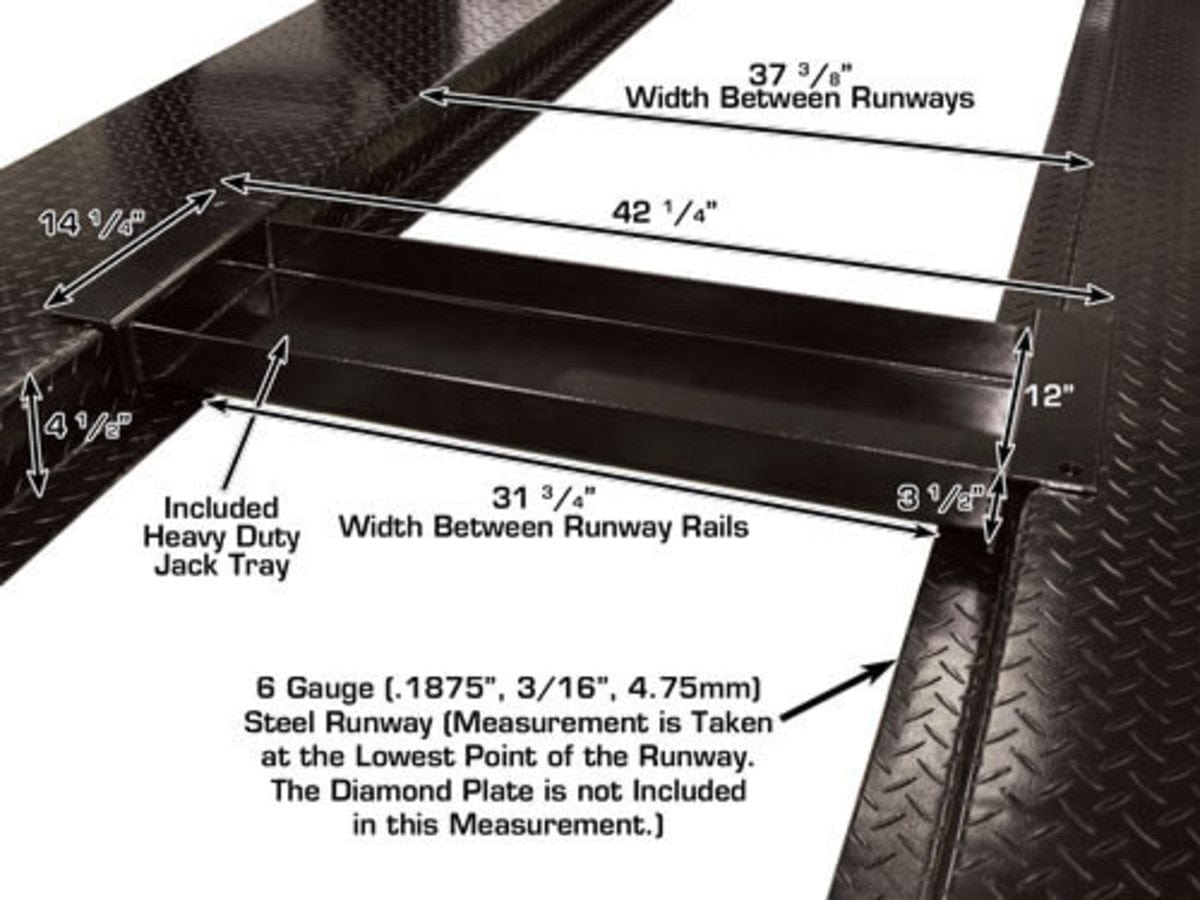

• Width Between Runways 37" (3' 1")
• Width Between Runway Rails 31 1/2" (2' 7 1/2")
• Outside Runway To Outside Runway 74 5/8" (6' 2 5/8")

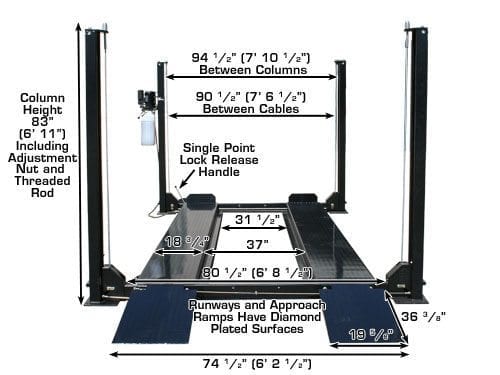

• Clearance Between Columns 94 1/2" (7' 10 1/2")
• Length Between Columns 157 1/2" (13' 1 1/2")

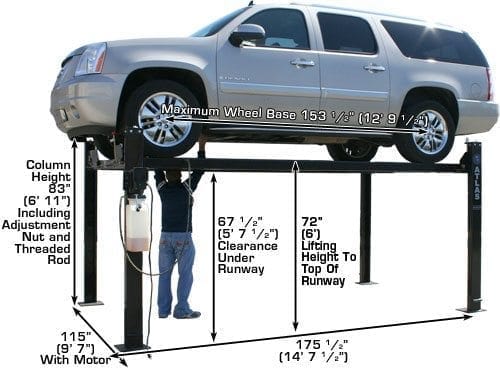

• Maximum Wheel Base 153 1/2" (12' 9 1/2")
• Drive Thru (Outside Of Tire To Outside Of Tire) 80 1/2" (6' 8 1/2")
• Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED

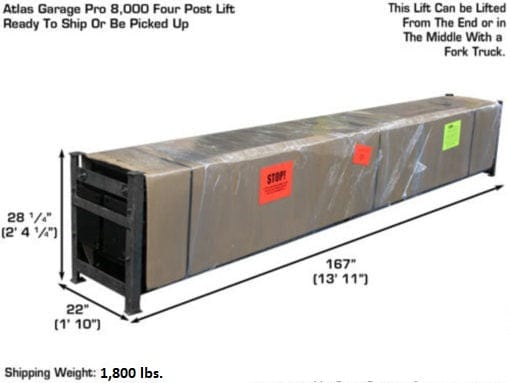

• Shipping Weight 1,800 lb.

•

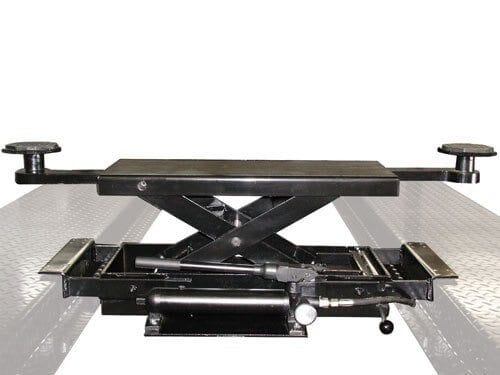

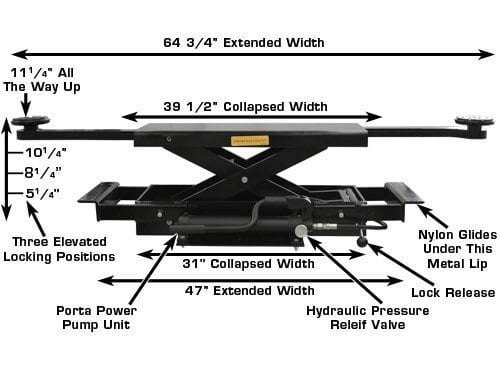

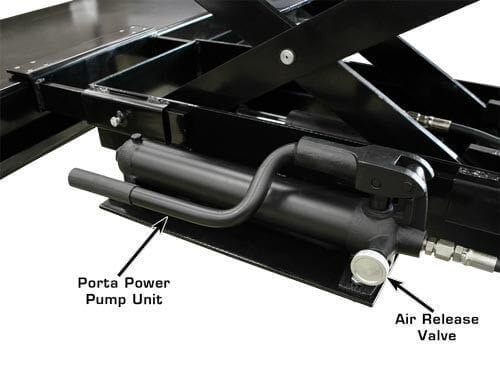

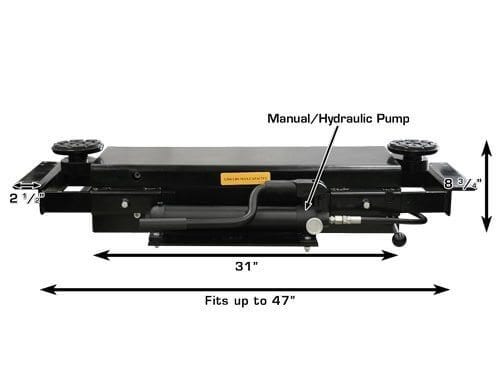

  Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs
  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"
  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"

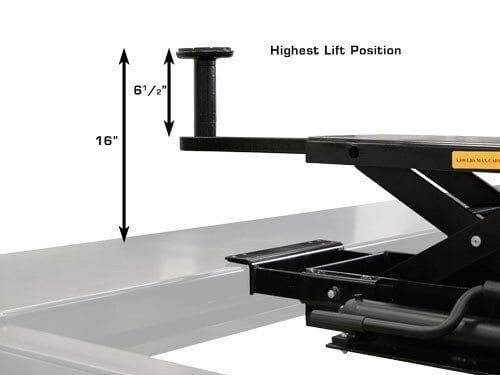

  • Max Height Raised w/ Adapters: 17 1/4"

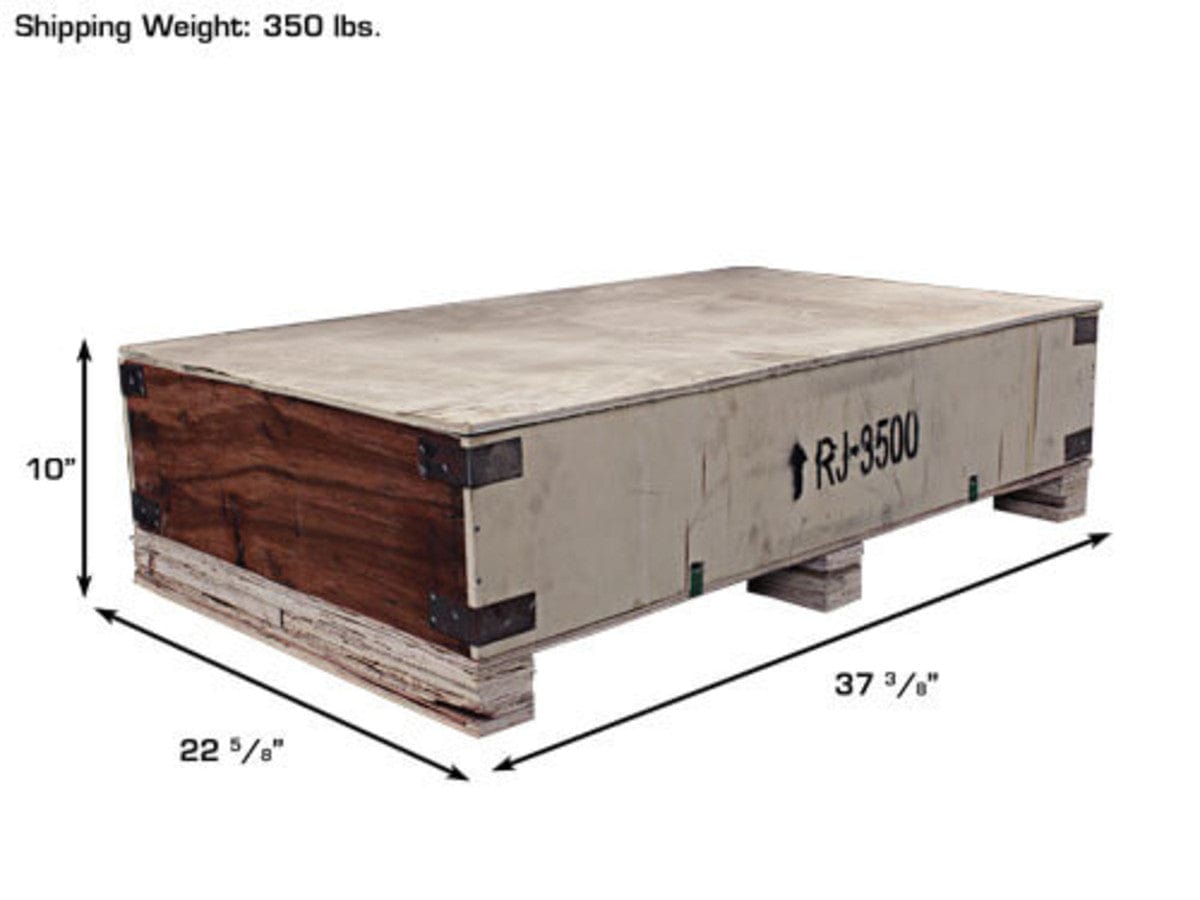

  • Shipping Weight: 350 lbs

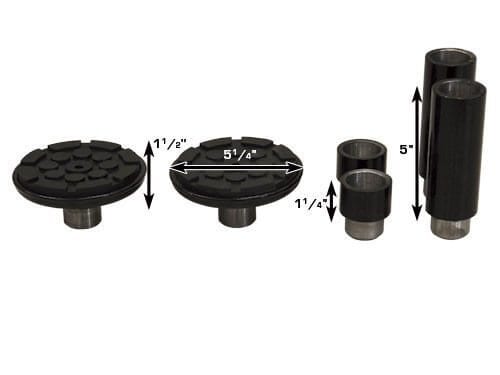

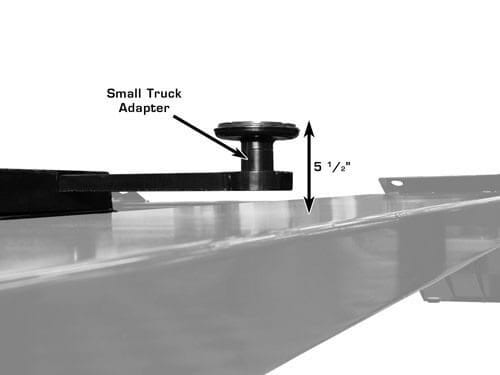

  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"
