ATLAS PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo ATEXH-PRO8EXTL-COMBO-FPD


Price:
Sale price$5,699.00

Description

Features and Benefits:

  • Combo package Includes Garage Pro8000EXT-L & two RJ35 Bridge Jacks

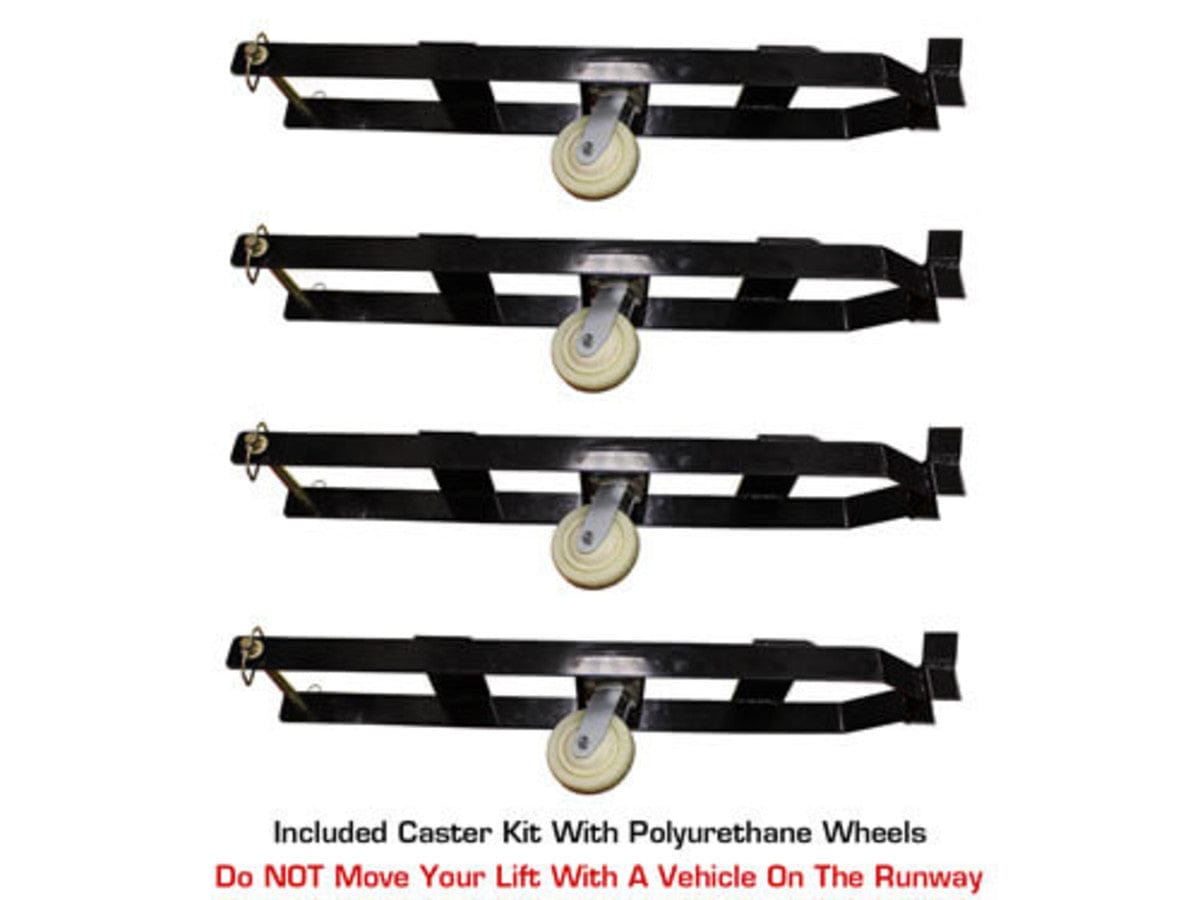

  • Caster Kit With Polyurethane Wheels Included

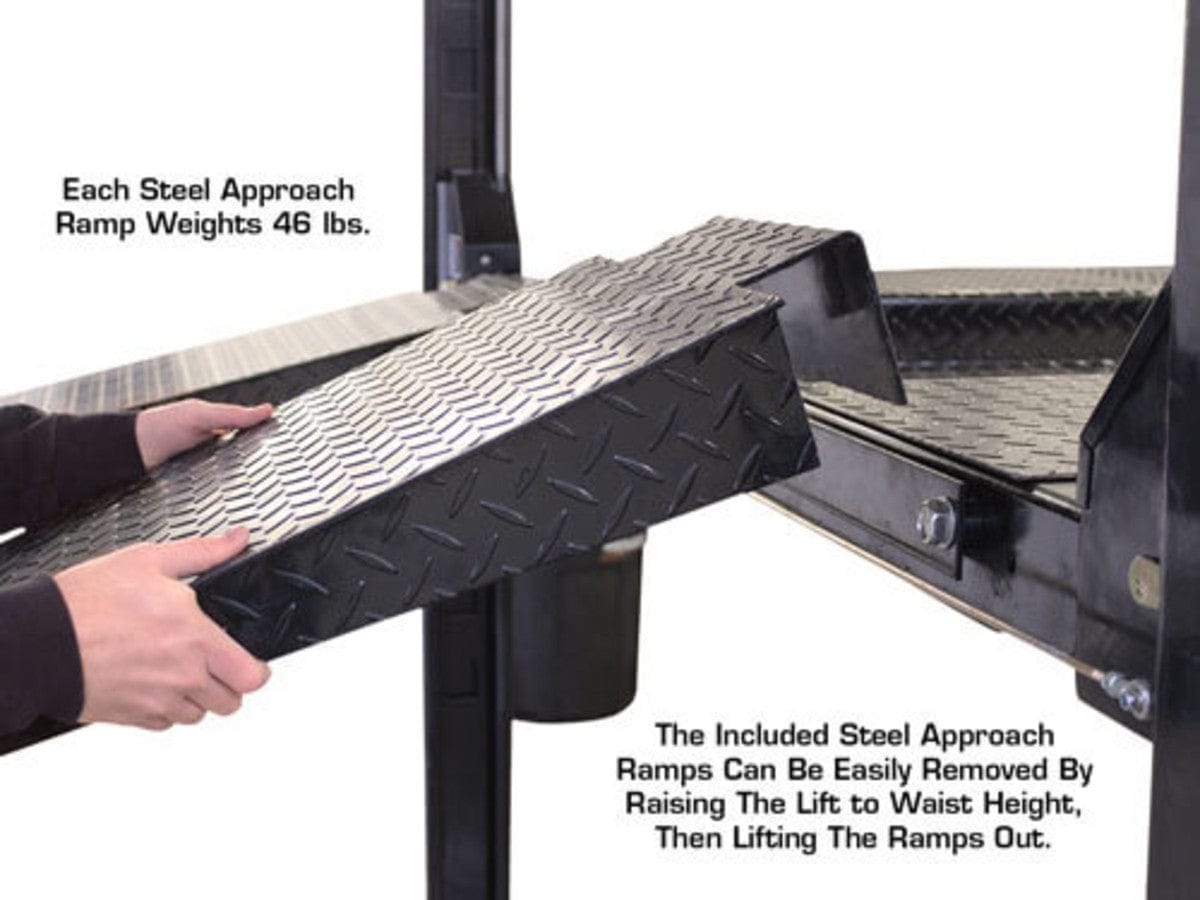

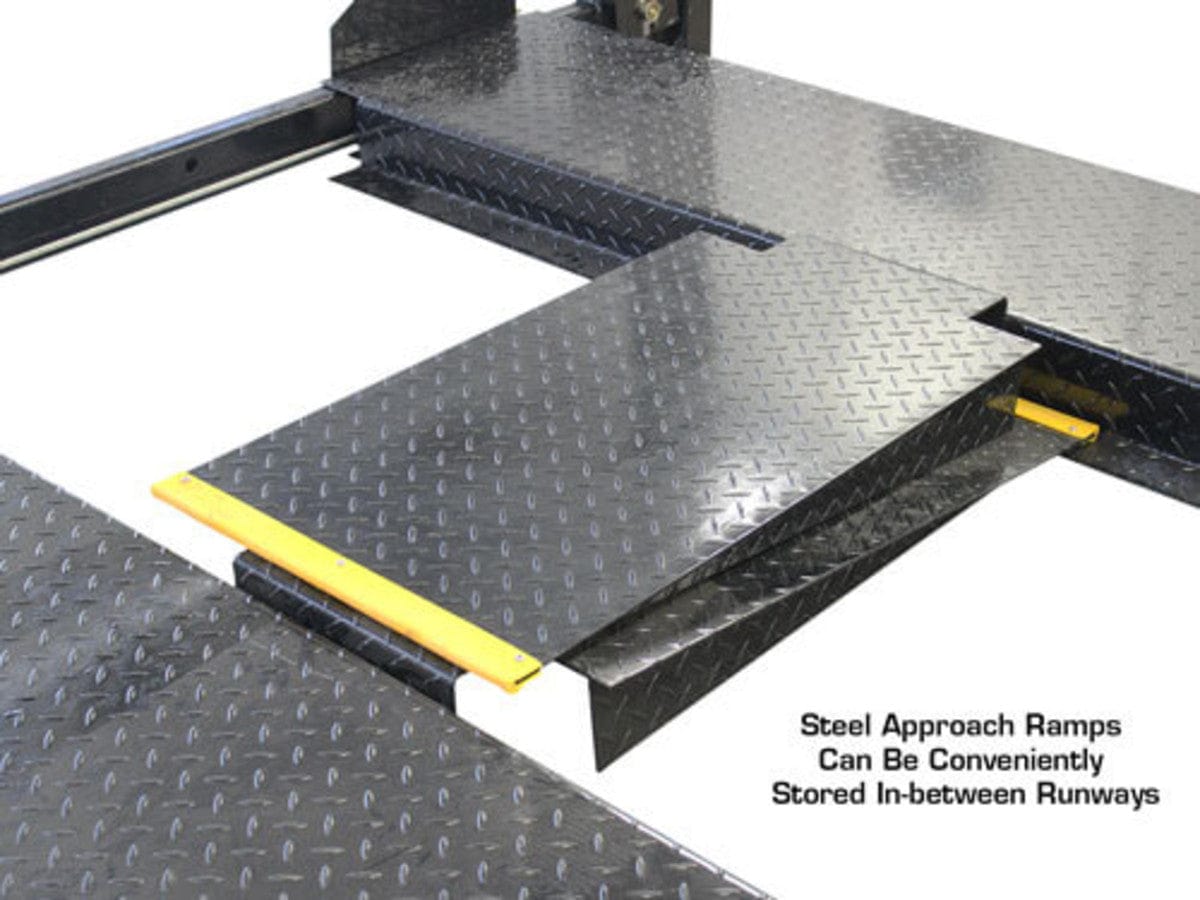

  • Steel Approach Ramps Included

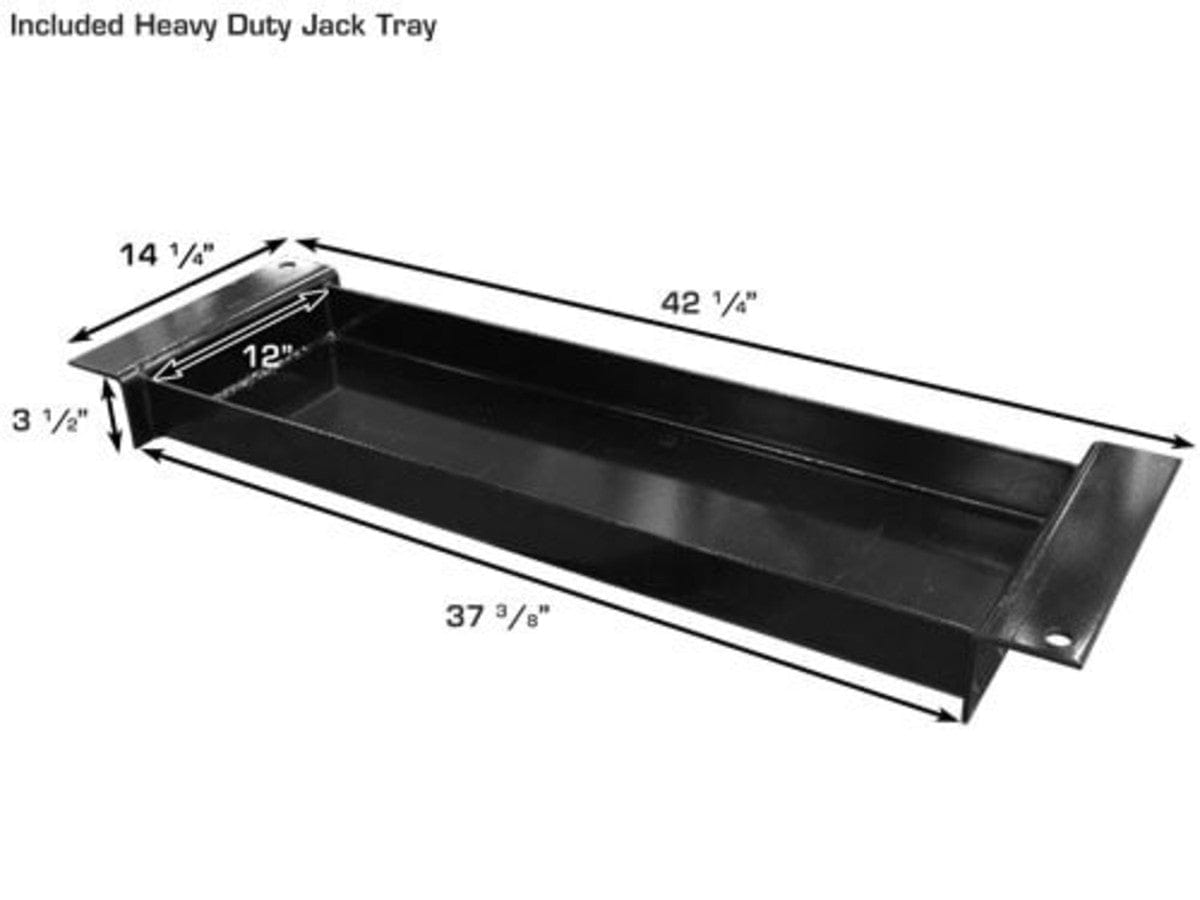

  • Steel Jack Tray Included

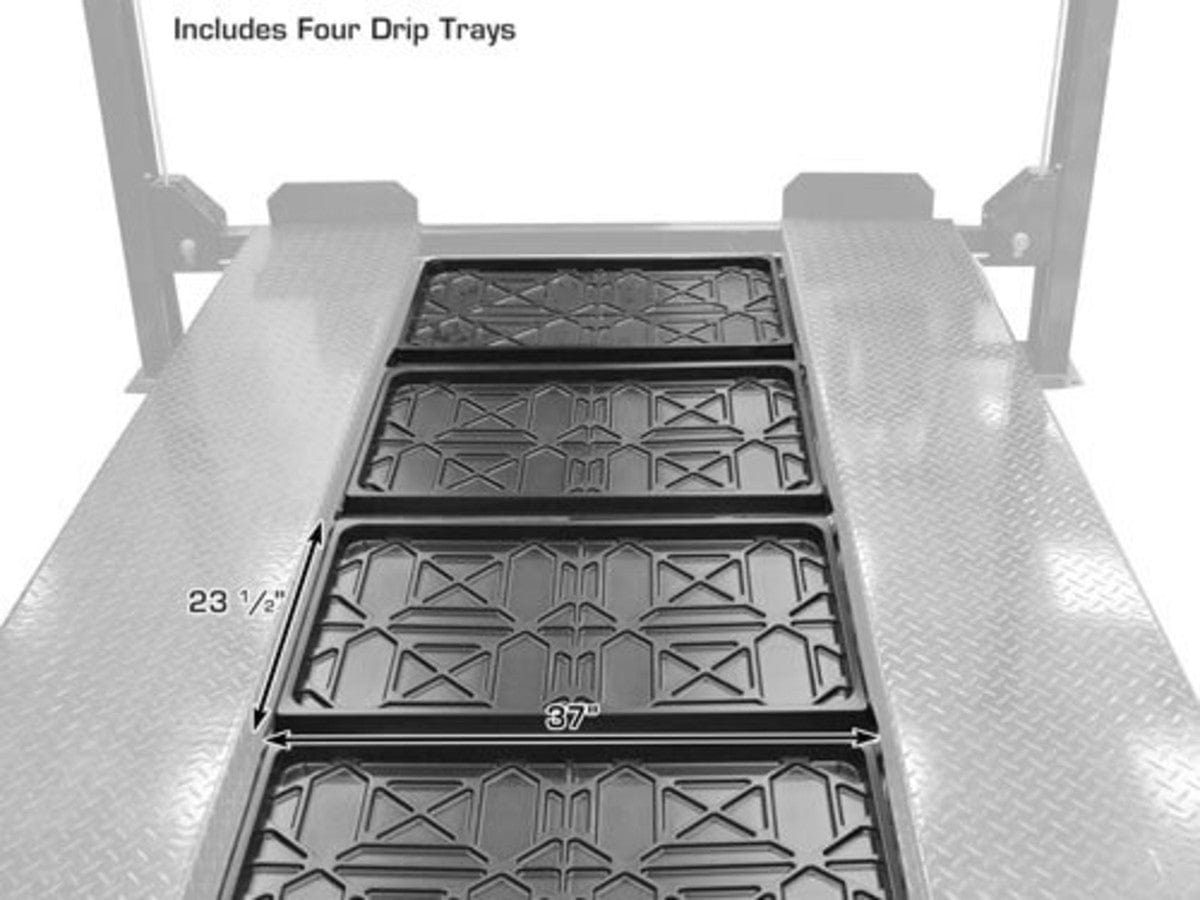

  • 4 Plastic Drip Trays Included
  • Wheel Stops Included

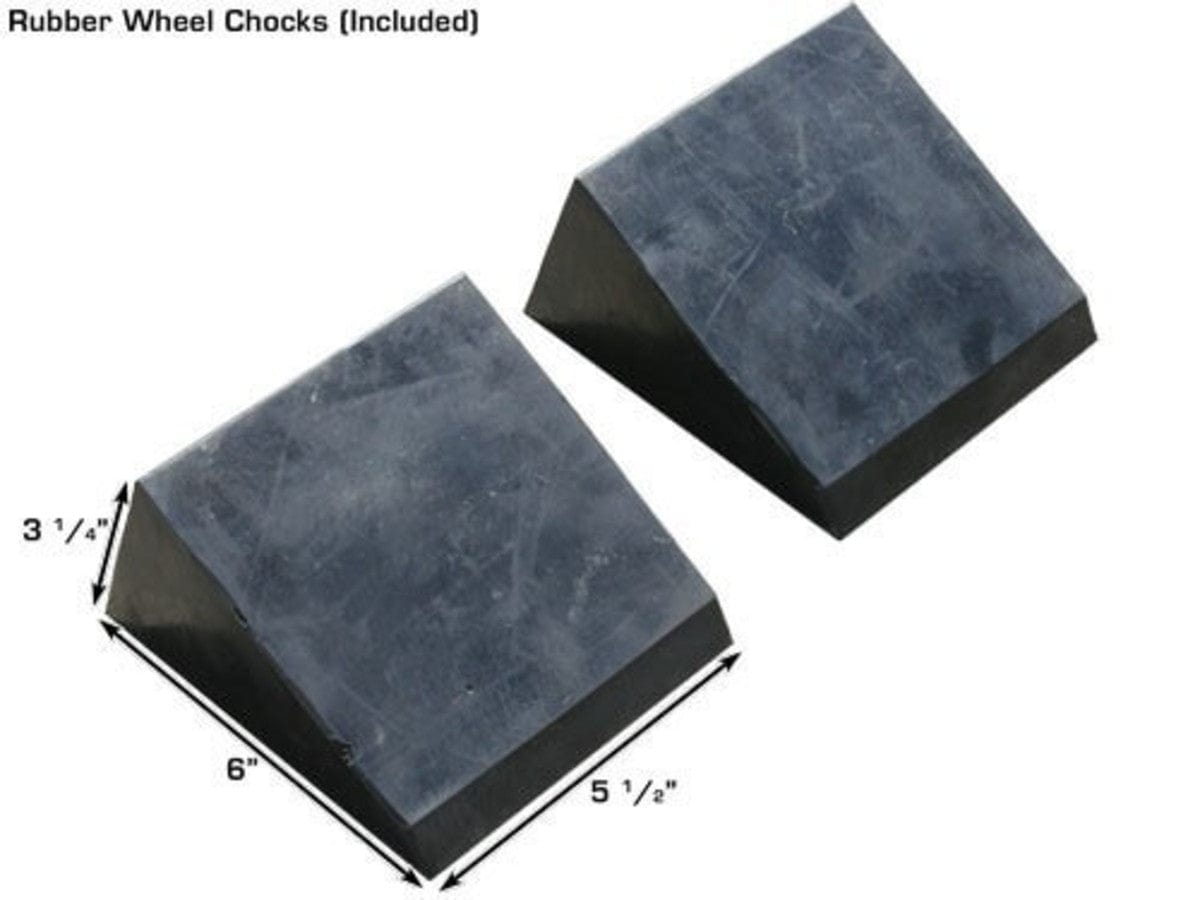

  • 2 Rubber Wheel Chocks Included

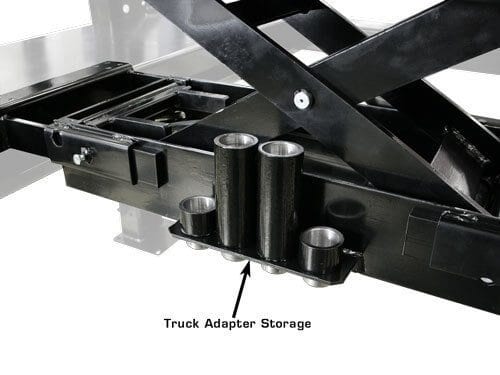

  • Truck Adapter set for each Bridge Jack Included
  • This part number FREIGHT PREPAID

The Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas® Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas® Garage PRO9000 if you need a portable lift for your dually!

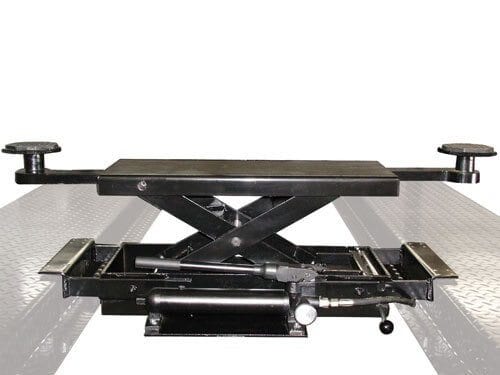

This combo package also includes two of the the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

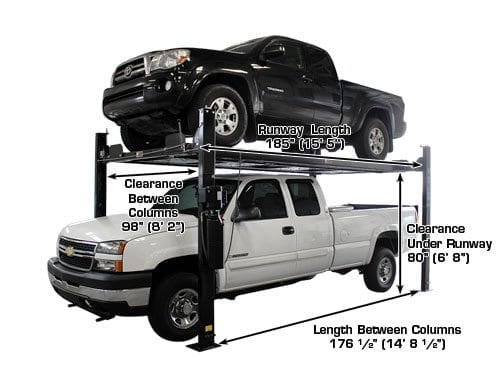

Atlas® Garage PRO8000EXT-L Specifications

  • Capacity 8,000 lbs.
  • Lifting Height To Top Of Runway 84" (7')
  • Clearance Under Runways 78 1/2" (6' 6 1/2")

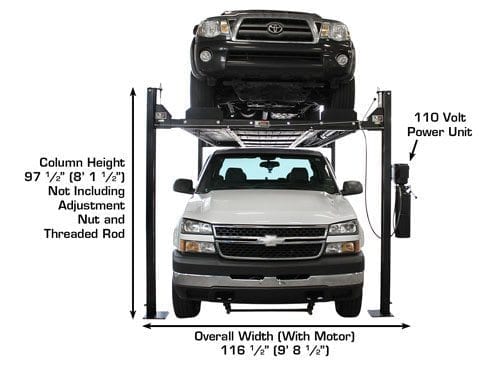

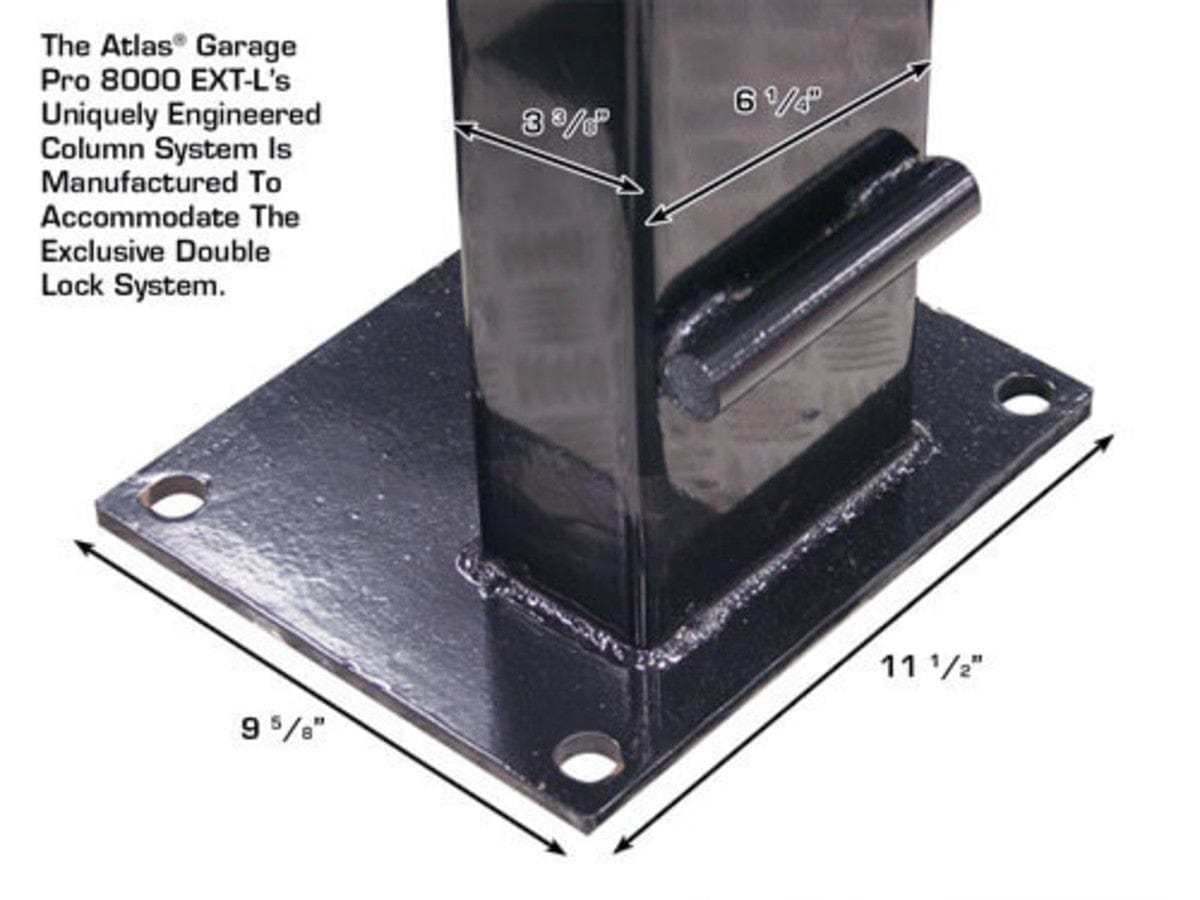

  • Height Of Columns 98 1/2" (8' 2 1/2")
  • Overall Width (Without Motor) 108" (9�)
  • Overall Width (With Motor) 116 1/2" (9' 8 1/2")
  • Overall Length With Approach Ramp 222" (18� 6”)

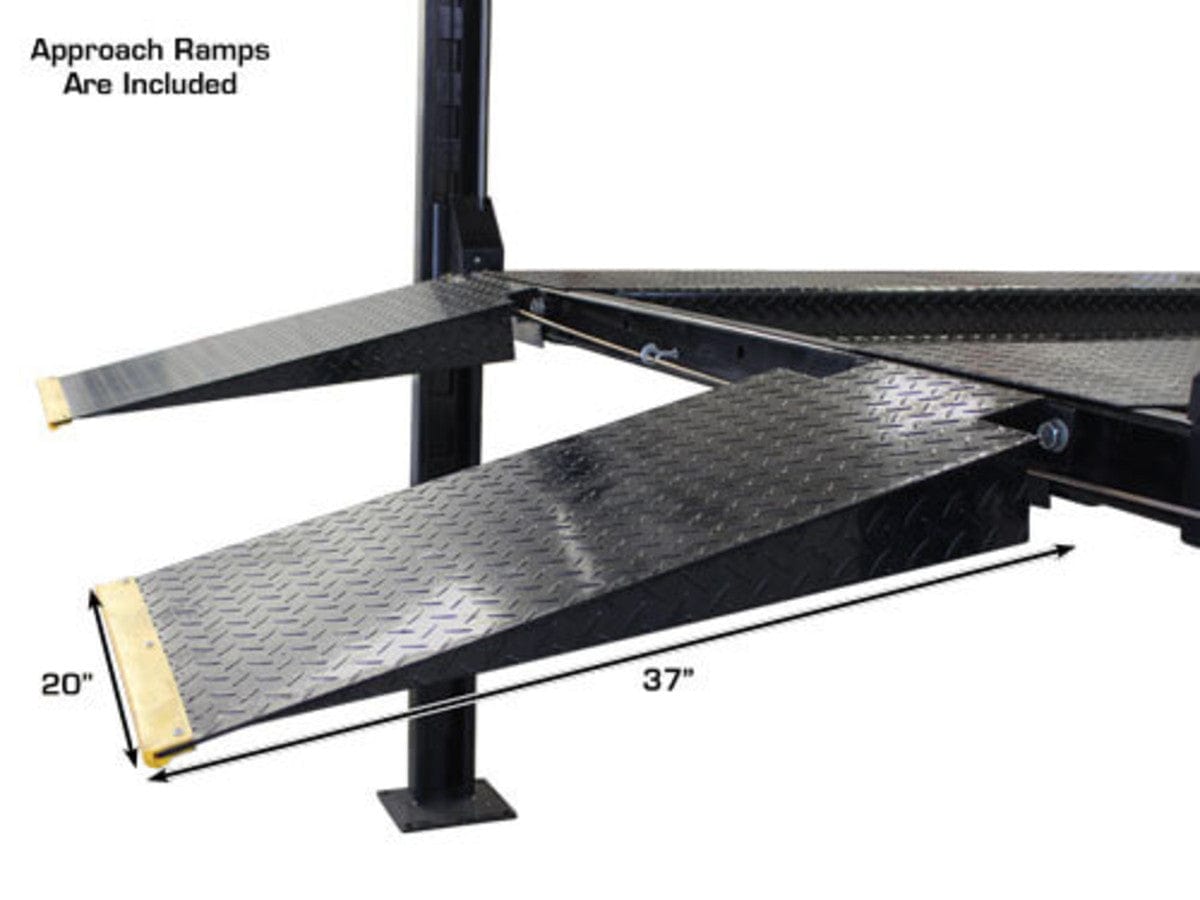

  • Approach Ramp 37" (3' 1")
  • Runway Width 22" (w/ Rails) or 18 3/4" (Driving Surface)
  • Runway Length 185" (15� 5”)

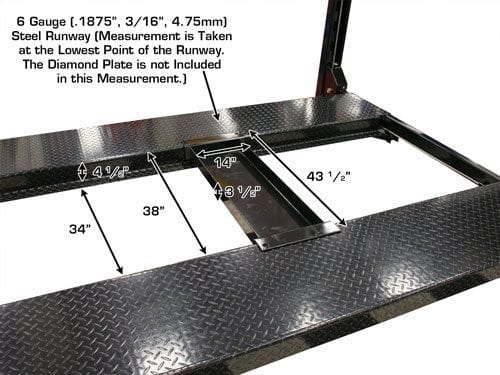

  • Runway Thickness 4 1/2"
  • Width Between Runways 38" (3' 2")
  • Width Between Runway Rails 34" (2� 10")

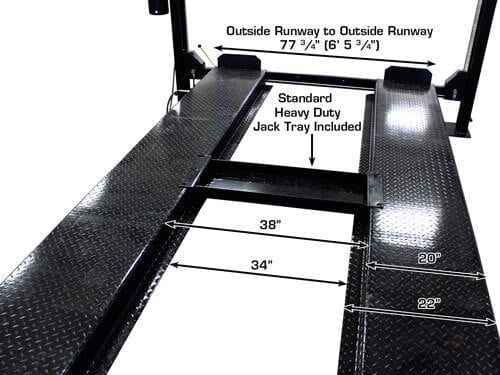

  • Outside Runway To Outside Runway 77 3/4" (6' 5 3/4")

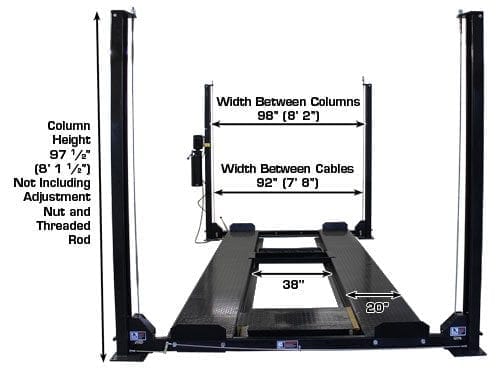

  • Clearance Between Columns 98" (8� 2")

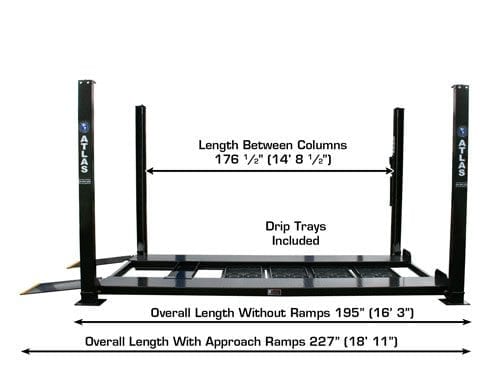

  • Length Between Columns 176 1/2" (14� 8 1/2")

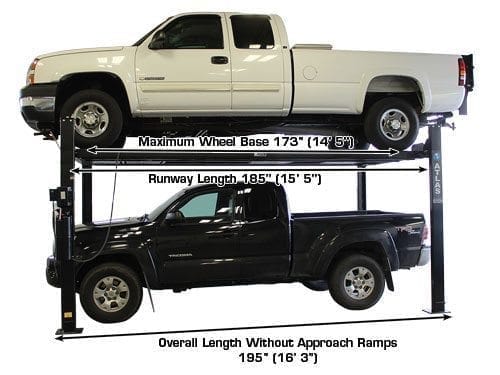

  • Maximum Wheel Base 173" (14' 5")

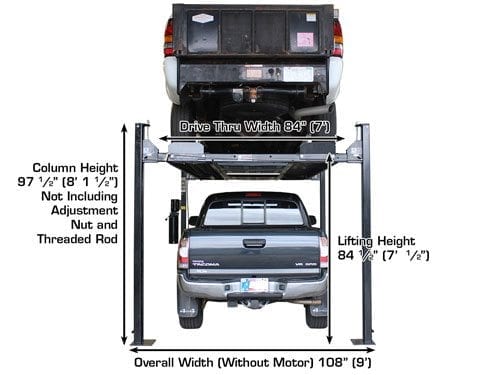

  • Drive Thru (Outside Of Tire To Outside Of Tire) 84" (7�)
  • Motor/Electrical Requirement 110 Volt, 30 AMP BREAKER REQUIRED

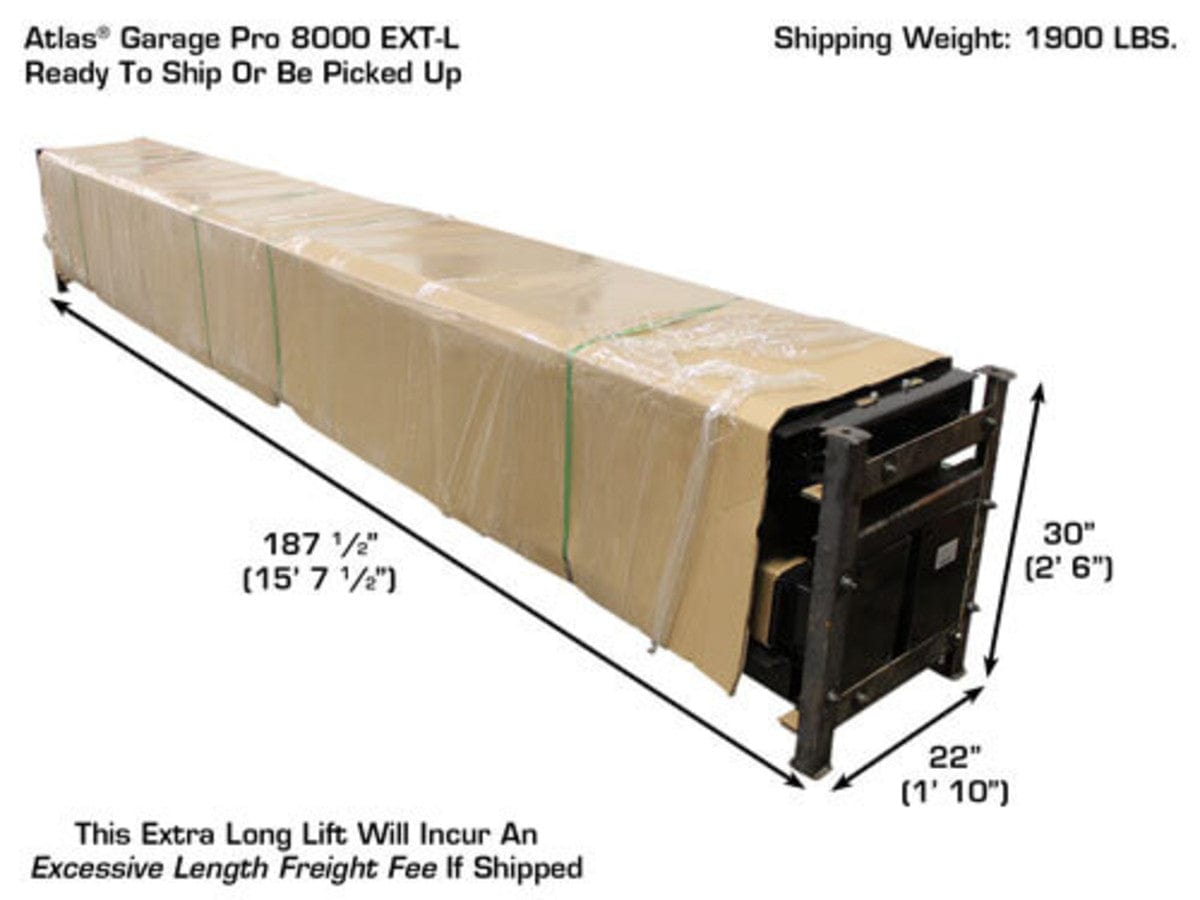

  • Shipping Weight 1,900 lb

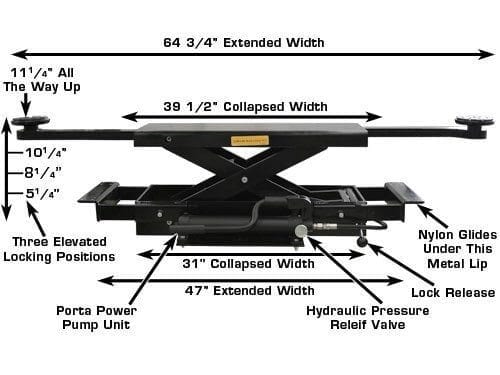

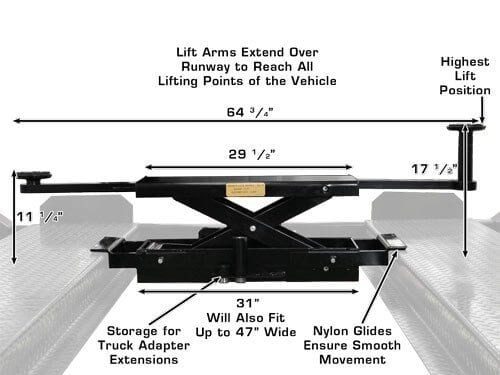

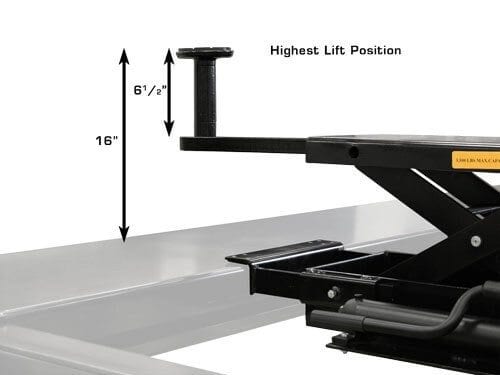

 Atlas® RJ35 Sliding Jack Specifications

  • Capacity: 3500 lbs

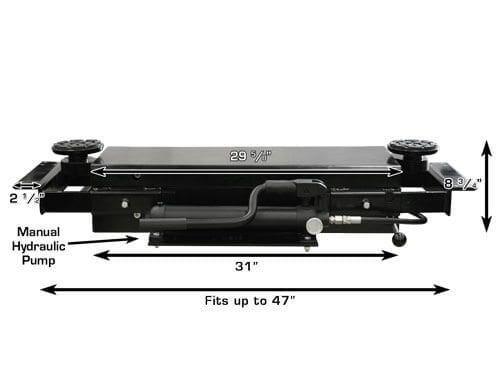

  • Lower Extension Width (Between Runway): 20 1/2" to 47"
  • Top Width (Arms Retracted & Extended): 39 12" to 64 3/4"

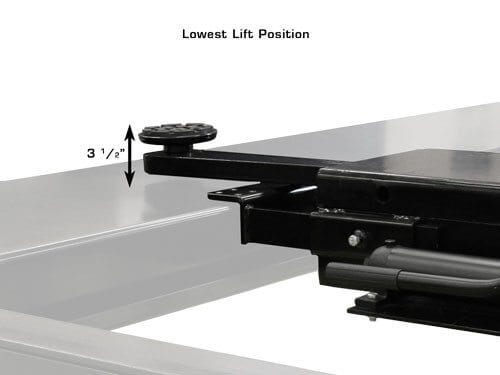

  • Min. Pad Height Above Runway (MAY VARY BY LIFT): 3 1/2"
  • Lift Pad Height Above Arm: 1 3/8"
  • Max Height Raised w/o Adapter: 11"
  • Max Height Raised w/ Adapters: 17 1/4"

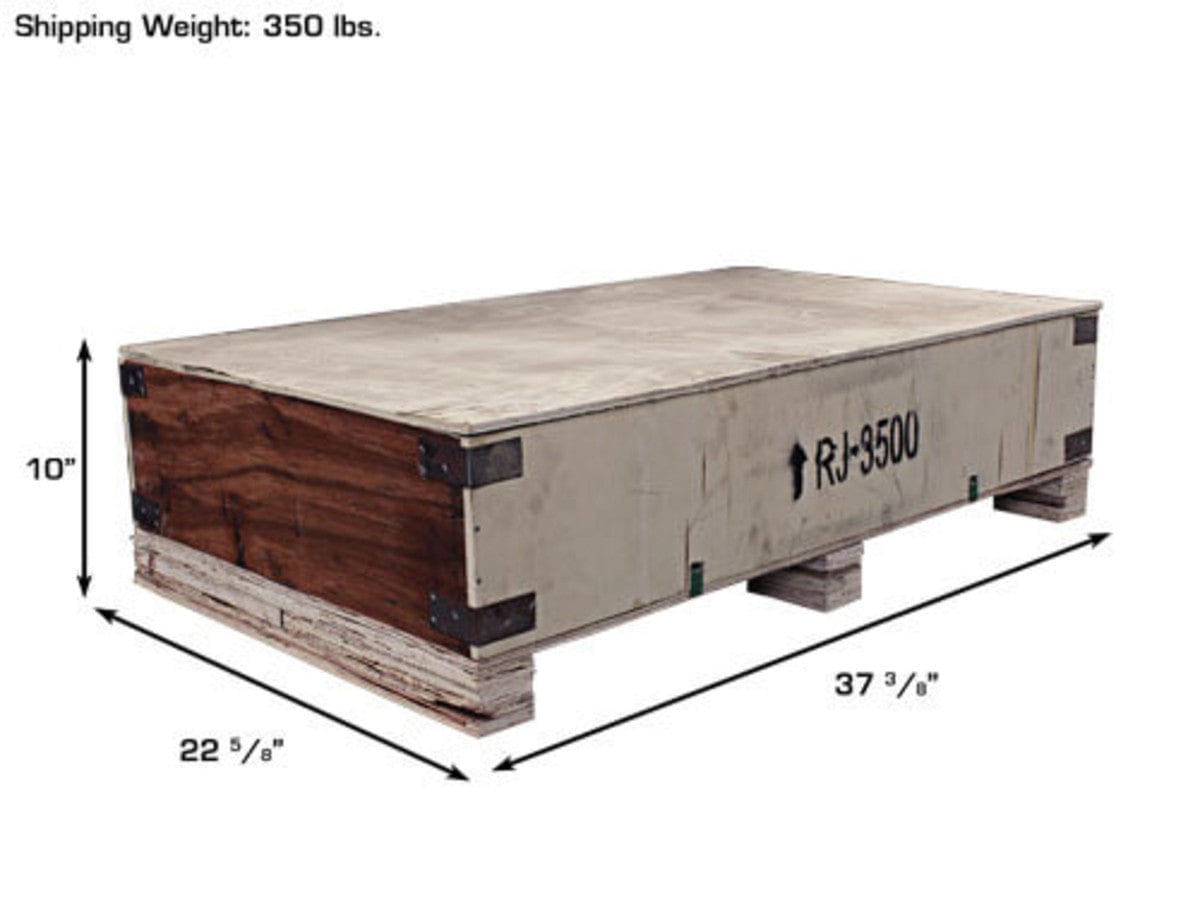

  • Shipping Weight: 350 lbs

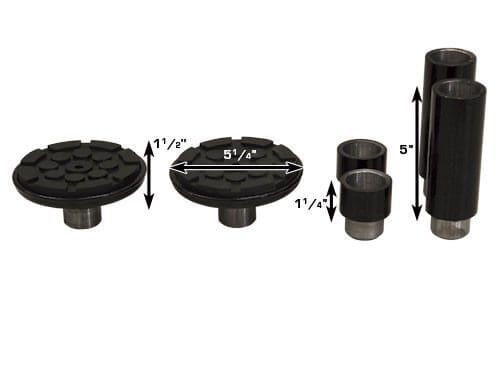

  • Adapter Heights: 2 Each 1 1/2", 5"
  • Arm Hole/Adapter Peg Size: 1 1/2"

*****FREIGHT PRE PAID ITEM

  • ********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
