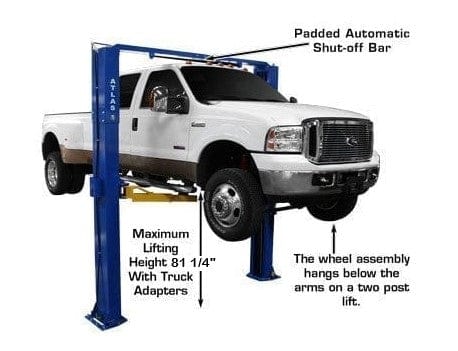

Front view of Atlas PV10PX 10,000 lb. overhead two-post lift

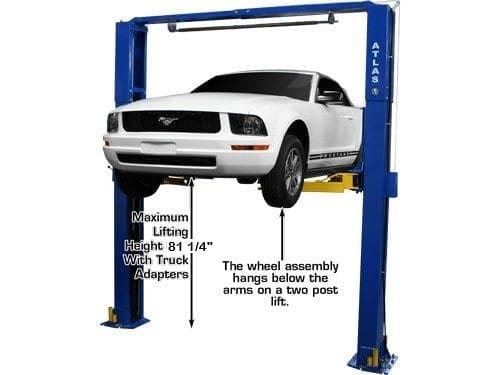

car positioned on an Atlas PV10PX 10,000 lb. automotive lift

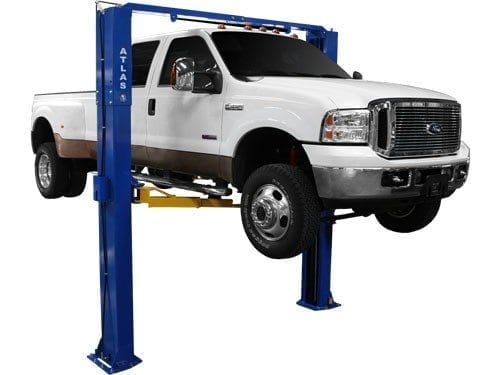

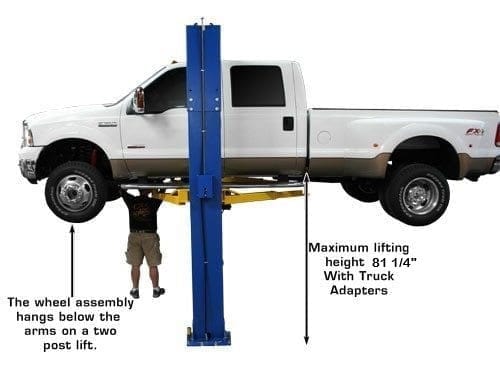

Pickup truck raised on an Atlas PV10PX two-post vehicle lift

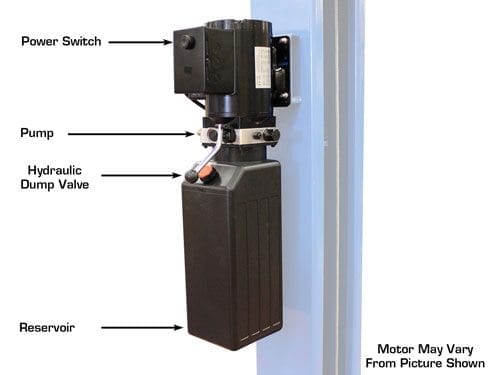

atlas pv10px hydraulic pump

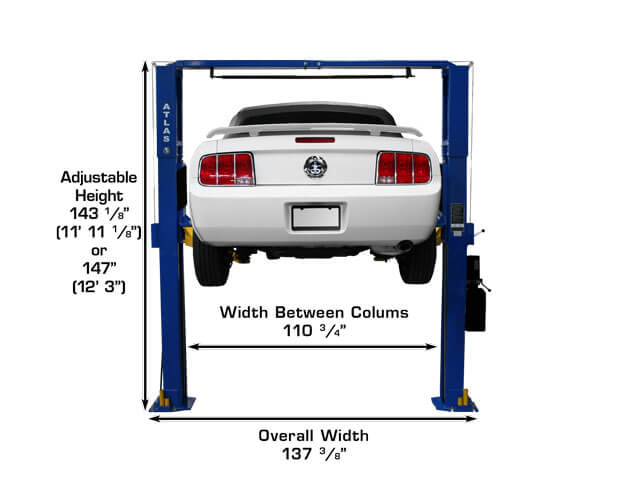

atlas pv10px two post lift dimensions with adjustable height

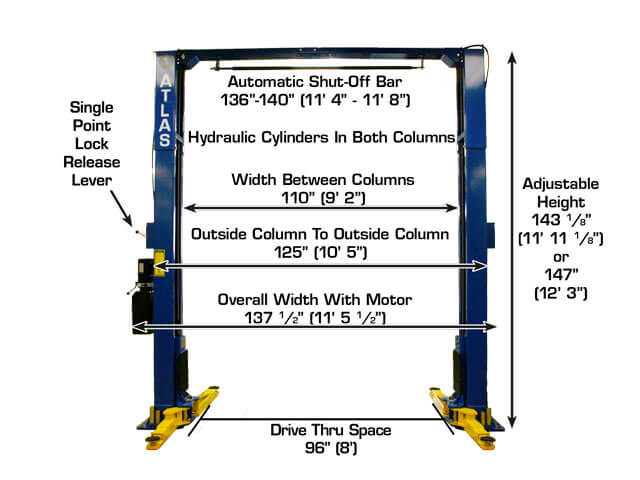

atlas pv10px dimensions with height, width, inside width

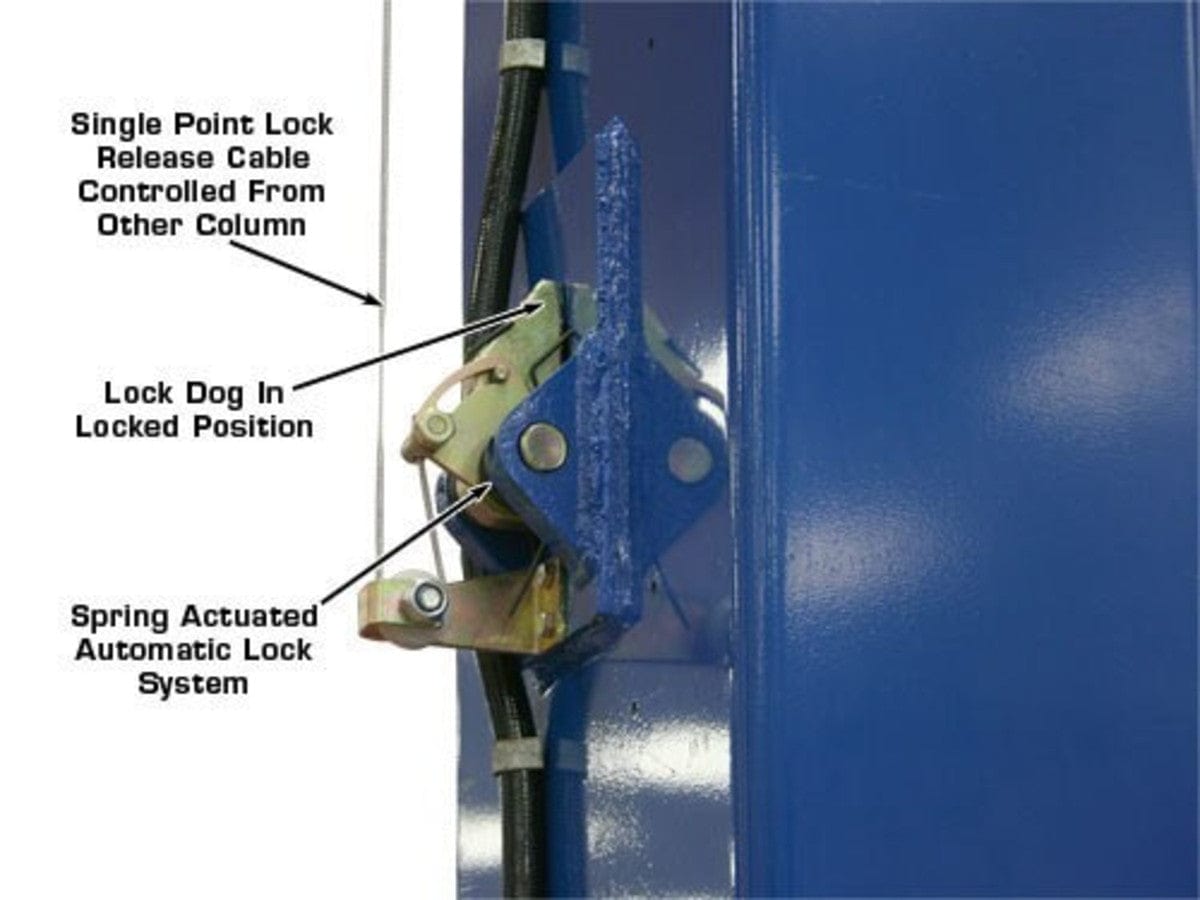

Single-point safety lock release on the Atlas PV10PX two-post lift

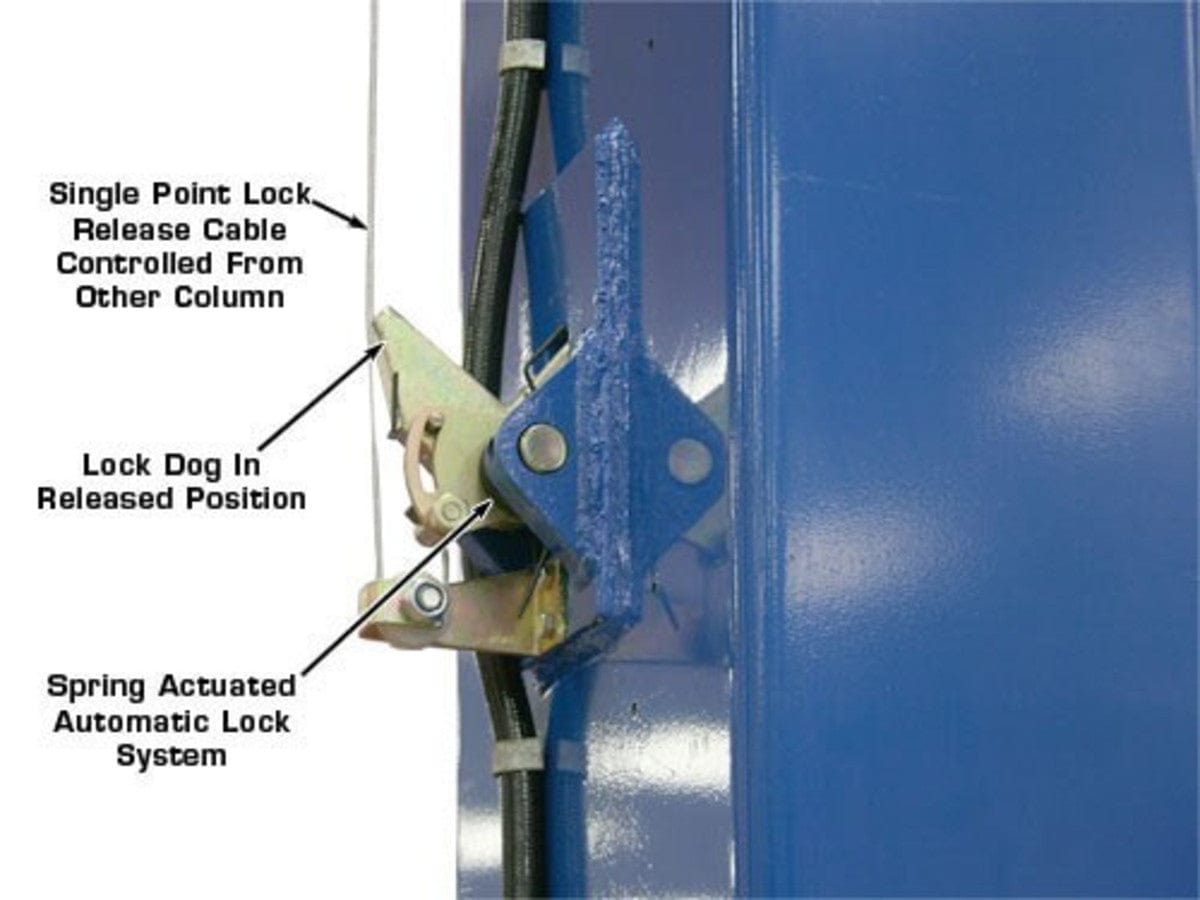

Automatic lifting arm restraint system on the Atlas PV10PX lift

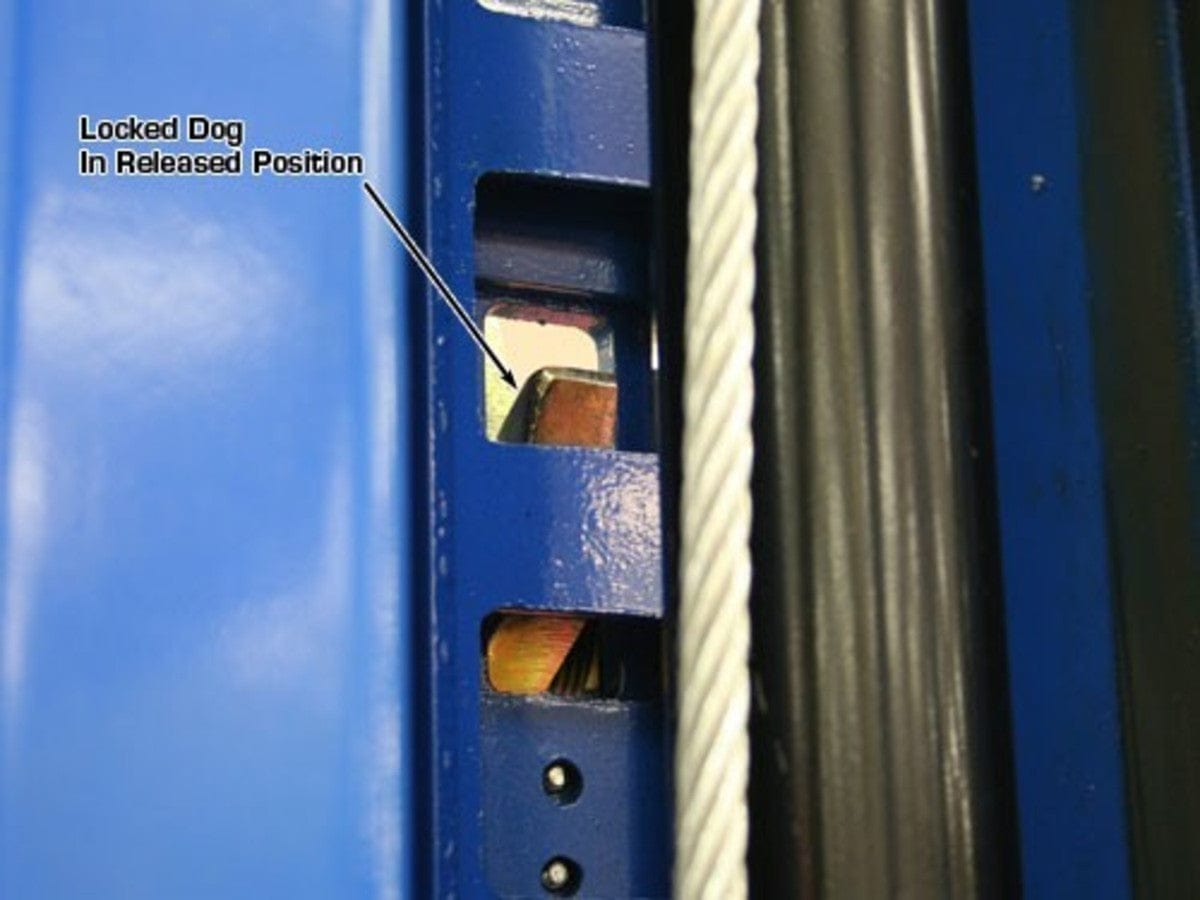

atlas pv10px lock position released

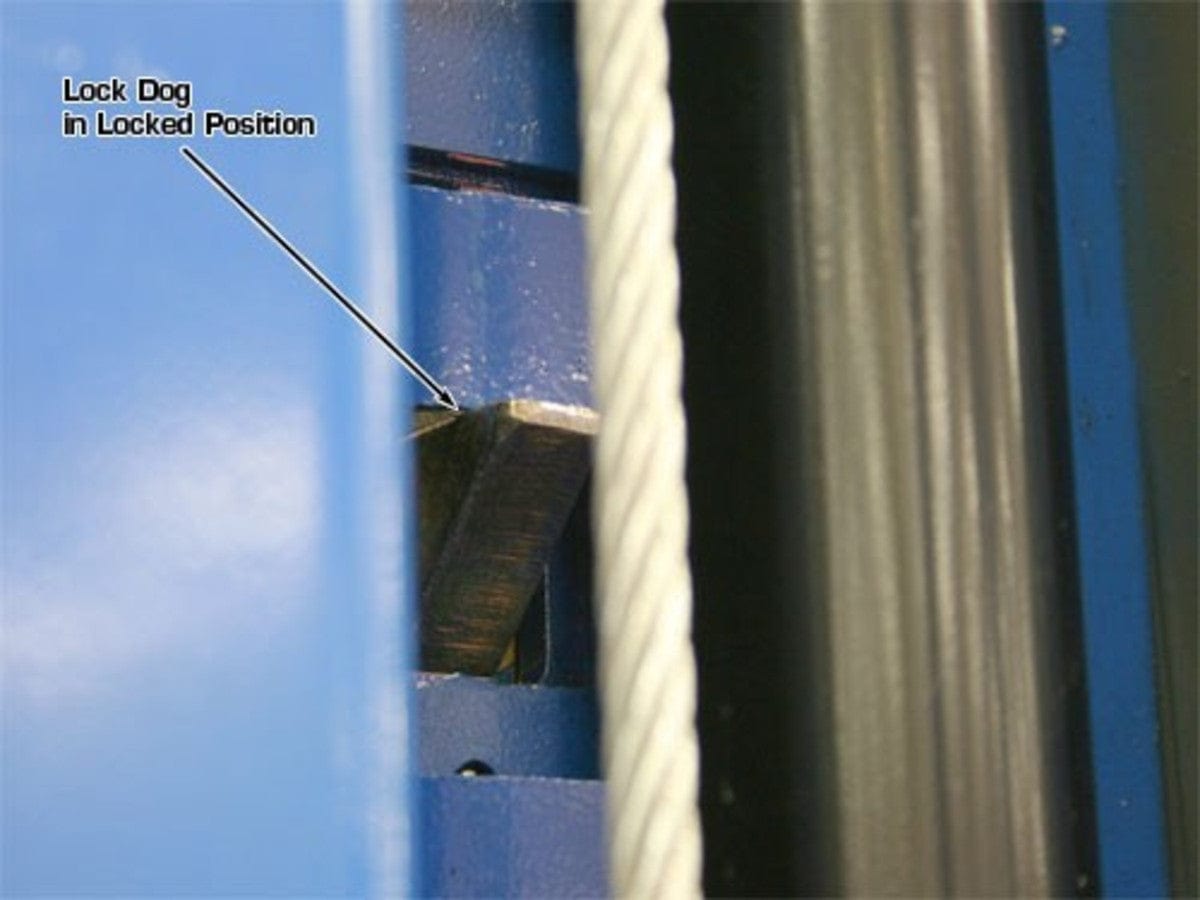

atlas pv10px in locked position

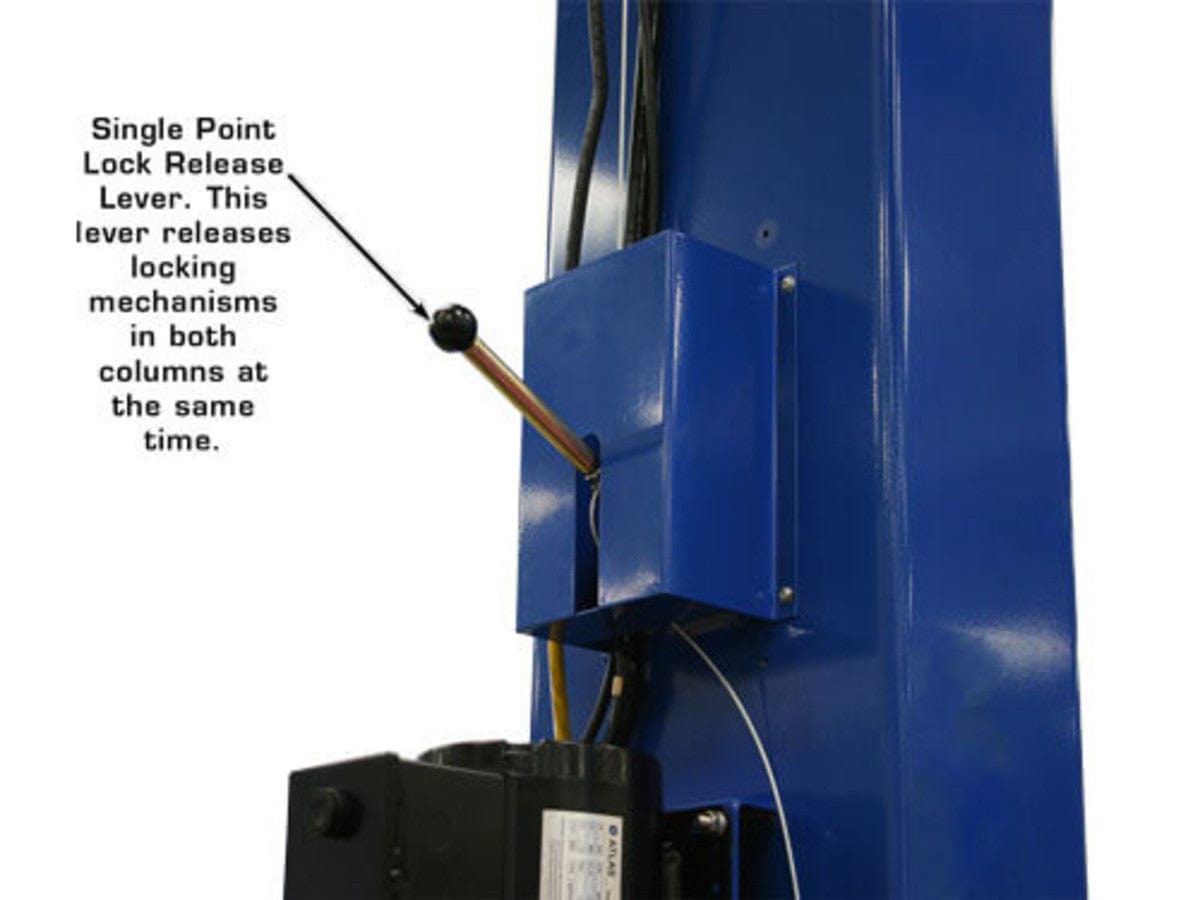

atlas 2 post pv10px single point lock release

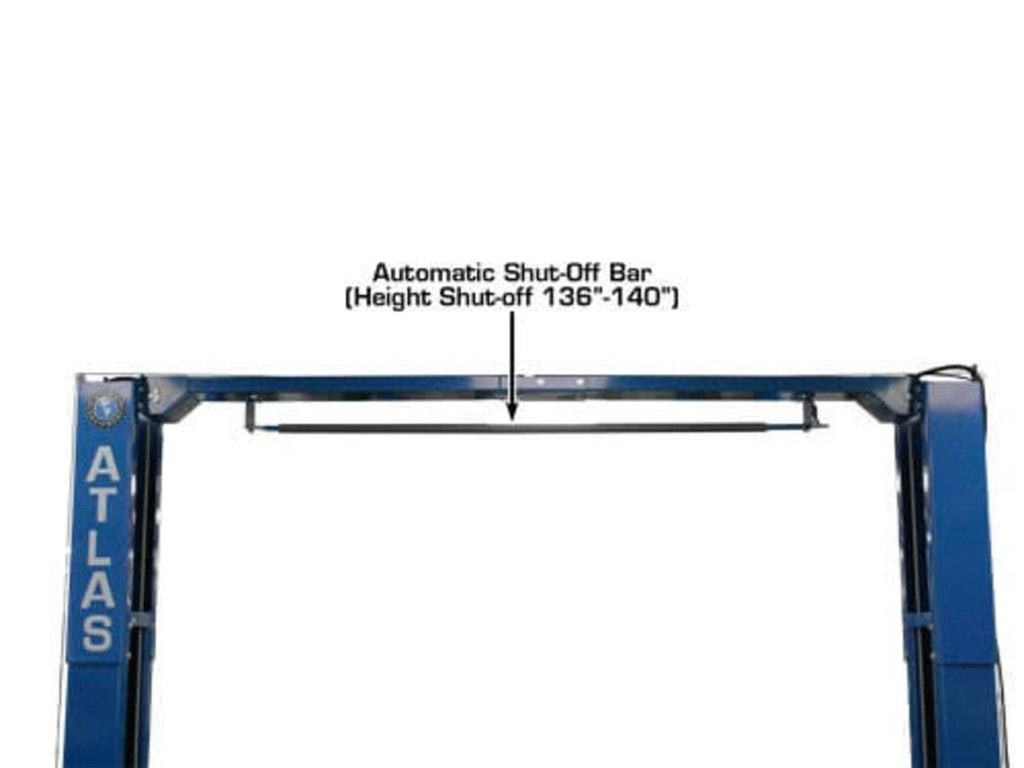

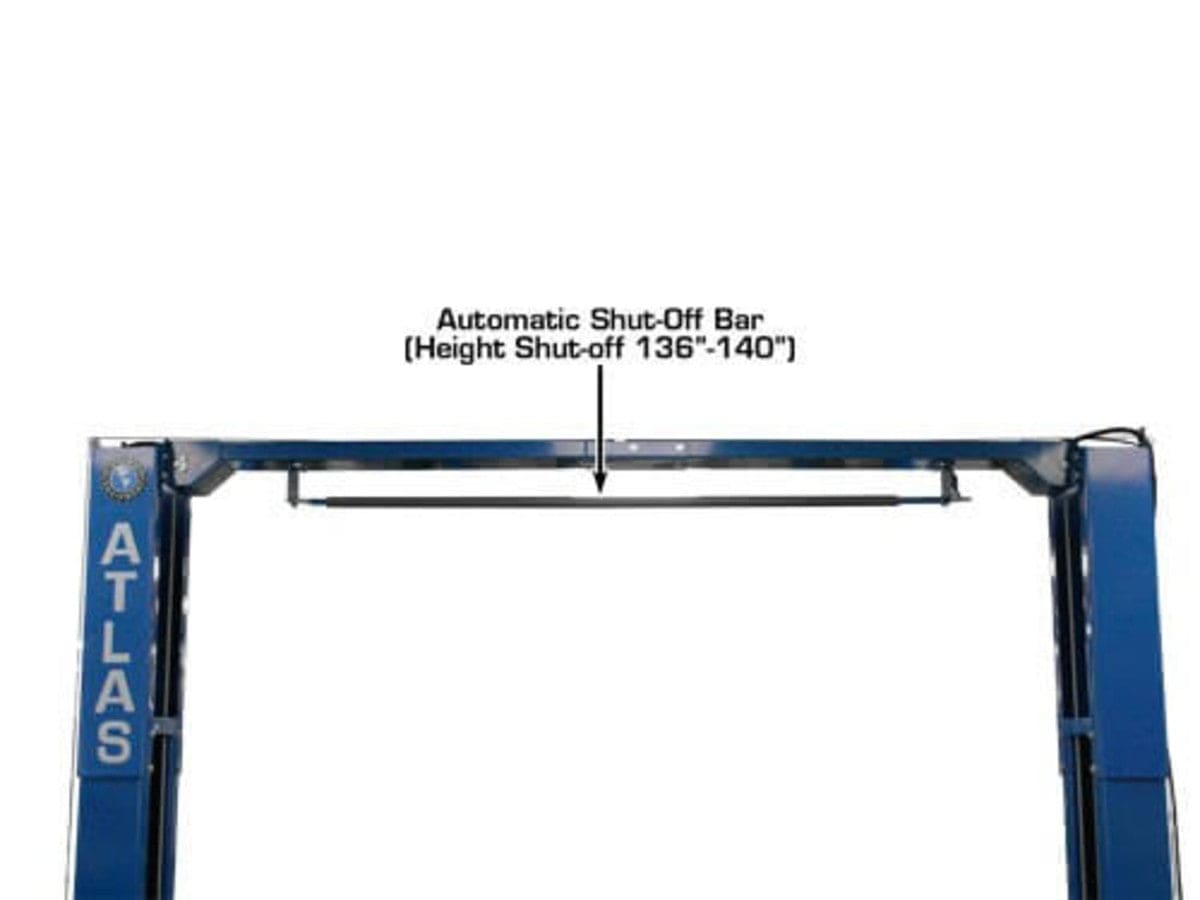

atlas pv10px 2 post overhead auto shut off bar, safety

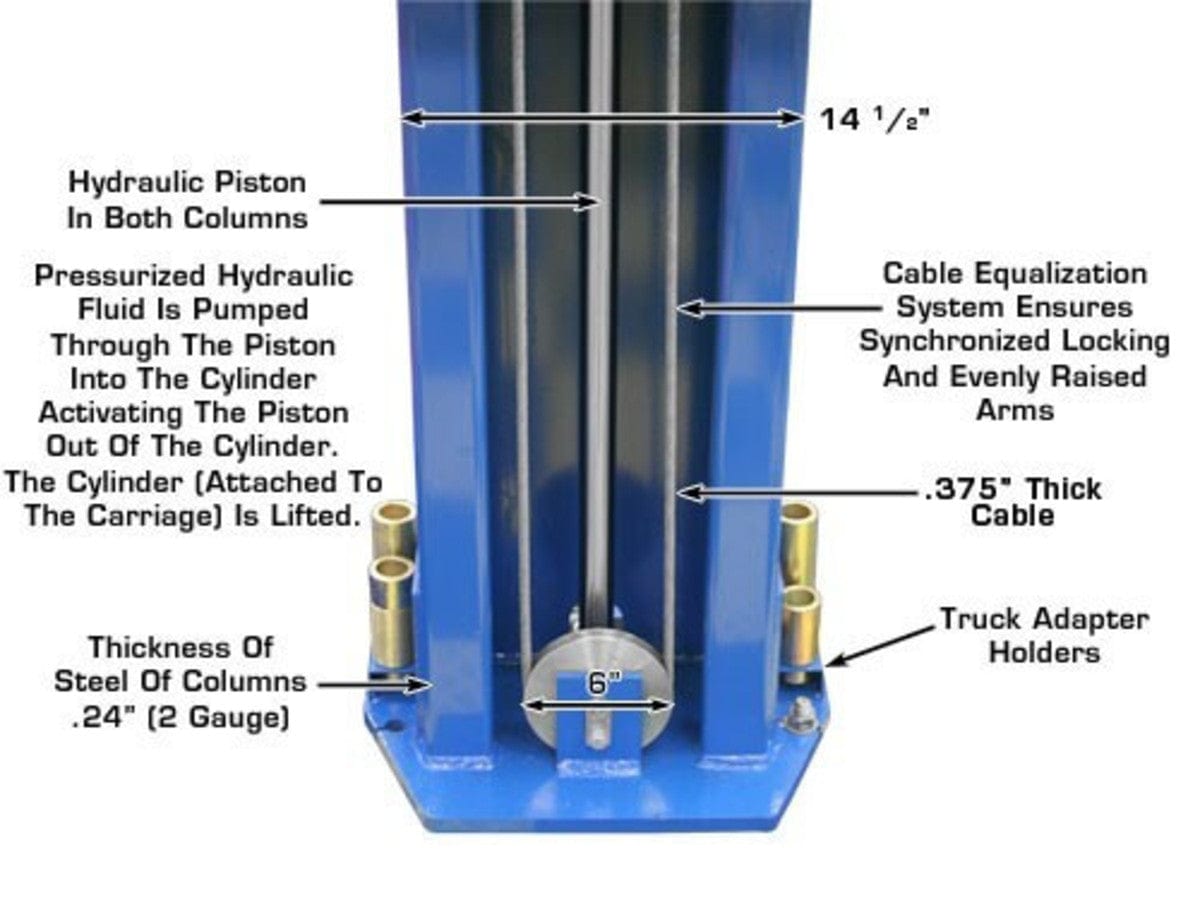

atlas pv10px inside column view

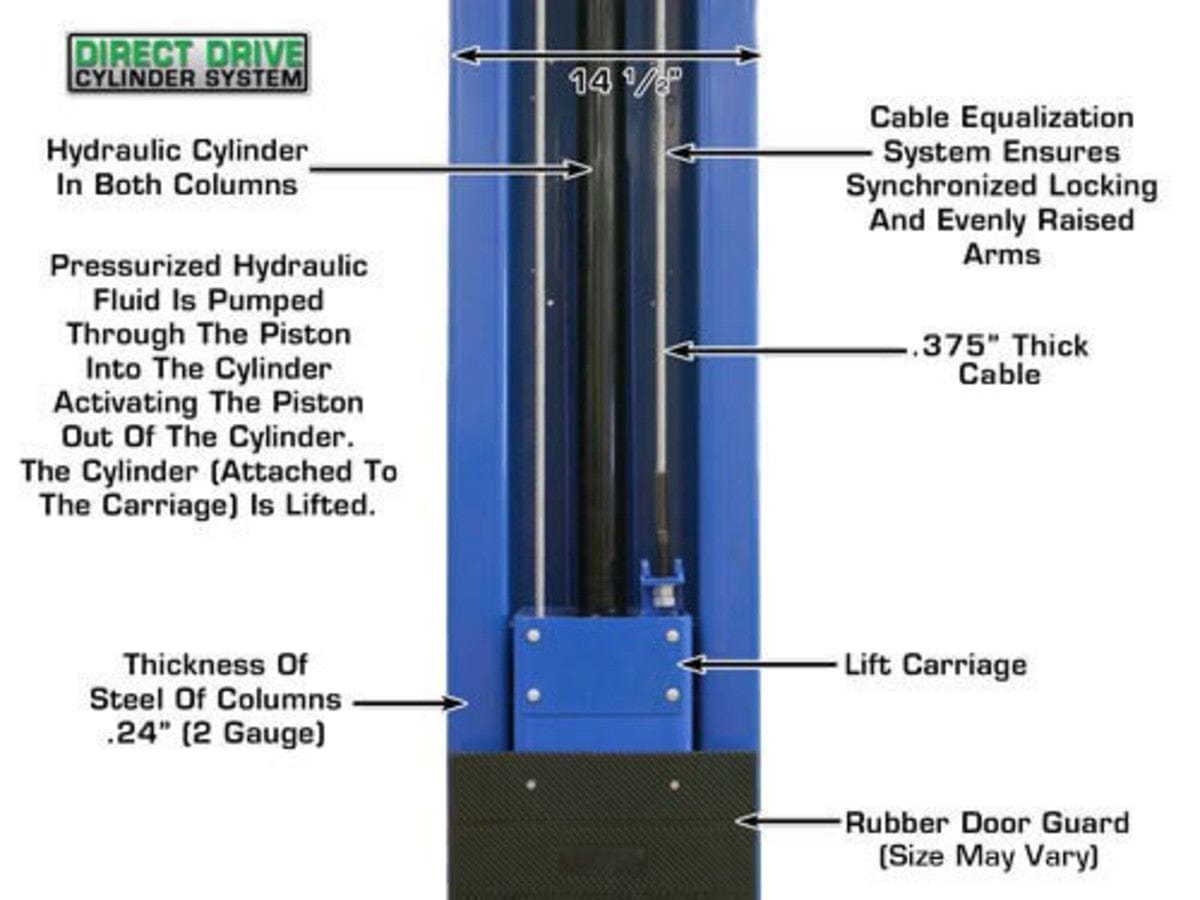

atlas pv10px direct drive cylinder lift design

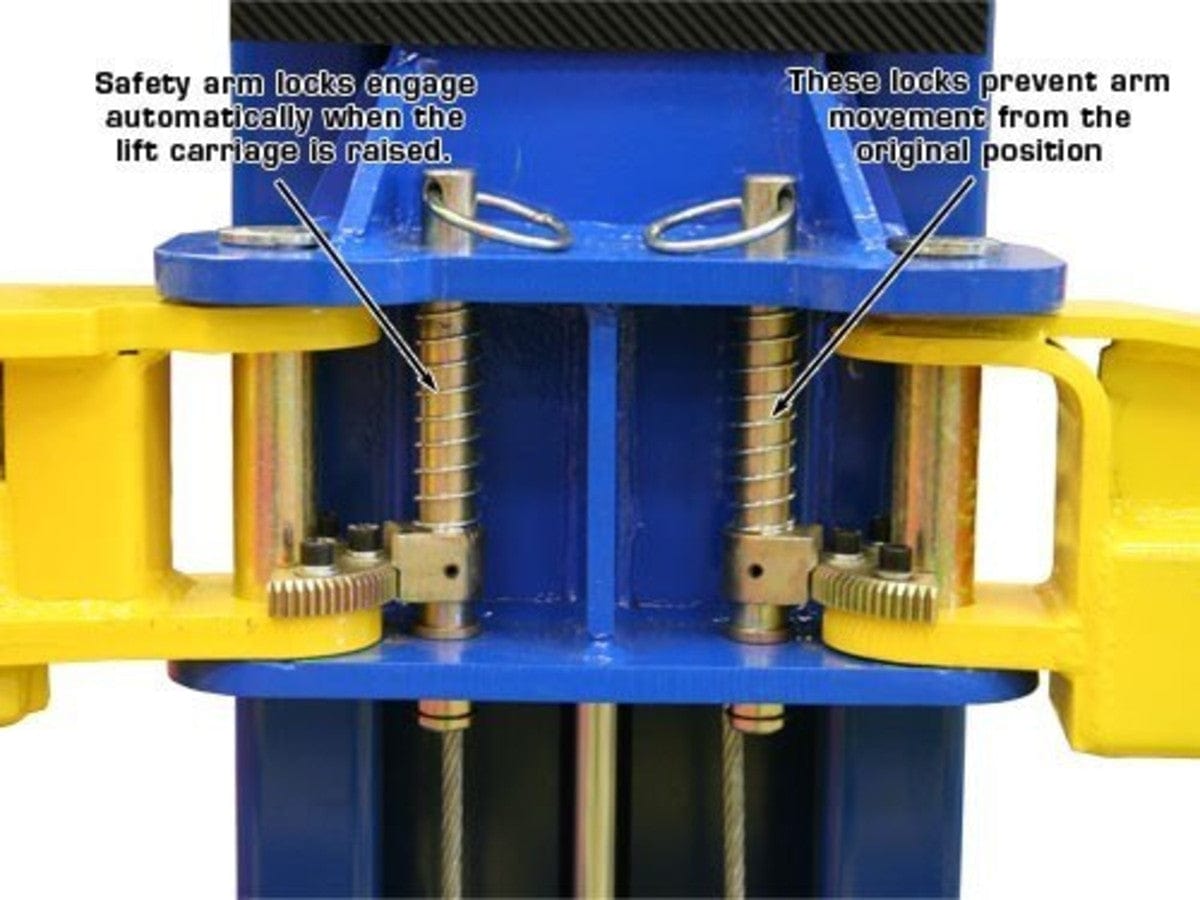

atlas pv10px 2 post lift crade and safety arm locks

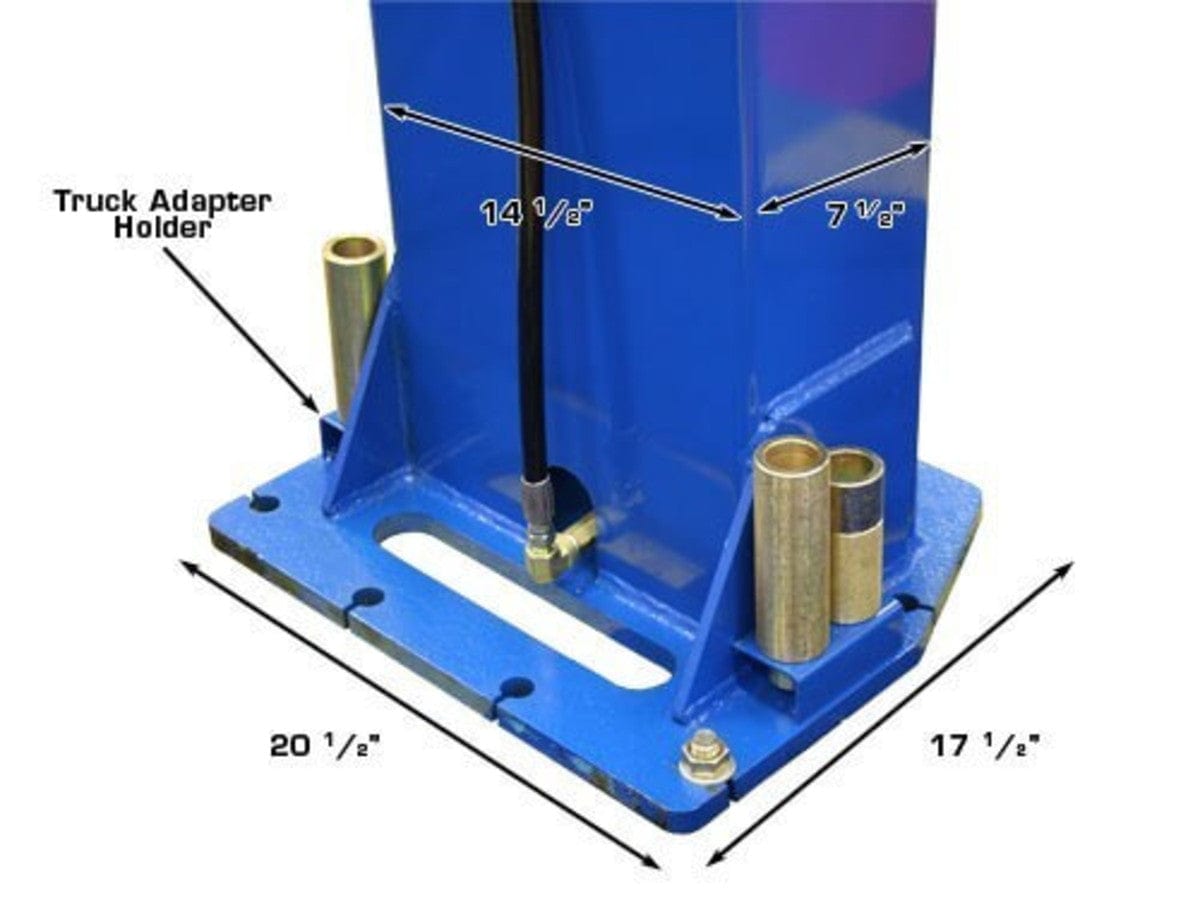

Atlas pv10px 2 post base width

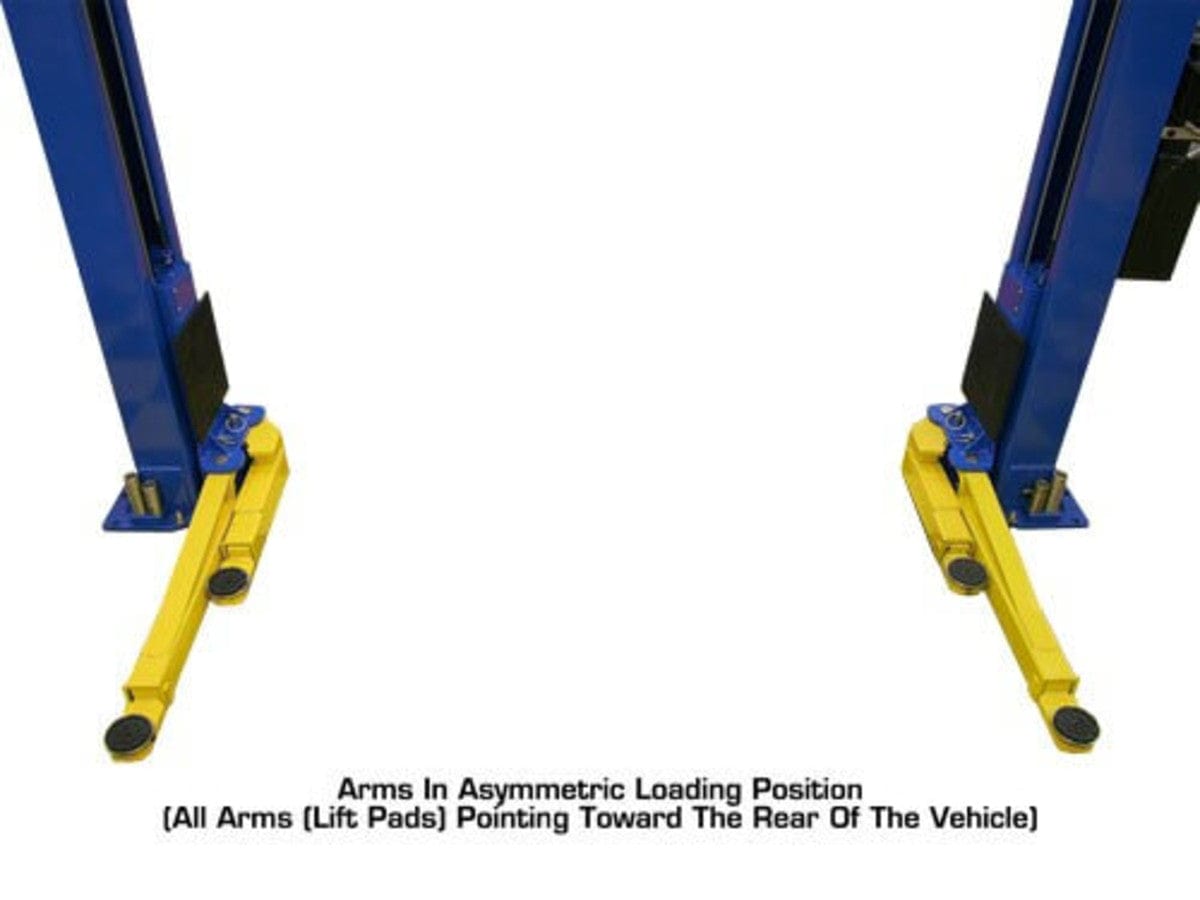

atlas pv10px 2 post lift with asymmetric lift arms

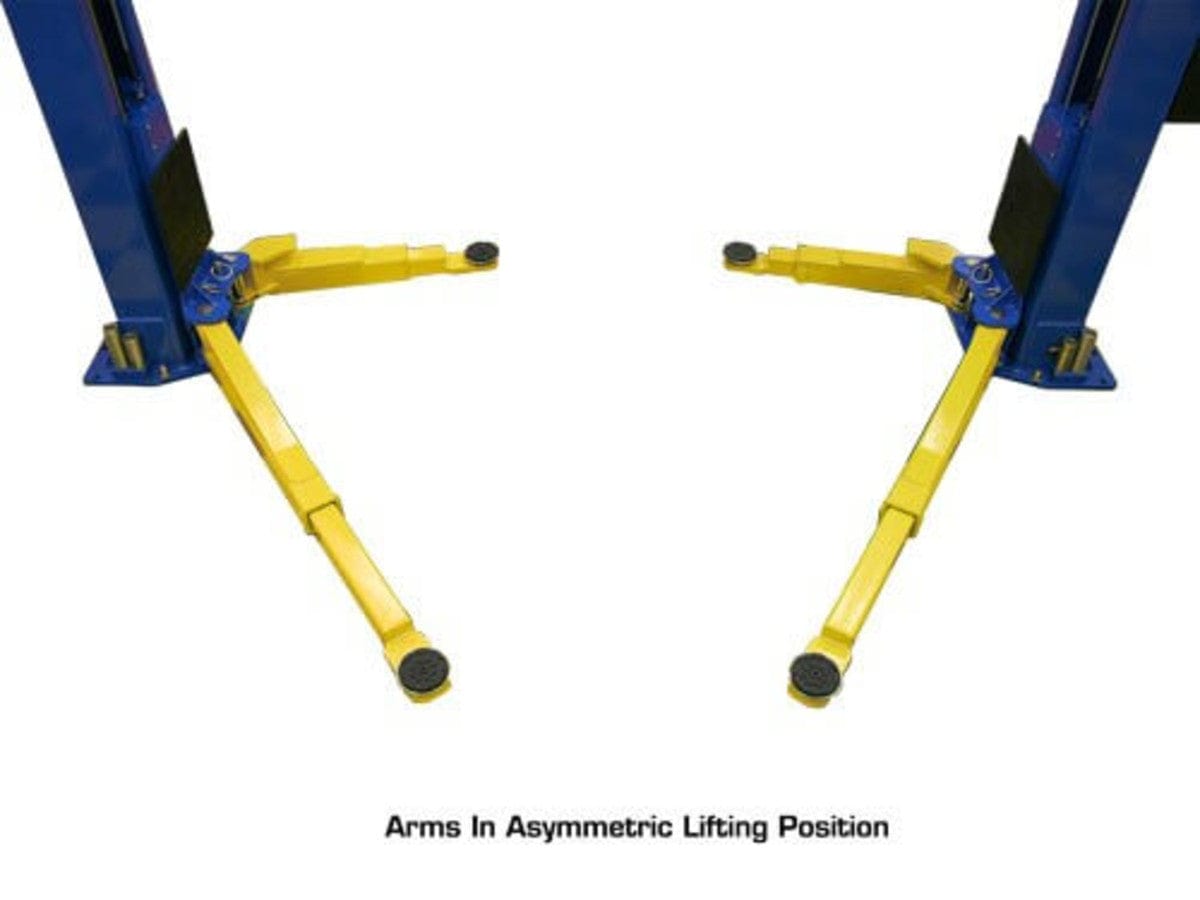

atlas 2 post lift pv10px asymmetric lift arm position

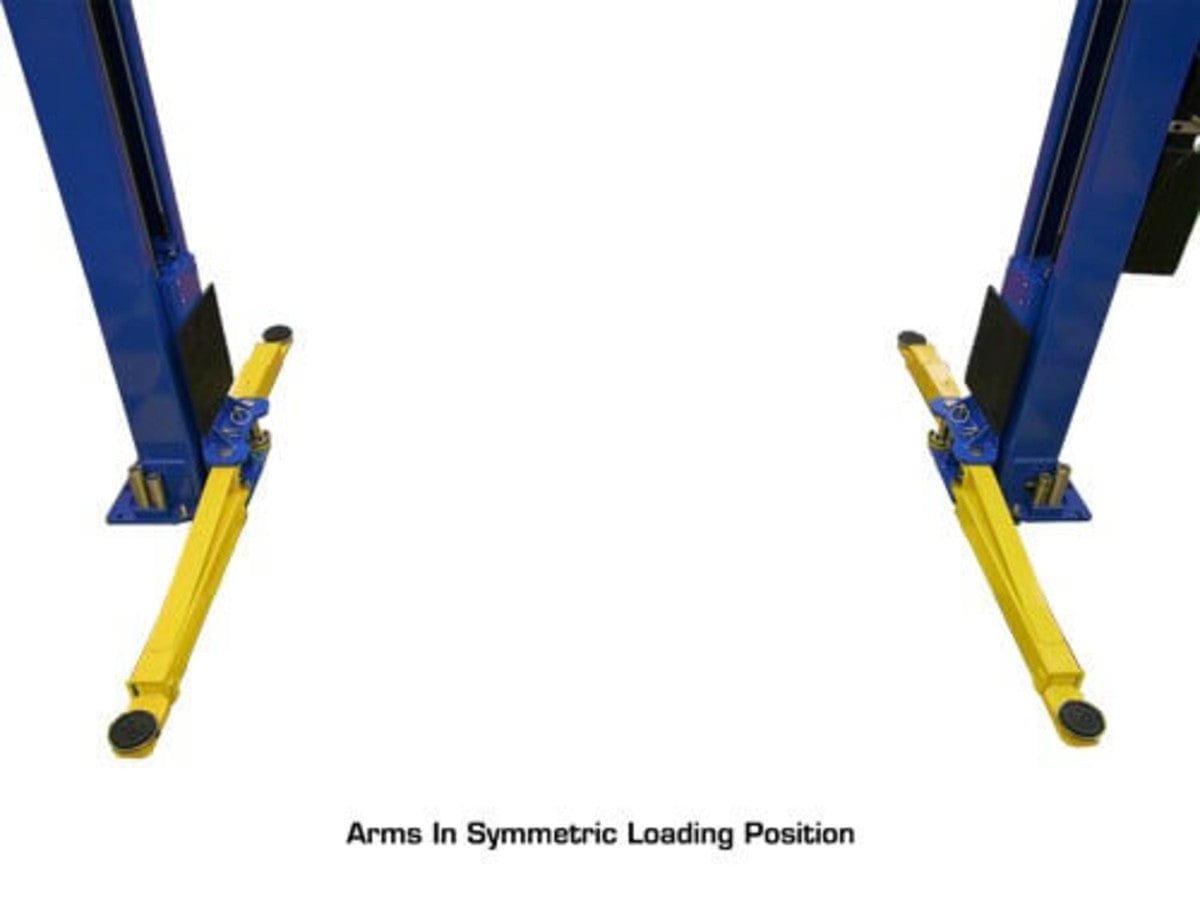

atlas two post pv10px arms in symmetric position

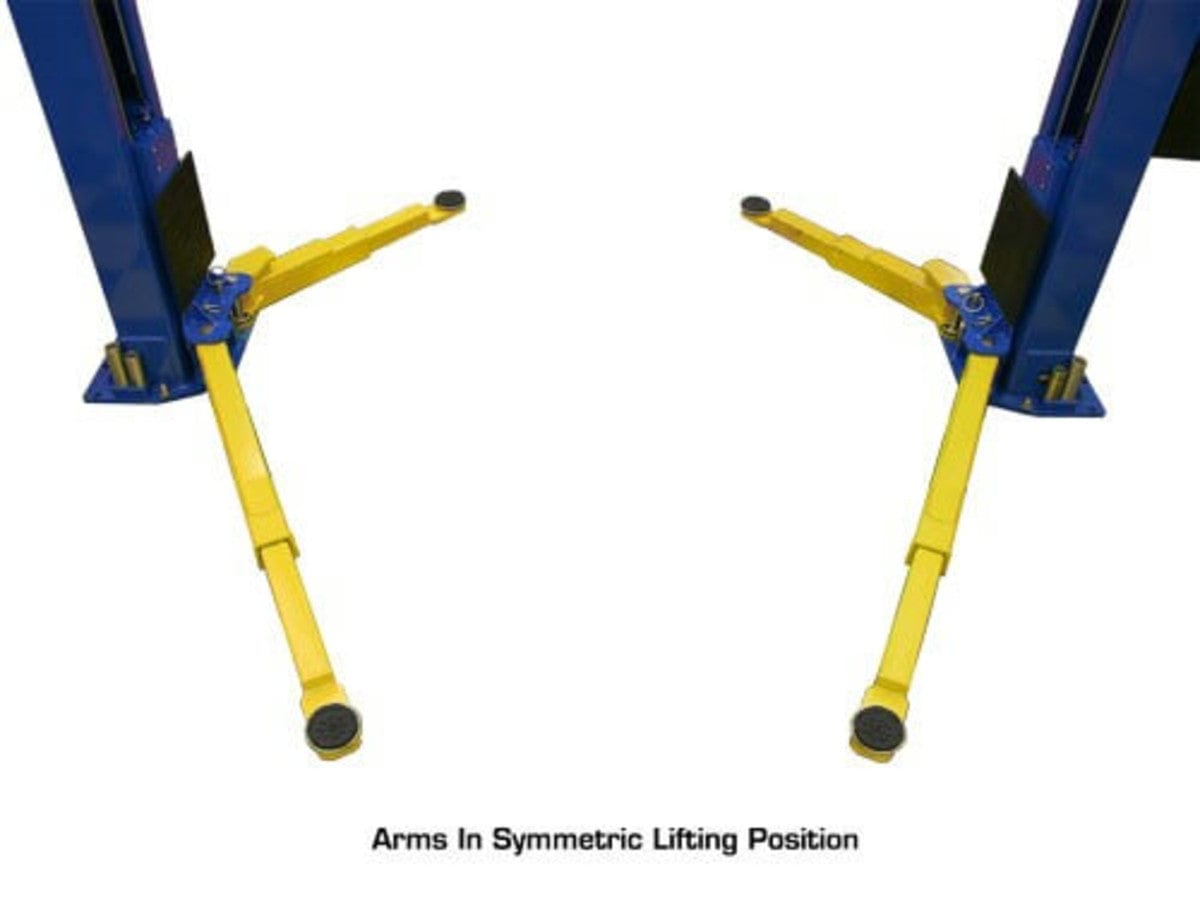

atlas pv10px symmetric lifting position

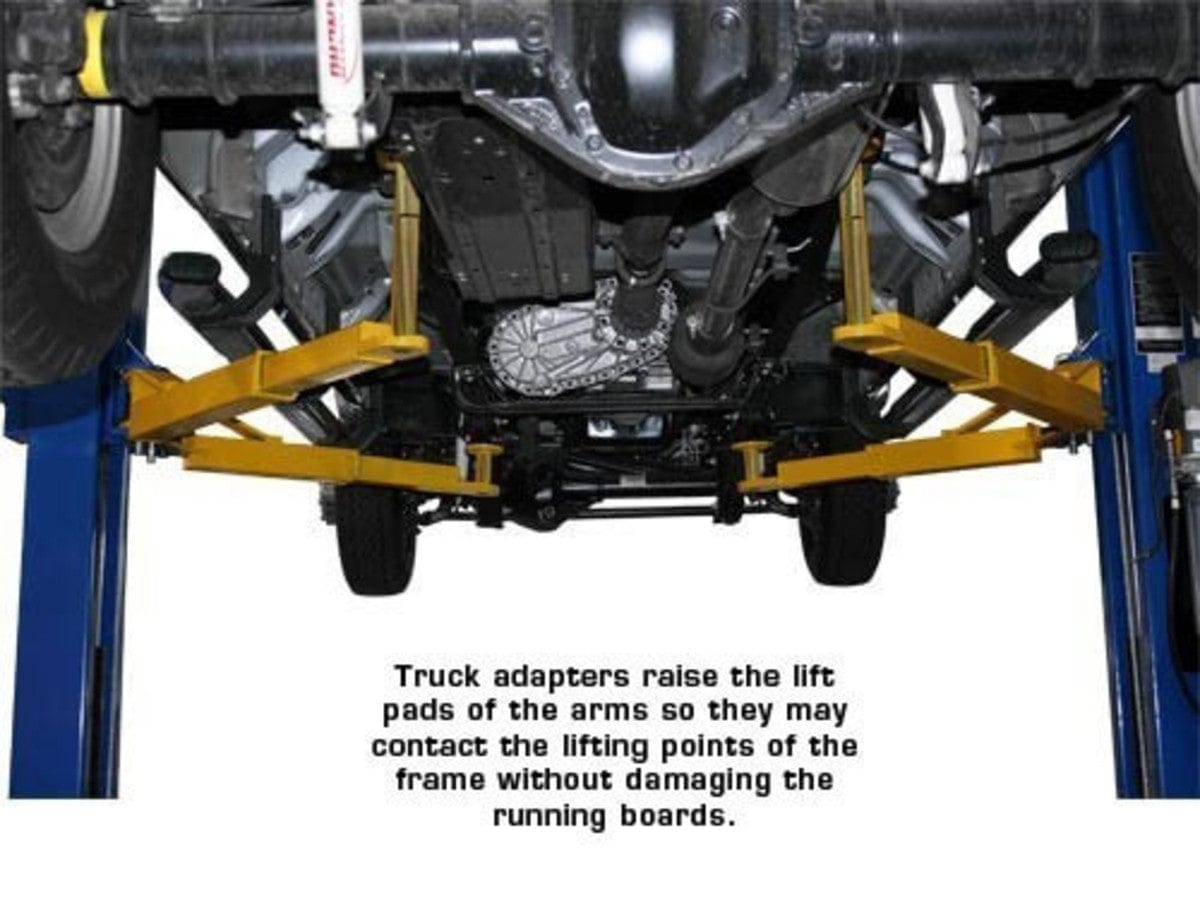

atlas 2 post lift pv10px under vehicle using truck adapters

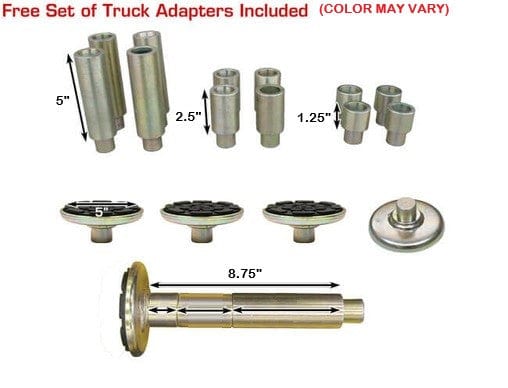

atlas pv10px 2 post truck adapter set

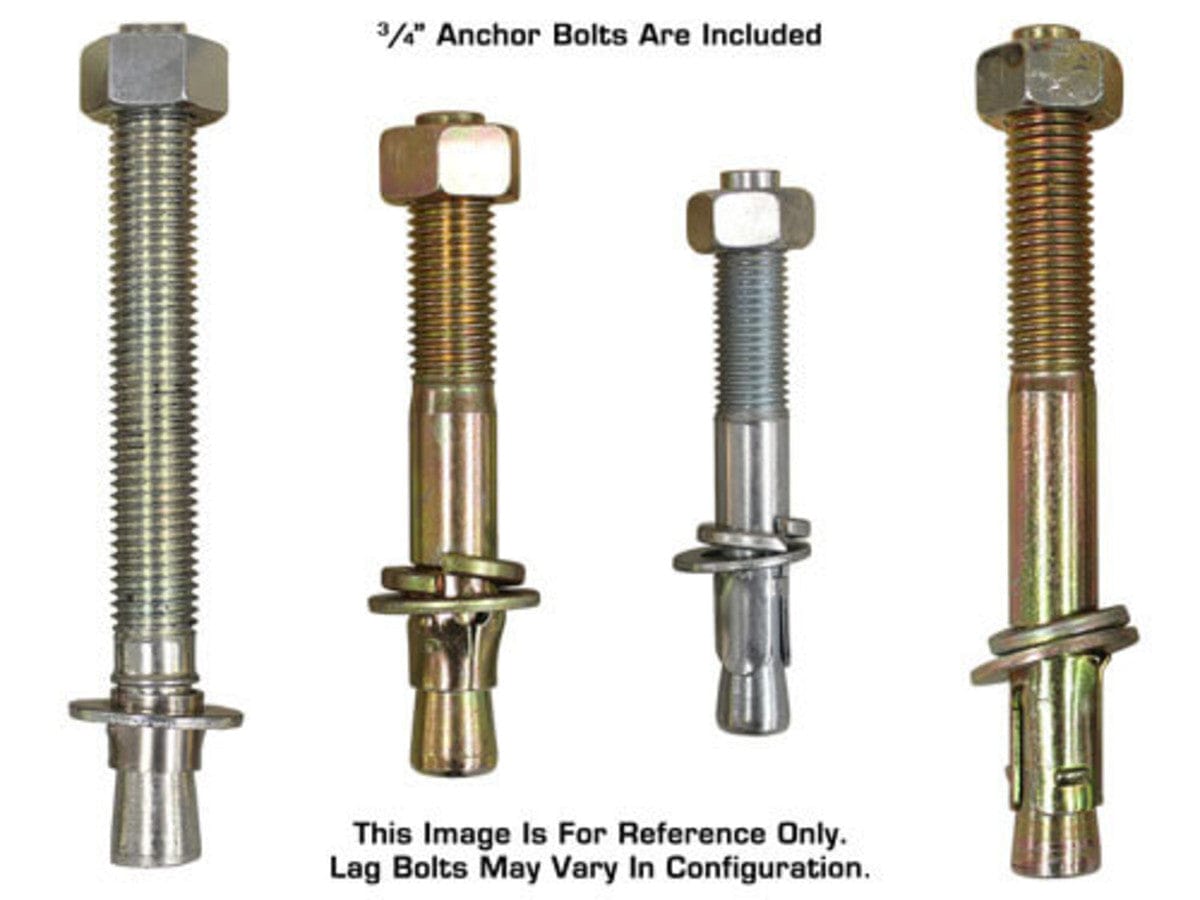

atlas-pv10px anchor bolts included

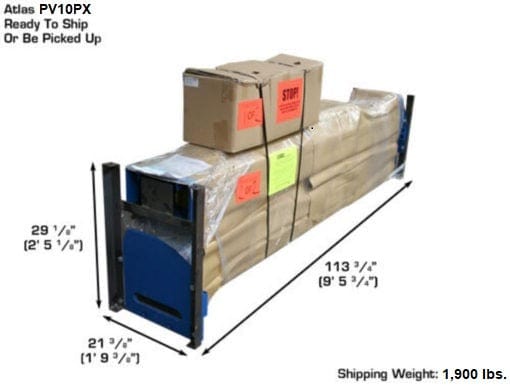

atlas pv10px 2 post lift weight and shipping dimensions
Roll over image to zoom in Click on image to zoom
Atlas PV10PX 10,000 lb. commercial overhead two-post vehicle liftFront view of Atlas PV10PX 10,000 lb. overhead two-post liftcar positioned on an Atlas PV10PX 10,000 lb. automotive liftPickup truck raised on an Atlas PV10PX two-post vehicle liftatlas pv10px hydraulic pumpatlas pv10px two post lift dimensions with adjustable heightatlas pv10px dimensions with height, width, inside widthSingle-point safety lock release on the Atlas PV10PX two-post liftAutomatic lifting arm restraint system on the Atlas PV10PX liftatlas pv10px lock position releasedatlas pv10px in locked positionatlas 2 post pv10px single point lock releaseatlas pv10px 2 post overhead auto shut off bar, safetyatlas pv10px inside column viewatlas pv10px direct drive cylinder lift designatlas pv10px 2 post lift crade and safety arm locks Atlas pv10px 2 post base widthatlas pv10px 2 post lift with asymmetric lift arms atlas 2 post lift pv10px asymmetric lift arm positionatlas two post pv10px arms in symmetric positionatlas pv10px symmetric lifting positionatlas 2 post lift pv10px under vehicle using truck adaptersatlas pv10px 2 post truck adapter setatlas-pv10px anchor bolts includedatlas pv10px 2 post lift weight and shipping dimensions
ATLAS AUTOMOTIVE EQUIPMENT

Atlas PV10PX 10,000 lb. Overhead Two-Post Vehicle Lift ATEXH-PV10PX-FPD

Price:
$4,769.00
Financing options available at checkout
Business Financing Powered By Approve
Expert Technical Support Expert Technical Support
Fast Shipping Fast Shipping
Professional Grade Kit Professional Grade Kit

Secure Checkout With

Secure Checkout

The Atlas® PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models. Whether you are an automotive shop or working on personal vehicles from your home, the PV10PX is the industry standard!

The commercial grade Atlas® PV10PX two post lift includes some modifications and improvements that make it one of the most popular above ground lifts in the world.

This lift is the perfect choice for use in either a large commercial service department or for the “pole barn” owner who wants the “biggest and baddest” lift in the country. The Atlas® PV10PX is designed and engineered to safely lift (and work on) everything from a Smart Car® to a one ton diesel dually.  This lift incorporates a padded shut-off bar to protect the top of the vehicle from contacting the crossbar. The carriages are equipped with rubber protective covers (size may vary) to help prevent the vehicle’s doors from damage if opened into the columns or carriages.  The PV10PX also includes a deluxe truck adapter set (12 pieces vs. the standard 8 pieces) and the rubber lift pad that has been reinforced to ensure a solid contact with the vehicle’s lifting points.

  • 10,000 lb. capacity
  • Commercial Grade
  • Adjustable Height – 11′ 11 1/8″ or 12’3″
  • Asymmetric/Symmetric Arms
  • Automatic Arm Restraints
  • “Padded” Shut-Off Bar
  • Padded Carriages
  • Single Point Lock Release
  • Direct-Drive Cylinders
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • Mounting Hardware Included
  • Shipping Weight: 1,875 lbs.
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

***** FREIGHT PRE PAID ITEM

  • ********** THIS IS A TRUCK SHIPMENT, A FORKLIFT, OR LOADER WILL BE NEEDED TO UNLOAD THIS SHIPMENT!!!! IF YOU ARE UNSURE IF YOUR EQUIPMENT WILL UNLOAD THIS PLEASE CONTACT US. IF YOU WOULD RATHER IT BE SHIPPED TO AND HELD FOR PICKUP AT A LOCAL TERMINAL, THAT CAN BE ARRANGED AS WELL, CONTACT US FOR MORE DETAILS.
