The Spot Welder Of The Future - Available Today

The GYSPOT PTI-G is the most advanced spot welder on the market. Built with Collision Repair shops & their technicians in mind. If your looking to be more efficient this is the answer.

Powerful Smart Welder

  • Powerful Smart welder processor allows for full auto or manual mode control allowing full user comfort. In Auto mode, the machine automatically recognizes – steel type, sheet-metal thickness, Panel bond presence, and insulating material between HSS/VHSS/UHSS/Boron sheet-metal
  • Built in OEM specific welding programs

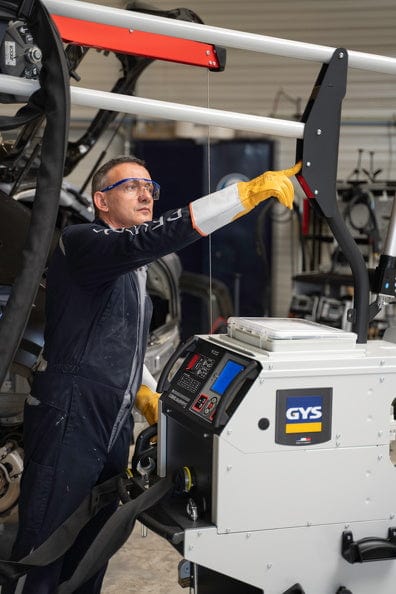

  • User friendly navigation with keypad, and 5.7" LCD screen
  •  Traceability recording feature saves the characteristics of each welding spot performed to the SD card provided, allowing for easy transfer of job data

Welding Current up to 14,500 amps

Fast Welding @ 20 spots per minute

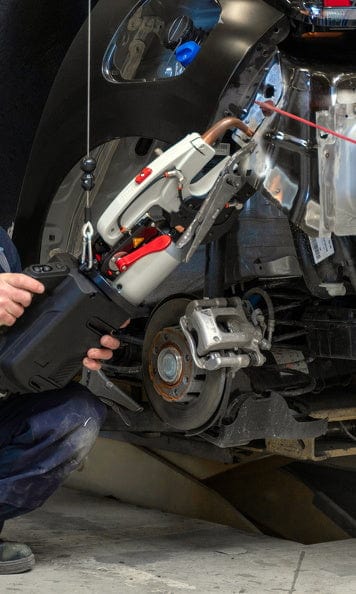

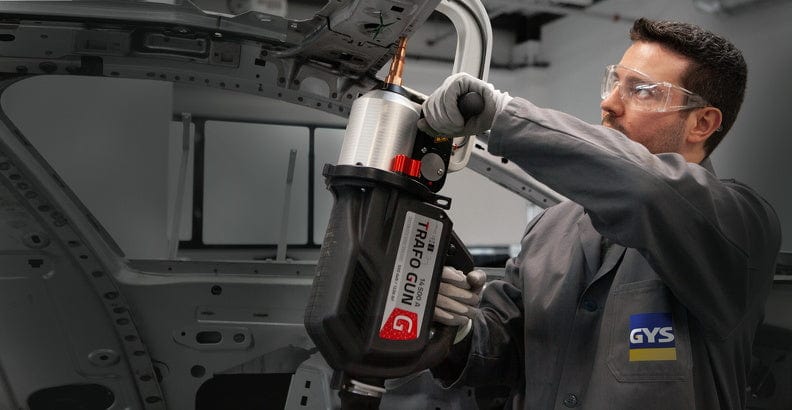

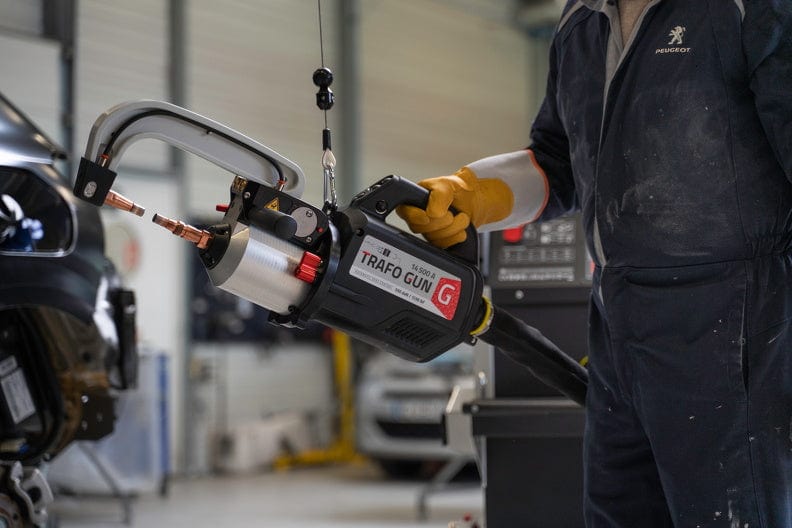

Light Weight Transformer Gun

  • Pneumatic retractable electrode
  • Manual over opening for work in confined areas
  • Quick Tool less arm removal
  • Automatic Cooling Connections
  • Integrated lockable Gyroscope allows 360° rotation
  • 12 arm options available

Clamping force: 550 daN with 8 bar air pressure

This measurement exceeds 1236 pounds of force

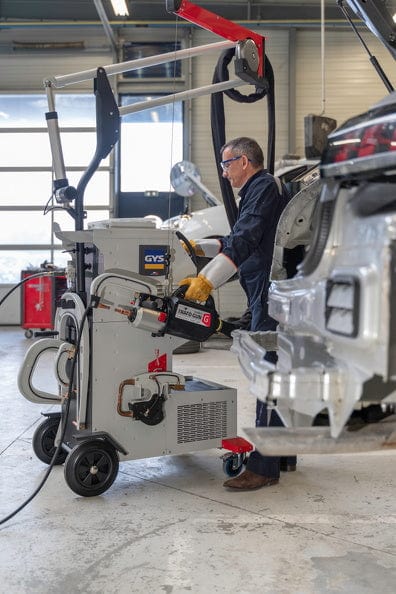

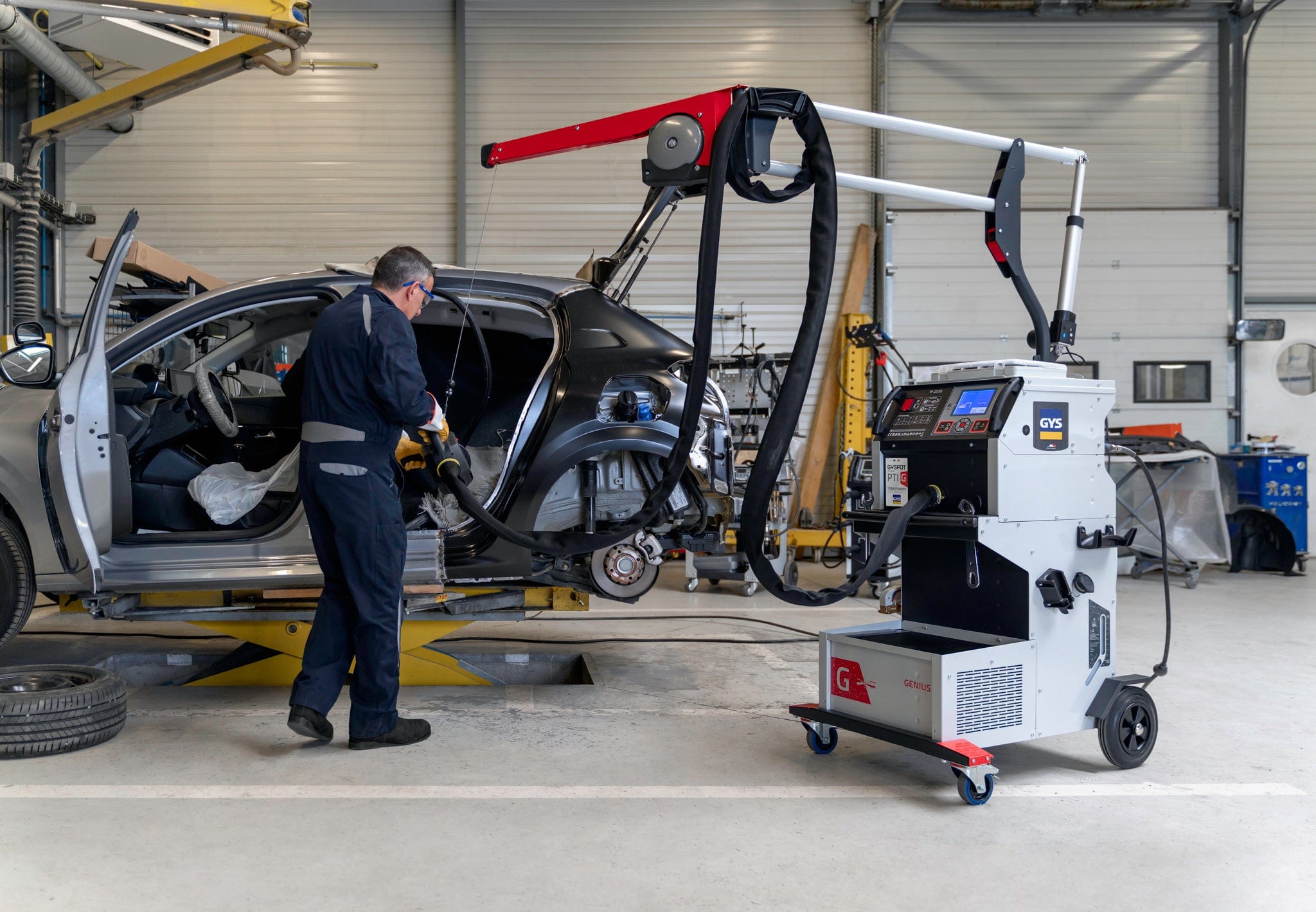

Fully Adjustable Overhanging Arm

  • Extends up to nearly 4' from the power source
  • Motorized overhanging arm to adapt to the working height.
  • Adjustable in height from 5' to over 8' with a push of a button creating easy access to all work areas
  • Rubber protectors at the end of moving parts

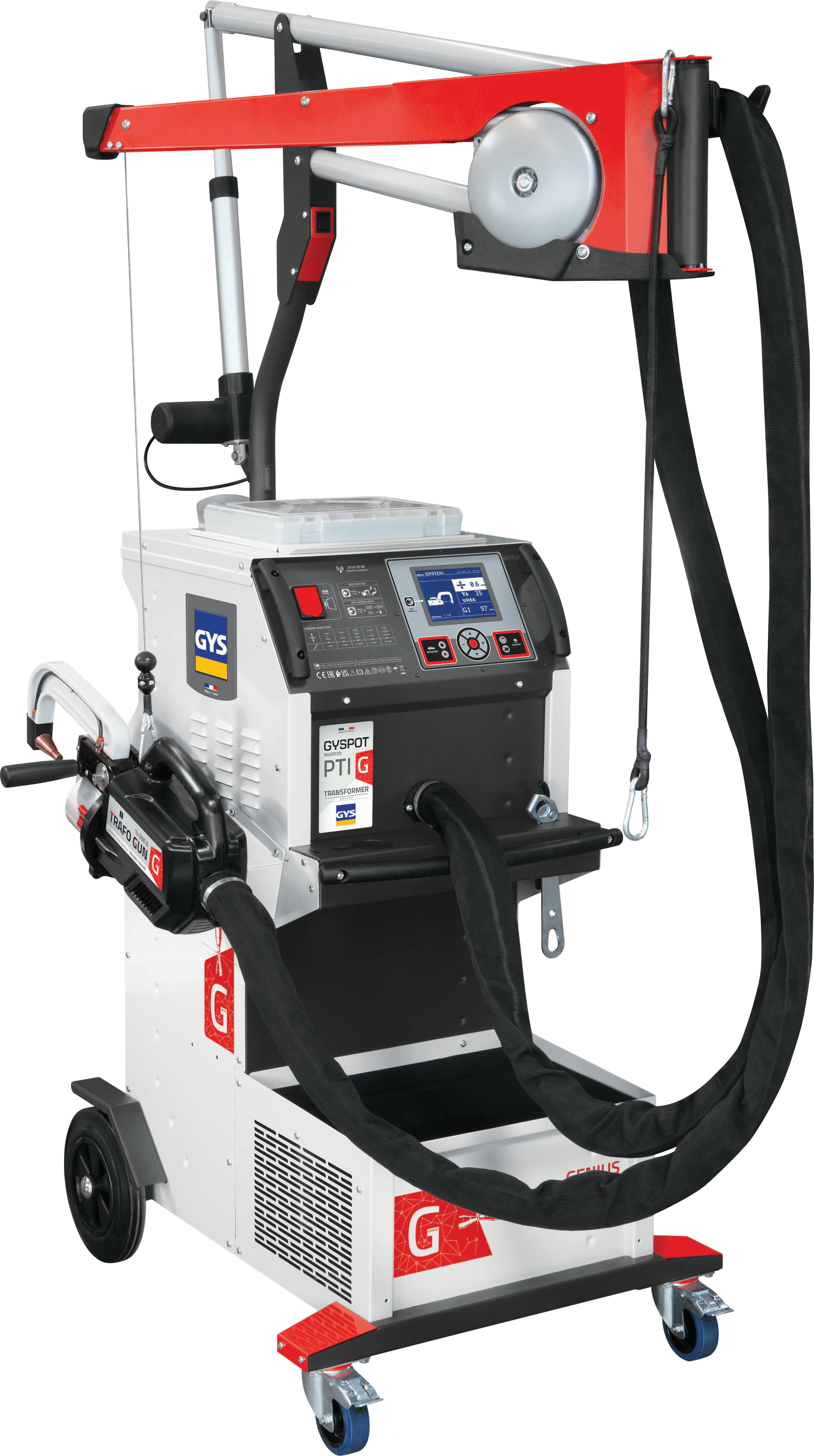

GYSPOT PTI.G : The ultimate spot welding machine
