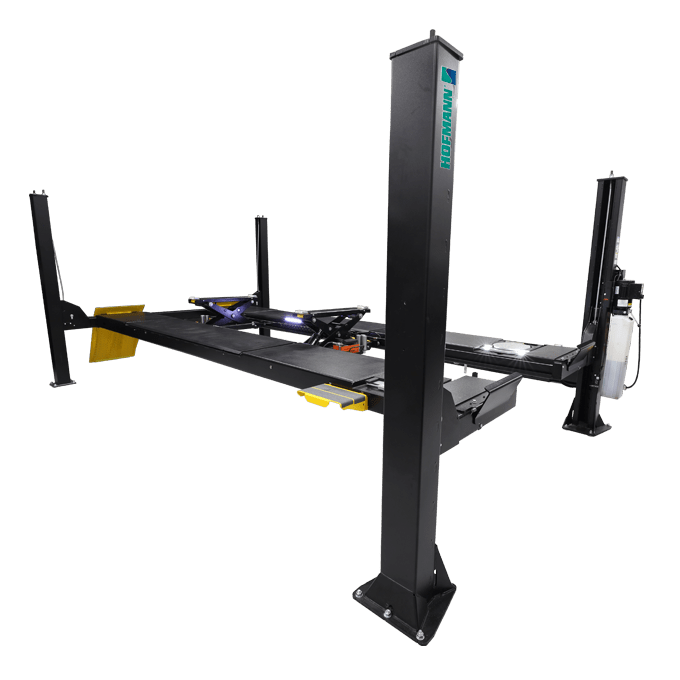

Hofmann® 15K Four-Post Open Front Alignment Lift
Max 15,000 lb capacity • Open-front design • ALI-certified excellence
Upgrade your service bay with the Hofmann 15K Four-Post Alignment Lift—a professional-grade, heavy-duty lift engineered for speed, precision, and versatility.
Features
- Ali Certified: Our lifts are certified in accordance with the requirements of the Automotive Lift Institute’s ETL Certification Program.
- Open-Front Cross Beam: This lift's configuration offers seamless accessibility to service zones, streamlining the process of adjustments and repairs. Additionally, the foldable 4-inch front wheel stops, meeting the rigorous ALI standards, cater to ultra-low profile and extended-length vehicles.
- Pro-Style Runways: Utilizing a state-of-the-art 26-inch wide runway, this lift can effortlessly accommodate wide-track vehicles. Additionally, it simplifies the handling of low-profile vehicles by incorporating an "easy-on" ramp and lowered 8-inch height, ensuring seamless access and utmost convenience.
- Wider Rear Column Clearance: Experience the convenience of generously proportioned rear columns, offering an expansive 120 inches of drive-on clearance and a substantial 125 inches of body clearance. The 15k 4-Post lift ensures effortless drive-on access, even for heavy-duty dual-wheel trucks.
- Locked & Lighted: Enhance visibility in alignment adjustment and calibration areas with strategically positioned lighting. Front LEDs, integrated into the front turnplate base, effortlessly adapt to different vehicle wheel track widths, while rear LEDs are shrewdly situated on the rear slip plates for optimal illumination. Locking components are constructed from materials resistant to corrosion, ensuring long-lasting durability. You can simplify the locking control activation process directly from the lift console to reduce the need for additional efforts when resetting alignment pins on plates.
Specifications
Part Number | EELR708LLPKG |
Lifting Capacity | 15,000 lbs. / 6,804 kg |
Overall Length | 277" / 704 cm |
Overall Width | 142" / 361 cm |
Max Lifting Height | 78” / 198 cm |
Lifting Time | 85 seconds |
Power Requirements | 208-230V 60Hz 1Ph 30A 3HP / 2.2kW |
Air Supply Required | 90-120 PSI / 6-8 BAR |
Minimum Recommended Bay Size (W x L) | 14’ x 26’ / 427 x 792 cm |
