Price:
Sale price$6,589.00 Regular price$8,697.25

Description

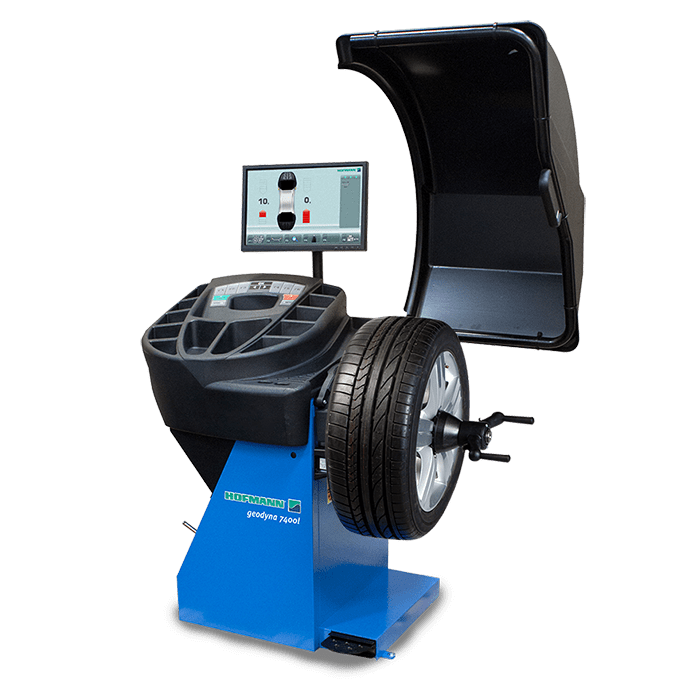

The Hofmann® geodyna® 7400L Wheel Balancer EEWB764AL is a high-precision balancing machine designed for passenger cars, SUVs, and light trucks. Featuring automatic, non-contact data entry and laser-guided weight placement, the geodyna 7400L delivers fast, accurate, and user-friendly operation for professional automotive shops.

Its space-saving hood design, intuitive display, and intelligent measurement system ensure maximum productivity with minimal training. Built with Hofmann’s legendary durability, the 7400L helps technicians achieve perfect balance, reduced vibration, and extended tire life for every vehicle serviced.

Features

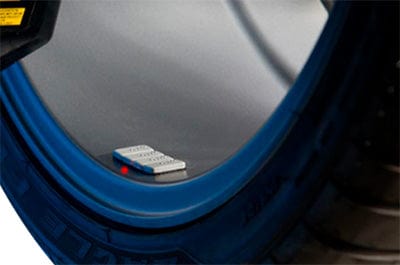

  • Easyweight: Streamlining weight placement, this precision-focused system eliminates guesswork. It employs a laser to precisely indicate the exact location for weight application, ensuring meticulous balancing and accurate results.
  • Ev Ready: Optimize balancing wheels, including EV, with the latest technology and precise engineering.

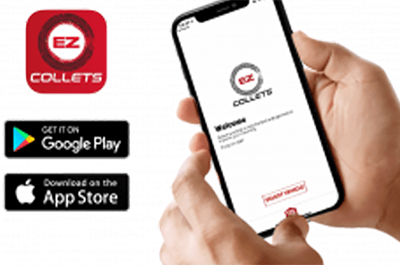

  • Ez-Collets Mobile App: The EZ-Collets mobile app helps technicians find the right collet, flange plate or speed plate for their job by selecting the vehicle. They can then compare and assess the available tools’ benefits.

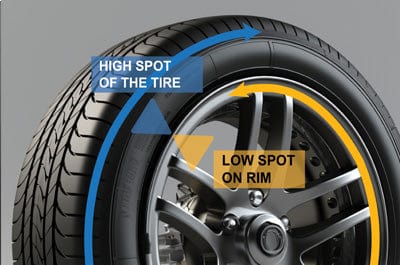

  • Match Mounting: Employing sophisticated techniques, this process optimizes the assembly of the tire onto the rim, reducing the need for excessive weight addition. By achieving a more balanced distribution, it enhances overall performance and minimizes potential vibrations.

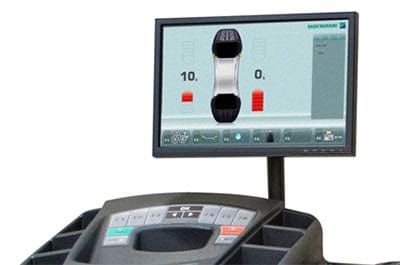

  • Monitor And Integrated Touchpad: This system features a raised monitor and integrated touchpad, providing convenient control, optimizing workflow and simplifying the balancing process.

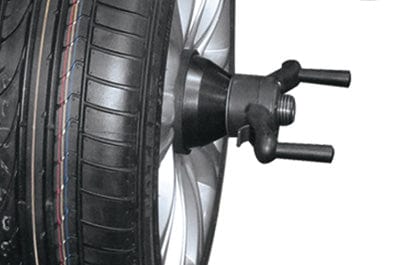

  • Quicknut Wheel Clamp: This user-friendly manual clamping device ensures secure attachment of the wheel to the balancer shaft. Designed for ease of use, it facilitates efficient and reliable operations, guaranteeing a stable wheel mounting process.
  • Quickbal: Engineered for optimal performance, this feature intelligently adjusts the number of revolutions according to each wheel's specifications. Operating at maximum speed, it effectively reduces cycle time, delivering swift and efficient results.

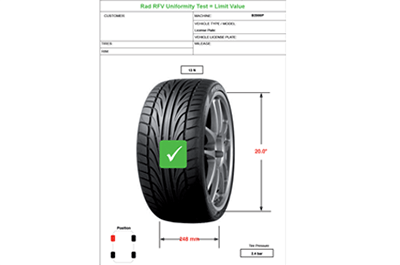

  • Report: Easily generate reports on the local network (additional hardware required) or save as PDFs on a flash drive, facilitating convenient sharing of detailed information with customers for documentation or reference.
  • Semi-Automatic Data Entry: Equipped with a user-friendly gauge arm, this system facilitates data entry with easyALU assisted rim measurement technology. Technicians simply touch the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate weight-balancing mode.

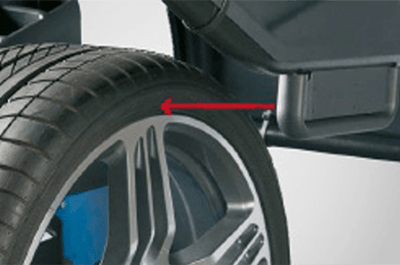

  • Smartsonar: This intelligent system utilizes sonar sensors to automatically detect the rim width, eliminating the need for manual input and reducing the possibility of errors. By streamlining the process, it enhances efficiency and accuracy.

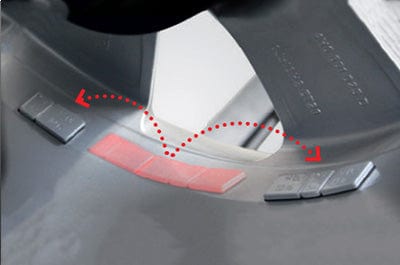

  • Split Weight Mode: This feature ensures accurate balancing and discreet weight concealment behind spokes, maintaining the wheel’s aesthetic appeal and visual presentation.

Specifications

 Part Number  EEWB764AL
 Semi-Automatic Rim Diameter Range  8” - 25” / 20 - 63.5cm
 Semi-Automatic Width Range  3” - 15” / 7.6 - 38cm
 Manual Rim Diameter Range  8” - 32” / 20.3 - 81.2cm
 Manual Rim Width Range  1” - 20” / 2.54 - 50.8cm
 Max Wheel Diameter  42” / 106.6cm
 Max Wheel Weight  154 lbs. / 70kg
 Power Supply  115V 1Ph 60Hz
 Dimensions H x W x L  71” x 60” x 53” / 180 x 152 x 135cm
