Description

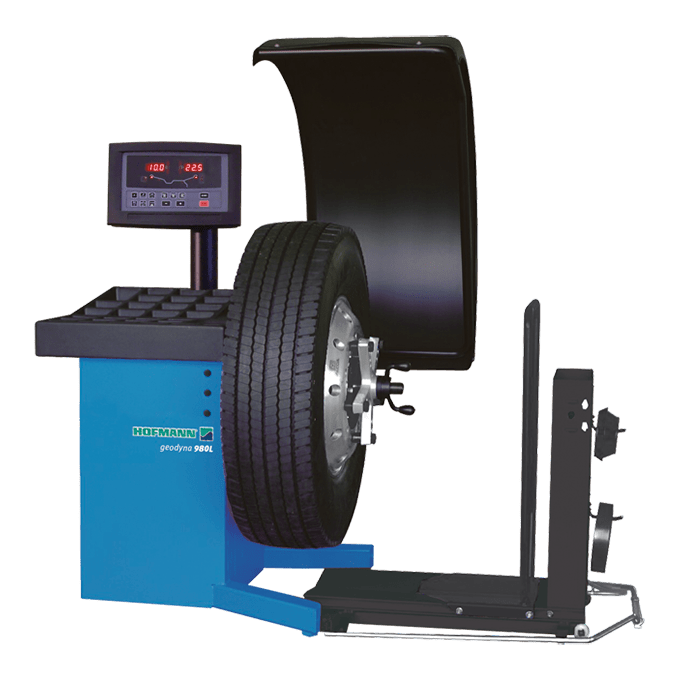

The Hofmann® geodyna® 980L Heavy-Duty Wheel Balancer (EEWB710BW) is engineered to deliver precise, reliable wheel balancing for truck, bus, and commercial vehicle wheels. Designed for the toughest shop environments, this heavy-duty balancer supports wheels up to 500 lbs (227 kg) and 52" in diameter, providing unmatched accuracy and efficiency.
With automatic data entry, intuitive controls, and advanced measurement technology, the geodyna 980L makes quick work of heavy assemblies, reducing technician fatigue while improving shop productivity. Whether you’re servicing fleet vehicles, transit buses, or tractor-trailers, this Hofmann wheel balancer ensures smoother rides, reduced tire wear, and maximum performance.
Features

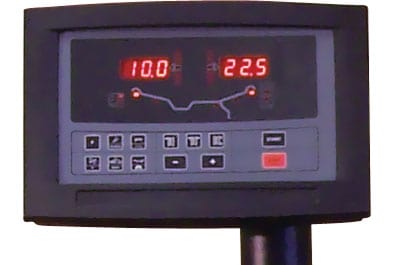

- Monitor With Digital Led Display: Raised monitor with intuitive LED display and control panel.

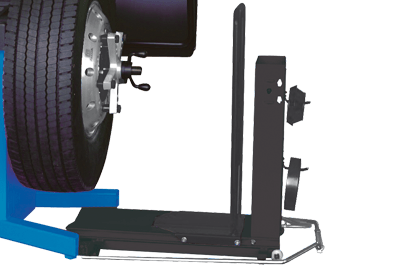

- Heavy-Duty Wheel Lift: Robust and reliable lift for easy and fast handling of heavy-duty wheels.

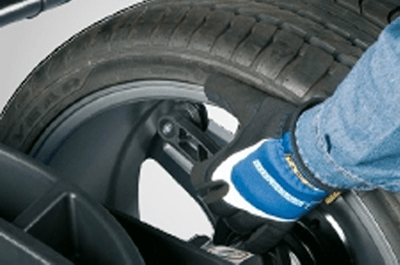

- Semi-Automatic Data Entry: Technicians simply touch the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate weight-balancing mode.

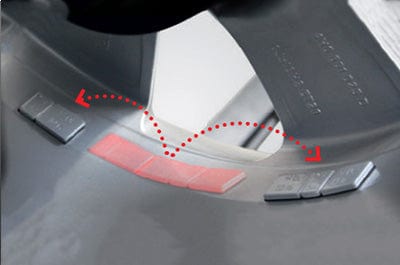

- Split Weight Mode: Accurate balancing and discreet weight concealment behind spokes, maintaining the wheel’s aesthetic appeal and visual presentation.

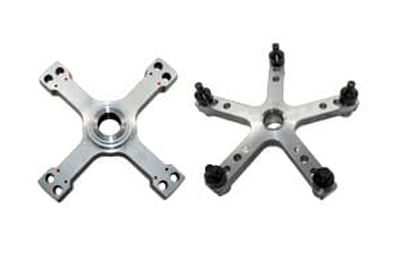

- 4/5 Arm Star Adaptor: Help position and center the wheel during the clamping process.
Specifications
Part Number | EEWB710BW |
Semi-Automatic Rim Diameter Range | 8″-26″ / 20-66cm |
Semi-Automatic Width Range | 2″-20″ / 5-51cm |
Max Wheel Diameter | 51″ / 130cm |
Max Wheel Weight | 550 lbs. / 250kg |
Power Supply | 230V 1Ph 60Hz |
Dimensions H x W x L | 76″ x 55″ x 54″ / 193 x 140 x 137cm |
