Hofmann geoliner 609 Compact Imaging Wheel Aligner – EEWA741TH3

The Hofmann geoliner 609 Compact Imaging Wheel Aligner (EEWA741TH3) delivers professional 3D wheel alignment technology in a space-saving, tablet-controlled system. Designed for automotive repair shops and tire service centers, the geoliner 609 features advanced imaging cameras, intelligent alignment software, quick compensation, and flexible lift compatibility. Improve alignment accuracy, streamline technician workflow, and expand your shop's wheel alignment services with premium Hofmann equipment from Axiom Tool Co.

Hofmann geoliner 609 – Professional 3D Wheel Alignment in a Compact Design

The Hofmann geoliner 609 Imaging Wheel Alignment System combines advanced camera-based measurement technology, intelligent alignment software, and a compact footprint to deliver an efficient solution for professional automotive service facilities.

Designed for shops where floor space, productivity, and equipment versatility matter, this tablet-operated wheel alignment machine provides the core capabilities of a professional imaging aligner without requiring a traditional, bulky alignment console.

Whether you're introducing wheel alignment services to your repair shop, expanding an existing tire service operation, or replacing older alignment equipment, the Hofmann geoliner 609 offers modern alignment technology engineered for everyday shop demands.

Its rotating camera beam, convenient tablet interface, and optimized measurement workflow help technicians perform precision vehicle alignments while improving efficiency throughout the service process.

Advanced Features of the Hofmann geoliner 609 Wheel Aligner

Compact 3D Imaging Technology for Accurate Wheel Alignments

The Hofmann geoliner 609 uses advanced digital imaging cameras and wheel targets to collect accurate alignment measurements. This professional imaging system supports precise wheel alignment procedures while helping technicians diagnose steering and suspension geometry issues.

Its space-saving design makes it an excellent choice for smaller automotive repair facilities, tire shops, and service bays with limited available floor space.

Tablet-Controlled Wheel Alignment for Maximum Flexibility

Unlike conventional console-based alignment machines, the geoliner 609 features a tablet-controlled operating system, allowing technicians to view alignment measurements and navigate procedures from different positions around the vehicle.

Benefits include improved technician mobility, convenient access to alignment information, reduced dependence on a fixed workstation, and greater flexibility across different alignment lift configurations.

Quick Compensation and Optimized Alignment Workflow

Hofmann's intelligent alignment software simplifies the measurement process with rapid compensation and an optimized alignment sequence.

Video-speed imaging supports fast compensation procedures, while predictive workflow technology helps minimize unnecessary steps. This allows technicians to work efficiently without compromising measurement quality.

For busy automotive repair shops, an efficient alignment process can help improve bay utilization and increase the number of alignment services performed.

Intelligent Error Detection and Smart Notification System

The geoliner 609 includes a smart notification system designed to recognize issues such as suspension stress and environmental measurement errors.

The software can automatically compensate for certain conditions and notify technicians when additional intervention is necessary.

This helps minimize interruptions, improve measurement consistency, and support a more productive wheel alignment process.

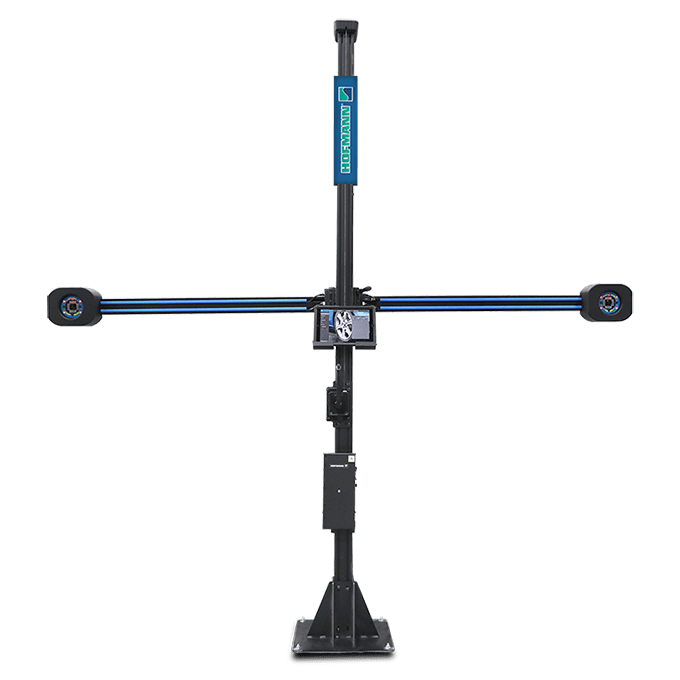

Rotating Camera Beam and Flexible Lift Compatibility

The geoliner 609's rotating camera beam and taller vertical post are engineered to accommodate different service-bay configurations and alignment lift arrangements.

A mechanical winch provides controlled beam positioning, while the compact design helps shops utilize valuable workspace efficiently.

An optional mobility kit provides additional flexibility for moving the alignment system between compatible work areas.

VODI™ Vehicle Orientation Directional Indicator

Hofmann's patented VODI™ technology uses red and green LED indicators to guide technicians through alignment measurement procedures.

These visual signals help operators understand vehicle positioning and the progression of alignment procedures even when the tablet display is not directly visible.

By reducing unnecessary movement between the vehicle and display, VODI helps support an efficient workflow.

EZ-Toe – Simplified Steering and Toe Adjustments

The EZ-Toe functionality allows technicians to turn the front wheels while continuing to access centered toe readings.

This makes it easier to reach difficult adjustment points and perform steering-related alignment corrections without repeatedly repositioning the wheels to view measurements.

AC200 Self-Centering Wheel Clamps

The geoliner 609 includes Hofmann AC200 wheel clamps, featuring self-centering jaws for secure wheel attachment.

The two-sided clamp design supports fast installation and reliable gripping, including certain applications where hubcaps remain installed.

These professional alignment clamps support consistent measurements and efficient setup.

Cloud-Based Alignment Reports and Connected Software

The Hofmann geoliner 609 supports cloud-based alignment reporting, allowing shops to store and retrieve alignment results and share reports with customers.

Technicians can print reports from compatible connected devices or email alignment information to customers.

The connected software environment also supports access to vehicle specifications, repair information, technical service bulletins, recalls, TPMS information, and ADAS-related reference information, subject to applicable data access and subscriptions.

Why Choose the Hofmann geoliner 609 for Your Automotive Shop?

The geoliner 609 is an ideal solution for professional facilities looking to expand alignment capabilities without investing in a large, traditional alignment workstation.

Key business advantages include:

• Space-saving design: Ideal for compact service bays and smaller automotive facilities.

• Professional imaging technology: Precise camera-based wheel alignment measurements.

• Faster alignment workflow: Quick compensation and intelligent software help reduce unnecessary steps.

• Flexible tablet operation: Convenient control throughout the service bay.

• Versatile lift compatibility: Designed for multiple alignment lift configurations.

• Expandable mobility: Optional mobility equipment helps support flexible shop layouts.

• Professional customer reports: Digital reporting supports a more transparent service experience.

Hofmann geoliner 609 Technical Specifications

Specifications below are based on Hofmann's product information and should be checked against the final supplied configuration.

What's Included with the Hofmann geoliner 609?

• Hofmann geoliner 609 imaging alignment system

• AC200 wheel clamps and targets

• Tablet display with protective case

• Brake pedal depressor

• Steering wheel holder

• Wheel chocks

• Wall-mounted clamp hangers

Optional Hofmann geoliner 609 Accessories

Mobility Kit – EAK0363J88A

Provides additional flexibility by allowing shops to relocate the alignment equipment within the service facility.

Wheel Clamp Storage Cart – EAK0363J89A

Provides convenient organization and storage for alignment clamps and associated equipment.

Additional wheel clamp extensions and quick-clamp accessories may be available depending on the application.
