Hofmann Monty 1685 Rim Clamp Tire Changer SMARTSPEED | EEWH792AUD

Hofmann Monty 1685 Rim-Clamping Swing-Arm Tire Changer- Smartspeed

Overview

Introducing the Hofmann Monty 1685, built for durability and precision in high-demand environments. Ideal for high-volume tire shops, automotive dealerships, and busy service bays, this rim-clamping swing-arm tire changer blends rugged construction with advanced features for faster, safer, and more efficient tire service.

Key Features

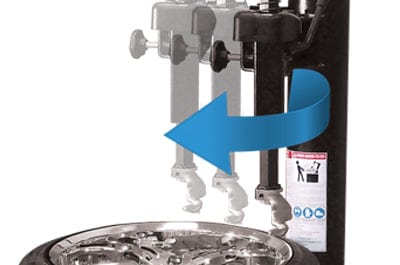

• Swing-Arm Design for Space Optimization
  The swing-arm pivots to the side, enabling installation close to walls and maximizing shop floor space

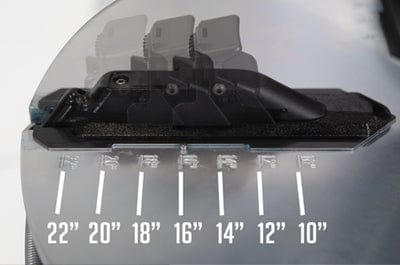

• Rim-Clamping with Wheel Diameter Scale
  Three-position clamping jaws combined with an integrated turntable scale allow quick, precise adjustments—crucial during peak workflow periods

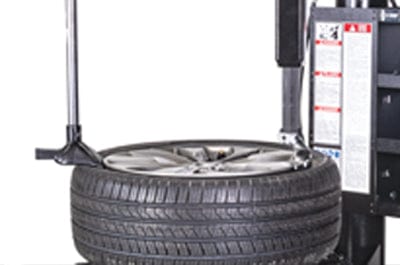

• Pneumatic Bead Pusher with Reverse Hook
  Facilitates single-operator mounting and demounting of heavy tires by helping lift the upper bead with ease.

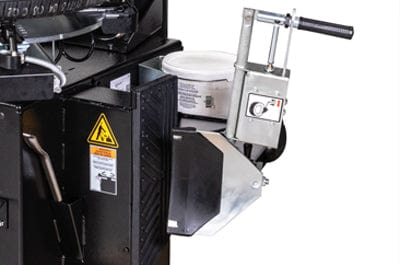

• On-Floor Bead Breaker with Pneumatic Assist
  Enhances safety by reducing shovel bounce-back; efficient for low-profile, standard, and high-aspect tires.

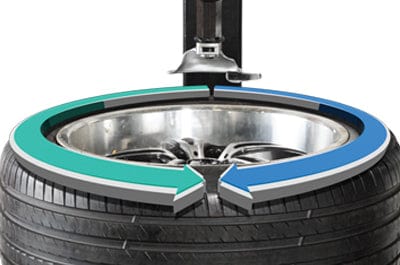

• Patented smartSpeed™ Technology
  Automatically controls rotation speed and torque to minimize tire damage while optimizing cycle time.

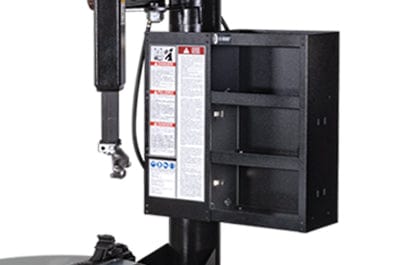

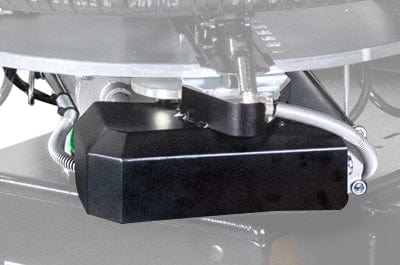

• Built-In Toolbox & Cylinder Protection
  Features a dedicated toolbox with three shelves for organized tool storage and steel cylinder protectors to shield hoses from damage

Specifications:

Max Rim Diameter: 15" (38 cm)

Max Tire Width: 14" (36 cm)

Max Rim Width: 20" (50 cm)

Max Wheel Diameter: 50" (127 cm)

Power Supply: 230V 1Ph, 50–60Hz

Air Pressure Required: 116–174 PSI (8–12 bar)

Dimensions (HxWxD): 86" x 47" x 47" (218 x 119 x 119 cm)
