Description

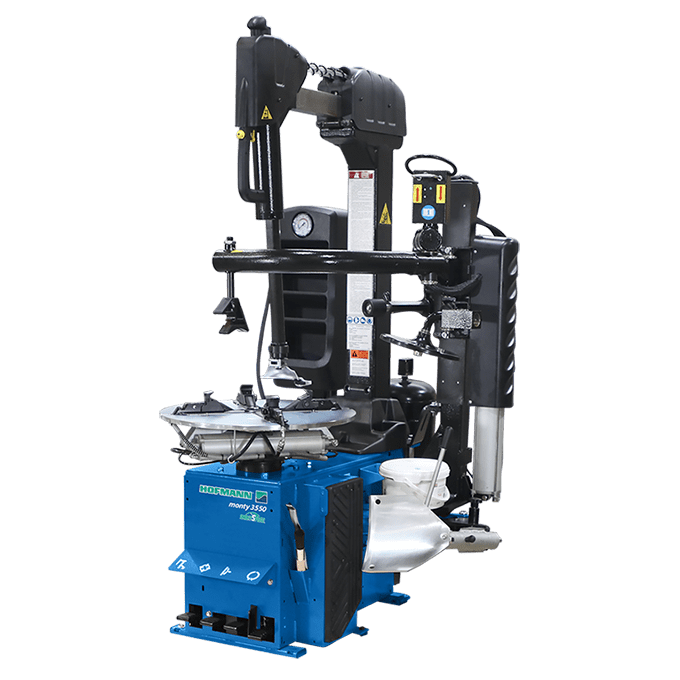

Boost shop efficiency with the Hofmann monty® 3550 Slide-Tower Tire Changer—featuring tilt-tower load, smartSpeed™ torque control, EasyMont™ assist, and built-in tool storage.
Features

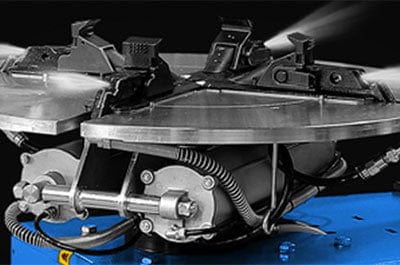

- Rim Clamping Bead Seater: A direct burst of compressed air comes through the clamping jaws to facilitate bead seating.
- Pneumatic Bead Pusher: Swift and ergonomically designed, this feature effectively accelerates the process of positioning the mounting head on all types of wheels.

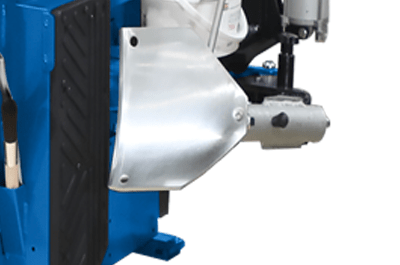

- On-Floor Bead Breaker: A conventional side-shovel bead breaker, featuring an ergonomically positioned pedal control situated a small distance from the shovel, is the quickest solution for efficiently handling a range of tires.

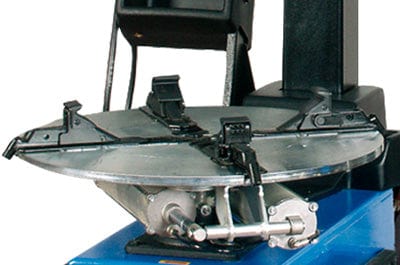

- Adjustable Clamping Jaws: To safeguard the wheel’s integrity, these nylon-covered jaws are self-centering and grip the wheel firmly for elevated stability and safety.

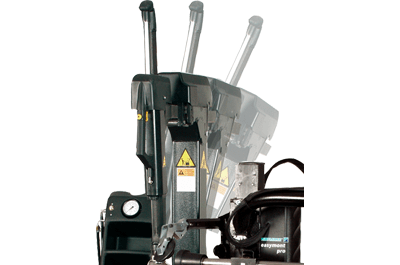

- Tilt-Tower: Utilizing a pneumatic design, this feature maximizes clearance for efficient placement of the tire onto the turntable.

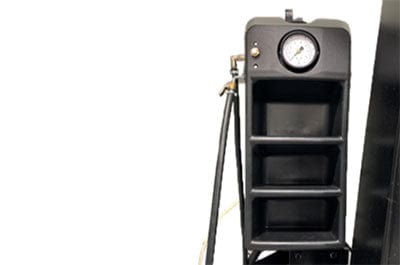

- Tool Box With Integrated Air Pressure Gauge: Providing a secure storage space, the tool box includes four convenient shelves for the organization of tools, valves and accessories.

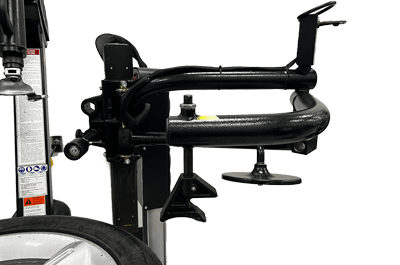

- Pneumatic EasyMont: Includes the top roller, pressing foot and lifting disk to streamline the mounting and demounting of low-profile and high-performance tires, enabling a single technician to perform tasks with ease.

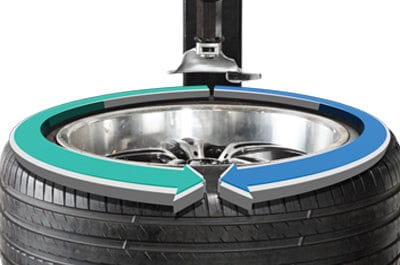

- SmartSpeed: This revolutionary, patent-protected technology optimizes the applied torque on the wheel and automatically establishes the maximum rotational speed of the wheel.
Specifications
Technical Data | EEWH747B |
Max Rim Diameter | 26” / 66cm |
Max Tire Width | 17” / 43cm |
Max Rim Width | 16” / 41cm |
Power Supply | 230V 1Ph 60 Hz |
Max Wheel Diameter | 47” / 119cm |
Air Pressure Required | 116-174 PSI / 8-12 bar |
Dimensions H x W x D | 58” x 65” x 90” / 147 x 165 x 229cm |
