Description

The Hofmann® monty® 3850 sets the bar for efficient, heavy-duty tire service. Built for commercial bus, tractor-trailer, and OTR applications, this robust truck tire changer handles tube-style and tubeless wheel assemblies up to 59" in diameter—all managed efficiently by a single technician via a mobile remote control unit.

Its self-centering, hydraulic four-jaw chuck delivers secure grip and includes a non-return valve to prevent accidental unclamping. Paired with a patented all-in-one bead breaker and mount/demount head, the monty 3850 maximizes productivity and safety in demanding shop environment

Features

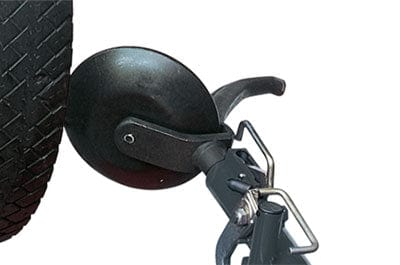

  • Bead Breaker: This system is equipped with a comprehensive tilting system that facilitates the process of breaking the bead, ensuring optimal positioning of the disk.

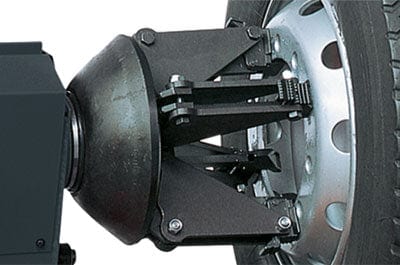

  • Chuck: The robust construction of this feature enables it to accommodate wheels weighing up to 2,205 pounds (1,000 kg).

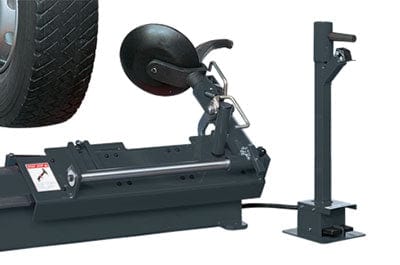

  • Mobile Control Unit: A single technician can safely oversee all tire changing operations from a distance while utilizing the wired remote control console, efficiently boosting productivity in the proces.
  • Non-Return Valve: This feature allows the chuck to always remain under pressure and to avoid the rim from slipping.

Specifications

 Part Number  EEWH703AUA
 Rim Clamping Range  14”-26” - 36-66 cm
 Max. Wheel Width  27.5″ - 69 cm
 Max. Wheel Diameter  59 - 150 cm
 Max. Wheel Weight  2,205 lbs. - 1,500 kg
 Power supply  208V 1Ph 60Hz
 Dimensions H x W x D  58" x 83" x 83" (148 x 210 x 210 cm)
