Description

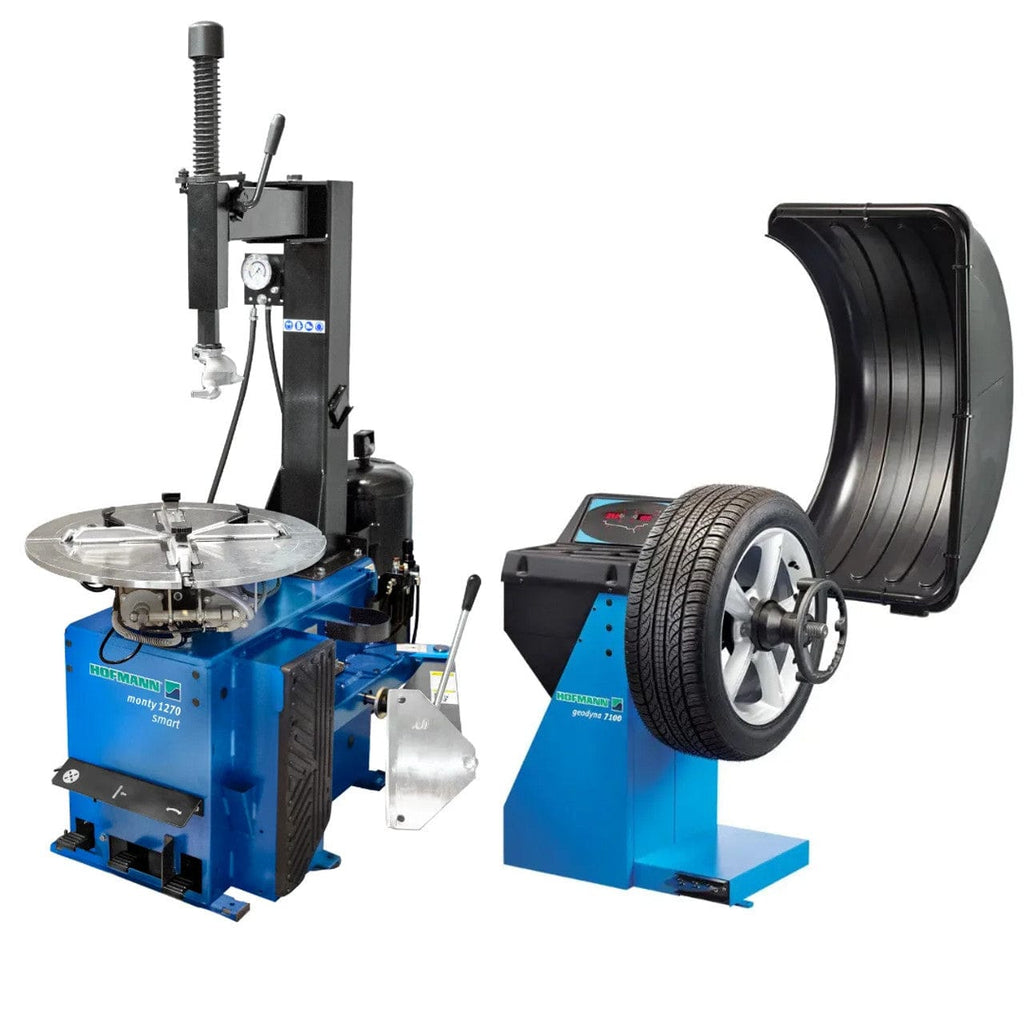

Equip your shop with the Hofmann HOFCOMBO1 Wheel Balancer & Tire Machine Package today and experience the perfect balance of power, precision, and efficiency.

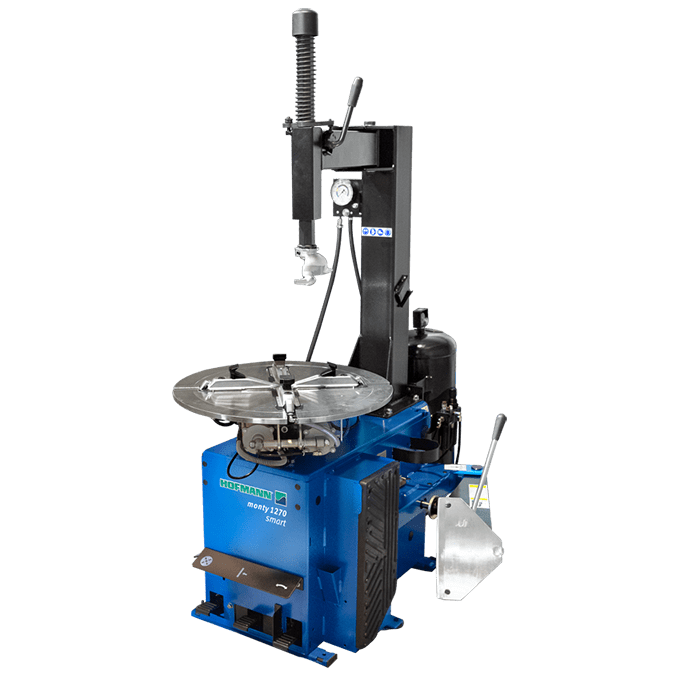

Hofmann Monty 1270 Swing-Arm Tire Changer
Overview
Upgrade your shop’s efficiency and space utilization with the Hofmann Monty 1270 Swing-Arm Tire Changer—a high-reliability, compact tire changing solution tailored for general repair and tire service shops. Driven by precise engineering and user-focused design, this tire changer delivers professional-level performance and durability in a small footprint.
Features
- On-Floor Bead Breaker (Pedal-Operated): A conventional side-shovel bead breaker, featuring an ergonomically positioned pedal control situated a small distance from the shovel, is the quickest solution for efficiently handling a range of tires.
- Swing-Arm: Optimization of space is skillfully ensured with a mounting arm that pivots to the side, allowing the machine to be efficiently installed directly adjacent to a wall.
Specifications
| Part Number | EEWH764AU1 |
| Max Rim Diameter | 20” / 51 cm |
| Max Tire Width | 13” / 33 cm |
| Max Rim Width | 12” / 31 cm |
| Max Wheel Diameter | 39” / 99 cm |
| Power Supply | 115V 1ph 60 Hz |
| Air Pressure Required | 116-174 PSI / 8-12 bar |
| Dimensions H x W x D | 68” x 47” x 49” / 173 x 119 x 124 cm |

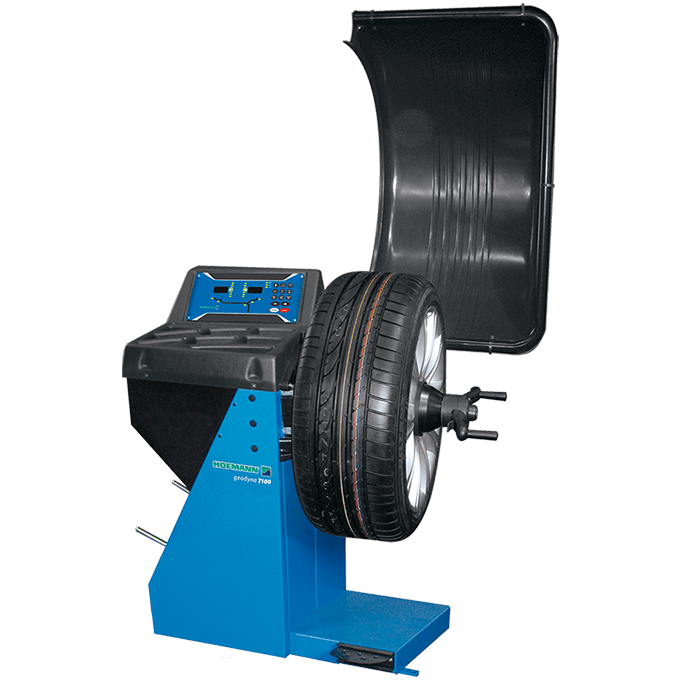

Hofmann® Geodyna® 7100 Wheel Balancer with Digital Display
Deliver Accurate, Fast, and Reliable Wheel Balancing – All in a Compact Design
Features
- Digital Led Display: Weight-tray integrated touchpad operation with intuitive LED display.
- Ez-Collets: The EZ-Collets mobile app helps technicians find the right collet, flange plate or speed quick plate for their job by selecting the vehicle. They can then compare and assess the available tools’ benefits.

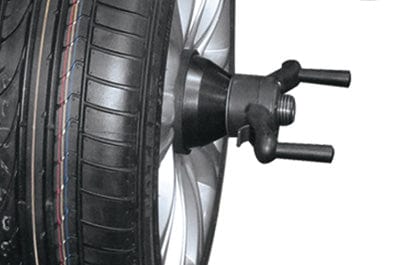

- Quick nut Wheel Clamp: This user-friendly manual clamping device ensures secure attachment of the wheel to the balancer shaft. Designed for ease of use, it facilitates efficient and reliable operations, guaranteeing a stable wheel mounting process.
- Quickbal: Engineered for optimal performance, this feature intelligently adjusts the number of revolutions according to each wheel’s specifications. Operating at maximum speed, it effectively reduces cycle time, delivering swift and efficient results.
- Semi-Automatic Data Entry: Equipped with a user-friendly gauge arm, this system facilitates data entry with easyALU assisted rim measurement technology. Technicians simply touch the rim with the gauge arm, and the system automatically enters the rim dimensions and selects the appropriate weight-balancing mode.
- Split Weight Mode: This feature ensures accurate balancing and discreet weight concealment behind spokes, maintaining the wheel’s aesthetic appeal and visual presentation.
- Wheel Cover: The wheel cover prevents objects from flying, protecting technicians from possible accidents.
Specifications
| Part Number | EEWB761A |
| Semi-Automatic Rim Diameter Range | 8” - 25” / 20 - 63.5 cm |
| Semi-Automatic Width Range | 1” - 20” / 2.54 - 50.8 cm |
| Manual Rim Diameter Range | 8” - 32” / 20 - 81.2 cm |
| Manual Rim Width Range | 1” - 20” / 2.54 - 50.8 cm |
| Max Wheel Diameter | 38” / 96.5cm |
| Max Wheel Weight | 154 lbs. / 70 kg |
| Power Supply | 115V 1Ph 60Hz |
| Dimensions H x W x L | 59” x 51.5” x 52” / 150 x 131 x 132 cm |
