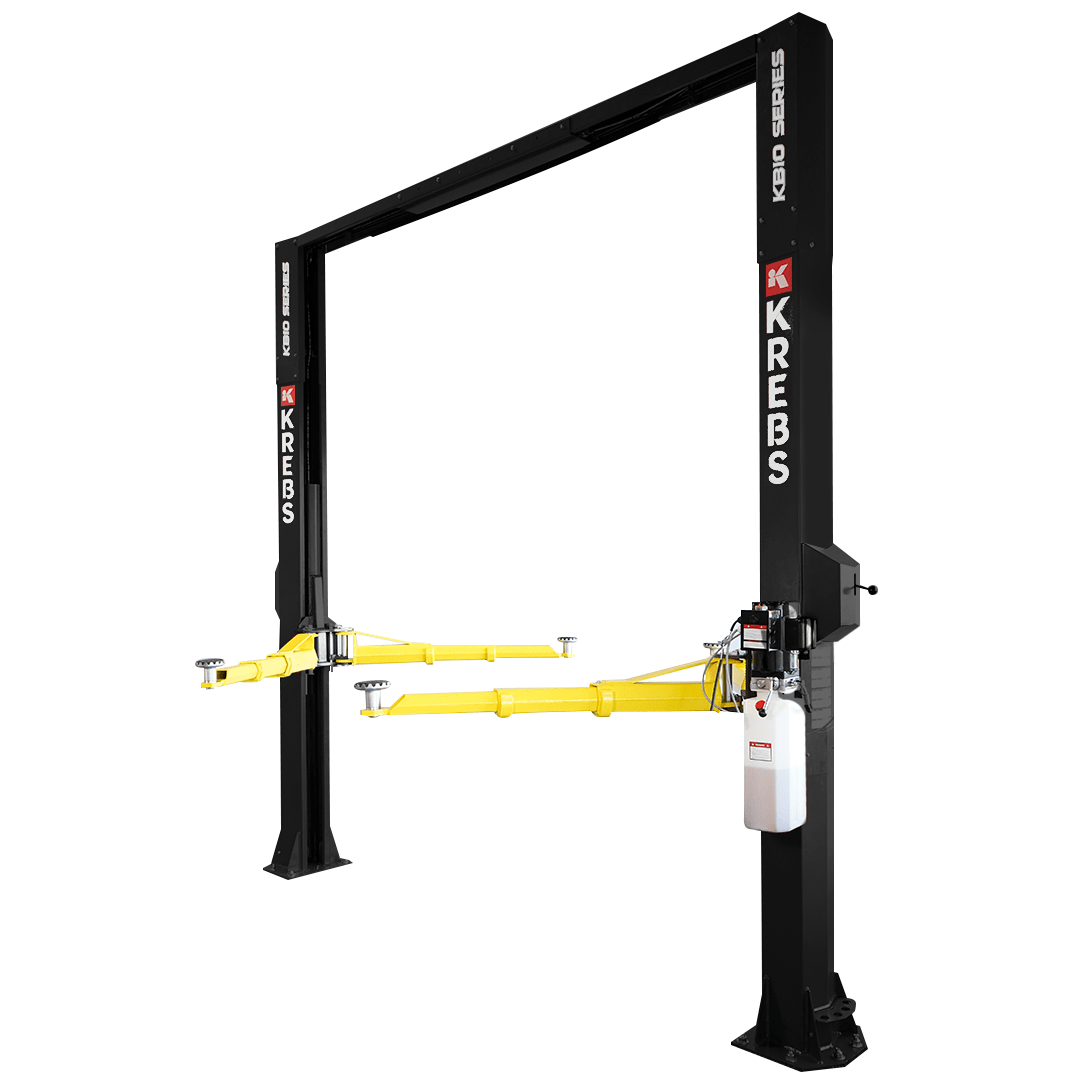

The KB10/H is an ALI Certified, overhead two post lift build based with structural concept, this device is designed to improve strength, reliable to work safety.

Innovating with great features such as KREBS signature hexagonal three stage sliding arms with Hot Dip Galvanizing finishing option, single point lock release, unique 15 bend column shape, Adjustable width, Included 3-1/2" & 5" extension adapters, and multiple color viability makes the KB series a piece of modern style every facility.

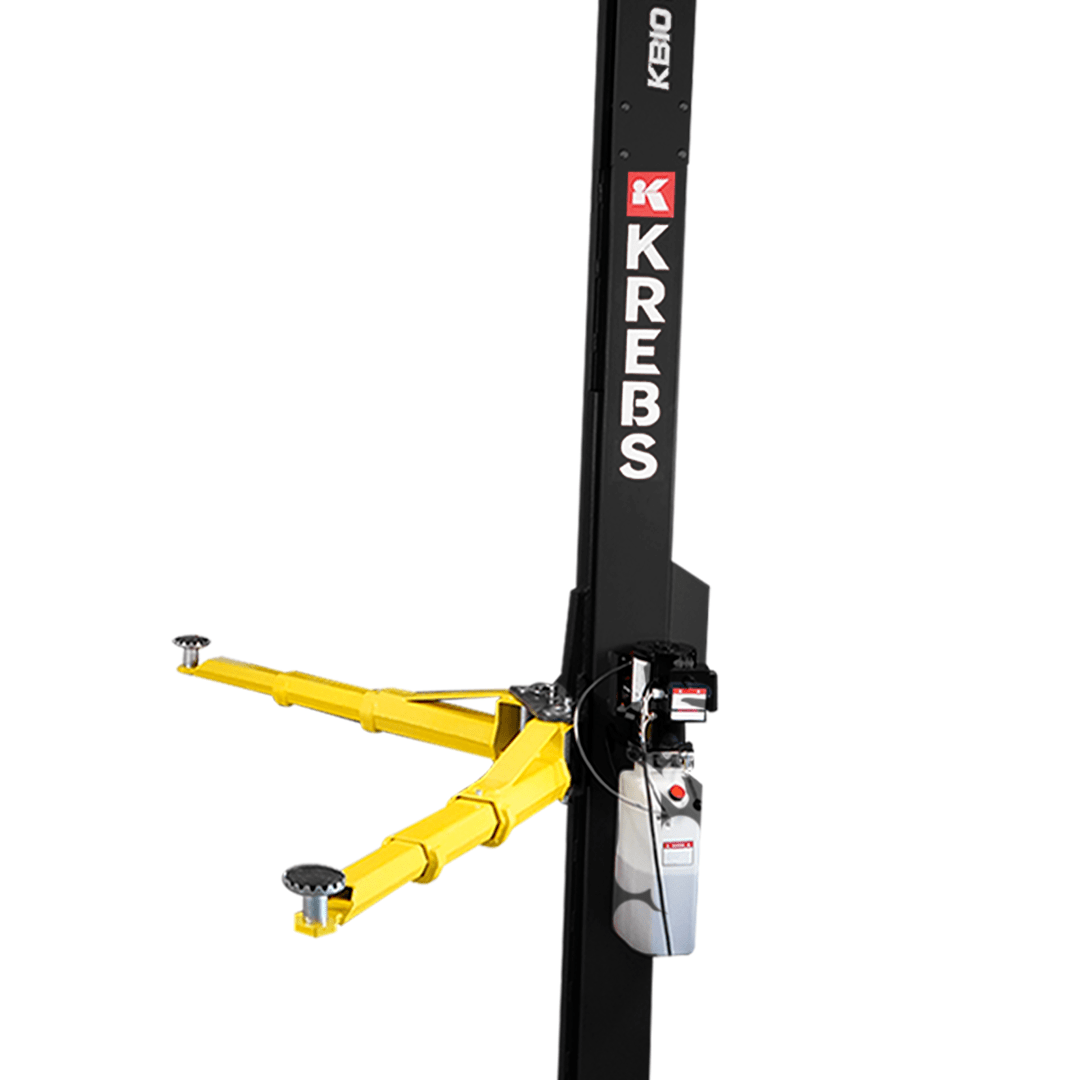

Structural Column

The columns of our KB 10 and MF Four post equipment are designed with everyday usability in mind. Through engineering processes, we've achieved the lightest and most robust columns. By using folds in thinner sheets, we've created lightweight columns for easy handling without compromising the necessary robustness to withstand daily use.

ASTM A36 Certified Carbon Steel

With Certified ASTM A36 Carbon Steel in your equipment, quality and reliability are guaranteed. ASTM A36 is renowned for its strength and durability, ensuring that your equipment will have a solid structure resistant to impacts, providing safety and consistent performance over time.

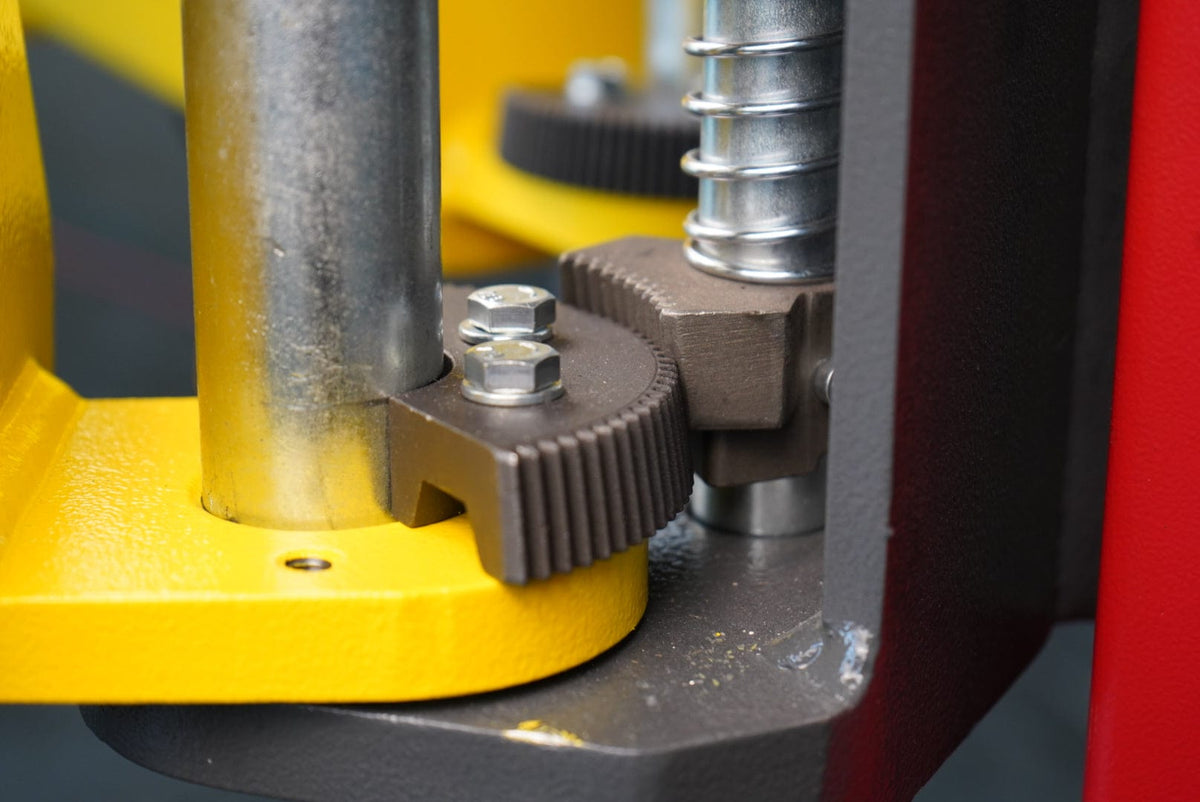

Arm Positioning Lock

 Maximize safety with our arm positioning lock. Keep vehicles stable during maintenance, ensuring efficiency and protection

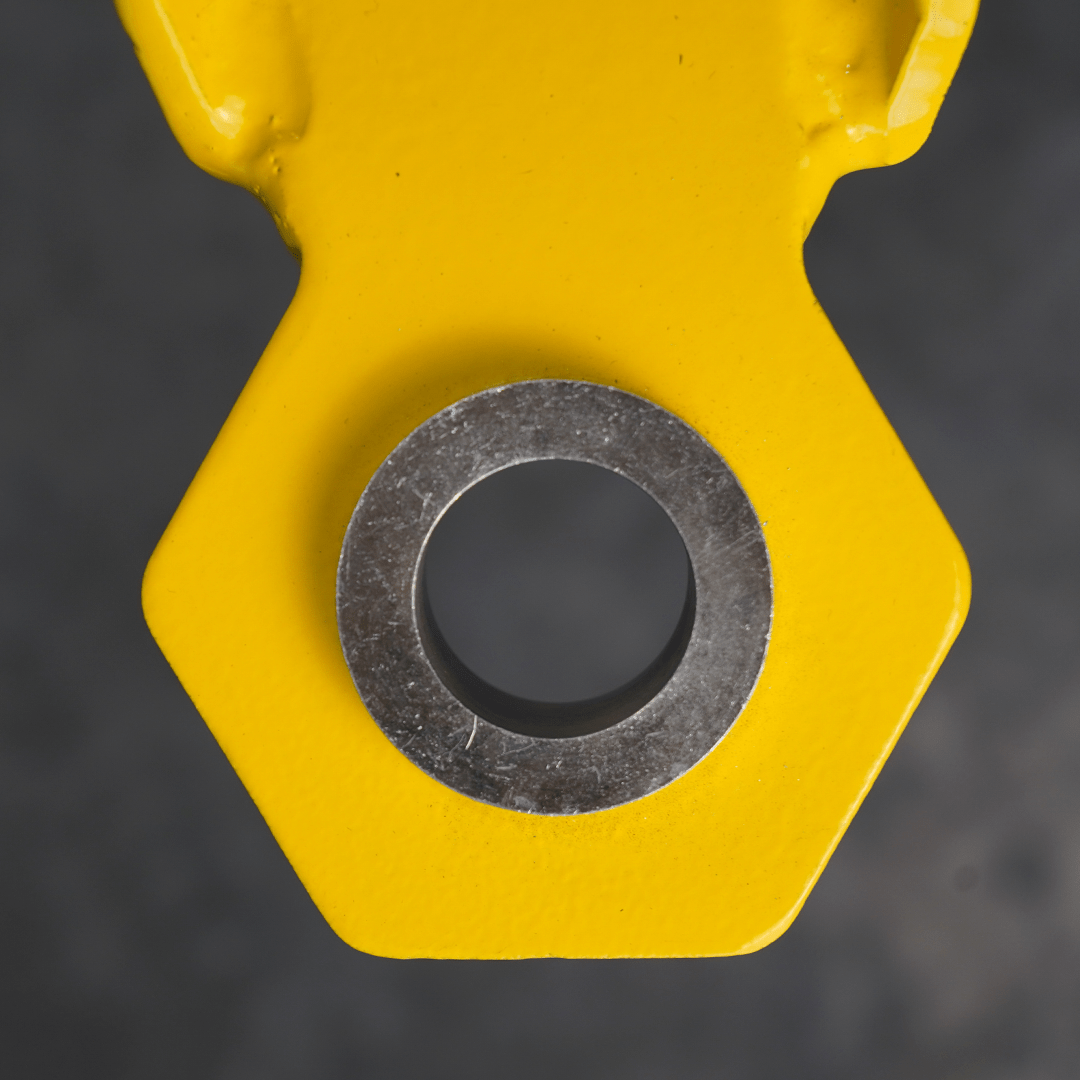

Quick coupling of support shoes

With our quick coupling support shoe attachments, you save time and increase productivity in your automotive workshop.

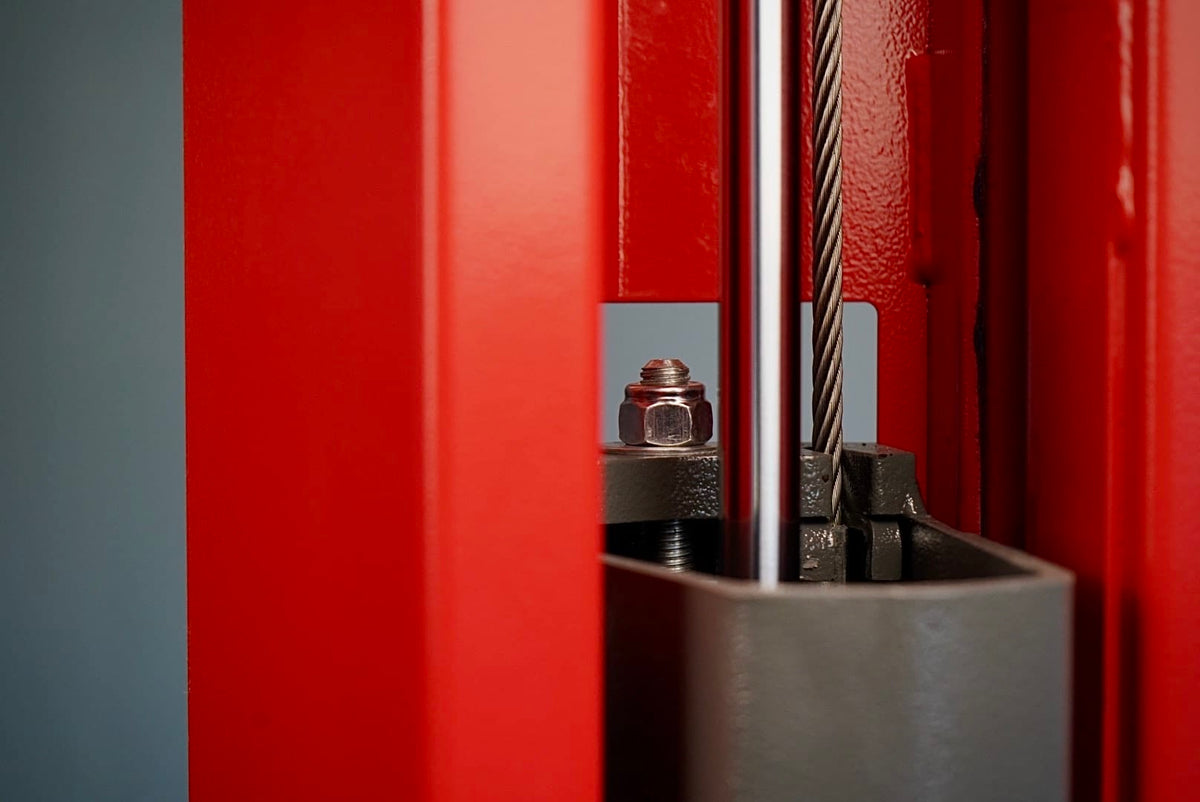

Safety locks to each 3

At Krebs, we value safety, which is why our lift features safety locks every 3 inches. But don't worry, releasing the lock requires just a single motion.

Arm Versatility

With our rear arms in two stages, and front arms in three stages, you can achieve a wider range of positions to lift your car with greater safety and efficiency.

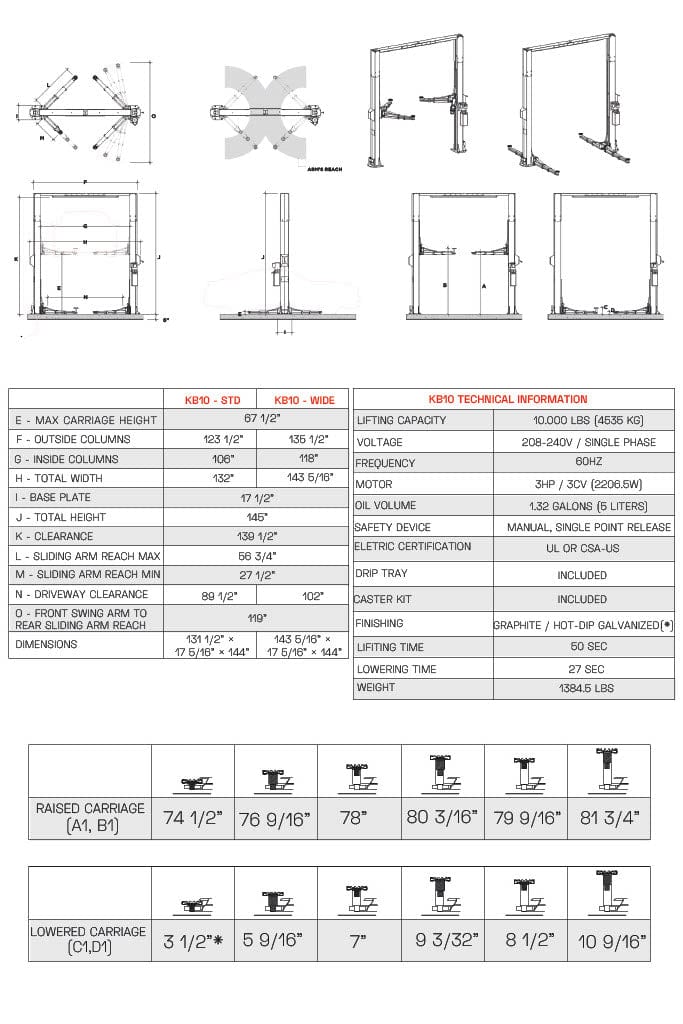

TECHNICAL SPECS

		KB10 – STD		KB10 – Wide
RATED LOAD CAPACITY		10,000 lbs
A – MAX. WORKING HEIGHT		6’ – 5 5/16”
B – MAX. RISING HEIGHT WITH PAD		6’ – 1/4”
C – MAX. CARRIAGE HEIGHT		5’ – 7 7/8”
D – PAD HEIGHT		6 1/16”
E – LIFTING HEIGHT WITH LIFT PAD (LOWERED)	11 1/16”
F – OUTSIDE COLUMNS		10’ – 3 5/8”		11’ – 3 3/8”
G – INSIDE COLUMNS		8’ – 10 1/8”		9’ – 9 7/8”
H – TOTAL WIDTH		10’ – 11 1/2”		11’ – 11 5/16”
I – BASE PLATE		1’ – 5 5/16”
J – TOTAL HEIGHT		12’ 5/16”
K – CLEARANCE		11’ – 8 1/8”		11’ – 8 1/8”
L – SLIDING ARM REACH MAX		4’ – 3 7/8”
M – SLIDING ARM REACH MIN		2’ – 2 3/8”
N – DRIVEWAY CLEARANCE		8’ – 1 7/8”		9’ 3/4”
O – FRONT SWING ARM TO REAR SLIDING ARM REACH		5’ – 2 3/4” – 10’ – 0”
RISE TIME		50 sec
DESCENT TIME		27 sec
WEIGHT		1,384.5 lbs
DIMENSIONS		10’-11 1/2” X 1’-5 5/16” X 12’ (W X D X H)		11’ – 11 5/16” X 1’- 5 5/16” X 12’ (W X D X H)
Measures reflects std settings. Time may vary accordingly with the vehicle weight and area conditions.
