Clean, Dry Air for High-Performance Compressed Air Systems

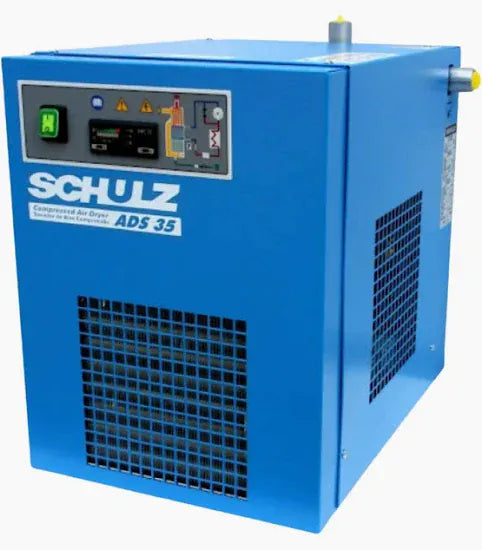

Moisture in your compressed air system leads to rusted tools, ruined paint finishes, and costly pneumatic equipment downtime. The Schulz ADS-35-UP Non-Cycling Refrigerated Air Dryer removes harmful condensation and water vapor at capacities up to 35 CFM (32–44 CFM max operating range).
Built for demanding shop environments, the ADS-35-UP is engineered to handle ambient and inlet air temperatures up to 100°F without sacrificing drying efficiency. Operating on standard 115V single-phase power, it integrates effortlessly into small to medium-sized commercial workshops, auto body repair bays, and light manufacturing facilities.
Key Features & Benefits
-
Digital System Monitoring: Includes an intuitive electronic control panel with real-time temperature display and dew point monitoring.
-
Automatic Drain Valve: Quick-disconnect timer drain removes accumulated moisture reliably, preventing liquid carryover.
-
High Ambient Performance: Non-cycling design maintains consistent pressure dew point stability even under high heat and humidity.
-
Compact & Easy Maintenance: Features quick-access removable side panels for rapid filter inspects and routine servicing.
-
Eco-Friendly Refrigerant: Utilizes efficient R134a refrigerant for lower power consumption and environmentally friendly operation.
Product Specifications
| Specification | Details |
| Model | ADS-35-UP |
| Air Flow Capacity | 35 CFM (32–44 CFM Range) |
| Voltage / Phase | 115V / 1-Phase / 60 Hz |
| Inlet / Outlet Size | 1/2" NPT-F |
| Maximum Operating Pressure | 232 PSI |
| Refrigerant | R134a |
| Max Inlet Temperature | 100°F (38°C) |
| Dimensions (L x W x H) | 18.7" x 14.6" x 18.7" |
| Unit Weight | 62 lbs |
Ideal Applications
-
Auto Repair & Body Shops: Prevents fisheyes and orange peel in spray paint applications.
-
CNC Air Support: Protects sensitive pneumatics and precise air bearings.
-
General Workshop Air Tools: Extends the working life of impact wrenches, sanders, and grinders.
Pro Tip: Installing an inline pre-filter before your air dryer is required to remove oil aerosols and solid particles, protecting the internal heat exchanger and keeping your warranty active.
