Description

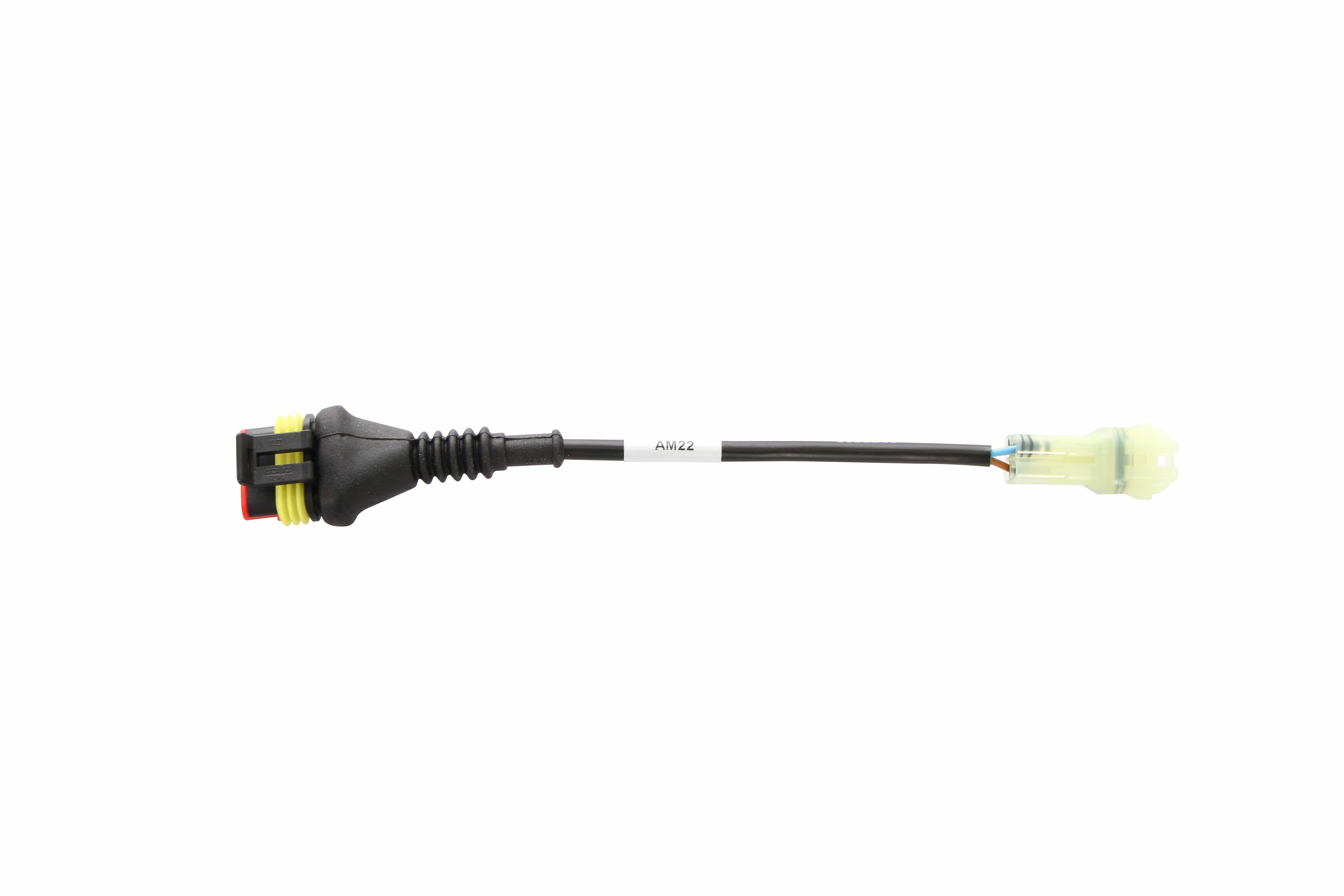

The TEXA 3903560 Marine 4-Pin Suzuki Cable (AM22) is a genuine TEXA diagnostic cable designed specifically for Suzuki Marine outboard engines equipped with the 4-pin diagnostic connector. Used with TEXA IDC6 Marine software, it delivers OEM-level diagnostics for professional marine technicians and repair facilities.
Professional Suzuki Marine Diagnostic Cable
The TEXA 3903560 Marine 4-Pin Suzuki Cable (AM22) is a genuine OEM TEXA marine diagnostic cable engineered specifically for Suzuki Marine outboard engines utilizing the 4-pin SDS (Suzuki Diagnostic System) connector.
Designed for marine dealerships, independent repair facilities, commercial fleets, and professional marine technicians, the AM22 cable establishes reliable communication between compatible Suzuki engine control units (ECUs) and TEXA diagnostic equipment.
When paired with TEXA IDC6 Marine Software, technicians can perform advanced diagnostic functions including:
- Read and clear diagnostic trouble codes (DTCs)
- View live engine operating data
- Monitor ECU parameters
- Diagnose electronic fuel injection and ignition systems
- Perform maintenance and service procedures
- Verify sensor operation and engine performance
- Reduce troubleshooting time and vessel downtime
Built to TEXA's exacting standards, the AM22 cable provides dependable communication, rugged construction, and long service life in demanding marine service environments.
Key Features
- Genuine TEXA OEM marine diagnostic cable
- Designed for Suzuki Marine outboard engines
- Supports 4-pin Suzuki SDS diagnostic connector
- OEM-level ECU communication
- Read and clear diagnostic trouble codes
- View live engine data and operating parameters
- Supports maintenance and troubleshooting procedures
- Rugged marine-grade construction
- Fast plug-and-play installation
- Compatible with TEXA IDC6 Marine Software
- Professional-grade solution for marine dealerships and repair facilities
Compatible Applications
Designed for supported:
- Suzuki Marine Outboard Engines
- Suzuki 4-Stroke Outboard Engines equipped with the 4-pin SDS diagnostic connector
- Additional supported Suzuki Marine models listed within TEXA IDC6 Marine software
Note: This cable is intended for Suzuki engines using the newer 4-pin diagnostic connector. Earlier Suzuki engines equipped with the round 8-pin connector generally require the TEXA AM10 Universal Pin-Out Cable instead. Vehicle coverage depends on engine model, production year, connector type, and the current TEXA IDC6 Marine software version.
Required Accessories
This cable cannot be used independently.
Required
TEXA 3902358 Marine Main Cable (AM01)
The TEXA Marine Main Cable (AM01) is required to connect the AM22 cable to the TEXA Navigator interface and establish communication with supported Suzuki Marine engines.
Also Required
- TEXA Navigator TXT Multihub, Multihub 2, TXB, TXB2
- TEXA IDC6 Marine Software License
- TEXA AXONE Voice
- TEXA AXONE Plus
- TEXA AXONE Lite
- Compatible Windows PC running TEXA IDC6 Marine
Legacy Interface Requirement
If using an earlier-generation TEXA TXT interface, the TEXA 3903689 Bike & Marine Power Supply & Adapter Kit may also be required.
Why Buy from Axiom Tool Co?
When you purchase from Axiom Tool Co, you're purchasing from an authorized TEXA distributor specializing in professional marine diagnostic equipment.
Benefits of Buying from Axiom Tool Co
- Genuine TEXA products
- Expert product recommendations
- Professional technical support
- Fast nationwide shipping
- Competitive pricing
- Assistance selecting the correct Suzuki Marine diagnostic cable
- Complete TEXA Marine diagnostic system support
- Support before and after the sale
Ideal For
- Suzuki Marine dealerships
- Marina service departments
- Independent marine repair facilities
- Commercial marine fleets
- Mobile marine technicians
- Boat dealerships
- Professional outboard engine repair shops
Technical Specifications
Manufacturer: TEXA
Part Number: 3903560
Cable ID: AM22
Environment: Marine
Application: Suzuki Marine Diagnostic Cable
Supported Brands:
- Suzuki Marine
Supported Connector:
- 4-Pin Suzuki SDS Diagnostic Connector
Requires:
- TEXA 3902358 Marine Main Cable (AM01)
Software Compatibility:
- TEXA IDC6 Marine
Compatible Interfaces:
- TEXA Navigator TXT Multihub
- TEXA Navigator TXT Multihub 2
- TEXA Navigator TXB
- TEXA Navigator TXB2
