Description

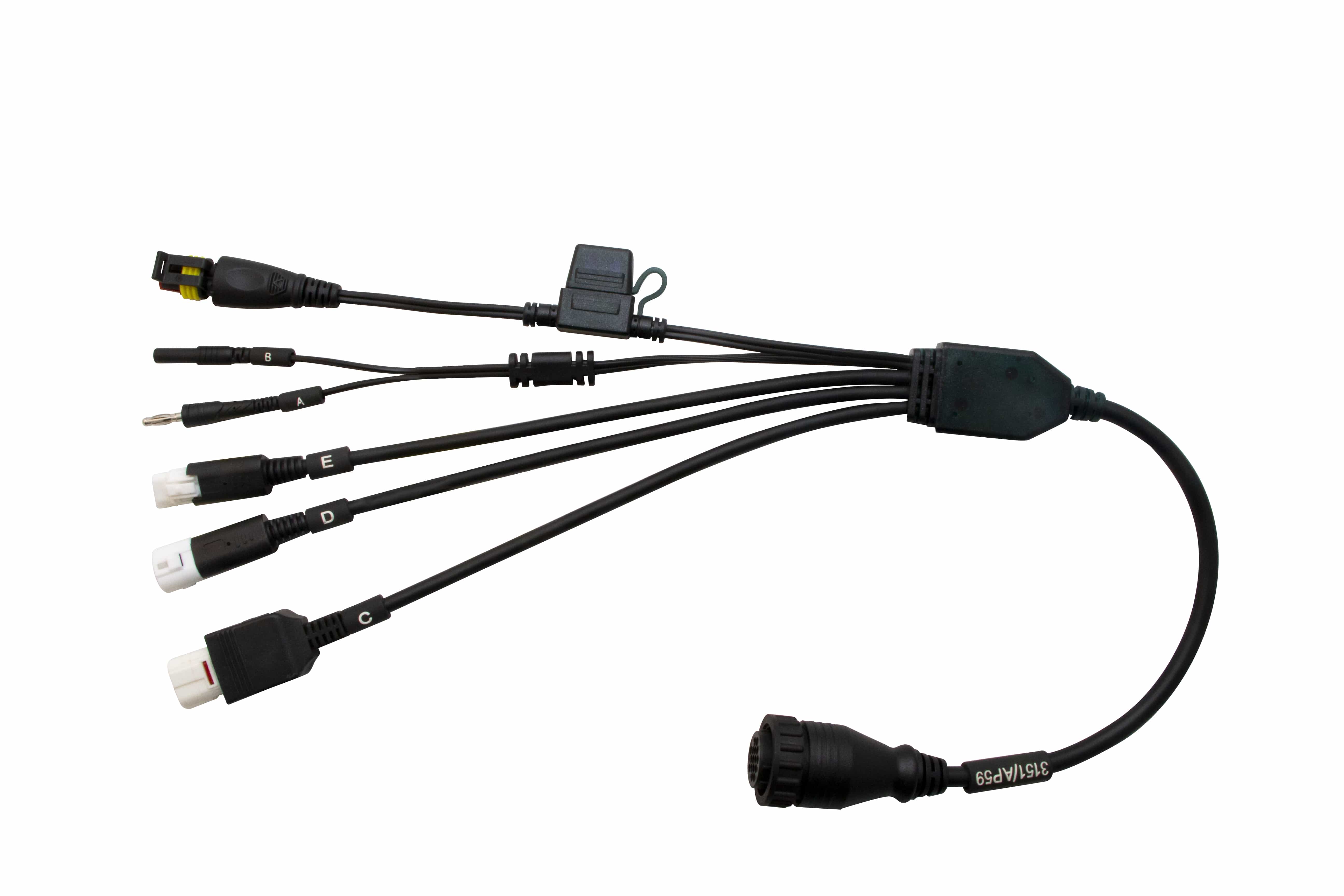

The TEXA 3909878 Yamaha Motorcycle Diagnostic Cable (3151/AP59) is a genuine OEM TEXA complete diagnostic cable designed for professional diagnostics on Yamaha motorcycles, scooters, ATVs, Side-by-Sides (UTVs), and other Yamaha powersports vehicles. Designed for use with the TEXA IDC6 Bike diagnostic platform, the AP59 consolidates multiple Yamaha cables into a single versatile solution for servicing a wide range of Yamaha vehicles.
The 3151/AP59 features six integrated connectors, allowing technicians to connect to Yamaha vehicles equipped with CAN Bus systems, serial communication systems, and various proprietary diagnostic connectors. This cable replaces the previous 3151/AP40, 3151/AP47, and 3151/AP49 cables, simplifying inventory while expanding vehicle coverage.
Designed for Yamaha dealerships, independent motorcycle repair facilities, ATV and UTV service centers, marine and powersports technicians, and fleet maintenance departments, the AP59 supports:
- Read and clear diagnostic trouble codes (DTCs)
- View live engine and sensor data
- Engine management diagnostics
- Fuel injection diagnostics
- CAN Bus diagnostics
- ECU communication
- Service reset procedures
- OEM-level diagnostics available through TEXA IDC6 Bike software
Manufactured to TEXA's demanding OEM standards, the AP59 provides dependable communication and workshop-grade durability for everyday professional use.
Key Features
- Genuine OEM TEXA diagnostic cable
- Complete Yamaha diagnostic cable cluster
- Supports motorcycles, scooters, ATVs, and Side-by-Sides (UTVs)
- Six integrated diagnostic connectors
- Compatible with both CAN Bus and serial diagnostic systems
- Replaces TEXA AP40, AP47, and AP49 cables
- OEM-level diagnostics and service functions
- Heavy-duty workshop-grade construction
- Plug-and-play operation with TEXA IDC6 Bike software
Vehicle Compatibility
The TEXA 3909878 (3151/AP59) supports numerous Yamaha powersports vehicles equipped with compatible diagnostic connectors.
Yamaha Motorcycles
Compatible with many:
- YZF Series
- MT Series
- XSR Series
- FJR Series
- Tracer Series
- Tenere Series
- Bolt Series
- VMAX
- XV Series
- WR Series
- XT Series
Yamaha Scooters
Supports many Yamaha scooters equipped with compatible diagnostic systems.
Yamaha ATV Models
Supports many Yamaha ATV models, including:
- Grizzly
- Kodiak
- Raptor
- YFZ Series
Yamaha Side-by-Sides (UTVs)
Supports compatible Yamaha UTV models including:
- Wolverine
- Viking
- YXZ1000R
Important: Vehicle compatibility depends on model year, ECU type, and diagnostic connector configuration. Always verify compatibility using the latest TEXA IDC6 Bike vehicle coverage before ordering.
Compatible TEXA Equipment
The TEXA 3909878 (3151/AP59) is compatible with:
- TEXA TXT MULTIHUB
- TEXA Navigator TXT
- TEXA Navigator TXB
- TEXA AXONE Voice
- TEXA AXONE Plus
- TEXA AXONE Nemo Plus
- TEXA IDC6 Bike Diagnostic Software
Additional Accessories Required
Required
- TEXA IDC6 Bike software license
- Compatible TEXA diagnostic interface
TXT Interface Requirement
When using a TXT or TXT MULTIHUB, you will also need:
- TEXA 3903689 TXT Power Supply & Adapter Kit
No additional adapter is required when using a Navigator TXB interface.
External Battery Power
Some Yamaha models require external battery power during diagnostics. When instructed by IDC6 Bike, connect the battery clamps from your TEXA interface to the vehicle battery using the AP59's integrated 2-way power connector.
Why Buy from Axiom Tool Co?
When you purchase your TEXA diagnostic equipment from Axiom Tool Co, you're working with experienced powersports diagnostic specialists who understand OEM Yamaha diagnostic systems.
Benefits of Buying from Axiom Tool Co
- Authorized TEXA distributor
- Genuine OEM TEXA products
- Expert Yamaha diagnostic support
- Assistance selecting the correct TEXA cables and accessories
- Competitive pricing
- Fast nationwide shipping
- Outstanding customer service before and after the sale
Whether you're servicing Yamaha motorcycles, ATVs, Side-by-Sides, or scooters, Axiom Tool Co can help you build the right TEXA diagnostic solution.
Technical Specifications
Manufacturer: TEXA
Manufacturer Part Number: 3909878
Cable Number: 3151/AP59
Product Name: Yamaha Motorcycle Diagnostic Cable
Application:
- Motorcycle Diagnostics
- Scooter Diagnostics
- ATV Diagnostics
- UTV Diagnostics
Supported Brand:
- Yamaha
Connector Configuration:
- 1 × 4-pin CAN connector
- 2 × 3-pin connectors (male & female)
- 2 × Probe connectors (male & female)
- 1 × 2-pin power connector
Communication Types:
- CAN Bus
- Serial Diagnostics
Primary Functions:
- Engine Management Diagnostics
- Fuel Injection Diagnostics
- CAN Bus Diagnostics
- Live Data
- Fault Code Reading & Clearing
- ECU Communication
- Service Functions
Replaces:
- TEXA 3151/AP40
- TEXA 3151/AP47
- TEXA 3151/AP49
Software Compatibility:
- TEXA IDC6 Bike
Interface Compatibility:
- TEXA TXT MULTIHUB
- TEXA Navigator TXT
- TEXA Navigator TXB
OEM Quality: Genuine TEXA
