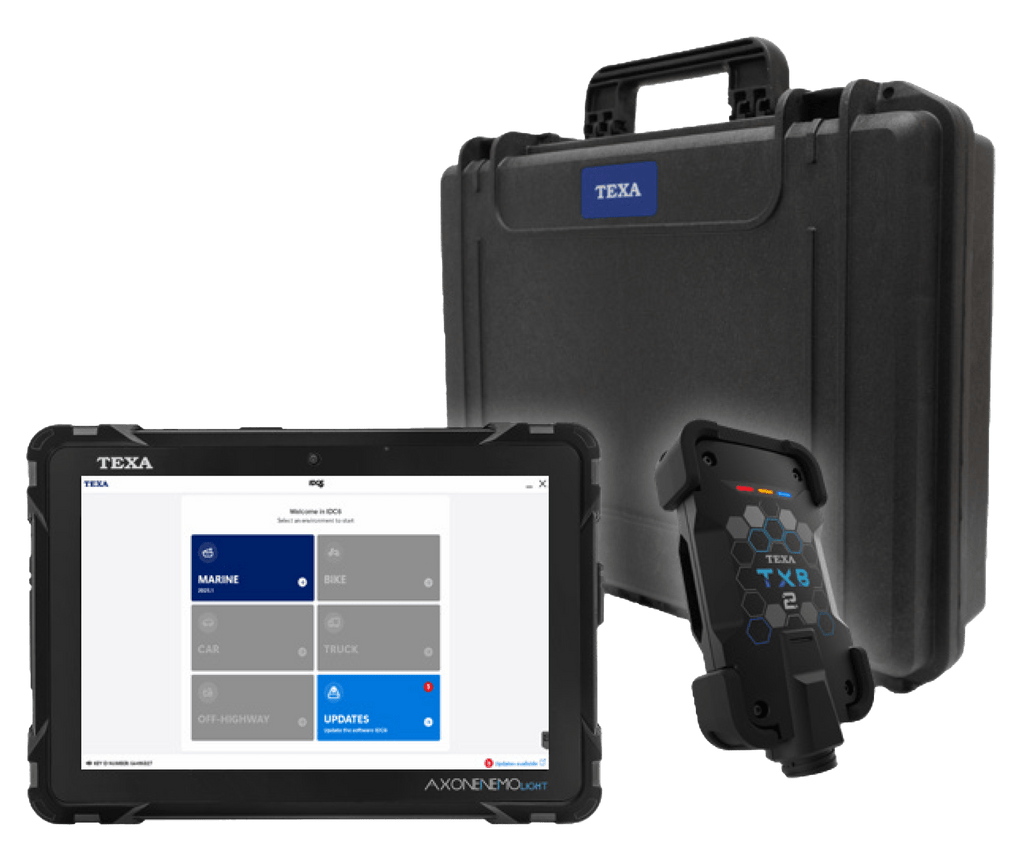

The TEXA AXONE NEMO LIGHT MARINE TXB (LMAR) KIT is the ultimate kit for shops looking to have dealer level diagnostics on a wide range of MARINE engines. Comprehensive all in one Coverage for OUTBOARD, INBOARD, INDUSTRIAL, & Personal Watercraft PWC. This kit comes with no cables allowing you to buy just what you need.
Features:
- Intel N100 Quad-Core Processor: Ensures fast, efficient diagnostics.
- Windows 11 IoT Enterprise: Advanced operating system tailored for professional use.
- 10.1” Multi-Touch Display: High-resolution screen offering crystal-clear visuals and responsive touch.
- 8 GB RAM & 250 GB SSD: Ample memory and storage for high-performance multitasking.
- Bluetooth 5.2 & Wi-Fi 6: Seamless wireless connectivity for quick updates and communication.
- Dual Cameras: Front and rear cameras enhance usability for remote diagnostics or documentation.
- Robust Design: Built with a reinforced structure and IP54 protection for durability in tough conditions, resistant to dust and splashes
- The NAVIGATOR TXB2 is a versatile diagnostic tool tailored for BIKE and MARINE environments. It supports all current protocols, allowing seamless integration with various diagnostic cables through its 16-pin CPC connector. Key features include CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB
FLASH, 564KB RAM for easy map file management, and dynamic testing, which records vehicle/boat data during motion to diagnose issues more accurately. It works with TEXA’s IDC6 software, enabling operations like error reading, key programming, and device configuration. Wireless communication via Bluetooth and CAN support enhances its utility.
-
SUPPORTED PROTOCOLS
• Blink codes
• K, L (with current protection 100 mA),
ISO9141-2, ISO14230
• FD CAN 11898-2:2016 2 channels
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J1708
• RS232
- 10.1" Ultra Wide Display

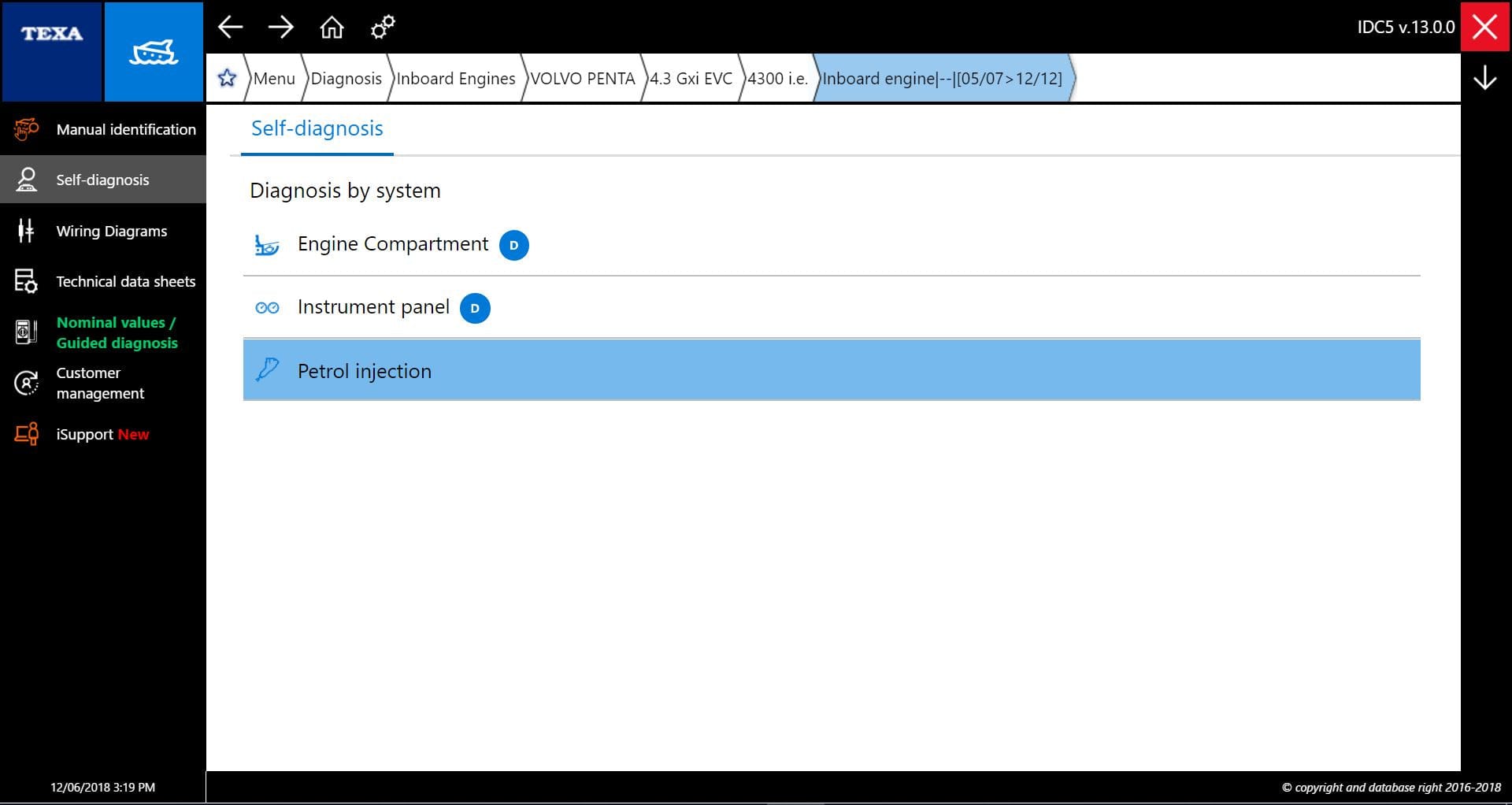

- IDC6 MARINE Software
- 1-Year TEXPACK Subscription Included
- Intel N100 • 8GB RAM • 250GB SSD
- Inboard • Outboard • Jet-Ski • Generator
BUILD YOUR COMPLETE TEXA SETUP
Get the coverage, information and connections your work demands.
STEP 01
EXPAND YOUR COVERAGE
Choose additional TEXA license environments.
STEP 02
ADD TEXAINFO PACKAGES
Technical information when you need it.
STEP 03
SELECT CABLE & ADAPTER KITS
Find the right connections for your equipment.
DEALER-LEVEL DIAGNOSTICS.
WITHOUT THE DEALERSHIP LIMITATIONS.
FIND THE RIGHT TEXA PACKAGE FOR YOUR SHOP
Compare diagnostic packages and choose the setup that fits your coverage needs.
|
ESSENTIAL PACKAGE
AXONE LIGHTTXB 2 |
Most Popular
ENHANCED PACKAGE
AXONE LIGHTTXB 2 (w/ CABLE KIT) |
|
|---|---|---|
| PART # | LMAR | LMARBС |
| COVERAGE | IDC6 MARINE | IDC6 MARINE |
| VCI | NAVIGATOR TXB2 | NAVIGATOR TXB2 |
| PASS-THRU | - | - |
| PROTOCOLS | Blink codes, K,L, CAN, SAE (and more) | Blink codes, K,L, CAN, SAE (and more) |
| ADAPTERS | - | - |
| TABLET | AXONE NEMO LIGHT | AXONE NEMO LIGHT |
| DISPLAY | 10.1" - 1920×1200 | 10.1" -1920×1200 |
| MEMORY | 250GB/ 8G RAM | 250GB/8G RAM |
| PROCESSOR | INTEL N100 CPU | INTEL N100 CPU |
| MAX # OF LICENSES | 2 | 2 |
| WARRANTY | 1YR - EXTENDABLE | 1YR - EXTENDABLE |
| PRICE | $4,295 | $4,755 |
| TEXPACK* | $450 (first year included) | $450 (first year included) |
| TEXINFO* | $300 | $300 |
