TEXA LMARBC MARINE DIAGNOSTIC SCAN TOOL PACKAGE

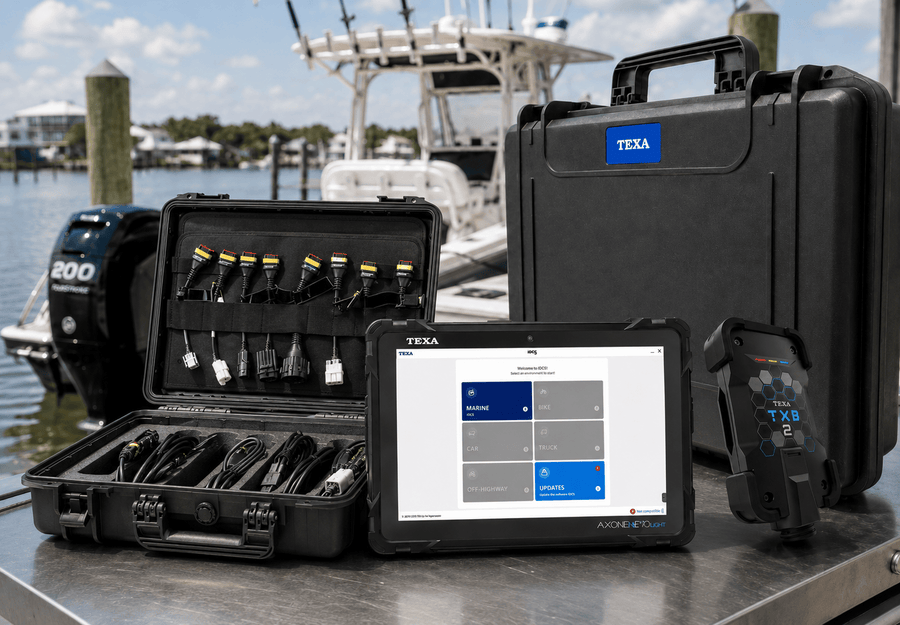

The TEXA AXONE NEMO LIGHT MARINE TXB (LMARBC) KIT is the ultimate kit for shops looking to have dealer level diagnostics on a wide range of MARINE engines. Comprehensive all in one Coverage for OUTBOARD, INBOARD, INDUSTRIAL, & Personal Watercraft PWC. Kit includes marine basic case, that covers the most popular marine engines.

Features:

• Intel N100 Quad-Core Processor: Ensures fast, efficient diagnostics.
• Windows 11 IoT Enterprise: Advanced operating system tailored for professional use.
• 10.1” Multi-Touch Display: High-resolution screen offering crystal-clear visuals and responsive touch.
• 8 GB RAM & 250 GB SSD: Ample memory and storage for high-performance multitasking.
• Bluetooth 5.2 & Wi-Fi 6: Seamless wireless connectivity for quick updates and communication.
• Dual Cameras: Front and rear cameras enhance usability for remote diagnostics or documentation.
• Robust Design: Built with a reinforced structure and IP54 protection for durability in tough conditions, resistant to dust and splashes
• The NAVIGATOR TXB2  is a versatile diagnostic tool tailored for BIKE and MARINE environments. It supports all current protocols, allowing seamless integration with various diagnostic cables through its 16-pin CPC connector. Key features include CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB
  FLASH, 564KB RAM for easy map file management, and dynamic testing, which records vehicle/boat data during motion to diagnose issues more accurately. It works with TEXA’s IDC6 software, enabling operations like error reading, key programming, and device configuration. Wireless communication via Bluetooth and CAN support enhances its utility.

• SUPPORTED PROTOCOLS
  • Blink codes
  • K, L (with current protection 100 mA),
  ISO9141-2, ISO14230
  • FD CAN 11898-2:2016 2 channels
  • CAN ISO 11898-3 LOW Speed
  • CAN SAE J2411 Single Wire
  • SAE J1850 PWM
  • SAE J1850 VPW
  • SAE J1708
  • RS232
