TEXA Forming Gas Leak Detection Kit S0755K

TEXA Forming Gas Leak Detection Kit

Accurate & Eco-Friendly AC Leak Detection for R134a, R1234yf & R744 (CO₂)

Product Overview

The TEXA Forming Gas Kit is the professional solution for detecting micro leaks in automotive air conditioning systems. Designed for precision and reliability, this kit uses a forming gas mixture (95% nitrogen and 5% hydrogen) to safely and effectively locate even the smallest refrigerant leaks. This method is not only accurate—it also meets Mercedes-Benz Groups official requirements for gas-based diagnostics.

Key Features & Benefits

✅ Precise Leak Detection

• Detects micro leaks that other systems often miss

• Hydrogen molecules are smaller than refrigerants, allowing deep detection in tight areas

✅ Compatible With Multiple Refrigerants

• Works with R134a, R1234yf, and R744 (CO₂) systems

✅ Meets Manufacturer Standards

• Approved for use by Mercedes-Benz and aligned with industry best practices

✅ Environmentally Responsible

• Forming gas is non-polluting and safe for technicians and the environment

✅ Faster, More Accurate Than Alternatives

• Better than nitrogen alone, which may give false positives

• More efficient than UV dye, which requires flushing and delayed leak visibility

✅ Collision Repair & AC Maintenance Ready

• Ideal for both routine maintenance and required diagnostics during collision repair

• Ensures AC systems are not recharged without identifying leaks

Why Choose the TEXA Forming Gas Kit?

An undercharged A/C system is a clear sign of a leak—don’t just recharge and hope for the best. Ensure responsible diagnostics with a tool trusted by professionals across automotive service and collision repair industries. The TEXA Forming Gas Kit makes pinpoint leak detection faster, cleaner, and more accurate.

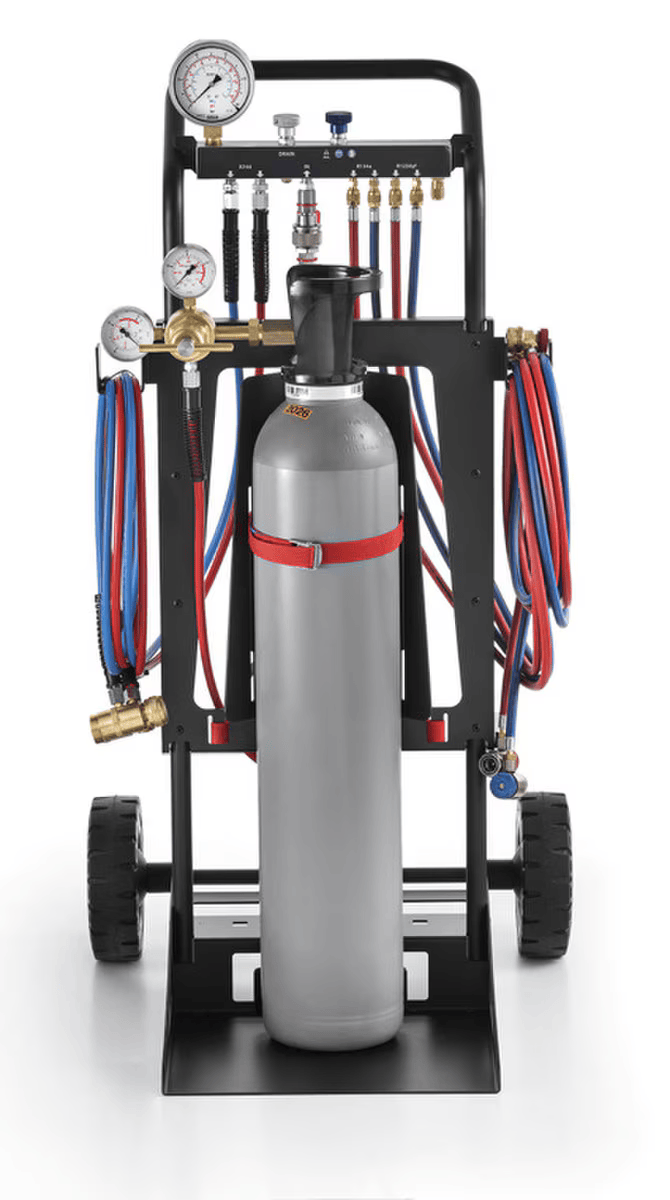

FORMING GAS CART TTF 700
– Dimensions: 1180x590x668 mm; Weight: 24.5 kg
– Suitable for A/C systems: R134a, R1234yf, R744
– Forming Gas tanks* supported up to 20 L
– Maximum pressure: 20 bar for R134a and R1234yf;
 100 bar for R744
– Equipped with safety valve that opens completely in case the
operating value is reached
– Manometer 100 bar, 100 mm CL1
– Service hoses: R134a (LP/HP) 3 m; R1234yf (LP/HP) 2.5 m; R744
(LP/HP) 2.5 m; Forming Gas tank 2.5 m
– Forming Gas tank pressure reducer: input operating pressure max
300 bar; output pressure max 100 bar
– Safety belt to secure the tank to the cart
– Forming Gas tank (sold separately / not included)

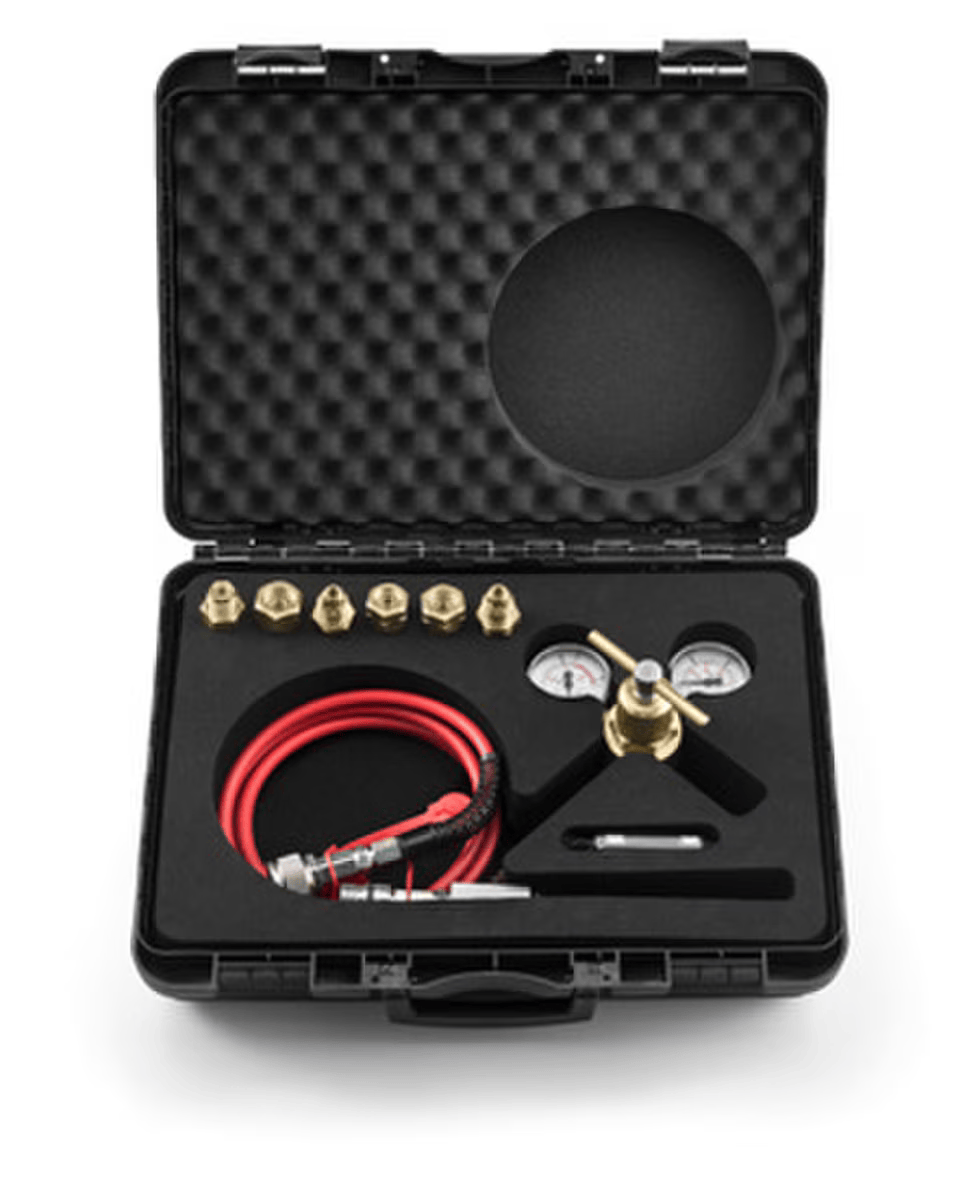

FORMING GAS CASE
– Dimensions: 470x350x190 mm; Weight: 7 kg
– Set of adapters for the coupling of the Forming Gas tank
– Forming Gas tank pressure reducer:
input operating pressure 300 bar max, output 100 bar max
– Connection kit for KONFORT 760 Touch / 780 Touch
including: 150 mm hose, evacuation valve, safety valve
– Teflon seals

**** This Kit Should Be Purchased Along With S0755H Forming Gas Leak Detector.
