Zenith Z5 (EZDS EZ5KT002)

The EZDS ZENITH Z5 Diagnostic Scan Tool is a true all in one multi brand bi-directional scan tool. This professional level tool is brought to you by the same company that brought you the GSCAN, GSCAN 2, & GSCAN 3 tools. Z5 is an exceptionally fast tool running on the Android 9 operating system with an Octa Core Processor at 2.0 GHz.

• Extremely fast ALL System Scan

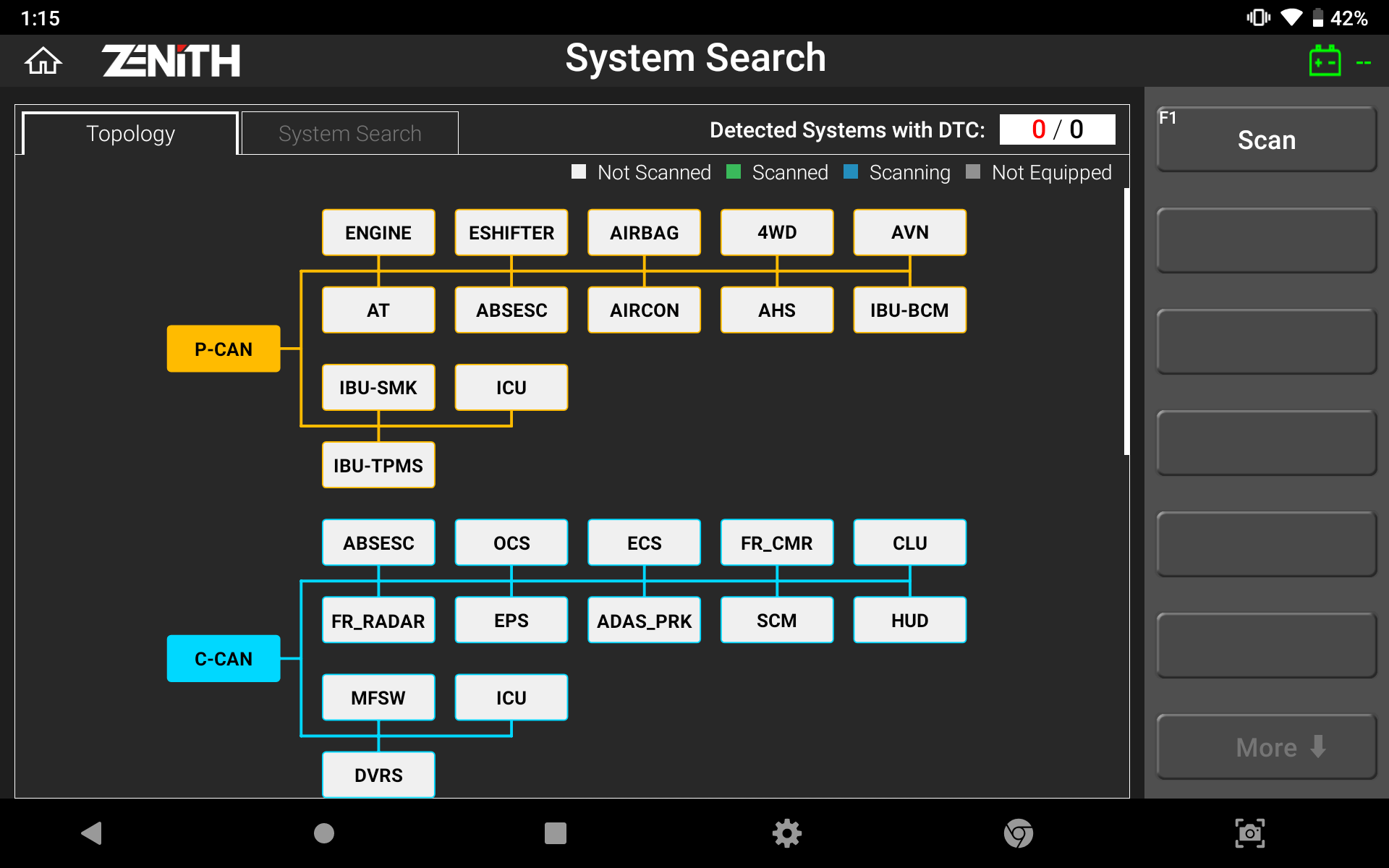

• Blazingly fast Topology Scan
• Wireless diagnostic interface
• Supports OBD 1 to the latest diagnostic protocol. including CAN FD & DoIP.

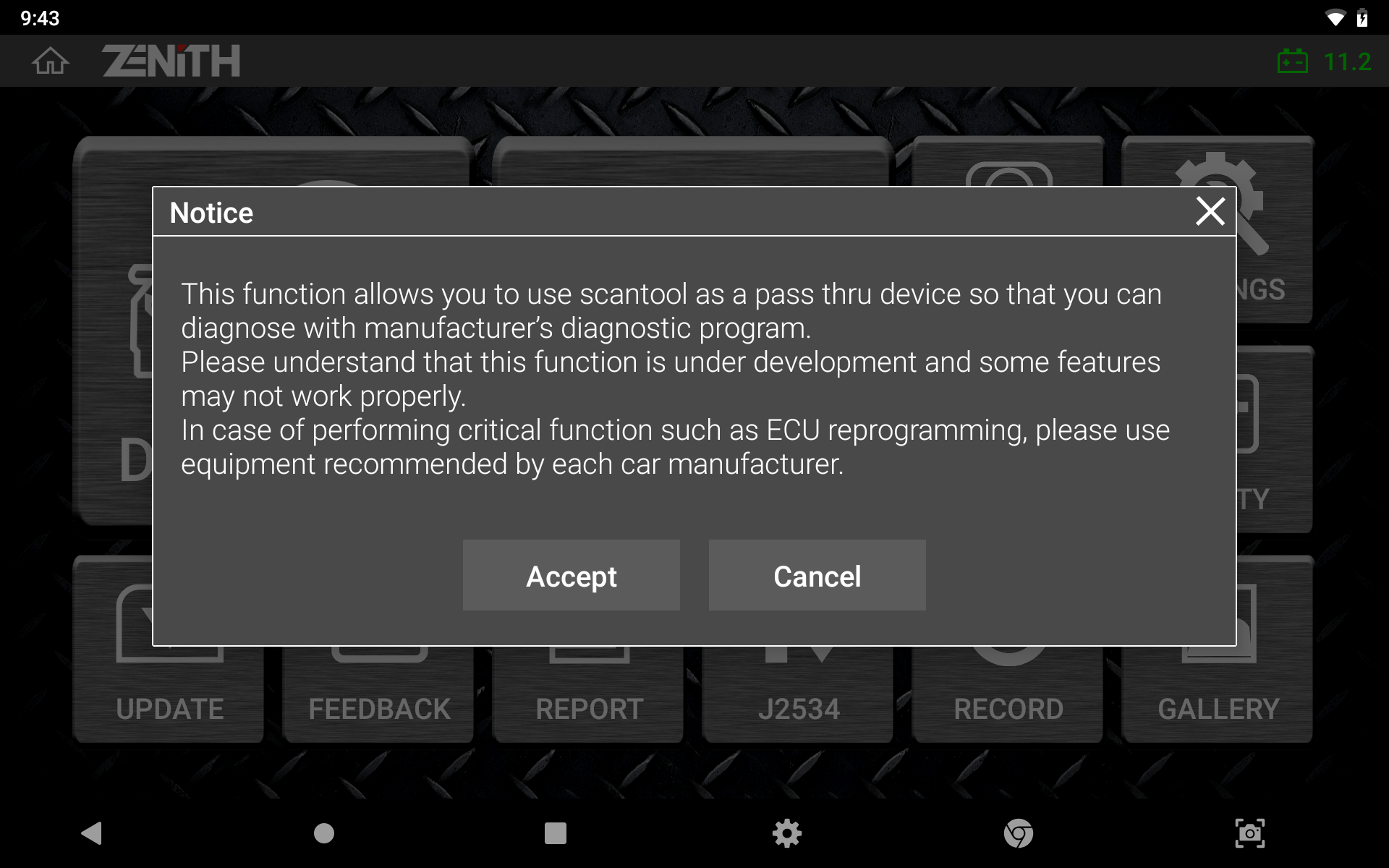

• J2534 Device - Zenith acts as a J2534 Pass-thru device for multiple car makes with CAN-Bus, KWP2000, and ISO9141 protocols, supporting J2534 programming and diagnostics.

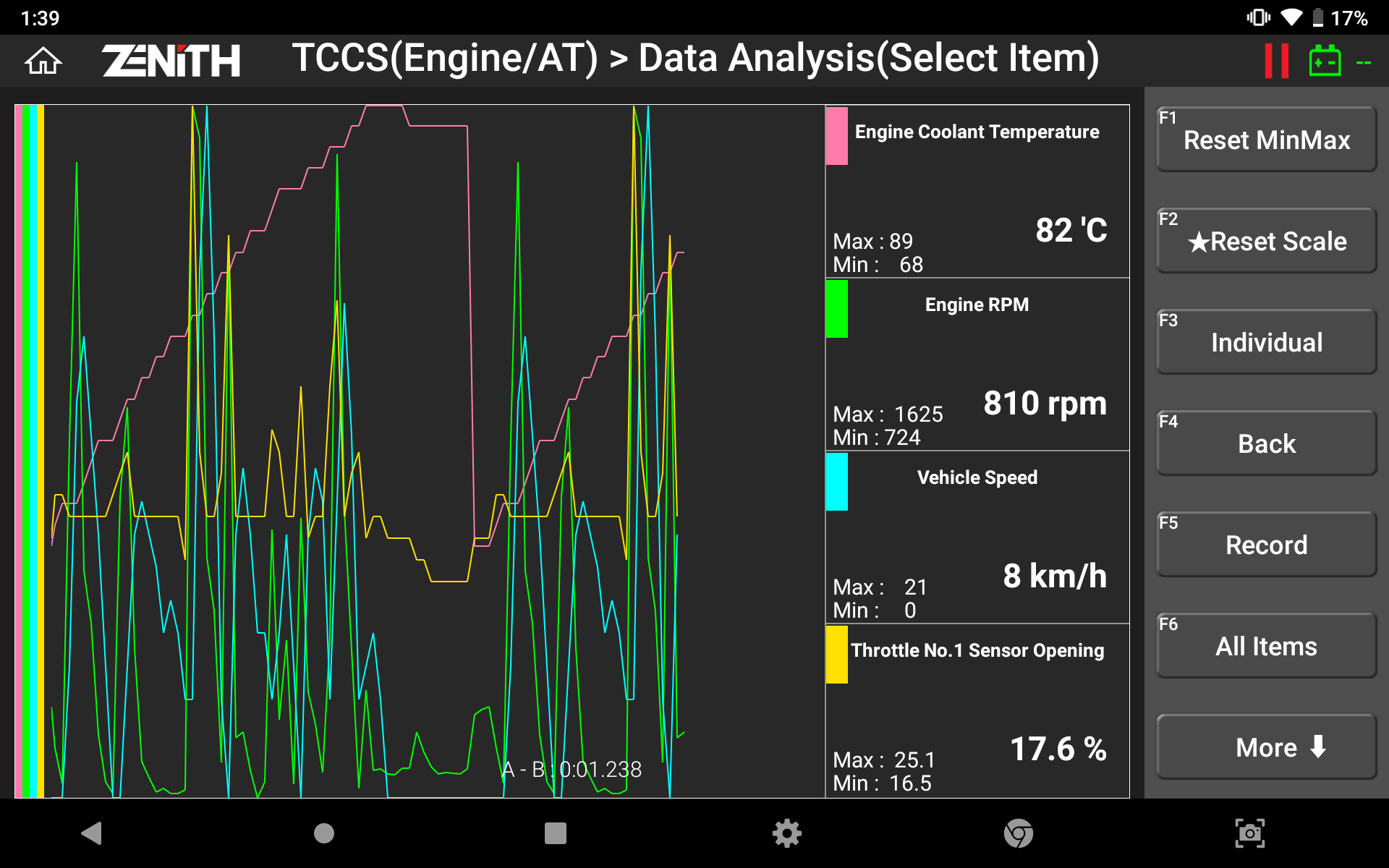

• From simple Read / Erase codes to Actuation Tests with simultaneous Graphing of Live Data.
• Pre & Post Repair Diagnostic Reports
• FCA Secure Gateway Access, Ford Special License Ready, Nissan Central Gateway System Access
• Bi-directional communications with 24 v commercial trucks & busses.
• SOC, SOH, Voltage of each cell available in BMS for EV / HEV / PHEV
• Advanced Service Functions including Immobilizer Coding, DPF Regeneration, Battery Reset, Electronic Parking Brake Reset, Injector Coding, Static & Dynamic ADAS Calibrations & more.
• Tool will continue to work without an active subscription, but gateway access requires an active subscription with the latest software.

• Zenith Z5 tablet
• OBD2 Main cable
• AC Power Supply and plug adapters
• Z5 Rear hand strap
• Z5 Stylus Pen w/string
• J2534 USB cable
• Z5 Carrying Case
• 1-year of updates
• 1-year warranty
