Description

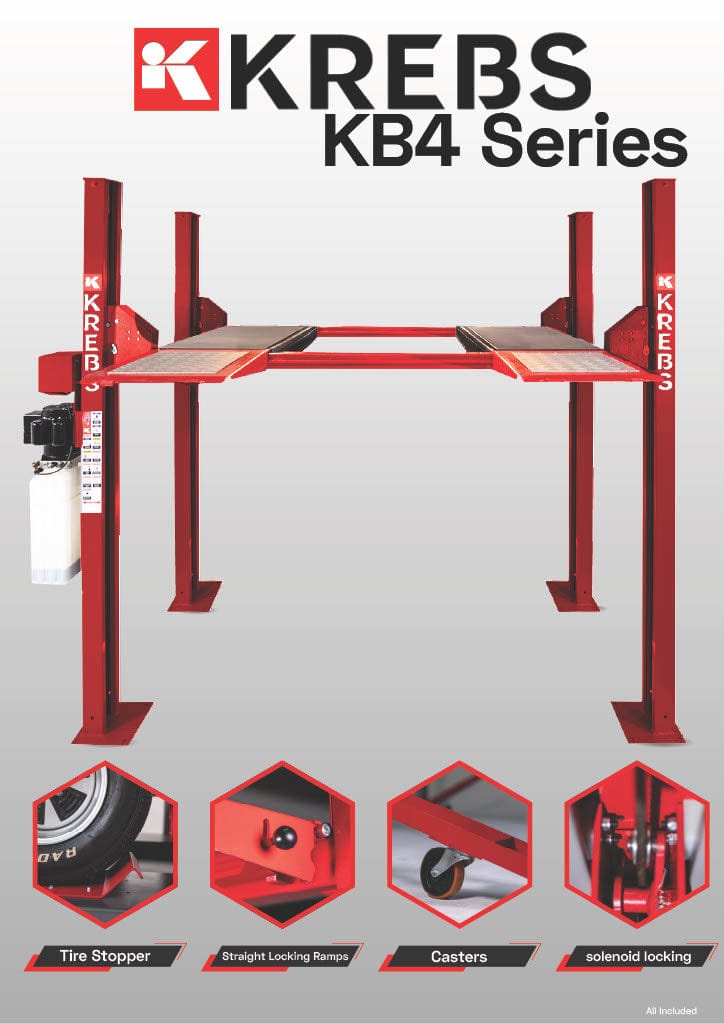

The KB4/10 stands as a testament to KREBS unwavering commitment to excellence. It’s nothing short of remarkable—a four-post automotive lift that has been meticulously crafted using state-of-the-art technology. Our singular aim: deliver to our discerning buyers an advanced and secure lift.
Features
Lightweight and robust structural body
The columns of our KB 10 and KB Four post equipment are designed with everyday usability in mind. Through engineering processes, we've achieved the lightest and most robust columns. By using folds in thinner sheets, we've created lightweight columns for easy handling without compromising the necessary robustness to withstand daily use.
Coating
Purchasing an automotive lift painted with powder coating offers superior durability, scratch resistance, a variety of colors, eco-friendly application, and corrosion protection, ensuring an excellent cost-benefit ratio.
Electric / hydraulic power system
Combining the efficiency of electrical energy with hydraulic force, our systems deliver greater power, precise control, and rapid response. Compact, lightweight, and durable, they ensure smooth and efficient operations with less maintenance required.
10,000-lb. maximum lifting capacity
With a maximum lifting capacity of 10,000 pounds, our lifts ensure versatility and safety to handle a variety of vehicles and projects, providing efficiency and exceptional results in your workshop or garage.

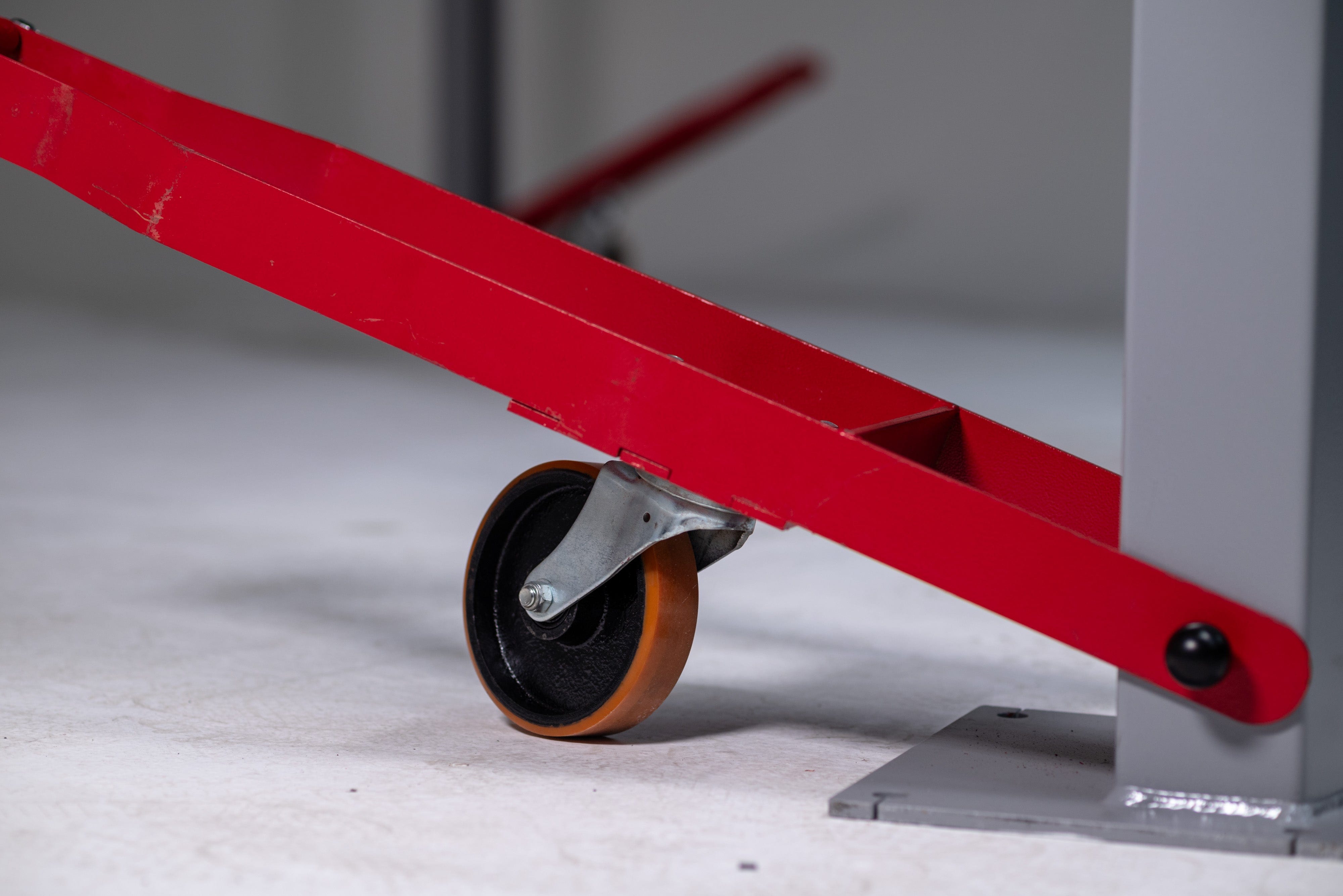

Portable Wheel Kit
It can be used without the need for fixation to the ground, on different types of flat floors. For slippery floors, it has attachment points for anchor bolts.
Premium Features

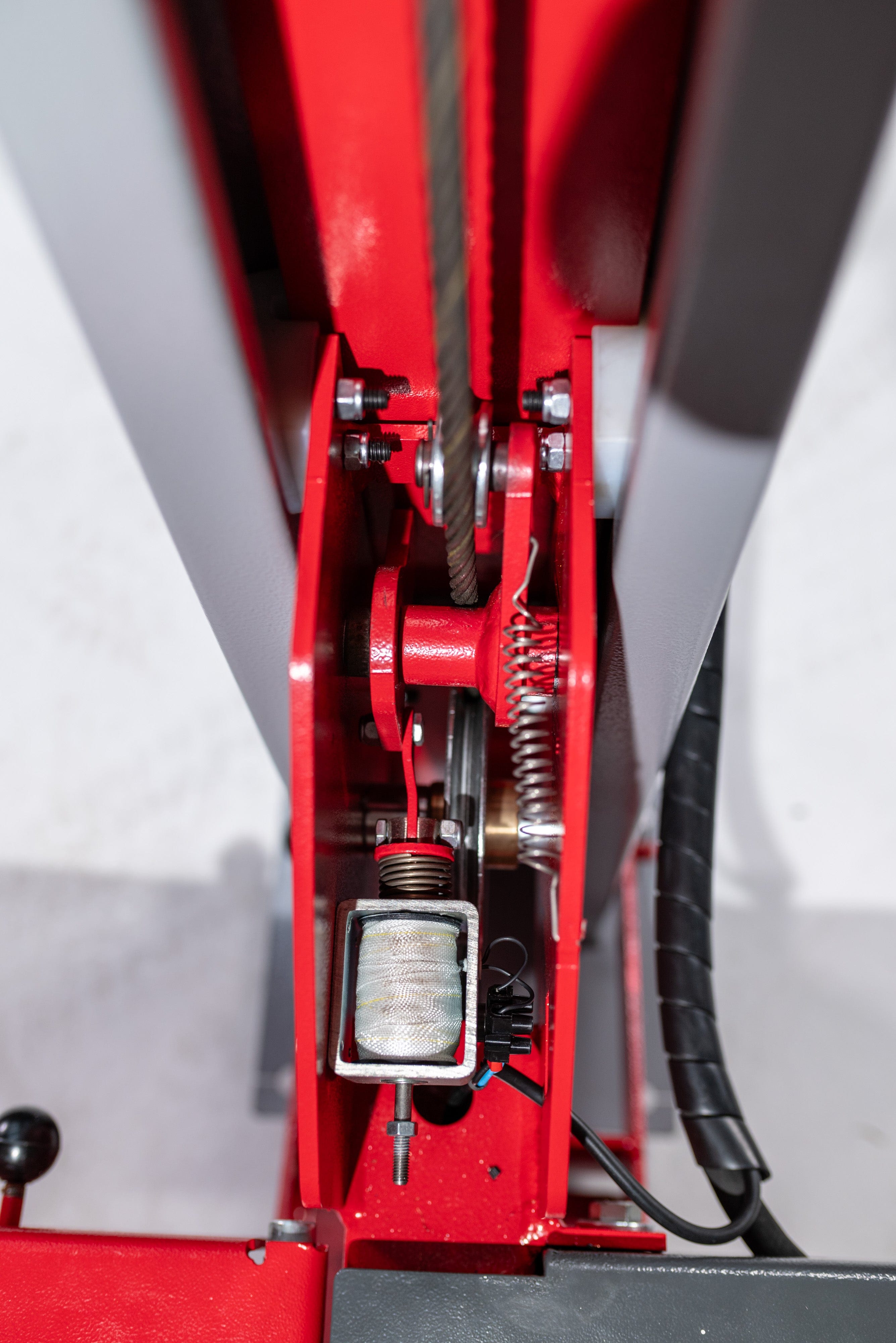

Electric solenoid locking release system (airless), 6-
inch locking ladder, 7-bend column construction, 4-
3/16" runways. Height: 83-5/8"
Runway width includes four steel drip trays. Caster
kit included

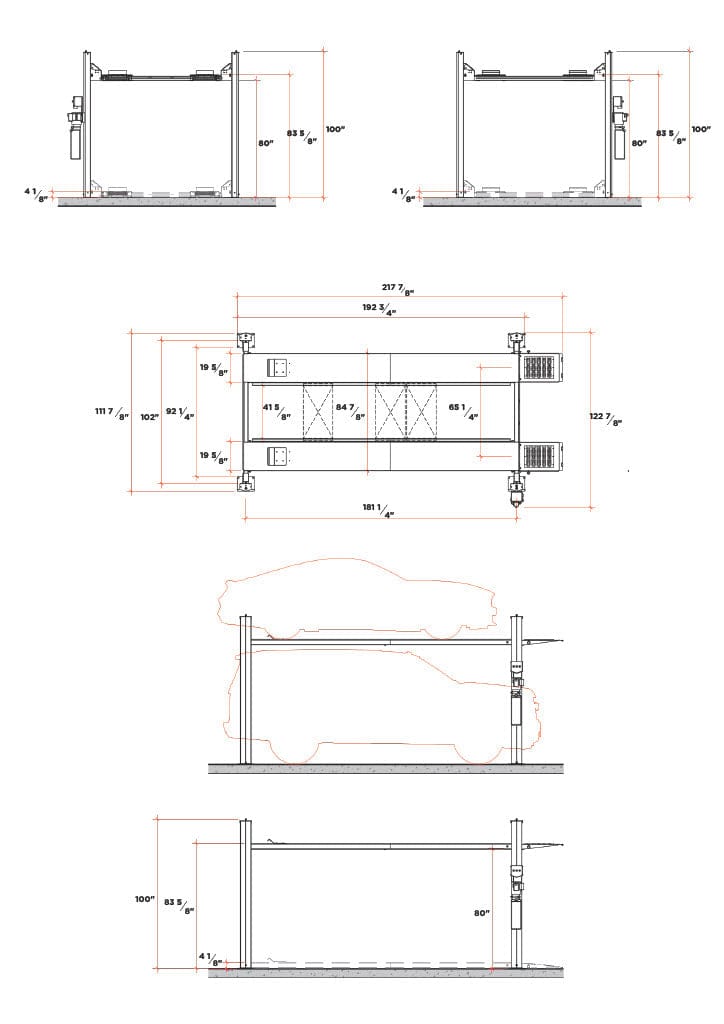

TECHNICAL SPECS
| KB4/8 | KB4/10 | |
|---|---|---|
|
LIFTING CAPACITY
|
8,000 lbs
|
10,000 lbs
|
|
A – OVERALL HEIGHT (POST)
|
100”
|
|
|
B- MAX. RISE HEIGHT
|
80-5/8”
|
|
|
C- OVERALL RUNWAYS HEIGHT
|
85-3/16”
|
|
|
D- RUNWAYS HEIGHT
|
4-1/2”
|
|
|
E- OVERALL LENGTH
|
220”
|
|
|
F- BASE PLATE LENGTH
|
195”
|
|
|
G- WIDTH EACH RUNWAY
|
19-11/16”
|
|
|
H- WIDTH BETWEEN RUNWAYS
|
37-1/4”
|
43-1/4”
|
|
I – TOTAL WIDTH RUNWAYS
|
76”
|
82”
|
|
J – CENTER OF RUNWAYS
|
57”
|
63”
|
|
K- OVERALL WIDTH
|
101- 7/8”
|
107- 7/8”
|
|
L – INSIDE COLUMNS
|
92”
|
98”
|
|
M – INSIDE BASE PLATE
|
82-1/2”
|
88-1/2”
|
|
N – CENTER TO CENTER COLUMN
|
183-5/8”
|
189-5/8”
|
|
O – OVERALL WIDTH (WITH MOTOR)
|
113”
|
119”
|
|
REQUIRED BAY SIZE (O X E)
|
172.5 sqft
|
181.9 spft
|
|
MIN CONCRETE THICKNESS (RECOMMENDED)
|
6”
|
|
|
SAFETY DEVICE
|
Manual
|
Electric (airless)
|
|
ELECTRIC CERTIFICATION (MOTOR)
|
UL
|
|
|
DRIP TRAY
|
Included
|
|
|
CASTER KIT
|
Included
|
|
|
FINISHING
|
Powder coated
|
|
